Industrial Enclosure Selection in 3 Easy Steps

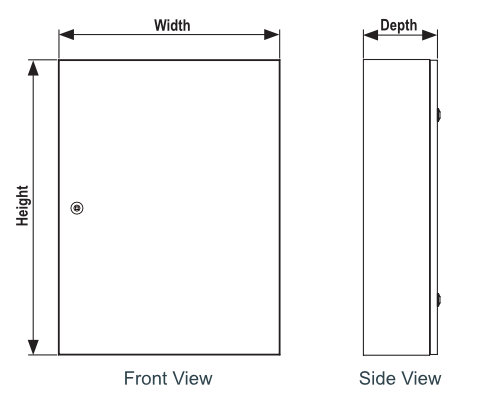

Step 1 - Choose your critical dimension
Step 2 - See detailed enclosure information
Step 3 - Make an enquiry / Find out the price and where to buy it.
Step 1
Use the dropdown boxes above the table below to filter to your required enclosure. Click the 'Select' button when you have made your choice.
Note that you can select more than 1 item in the range to show any enclosures that meet that criteria.
NB: Selecting multiple features will result in Feature 1 OR Feature 2.
For example if you select "Mounting Pan" and "Sloping Roof", you will see selections that either have a Mounting Pan OR a Sloping Roof, or both.
For this reason we would only advise selecting 1 feature at a time.
Also note that suitability to an application may need to be checked, for example heat rise calculations may need to be performed for AS/NZS 61439 compliance.
Search Tips for 1st Time Visitors
To get the most out the the industrial enclosure selector you can apply the following: -
- Selecting a dimension will give you that size only. To select a range, pick all the sizes between the ranges you want.
- To cancel a selection you have already made, just hover over the selection in the list under the selection box and click it.
- Selecting multiple features will select any enclosures that have ANY of those features NOT ALL the features you selected.
- To reset your selection, just click on everything selected to deselect it, OR refresh the page.
To get the most out the the industrial enclosure selector you can apply the following: -
- Selecting a dimension will give you that size only. To select a range, pick all the sizes between the ranges you want.
- To cancel a selection you have already made, just hover over the selection in the list under the selection box and click it.
- Selecting multiple features will select any enclosures that have ANY of those features NOT ALL the features you selected.
- To reset your selection, just click on everything selected to deselect it, OR refresh the page.
Table Filters
Link | Height (mm) | Width (mm) | Depth (mm) | Material | IP Rating Required | Part Number | Description | Actual IP | Image | Select | Range | Features/Accessories |
---|---|---|---|---|---|---|---|---|---|---|---|---|
Polynova PJ | 110 | 75 | 65 | Plastic | IP55, IP34 | PJ110706 | Adaptable box | IP55 | Select | PJ | Mounting pan, Wall mounting brackets, DIN rail | |
Polynova PJ | 110 | 110 | 65 | Plastic | IP55, IP34 | PJ111106 | Adaptable box | IP55 | Select | PJ | Mounting pan, Wall mounting brackets, DIN rail | |
Polynova PJ | 150 | 110 | 75 | Plastic | IP55, IP34 | PJ151107 | Adaptable box | IP55 | Select | PJ | Mounting pan, Wall mounting brackets, DIN rail | |
Polynova PJ | 150 | 150 | 75 | Plastic | IP55, IP34 | PJ151507 | Adaptable box | IP55 | Select | PJ | Mounting pan, Wall mounting brackets, DIN rail | |
Polynova PJ | 220 | 150 | 75 | Plastic | IP55, IP34 | PJ221507 | Adaptable box | IP55 | Select | PJ | Mounting pan, Wall mounting brackets, DIN rail | |
Polynova PJ | 300 | 220 | 75 | Plastic | IP55, IP34 | PJ302207 | Adaptable box | IP55 | Select | PJ | Mounting pan, Wall mounting brackets, DIN rail | |
Polynova PJ | 180 | 90 | 85 | Plastic | IP55, IP34 | PJ180908 | Adaptable box | IP55 | Select | PJ | Mounting pan, Wall mounting brackets, DIN rail | |
Polynova PJ | 150 | 110 | 100 | Plastic | IP55, IP34 | PJ151110 | Adaptable box | IP55 | Select | PJ | Mounting pan, Wall mounting brackets, DIN rail | |
Polynova PJ | 150 | 150 | 100 | Plastic | IP55, IP34 | PJ151510 | Adaptable box | IP55 | Select | PJ | Mounting pan, Wall mounting brackets, DIN rail | |
Polynova PJ | 220 | 150 | 100 | Plastic | IP55, IP34 | PJ221510 | Adaptable box | IP55 | Select | PJ | Mounting pan, Wall mounting brackets, DIN rail | |
Polynova PJ | 300 | 220 | 100 | Plastic | IP55, IP34 | PJ302210 | Adaptable box | IP55 | Select | PJ | Mounting pan, Wall mounting brackets, DIN rail | |
Polynova PJ | 110 | 110 | 112 | Plastic | IP55, IP34 | PJ111111 | Adaptable box | IP55 | Select | PJ | Mounting pan, Wall mounting brackets, DIN rail | |
Polynova PJ | 150 | 110 | 150 | Plastic | IP55, IP34 | PJ151115 | Adaptable box | IP55 | Select | PJ | Mounting pan, Wall mounting brackets, DIN rail | |
Polynova PJ | 150 | 150 | 150 | Plastic | IP55, IP34 | PJ151515 | Adaptable box | IP55 | Select | PJ | Mounting pan, Wall mounting brackets, DIN rail | |
Polynova PJ | 220 | 150 | 150 | Plastic | IP55, IP34 | PJ221515 | Adaptable box | IP55 | Select | PJ | Mounting pan, Wall mounting brackets, DIN rail | |
Polynova PJ | 300 | 220 | 150 | Plastic | IP55, IP34 | PJ302215 | Adaptable box | IP55 | Select | PJ | Mounting pan, Wall mounting brackets, DIN rail | |
Polynova PJ | 110 | 75 | 65 | Plastic | IP55, IP34 | PJ110706T | Adaptable box, Transparent Lid | IP55 | Select | PJ | Mounting pan, Wall mounting brackets, DIN rail, Transparent Lid | |
Polynova PJ | 150 | 110 | 75 | Plastic | IP55, IP34 | PJ151107T | Adaptable box, Transparent Lid | IP55 | Select | PJ | Mounting pan, Wall mounting brackets, DIN rail, Transparent Lid | |
Polynova PJ | 150 | 150 | 75 | Plastic | IP55, IP34 | PJ151507T | Adaptable box, Transparent Lid | IP55 | Select | PJ | Mounting pan, Wall mounting brackets, DIN rail, Transparent Lid | |
Polynova PJ | 220 | 150 | 75 | Plastic | IP55, IP34 | PJ221507T | Adaptable box, Transparent Lid | IP55 | Select | PJ | Mounting pan, Wall mounting brackets, DIN rail, Transparent Lid | |
Polynova PJ | 300 | 220 | 75 | Plastic | IP55, IP34 | PJ302207T | Adaptable box, Transparent Lid | IP55 | Select | PJ | Mounting pan, Wall mounting brackets, DIN rail, Transparent Lid | |
Polynova PJ | 150 | 110 | 100 | Plastic | IP55, IP34 | PJ151110T | Adaptable box, Transparent Lid | IP55 | Select | PJ | Mounting pan, Wall mounting brackets, DIN rail, Transparent Lid | |
Polynova PJ | 150 | 150 | 100 | Plastic | IP55, IP34 | PJ151510T | Adaptable box, Transparent Lid | IP55 | Select | PJ | Mounting pan, Wall mounting brackets, DIN rail, Transparent Lid | |
Polynova PJ | 220 | 150 | 100 | Plastic | IP55, IP34 | PJ221510T | Adaptable box, Transparent Lid | IP55 | Select | PJ | Mounting pan, Wall mounting brackets, DIN rail, Transparent Lid | |
Polynova PJ | 300 | 220 | 100 | Plastic | IP55, IP34 | PJ302210T | Adaptable box, Transparent Lid | IP55 | Select | PJ | Mounting pan, Wall mounting brackets, DIN rail, Transparent Lid | |
Polynova PJ | 110 | 110 | 112 | Plastic | IP55, IP34 | PJ111111T | Adaptable box, Transparent Lid | IP55 | Select | PJ | Mounting pan, Wall mounting brackets, DIN rail, Transparent Lid | |
Polynova PJ | 150 | 110 | 150 | Plastic | IP55, IP34 | PJ151115T | Adaptable box, Transparent Lid | IP55 | Select | PJ | Mounting pan, Wall mounting brackets, DIN rail, Transparent Lid | |
Polynova PJ | 150 | 150 | 150 | Plastic | IP55, IP34 | PJ151515T | Adaptable box, Transparent Lid | IP55 | Select | PJ | Mounting pan, Wall mounting brackets, DIN rail, Transparent Lid | |
Polynova PJ | 220 | 150 | 150 | Plastic | IP55, IP34 | PJ221515T | Adaptable box, Transparent Lid | IP55 | Select | PJ | Mounting pan, Wall mounting brackets, DIN rail, Transparent Lid | |
Polynova PJ | 300 | 220 | 150 | Plastic | IP55, IP34 | PJ302215T | Adaptable box, Transparent Lid | IP55 | Select | PJ | Mounting pan, Wall mounting brackets | |
Polynova PS | 110 | 80 | 45 | Plastic | IP66, IP65, IP56, IP55, IP34 | PS110804 | Adaptable box | IP66 | Select | PS | Mounting pan, Wall mounting brackets | |
Polynova PS | 60 | 50 | 55 | Plastic | IP66, IP65, IP56, IP55, IP34 | PS060505 | Adaptable box | IP66 | Select | PS | Mounting pan, Wall mounting brackets | |
Polynova PS | 160 | 80 | 55 | Plastic | IP66, IP65, IP56, IP55, IP34 | PS160805 | Adaptable box | IP66 | Select | PS | Mounting pan, Wall mounting brackets | |
Polynova PS | 82 | 80 | 60 | Plastic | IP66, IP65, IP56, IP55, IP34 | PS080806 | Adaptable box | IP66 | Select | PS | Mounting pan, Wall mounting brackets | |
Polynova PS | 110 | 80 | 70 | Plastic | IP66, IP65, IP56, IP55, IP34 | PS110807 | Adaptable box | IP66 | Select | PS | Mounting pan, Wall mounting brackets | |
Polynova PS | 180 | 80 | 70 | Plastic | IP66, IP65, IP56, IP55, IP34 | PS180807 | Adaptable box | IP66 | Select | PS | Mounting pan, Wall mounting brackets | |
Polynova PS | 125 | 125 | 75 | Plastic | IP66, IP65, IP56, IP55, IP34 | PS121207 | Adaptable box | IP66 | Select | PS | Mounting pan, Wall mounting brackets | |
Polynova PS | 175 | 125 | 75 | Plastic | IP66, IP65, IP56, IP55, IP34 | PS171207 | Adaptable box | IP66 | Select | PS | Mounting pan, Wall mounting brackets | |
Polynova PS | 200 | 150 | 75 | Plastic | IP66, IP65, IP56, IP55, IP34 | PS201507 | Adaptable box | IP66 | Select | PS | Mounting pan, Wall mounting brackets | |
Polynova PS | 250 | 175 | 75 | Plastic | IP66, IP65, IP56, IP55, IP34 | PS251707 | Adaptable box | IP66 | Select | PS | Mounting pan, Wall mounting brackets | |
Polynova PS | 130 | 80 | 85 | Plastic | IP66, IP65, IP56, IP55, IP34 | PS130808 | Adaptable box | IP66 | Select | PS | Mounting pan, Wall mounting brackets | |
Polynova PS | 250 | 80 | 85 | Plastic | IP66, IP65, IP56, IP55, IP34 | PS250808 | Adaptable box | IP66 | Select | PS | Mounting pan, Wall mounting brackets | |
Polynova PS | 160 | 80 | 90 | Plastic | IP66, IP65, IP56, IP55, IP34 | PS160809 | Adaptable box | IP66 | Select | PS | Mounting pan, Wall mounting brackets | |
Polynova PS | 200 | 200 | 95 | Plastic | IP66, IP65, IP56, IP55, IP34 | PS202009 | Adaptable box | IP66 | Select | PS | Mounting pan, Wall mounting brackets | |
Polynova PS | 125 | 125 | 100 | Plastic | IP66, IP65, IP56, IP55, IP34 | PS121210 | Adaptable box | IP66 | Select | PS | Mounting pan, Wall mounting brackets | |
Polynova PS | 175 | 125 | 100 | Plastic | IP66, IP65, IP56, IP55, IP34 | PS171210 | Adaptable box | IP66 | Select | PS | Mounting pan, Wall mounting brackets | |
Polynova PS | 200 | 150 | 100 | Plastic | IP66, IP65, IP56, IP55, IP34 | PS201510 | Adaptable box | IP66 | Select | PS | Mounting pan, Wall mounting brackets | |
Polynova PS | 250 | 150 | 100 | Plastic | IP66, IP65, IP56, IP55, IP34 | PS251510 | Adaptable box | IP66 | Select | PS | Mounting pan, Wall mounting brackets | |
Polynova PS | 175 | 175 | 100 | Plastic | IP66, IP65, IP56, IP55, IP34 | PS171710 | Adaptable box | IP66 | Select | PS | Mounting pan, Wall mounting brackets | |
Polynova PS | 250 | 175 | 100 | Plastic | IP66, IP65, IP56, IP55, IP34 | PS251710 | Adaptable box | IP66 | Select | PS | Mounting pan, Wall mounting brackets | |
Polynova PS | 175 | 175 | 125 | Plastic | IP66, IP65, IP56, IP55, IP34 | PS171712 | Adaptable box | IP66 | Select | PS | Mounting pan, Wall mounting brackets | |
Polynova PS | 200 | 150 | 130 | Plastic | IP66, IP65, IP56, IP55, IP34 | PS201513 | Adaptable box | IP66 | Select | PS | Mounting pan, Wall mounting brackets | |
Polynova PS | 200 | 200 | 130 | Plastic | IP66, IP65, IP56, IP55, IP34 | PS202013 | Adaptable box | IP66 | Select | PS | Mounting pan, Wall mounting brackets | |
Polynova PS | 250 | 150 | 130 | Plastic | IP66, IP65, IP56, IP55, IP34 | PS251513 | Adaptable box | IP66 | Select | PS | Mounting pan, Wall mounting brackets | |
Polynova PS | 110 | 80 | 45 | Plastic | IP66, IP65, IP56, IP55, IP34 | PS110804T | Adaptable box, Transparent Lid | IP66 | Select | PS | Mounting pan, Wall mounting brackets, Transparent Lid | |
Polynova PS | 160 | 80 | 55 | Plastic | IP66, IP65, IP56, IP55, IP34 | PS160805T | Adaptable box, Transparent Lid | IP66 | Select | PS | Mounting pan, Wall mounting brackets, Transparent Lid | |
Polynova PS | 82 | 80 | 60 | Plastic | IP66, IP65, IP56, IP55, IP34 | PS080806T | Adaptable box, Transparent Lid | IP66 | Select | PS | Mounting pan, Wall mounting brackets, Transparent Lid | |
Polynova PS | 110 | 80 | 70 | Plastic | IP66, IP65, IP56, IP55, IP34 | PS110807T | Adaptable box, Transparent Lid | IP66 | Select | PS | Mounting pan, Wall mounting brackets, Transparent Lid | |
Polynova PS | 180 | 80 | 70 | Plastic | IP66, IP65, IP56, IP55, IP34 | PS180807T | Adaptable box, Transparent Lid | IP66 | Select | PS | Mounting pan, Wall mounting brackets, Transparent Lid | |
Polynova PS | 125 | 125 | 75 | Plastic | IP66, IP65, IP56, IP55, IP34 | PS121207T | Adaptable box, Transparent Lid | IP66 | Select | PS | Mounting pan, Wall mounting brackets, Transparent Lid | |
Polynova PS | 175 | 125 | 75 | Plastic | IP66, IP65, IP56, IP55, IP34 | PS171207T | Adaptable box, Transparent Lid | IP66 | Select | PS | Mounting pan, Wall mounting brackets, Transparent Lid | |
Polynova PS | 200 | 150 | 75 | Plastic | IP66, IP65, IP56, IP55, IP34 | PS201507T | Adaptable box, Transparent Lid | IP66 | Select | PS | Mounting pan, Wall mounting brackets, Transparent Lid | |
Polynova PS | 250 | 175 | 75 | Plastic | IP66, IP65, IP56, IP55, IP34 | PS251707T | Adaptable box, Transparent Lid | IP66 | Select | PS | Mounting pan, Wall mounting brackets, Transparent Lid | |
Polynova PS | 130 | 80 | 85 | Plastic | IP66, IP65, IP56, IP55, IP34 | PS130808T | Adaptable box, Transparent Lid | IP66 | Select | PS | Mounting pan, Wall mounting brackets, Transparent Lid | |
Polynova PS | 250 | 80 | 85 | Plastic | IP66, IP65, IP56, IP55, IP34 | PS250808T | Adaptable box, Transparent Lid | IP66 | Select | PS | Mounting pan, Wall mounting brackets, Transparent Lid | |
Polynova PS | 160 | 80 | 90 | Plastic | IP66, IP65, IP56, IP55, IP34 | PS160809T | Adaptable box, Transparent Lid | IP66 | Select | PS | Mounting pan, Wall mounting brackets, Transparent Lid | |
Polynova PS | 200 | 200 | 95 | Plastic | IP66, IP65, IP56, IP55, IP34 | PS202009T | Adaptable box, Transparent Lid | IP66 | Select | PS | Mounting pan, Wall mounting brackets, Transparent Lid | |
Polynova PS | 125 | 125 | 100 | Plastic | IP66, IP65, IP56, IP55, IP34 | PS121210T | Adaptable box, Transparent Lid | IP66 | Select | PS | Mounting pan, Wall mounting brackets, Transparent Lid | |
Polynova PS | 175 | 125 | 100 | Plastic | IP66, IP65, IP56, IP55, IP34 | PS171210T | Adaptable box, Transparent Lid | IP66 | Select | PS | Mounting pan, Wall mounting brackets, Transparent Lid | |
Polynova PS | 200 | 150 | 100 | Plastic | IP66, IP65, IP56, IP55, IP34 | PS201510T | Adaptable box, Transparent Lid | IP66 | Select | PS | Mounting pan, Wall mounting brackets, Transparent Lid | |
Polynova PS | 250 | 150 | 100 | Plastic | IP66, IP65, IP56, IP55, IP34 | PS251510T | Adaptable box, Transparent Lid | IP66 | Select | PS | Mounting pan, Wall mounting brackets, Transparent Lid | |
Polynova PS | 175 | 175 | 100 | Plastic | IP66, IP65, IP56, IP55, IP34 | PS171710T | Adaptable box, Transparent Lid | IP66 | Select | PS | Mounting pan, Wall mounting brackets, Transparent Lid | |
Polynova PS | 250 | 175 | 100 | Plastic | IP66, IP65, IP56, IP55, IP34 | PS251710T | Adaptable box, Transparent Lid | IP66 | Select | PS | Mounting pan, Wall mounting brackets, Transparent Lid | |
Polynova PS | 175 | 175 | 125 | Plastic | IP66, IP65, IP56, IP55, IP34 | PS171712T | Adaptable box, Transparent Lid | IP66 | Select | PS | Mounting pan, Wall mounting brackets, Transparent Lid | |
Polynova PS | 200 | 150 | 130 | Plastic | IP66, IP65, IP56, IP55, IP34 | PS201513T | Adaptable box, Transparent Lid | IP66 | Select | PS | Mounting pan, Wall mounting brackets, Transparent Lid | |
Polynova PS | 200 | 200 | 130 | Plastic | IP66, IP65, IP56, IP55, IP34 | PS202013T | Adaptable box, Transparent Lid | IP66 | Select | PS | Mounting pan, Wall mounting brackets, Transparent Lid | |
Polynova PS | 250 | 150 | 130 | Plastic | IP66, IP65, IP56, IP55, IP34 | PS251513T | Adaptable box, Transparent Lid | IP66 | Select | PS | Mounting pan, Wall mounting brackets, Transparent Lid | |
Polynova PM | 270 | 180 | 165 | Plastic | IP65, IP56, IP55, IP34 | PM2718 | Modular enclosure | IP65 | Select | PM | Mounting pan, Wall mounting brackets, DIN rail, Rail kit, Gland Plate | |
Polynova PM | 270 | 270 | 165 | Plastic | IP65, IP56, IP55, IP34 | PM2727 | Modular enclosure | IP65 | Select | PM | Mounting pan, Wall mounting brackets, DIN rail, Rail kit, Gland Plate | |
Polynova PM | 360 | 270 | 165 | Plastic | IP65, IP56, IP55, IP34 | PM3627 | Modular enclosure | IP65 | Select | PM | Mounting pan, Wall mounting brackets, DIN rail, Rail kit, Gland Plate | |
Polynova PM | 540 | 270 | 165 | Plastic | IP65, IP56, IP55, IP34 | PM5427 | Modular enclosure | IP65 | Select | PM | Mounting pan, Wall mounting brackets, DIN rail, Rail kit, Gland Plate | |
Polynova PM | 540 | 360 | 165 | Plastic | IP65, IP56, IP55, IP34 | PM5436 | Modular enclosure | IP65 | Select | PM | Mounting pan, Wall mounting brackets, DIN rail, Rail kit, Gland Plate | |
Polynova PM | 270 | 180 | 165 | Plastic | IP65, IP56, IP55, IP34 | PM2718T | Modular enclosure, Transparent Lid | IP65 | Select | PM | Mounting pan, Wall mounting brackets, DIN rail, Rail kit, Gland Plate, Transparent Lid | |
Polynova PM | 270 | 270 | 165 | Plastic | IP65, IP56, IP55, IP34 | PM2727T | Modular enclosure, Transparent Lid | IP65 | Select | PM | Mounting pan, Wall mounting brackets, DIN rail, Rail kit, Gland Plate, Transparent Lid | |
Polynova PM | 360 | 270 | 165 | Plastic | IP65, IP56, IP55, IP34 | PM3627T | Modular enclosure, Transparent Lid | IP65 | Select | PM | Mounting pan, Wall mounting brackets, DIN rail, Rail kit, Gland Plate, Transparent Lid | |
Polynova PM | 540 | 270 | 165 | Plastic | IP65, IP56, IP55, IP34 | PM5427T | Modular enclosure, Transparent Lid | IP65 | Select | PM | Mounting pan, Wall mounting brackets, DIN rail, Rail kit, Gland Plate, Transparent Lid | |
Polynova PM | 540 | 360 | 165 | Plastic | IP65, IP56, IP55, IP34 | PM5436T | Modular enclosure, Transparent Lid | IP65 | Select | PM | Mounting pan, Wall mounting brackets, DIN rail, Rail kit, Gland Plate, Transparent Lid | |
Polynova PC | 135 | 135 | 130 | Plastic | IP66, IP65, IP56, IP55, IP34 | PC131313 | Modular enclosure | IP66 | Select | PC | Mounting pan, Hinged Viewing Windows | |
Polynova PC | 180 | 135 | 130 | Plastic | IP66, IP65, IP56, IP55, IP34 | PC181313 | Modular enclosure | IP66 | Select | PC | Mounting pan, Hinged Viewing Windows | |
Polynova PC | 270 | 135 | 130 | Plastic | IP66, IP65, IP56, IP55, IP34 | PC271313 | Modular enclosure | IP66 | Select | PC | Mounting pan, Hinged Viewing Windows | |
Polynova PC | 180 | 180 | 130 | Plastic | IP66, IP65, IP56, IP55, IP34 | PC181813 | Modular enclosure | IP66 | Select | PC | Mounting pan, Hinged Viewing Windows | |
Polynova PC | 270 | 180 | 170 | Plastic | IP66, IP65, IP56, IP55, IP34 | PC271817 | Modular enclosure | IP66 | Select | PC | Mounting pan, Hinged Viewing Windows | |
Polynova PC | 360 | 180 | 170 | Plastic | IP66, IP65, IP56, IP55, IP34 | PC361817 | Modular enclosure | IP66 | Select | PC | Mounting pan, Hinged Viewing Windows | |
Polynova PC | 270 | 270 | 170 | Plastic | IP66, IP65, IP56, IP55, IP34 | PC272717 | Modular enclosure | IP66 | Select | PC | Mounting pan, Hinged Viewing Windows | |
Polynova PC | 360 | 270 | 170 | Plastic | IP66, IP65, IP56, IP55, IP34 | PC362717 | Modular enclosure | IP66 | Select | PC | Mounting pan, Hinged Viewing Windows | |
Polynova PC | 540 | 270 | 170 | Plastic | IP66, IP65, IP56, IP55, IP34 | PC542717 | Modular enclosure | IP66 | Select | PC | Mounting pan, Hinged Viewing Windows | |
Polynova PC | 360 | 360 | 170 | Plastic | IP66, IP65, IP56, IP55, IP34 | PC363617 | Modular enclosure | IP66 | Select | PC | Mounting pan, Hinged Viewing Windows | |
Polynova PC | 540 | 360 | 170 | Plastic | IP66, IP65, IP56, IP55, IP34 | PC543617 | Modular enclosure | IP66 | Select | PC | Mounting pan, Hinged Viewing Windows | |
Polynova PC | 540 | 540 | 170 | Plastic | IP66, IP65, IP56, IP55, IP34 | PC545417 | Modular enclosure | IP66 | Select | PC | Mounting pan, Hinged Viewing Windows | |
Polynova PC | 360 | 270 | 205 | Plastic | IP66, IP65, IP56, IP55, IP34 | PC362720 | Modular enclosure | IP66 | Select | PC | Mounting pan, Hinged Viewing Windows | |
Polynova PC | 540 | 270 | 205 | Plastic | IP66, IP65, IP56, IP55, IP34 | PC542720 | Modular enclosure | IP66 | Select | PC | Mounting pan, Hinged Viewing Windows | |
Polynova PC | 360 | 360 | 205 | Plastic | IP66, IP65, IP56, IP55, IP34 | PC363620 | Modular enclosure | IP66 | Select | PC | Mounting pan, Hinged Viewing Windows | |
Polynova PC | 540 | 360 | 205 | Plastic | IP66, IP65, IP56, IP55, IP34 | PC543620 | Modular enclosure | IP66 | Select | PC | Mounting pan, Hinged Viewing Windows | |
Polynova PC | 720 | 360 | 205 | Plastic | IP66, IP65, IP56, IP55, IP34 | PC723620 | Modular enclosure | IP66 | Select | PC | Mounting pan, Hinged Viewing Windows | |
Polynova PC | 540 | 540 | 205 | Plastic | IP66, IP65, IP56, IP55, IP34 | PC545420 | Modular enclosure | IP66 | Select | PC | Mounting pan, Hinged Viewing Windows | |
Polynova PC | 720 | 540 | 205 | Plastic | IP66, IP65, IP56, IP55, IP34 | PC725420 | Modular enclosure | IP66 | Select | PC | Mounting pan, Hinged Viewing Windows | |
Polynova PC | 135 | 135 | 130 | Plastic | IP66, IP65, IP56, IP55, IP34 | PC131313T | Modular enclosure, Transparent Lid | IP66 | Select | PC | Mounting pan, Hinged Viewing Windows, Transparent Lid | |
Polynova PC | 180 | 135 | 130 | Plastic | IP66, IP65, IP56, IP55, IP34 | PC181313T | Modular enclosure, Transparent Lid | IP66 | Select | PC | Mounting pan, Hinged Viewing Windows, Transparent Lid | |
Polynova PC | 270 | 135 | 130 | Plastic | IP66, IP65, IP56, IP55, IP34 | PC271313T | Modular enclosure, Transparent Lid | IP66 | Select | PC | Mounting pan, Hinged Viewing Windows, Transparent Lid | |
Polynova PC | 180 | 180 | 130 | Plastic | IP66, IP65, IP56, IP55, IP34 | PC181813T | Modular enclosure, Transparent Lid | IP66 | Select | PC | Mounting pan, Hinged Viewing Windows, Transparent Lid | |
Polynova PC | 270 | 180 | 170 | Plastic | IP66, IP65, IP56, IP55, IP34 | PC271817T | Modular enclosure, Transparent Lid | IP66 | Select | PC | Mounting pan, Hinged Viewing Windows, Transparent Lid | |
Polynova PC | 360 | 180 | 170 | Plastic | IP66, IP65, IP56, IP55, IP34 | PC361817T | Modular enclosure, Transparent Lid | IP66 | Select | PC | Mounting pan, Hinged Viewing Windows, Transparent Lid | |
Polynova PC | 270 | 270 | 170 | Plastic | IP66, IP65, IP56, IP55, IP34 | PC272717T | Modular enclosure, Transparent Lid | IP66 | Select | PC | Mounting pan, Hinged Viewing Windows, Transparent Lid | |
Polynova PC | 360 | 270 | 170 | Plastic | IP66, IP65, IP56, IP55, IP34 | PC362717T | Modular enclosure, Transparent Lid | IP66 | Select | PC | Mounting pan, Hinged Viewing Windows, Transparent Lid | |
Polynova PC | 540 | 270 | 170 | Plastic | IP66, IP65, IP56, IP55, IP34 | PC542717T | Modular enclosure, Transparent Lid | IP66 | Select | PC | Mounting pan, Hinged Viewing Windows, Transparent Lid | |
Polynova PC | 360 | 360 | 170 | Plastic | IP66, IP65, IP56, IP55, IP34 | PC363617T | Modular enclosure, Transparent Lid | IP66 | Select | PC | Mounting pan, Hinged Viewing Windows, Transparent Lid | |
Polynova PC | 540 | 360 | 170 | Plastic | IP66, IP65, IP56, IP55, IP34 | PC543617T | Modular enclosure, Transparent Lid | IP66 | Select | PC | Mounting pan, Hinged Viewing Windows, Transparent Lid | |
Polynova PC | 540 | 540 | 170 | Plastic | IP66, IP65, IP56, IP55, IP34 | PC545417T | Modular enclosure, Transparent Lid | IP66 | Select | PC | Mounting pan, Hinged Viewing Windows, Transparent Lid | |
Polynova PC | 360 | 270 | 205 | Plastic | IP66, IP65, IP56, IP55, IP34 | PC362720T | Modular enclosure, Transparent Lid | IP66 | Select | PC | Mounting pan, Hinged Viewing Windows, Transparent Lid | |
Polynova PC | 540 | 270 | 205 | Plastic | IP66, IP65, IP56, IP55, IP34 | PC542720T | Modular enclosure, Transparent Lid | IP66 | Select | PC | Mounting pan, Hinged Viewing Windows, Transparent Lid | |
Polynova PC | 360 | 360 | 205 | Plastic | IP66, IP65, IP56, IP55, IP34 | PC363620T | Modular enclosure, Transparent Lid | IP66 | Select | PC | Mounting pan, Hinged Viewing Windows, Transparent Lid | |
Polynova PC | 540 | 360 | 205 | Plastic | IP66, IP65, IP56, IP55, IP34 | PC543620T | Modular enclosure, Transparent Lid | IP66 | Select | PC | Mounting pan, Hinged Viewing Windows, Transparent Lid | |
Polynova PC | 720 | 360 | 205 | Plastic | IP66, IP65, IP56, IP55, IP34 | PC723620T | Modular enclosure, Transparent Lid | IP66 | Select | PC | Mounting pan, Hinged Viewing Windows, Transparent Lid | |
Polynova PC | 540 | 540 | 205 | Plastic | IP66, IP65, IP56, IP55, IP34 | PC545420T | Modular enclosure, Transparent Lid | IP66 | Select | PC | Mounting pan, Hinged Viewing Windows, Transparent Lid | |
Polynova PC | 720 | 540 | 205 | Plastic | IP66, IP65, IP56, IP55, IP34 | PC725420T | Modular enclosure, Transparent Lid | IP66 | Select | PC | Mounting pan, Hinged Viewing Windows, Transparent Lid | |
Polynova PN | 130 | 100 | 70 | Plastic | IP66, IP65, IP56, IP55, IP34 | PN131007 | Hinged lid enclosure | IP66 | Select | PN | Mounting pan, Wall mounting brackets, DIN rail | |
Polynova PN | 150 | 100 | 70 | Plastic | IP66, IP65, IP56, IP55, IP34 | PN151007 | Hinged lid enclosure | IP66 | Select | PN | Mounting pan, Wall mounting brackets, DIN rail | |
Polynova PN | 200 | 100 | 70 | Plastic | IP66, IP65, IP56, IP55, IP34 | PN201007 | Hinged lid enclosure | IP66 | Select | PN | Mounting pan, Wall mounting brackets, DIN rail | |
Polynova PN | 308 | 203 | 132 | Plastic | IP66, IP65, IP56, IP55, IP34 | PN312013 | Hinged lid enclosure | IP66 | Select | PN | Mounting pan, Wall mounting brackets, DIN rail | |
Polynova PN | 360 | 250 | 150 | Plastic | IP66, IP65, IP56, IP55, IP34 | PN362515 | Hinged lid enclosure | IP66 | Select | PN | Mounting pan, Wall mounting brackets, DIN rail | |
Polynova PN | 450 | 350 | 160 | Plastic | IP66, IP65, IP56, IP55, IP34 | PN453516 | Hinged lid enclosure | IP66 | Select | PN | Mounting pan, Wall mounting brackets, DIN rail | |
Polynova PN | 500 | 400 | 200 | Plastic | IP66, IP65, IP56, IP55, IP34 | PN504020 | Hinged lid enclosure | IP66 | Select | PN | Mounting pan, Wall mounting brackets, DIN rail | |
Polynova PN | 530 | 430 | 200 | Plastic | IP66, IP65, IP56, IP55, IP34 | PN534320 | Hinged lid enclosure | IP66 | Select | PN | Mounting pan, Wall mounting brackets, DIN rail | |
Polynova PN | 600 | 500 | 250 | Plastic | IP66, IP65, IP56, IP55, IP34 | PN605025 | Hinged lid enclosure | IP66 | Select | PN | Mounting pan, Wall mounting brackets, DIN rail | |
Polynova PN | 735 | 535 | 250 | Plastic | IP66, IP65, IP56, IP55, IP34 | PN705025 | Hinged lid enclosure | IP66 | Select | PN | Mounting pan, Wall mounting brackets, DIN rail | |
Polynova PN | 130 | 100 | 70 | Plastic | IP66, IP65, IP56, IP55, IP34 | PN131007T | Hinged lid enclosure, Transparent Lid | IP66 | Select | PN | Mounting pan, Wall mounting brackets, DIN rail, Transparent Lid | |
Polynova PN | 150 | 100 | 70 | Plastic | IP66, IP65, IP56, IP55, IP34 | PN151007T | Hinged lid enclosure, Transparent Lid | IP66 | Select | PN | Mounting pan, Wall mounting brackets, DIN rail, Transparent Lid | |
Polynova PN | 200 | 100 | 70 | Plastic | IP66, IP65, IP56, IP55, IP34 | PN201007T | Hinged lid enclosure, Transparent Lid | IP66 | Select | PN | Mounting pan, Wall mounting brackets, DIN rail, Transparent Lid | |
Polynova PN | 308 | 203 | 132 | Plastic | IP66, IP65, IP56, IP55, IP34 | PN312013T | Hinged lid enclosure, Transparent Lid | IP66 | Select | PN | Mounting pan, Wall mounting brackets, DIN rail, Transparent Lid | |
Polynova PN | 360 | 250 | 150 | Plastic | IP66, IP65, IP56, IP55, IP34 | PN362515T | Hinged lid enclosure, Transparent Lid | IP66 | Select | PN | Mounting pan, Wall mounting brackets, DIN rail, Transparent Lid | |
Polynova PN | 405 | 350 | 160 | Plastic | IP66, IP65, IP56, IP55, IP34 | PN453516T | Hinged lid enclosure, Transparent Lid | IP66 | Select | PN | Mounting pan, Wall mounting brackets, DIN rail, Transparent Lid | |
Polynova PN | 500 | 400 | 200 | Plastic | IP66, IP65, IP56, IP55, IP34 | PN504020T | Hinged lid enclosure, Transparent Lid | IP66 | Select | PN | Mounting pan, Wall mounting brackets, DIN rail, Transparent Lid | |
Polynova PN | 530 | 430 | 200 | Plastic | IP66, IP65, IP56, IP55, IP34 | PN534320T | Hinged lid enclosure, Transparent Lid | IP66 | Select | PN | Mounting pan, Wall mounting brackets, DIN rail, Transparent Lid | |
Polynova PN | 635 | 535 | 250 | Plastic | IP66, IP65, IP56, IP55, IP34 | PN605025T | Hinged lid enclosure, Transparent Lid | IP66 | Select | PN | Mounting pan, Wall mounting brackets, DIN rail, Transparent Lid | |
Polynova PN | 735 | 535 | 250 | Plastic | IP66, IP65, IP56, IP55, IP34 | PN705025T | Hinged lid enclosure, Transparent Lid | IP66 | Select | PN | Mounting pan, Wall mounting brackets, DIN rail, Transparent Lid | |
Polynova PD | 350 | 300 | 160 | Plastic | IP65, IP56, IP55, IP34 | PD353015 | Hinged door enclosure | IP65 | Select | PD | Mounting pan, Escutcheon, DIN rail, Wall mounting brackets, Locks and lock inserts | |
Polynova PD | 500 | 300 | 200 | Plastic | IP65, IP56, IP55, IP34 | PD503020 | Hinged door enclosure | IP65 | Select | PD | Mounting pan, Escutcheon, DIN rail, Wall mounting brackets, Locks and lock inserts | |
Polynova PD | 500 | 400 | 200 | Plastic | IP65, IP56, IP55, IP34 | PD504020 | Hinged door enclosure | IP65 | Select | PD | Mounting pan, Escutcheon, DIN rail, Wall mounting brackets, Locks and lock inserts | |
Polynova PD | 650 | 400 | 200 | Plastic | IP65, IP56, IP55, IP34 | PD654020 | Hinged door enclosure | IP65 | Select | PD | Mounting pan, Escutcheon, DIN rail, Wall mounting brackets, Locks and lock inserts | |
Polynova PD | 650 | 500 | 250 | Plastic | IP65, IP56, IP55, IP34 | PD655025 | Hinged door enclosure | IP65 | Select | PD | Mounting pan, Escutcheon, DIN rail, Wall mounting brackets, Locks and lock inserts | |
Polynova PD | 800 | 600 | 300 | Plastic | IP65, IP56, IP55, IP34 | PD806030 | Hinged door enclosure | IP65 | Select | PD | Mounting pan, Escutcheon, DIN rail, Wall mounting brackets, Locks and lock inserts | |
Universal NI | 300 | 200 | 150 | Steel | IP66, IP65, IP56, IP55, IP34 | NI03021 | General purpose, wall mountable enclosure | IP66 | Select | NIZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Universal NI | 300 | 300 | 150 | Steel | IP66, IP65, IP56, IP55, IP34 | NI03031 | General purpose, wall mountable enclosure | IP66 | Select | NIZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Universal NI | 300 | 400 | 150 | Steel | IP66, IP65, IP56, IP55, IP34 | NI03041 | General purpose, wall mountable enclosure | IP66 | Select | NIZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Universal NI | 400 | 300 | 200 | Steel | IP66, IP65, IP56, IP55, IP34 | NI04032 | General purpose, wall mountable enclosure | IP66 | Select | NIZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Universal NI | 300 | 400 | 200 | Steel | IP66, IP65, IP56, IP55, IP34 | NI03042 | General purpose, wall mountable enclosure | IP66 | Select | NIZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Universal NI | 400 | 400 | 200 | Steel | IP66, IP65, IP56, IP55, IP34 | NI04042 | General purpose, wall mountable enclosure | IP66 | Select | NIZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Universal NI | 500 | 400 | 200 | Steel | IP66, IP65, IP56, IP55, IP34 | NI05042 | General purpose, wall mountable enclosure | IP66 | Select | NIZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Universal NI | 600 | 400 | 200 | Steel | IP66, IP65, IP56, IP55, IP34 | NI06042 | General purpose, wall mountable enclosure | IP66 | Select | NIZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Universal NI | 500 | 500 | 200 | Steel | IP66, IP65, IP56, IP55, IP34 | NI05052 | General purpose, wall mountable enclosure | IP66 | Select | NIZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Universal NI | 400 | 600 | 200 | Steel | IP66, IP65, IP56, IP55, IP34 | NI04062 | General purpose, wall mountable enclosure | IP66 | Select | NIZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Universal NI | 600 | 600 | 200 | Steel | IP66, IP65, IP56, IP55, IP34 | NI06062 | General purpose, wall mountable enclosure | IP66 | Select | NIZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Universal NI | 800 | 600 | 200 | Steel | IP66, IP65, IP56, IP55, IP34 | NI08062 | General purpose, wall mountable enclosure | IP66 | Select | NIZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Universal NI | 1000 | 600 | 200 | Steel | IP66, IP65, IP56, IP55, IP34 | NI10062 | General purpose, wall mount enclosure | IP66 | Select | NIZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Universal NI | 400 | 400 | 300 | Steel | IP66, IP65, IP56, IP55, IP34 | NI04043 | General purpose, wall mountable enclosure | IP66 | Select | NIZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Universal NI | 600 | 400 | 300 | Steel | IP66, IP65, IP56, IP55, IP34 | NI06043 | General purpose, wall mountable enclosure | IP66 | Select | NIZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Universal NI | 400 | 600 | 300 | Steel | IP66, IP65, IP56, IP55, IP34 | NI04063 | General purpose, wall mountable enclosure | IP66 | Select | NIZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Universal NI | 600 | 600 | 300 | Steel | IP66, IP65, IP56, IP55, IP34 | NI06063 | General purpose, wall mountable enclosure | IP66 | Select | NIZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Universal NI | 800 | 600 | 300 | Steel | IP66, IP65, IP56, IP55, IP34 | NI08063 | General purpose, wall mountable enclosure | IP66 | Select | NIZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Universal NI | 1000 | 600 | 300 | Steel | IP66, IP65, IP56, IP55, IP34 | NI10063 | General purpose, wall mountable enclosure | IP66 | Select | NIZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Universal NI | 800 | 800 | 300 | Steel | IP66, IP65, IP56, IP55, IP34 | NI08083 | General purpose, wall mountable enclosure | IP66 | Select | NIZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Universal NI | 1000 | 800 | 300 | Steel | IP66, IP65, IP56, IP55, IP34 | NI10083 | General purpose, wall mountable enclosure | IP66 | Select | NIZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Universal NI | 1200 | 800 | 300 | Steel | IP66, IP65, IP56, IP55, IP34 | NI12083 | General purpose, wall mountable enclosure | IP66 | Select | NIZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Universal NI | 300 | 200 | 150 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | NI03021/S | General purpose, wall mountable enclosure | IP66 | Select | NISS | AS/NZS 61439, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Universal NI | 300 | 300 | 150 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | NI03031/S | General purpose, wall mountable enclosure | IP66 | Select | NISS | AS/NZS 61439, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Universal NI | 400 | 300 | 150 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | NI04031/S | General purpose, wall mountable enclosure | IP66 | Select | NISS | AS/NZS 61439, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Universal NI | 300 | 400 | 150 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | NI03041/S | General purpose, wall mountable enclosure | IP66 | Select | NISS | AS/NZS 61439, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Universal NI | 400 | 300 | 200 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | NI04032/S | General purpose, wall mountable enclosure | IP66 | Select | NISS | AS/NZS 61439, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Universal NI | 300 | 400 | 200 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | NI03042/S | General purpose, wall mountable enclosure | IP66 | Select | NISS | AS/NZS 61439, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Universal NI | 400 | 400 | 200 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | NI04042/S | General purpose, wall mountable enclosure | IP66 | Select | NISS | AS/NZS 61439, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Universal NI | 400 | 400 | 300 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | NI04043/S | General purpose, wall mountable enclosure | IP66 | Select | NISS | AS/NZS 61439, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Universal NI | 500 | 400 | 200 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | NI05042/S | General purpose, wall mountable enclosure | IP66 | Select | NISS | AS/NZS 61439, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Universal NI | 600 | 400 | 200 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | NI06042/S | General purpose, wall mountable enclosure | IP66 | Select | NISS | AS/NZS 61439, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Universal NI | 500 | 500 | 200 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | NI05052/S | General purpose, wall mountable enclosure | IP66 | Select | NISS | AS/NZS 61439, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Universal NI | 600 | 600 | 200 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | NI06062/S | General purpose, wall mountable enclosure | IP66 | Select | NISS | AS/NZS 61439, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Universal NI | 800 | 600 | 200 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | NI08062/S | General purpose, wall mountable enclosure | IP66 | Select | NISS | AS/NZS 61439, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Universal NI | 1000 | 800 | 200 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | NI10082/S | General purpose, wall mountable enclosure | IP66 | Select | NISS | AS/NZS 61439, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Universal NI | 600 | 400 | 300 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | NI06043/S | General purpose, wall mountable enclosure | IP66 | Select | NISS | Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Universal NI | 600 | 600 | 300 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | NI06063/S | General purpose, wall mountable enclosure | IP66 | Select | NISS | AS/NZS 61439, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Universal NI | 800 | 600 | 300 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | NI08063/S | General purpose, wall mountable enclosure | IP66 | Select | NISS | AS/NZS 61439, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Universal NI | 1000 | 600 | 300 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | NI10063/S | General purpose, wall mountable enclosure | IP66 | Select | NISS | AS/NZS 61439, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Universal NI | 800 | 800 | 300 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | NI08083/S | General purpose, wall mountable enclosure | IP66 | Select | NISS | AS/NZS 61439, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Universal NI | 1000 | 800 | 300 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | NI10083/S | General purpose, wall mountable enclosure | IP66 | Select | NISS | AS/NZS 61439, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Universal NI | 1200 | 800 | 300 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | NI12083/S | General purpose, wall mountable enclosure | IP66 | Select | NISS | AS/NZS 61439, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Polynova PU | 300 | 250 | 140 | Plastic | IP66, IP65, IP56, IP55, IP34 | PU302514 | For use in harsh environments and for easy inspection | IP66 | Select | PU | Mounting pan, Wall mounting brackets, Locks and lock inserts | |
Polynova PU | 400 | 300 | 200 | Plastic | IP66, IP65, IP56, IP55, IP34 | PU403020/3L | For use in harsh environments and for easy inspection | IP66 | Select | PU | Mounting pan, Wall mounting brackets, Locks and lock inserts | |
Polynova PU | 500 | 400 | 200 | Plastic | IP66, IP65, IP56, IP55, IP34 | PU504020/3L | For use in harsh environments and for easy inspection | IP66 | Select | PU | Mounting pan, Wall mounting brackets, Locks and lock inserts | |
Polynova PU | 600 | 400 | 230 | Plastic | IP66, IP65, IP56, IP55, IP34 | PU604023/3L | For use in harsh environments and for easy inspection | IP66 | Select | PU | Mounting pan, Wall mounting brackets, Locks and lock inserts | |
Polynova PU | 600 | 500 | 230 | Plastic | IP66, IP65, IP56, IP55, IP34 | PU605023/3L | For use in harsh environments and for easy inspection | IP66 | Select | PU | Mounting pan, Wall mounting brackets, Locks and lock inserts | |
Polynova PU | 800 | 600 | 300 | Plastic | IP66, IP65, IP56, IP55, IP34 | PU806030/3L | For use in harsh environments and for easy inspection | IP66 | Select | PU | Mounting pan, Wall mounting brackets, Locks and lock inserts | |
Polynova PU | 300 | 250 | 140 | Plastic | IP66, IP65, IP56, IP55, IP34 | PU302514/W | For use in harsh environments and for easy inspection | IP66 | Select | PU | Mounting pan, Wall mounting brackets, Locks and lock inserts | |
Polynova PU | 400 | 300 | 200 | Plastic | IP66, IP65, IP56, IP55, IP34 | PU403020/W3L | For use in harsh environments and for easy inspection | IP66 | Select | PU | Mounting pan, Wall mounting brackets, Locks and lock inserts | |
Polynova PU | 500 | 400 | 200 | Plastic | IP66, IP65, IP56, IP55, IP34 | PU504020/W3L | For use in harsh environments and for easy inspection | IP66 | Select | PU | Mounting pan, Wall mounting brackets, Locks and lock inserts | |
Polynova PU | 600 | 400 | 230 | Plastic | IP66, IP65, IP56, IP55, IP34 | PU604023/W3L | For use in harsh environments and for easy inspection | IP66 | Select | PU | Mounting pan, Wall mounting brackets, Locks and lock inserts | |
Polynova PU | 600 | 500 | 230 | Plastic | IP66, IP65, IP56, IP55, IP34 | PU605023/W3L | For use in harsh environments and for easy inspection | IP66 | Select | PU | Mounting pan, Wall mounting brackets, Locks and lock inserts | |
Polynova PU | 800 | 600 | 300 | Plastic | IP66, IP65, IP56, IP55, IP34 | PU806030/W3L | For use in harsh environments and for easy inspection | IP66 | Select | PU | Mounting pan, Wall mounting brackets, Locks and lock inserts | |
Connector TE | 150 | 150 | 80 | Steel | IP66, IP65, IP56, IP55, IP34 | TE1108 | Termination enclosure with screwed lid | IP66 | Select | TEZS | Mounting pan, Wall mounting brackets, DIN rail | |
Connector TE | 200 | 200 | 120 | Steel | IP66, IP65, IP56, IP55, IP34 | TE2212 | Termination enclosure with screwed lid | IP66 | Select | TEZS | Mounting pan, Wall mounting brackets, DIN rail | |
Connector TE | 300 | 150 | 120 | Steel | IP66, IP65, IP56, IP55, IP34 | TE3112 | Termination enclosure with screwed lid | IP66 | Select | TEZS | Mounting pan, Wall mounting brackets, DIN rail | |
Connector TE | 300 | 200 | 120 | Steel | IP66, IP65, IP56, IP55, IP34 | TE3212 | Termination enclosure with screwed lid | IP66 | Select | TEZS | Mounting pan, Wall mounting brackets, DIN rail | |
Connector TE | 400 | 200 | 120 | Steel | IP66, IP65, IP56, IP55, IP34 | TE4212 | Termination enclosure with screwed lid | IP66 | Select | TEZS | Mounting pan, Wall mounting brackets, DIN rail | |
Connector TE | 600 | 200 | 120 | Steel | IP66, IP65, IP56, IP55, IP34 | TE6212 | Termination enclosure with screwed lid | IP66 | Select | TEZS | Mounting pan, Wall mounting brackets, DIN rail | |
Connector TE | 150 | 150 | 80 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | TE1108/S | Termination enclosure with screwed lid | IP66 | Select | TESS | Mounting pan, Wall mounting brackets, DIN rail | |
Connector TE | 200 | 200 | 120 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | TE2212/S | Termination enclosure with screwed lid | IP66 | Select | TESS | Mounting pan, Wall mounting brackets, DIN rail | |
Connector TE | 300 | 150 | 120 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | TE3112/S | Termination enclosure with screwed lid | IP66 | Select | TESS | Mounting pan, Wall mounting brackets, DIN rail | |
Connector TE | 300 | 200 | 120 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | TE3212/S | Termination enclosure with screwed lid | IP66 | Select | TESS | Mounting pan, Wall mounting brackets, DIN rail | |
Connector TE | 400 | 200 | 120 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | TE4212/S | Termination enclosure with screwed lid | IP66 | Select | TESS | Mounting pan, Wall mounting brackets, DIN rail | |
Connector TE | 600 | 200 | 120 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | TE6212/S | Termination enclosure with screwed lid | IP66 | Select | TESS | Mounting pan, Wall mounting brackets, DIN rail | |
Connector TE | 150 | 150 | 80 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | TE1108MF/S | Termination enclosure with screwed lid and mounting flange | IP66 | Select | TEMF | Mounting pan, Wall mounting brackets, DIN rail | |
Connector TE | 300 | 150 | 120 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | TE3112MF/S | Termination enclosure with screwed lid and mounting flange | IP66 | Select | TEMF | Mounting pan, Wall mounting brackets, DIN rail | |
Connector TE | 200 | 200 | 120 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | TE2212MF/S | Termination enclosure with screwed lid and mounting flange | IP66 | Select | TEMF | Mounting pan, Wall mounting brackets, DIN rail | |
Connector TE | 300 | 200 | 120 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | TE3212MF/S | Termination enclosure with screwed lid and mounting flange | IP66 | Select | TEMF | Mounting pan, Wall mounting brackets, DIN rail | |
Connector TE | 400 | 200 | 120 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | TE4212MF/S | Termination enclosure with screwed lid and mounting flange | IP66 | Select | TEMF | Mounting pan, Wall mounting brackets, DIN rail | |
Connector TE | 600 | 200 | 120 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | TE6212MF/S | Termination enclosure with screwed lid and mounting flange | IP66 | Select | TEMF | Mounting pan, Wall mounting brackets, DIN rail | |
Universal DD | 1000 | 1000 | 300 | Steel | IP55, IP34 | DD10103 | Double door enclosure | IP55 | Select | DDZS | AS/NZS 61439, Mounting pan, Plinth, Rainhood, External vent kit, Locks and lock inserts, Gland Plate | |
Universal DD | 1200 | 1000 | 300 | Steel | IP55, IP34 | DD12103 | Double door enclosure | IP55 | Select | DDZS | AS/NZS 61439, Mounting pan, Plinth, Rainhood, External vent kit, Locks and lock inserts, Gland Plate | |
Universal DD | 1200 | 1200 | 400 | Steel | IP55, IP34 | DD12124 | Double door enclosure | IP55 | Select | DDZS | AS/NZS 61439, Mounting pan, Plinth, Rainhood, External vent kit, Locks and lock inserts, Gland Plate | |
Universal DD | 1600 | 1000 | 400 | Steel | IP55, IP34 | DD16104 | Double door enclosure | IP55 | Select | DDZS | AS/NZS 61439, Mounting pan, Plinth, Rainhood, External vent kit, Locks and lock inserts, Gland Plate | |
Universal DD | 1600 | 1200 | 400 | Steel | IP55, IP34 | DD16124 | Double door enclosure | IP55 | Select | DDZS | AS/NZS 61439, Mounting pan, Plinth, Rainhood, External vent kit, Locks and lock inserts, Gland Plate | |
Universal DD | 1800 | 1000 | 400 | Steel | IP55, IP34 | DD18104 | Double door enclosure | IP55 | Select | DDZS | AS/NZS 61439, Mounting pan, Plinth, Rainhood, External vent kit, Locks and lock inserts, Gland Plate | |
Universal DD | 1800 | 1200 | 400 | Steel | IP55, IP34 | DD18124 | Double door enclosure | IP55 | Select | DDZS | AS/NZS 61439, Mounting pan, Plinth, Rainhood, External vent kit, Locks and lock inserts, Gland Plate | |
Universal DD | 2000 | 1000 | 400 | Steel | IP55, IP34 | DD20104 | Double door enclosure | IP55 | Select | DDZS | AS/NZS 61439, Mounting pan, Plinth, Rainhood, External vent kit, Locks and lock inserts, Gland Plate | |
Universal DD | 2000 | 1200 | 400 | Steel | IP55, IP34 | DD20124 | Double door enclosure | IP55 | Select | DDZS | AS/NZS 61439, Mounting pan, Plinth, Rainhood, External vent kit, Locks and lock inserts, Gland Plate | |
Universal DD | 1800 | 1200 | 500 | Steel | IP55, IP34 | DD18125 | Double door enclosure | IP55 | Select | DDZS | AS/NZS 61439, Mounting pan, Plinth, Rainhood, External vent kit, Locks and lock inserts, Gland Plate | |
Universal DD | 2000 | 1200 | 500 | Steel | IP55, IP34 | DD20125 | Double door enclosure | IP55 | Select | DDZS | AS/NZS 61439, Mounting pan, Plinth, Rainhood, External vent kit, Locks and lock inserts, Gland Plate | |
Universal DD | 1000 | 1000 | 300 | Stainless steel | IP55, IP34 | DD10103/S | Double door enclosure | IP55 | Select | DDSS | AS/NZS 61439, Mounting pan, Plinth, Rainhood, External vent kit, Locks and lock inserts, Gland Plate | |
Universal DD | 1200 | 1000 | 300 | Stainless steel | IP55, IP34 | DD12103/S | Double door enclosure | IP55 | Select | DDSS | AS/NZS 61439, Mounting pan, Plinth, Rainhood, External vent kit, Locks and lock inserts, Gland Plate | |
Universal DD | 1200 | 1200 | 400 | Stainless steel | IP55, IP34 | DD12124/S | Double door enclosure | IP55 | Select | DDSS | AS/NZS 61439, Mounting pan, Plinth, Rainhood, External vent kit, Locks and lock inserts, Gland Plate | |
Universal DD | 1600 | 1000 | 400 | Stainless steel | IP55, IP34 | DD16104/S | Double door enclosure | IP55 | Select | DDSS | AS/NZS 61439, Mounting pan, Plinth, Rainhood, External vent kit, Locks and lock inserts, Gland Plate | |
Universal DD | 1600 | 1200 | 400 | Stainless steel | IP55, IP34 | DD16124/S | Double door enclosure | IP55 | Select | DDSS | AS/NZS 61439, Mounting pan, Plinth, Rainhood, External vent kit, Locks and lock inserts, Gland Plate | |
Universal DD | 1800 | 1000 | 400 | Stainless steel | IP55, IP34 | DD18104/S | Double door enclosure | IP55 | Select | DDSS | AS/NZS 61439, Mounting pan, Plinth, Rainhood, External vent kit, Locks and lock inserts, Gland Plate | |
Universal DD | 1800 | 1200 | 400 | Stainless steel | IP55, IP34 | DD18124/S | Double door enclosure | IP55 | Select | DDSS | AS/NZS 61439, Mounting pan, Plinth, Rainhood, External vent kit, Locks and lock inserts, Gland Plate | |
Universal DD | 2000 | 1000 | 400 | Stainless steel | IP55, IP34 | DD20104/S | Double door enclosure | IP55 | Select | DDSS | AS/NZS 61439, Mounting pan, Plinth, Rainhood, External vent kit, Locks and lock inserts, Gland Plate | |
Universal DD | 2000 | 1200 | 400 | Stainless steel | IP55, IP34 | DD20124/S | Double door enclosure | IP55 | Select | DDSS | AS/NZS 61439, Mounting pan, Plinth, Rainhood, External vent kit, Locks and lock inserts, Gland Plate | |
Universal DD | 1800 | 1200 | 500 | Stainless steel | IP55, IP34 | DD18125/S | Double door enclosure | IP55 | Select | DDSS | AS/NZS 61439, Mounting pan, Plinth, Rainhood, External vent kit, Locks and lock inserts, Gland Plate | |
Universal DD | 2000 | 1200 | 500 | Stainless steel | IP55, IP34 | DD20125/S | Double door enclosure | IP55 | Select | DDSS | AS/NZS 61439, Mounting pan, Plinth, Rainhood, External vent kit, Locks and lock inserts, Gland Plate | |
Incline SR | 300 | 200 | 150 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | SR03021/S | Sloping roof enclosure | IP66 | Select | SR | AS/NZS 61439, Sloping Roof, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Gland Plate | |
Incline SR | 400 | 300 | 150 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | SR04031/S | Sloping roof enclosure | IP66 | Select | SR | AS/NZS 61439, Sloping Roof, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Gland Plate | |
Incline SR | 300 | 400 | 200 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | SR03042/S | Sloping roof enclosure | IP66 | Select | SR | AS/NZS 61439, Sloping Roof, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Gland Plate | |
Incline SR | 400 | 400 | 200 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | SR04042/S | Sloping roof enclosure | IP66 | Select | SR | AS/NZS 61439, Sloping Roof, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Gland Plate | |
Incline SR | 400 | 600 | 200 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | SR04062/S | Sloping roof enclosure | IP66 | Select | SR | AS/NZS 61439, Sloping Roof, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Gland Plate | |
Incline SR | 600 | 400 | 200 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | SR06042/S | Sloping roof enclosure | IP66 | Select | SR | AS/NZS 61439, Sloping Roof, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Gland Plate | |
Incline SR | 800 | 600 | 200 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | SR08062/S | Sloping roof enclosure | IP66 | Select | SR | AS/NZS 61439, Sloping Roof, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Gland Plate | |
Incline SR | 1000 | 600 | 200 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | SR10062/S | Sloping roof enclosure | IP66 | Select | SR | AS/NZS 61439, Sloping Roof, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Gland Plate | |
Incline SR | 400 | 600 | 300 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | SR04063/S | Sloping roof enclosure | IP66 | Select | SR | AS/NZS 61439, Sloping Roof, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Gland Plate | |
Incline SR | 600 | 600 | 300 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | SR06063/S | Sloping roof enclosure | IP66 | Select | SR | AS/NZS 61439, Sloping Roof, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Gland Plate | |
Incline SR | 800 | 600 | 300 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | SR08063/S | Sloping roof enclosure | IP66 | Select | SR | AS/NZS 61439, Sloping Roof, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Gland Plate | |
Incline SR | 300 | 200 | 150 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | SR03021/SRO | Sloping roof enclosure | IP66 | Select | SR | AS/NZS 61439, Sloping Roof, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Gland Plate | |
Incline SR | 400 | 300 | 150 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | SR04031/SRO | Sloping roof enclosure | IP66 | Select | SR | AS/NZS 61439, Sloping Roof, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Gland Plate | |
Incline SR | 300 | 400 | 200 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | SR03042/SRO | Sloping roof enclosure | IP66 | Select | SR | AS/NZS 61439, Sloping Roof, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Gland Plate | |
Incline SR | 400 | 400 | 200 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | SR04042/SRO | Sloping roof enclosure | IP66 | Select | SR | AS/NZS 61439, Sloping Roof, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Gland Plate | |
Incline SR | 400 | 600 | 200 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | SR04062/SRO | Sloping roof enclosure | IP66 | Select | SR | AS/NZS 61439, Sloping Roof, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Gland Plate | |
Incline SR | 600 | 400 | 200 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | SR06042/SRO | Sloping roof enclosure | IP66 | Select | SR | AS/NZS 61439, Sloping Roof, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Gland Plate | |
Incline SR | 800 | 600 | 200 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | SR08062/SRO | Sloping roof enclosure | IP66 | Select | SR | AS/NZS 61439, Sloping Roof, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Gland Plate | |
Incline SR | 1000 | 600 | 200 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | SR10062/SRO | Sloping roof enclosure | IP66 | Select | SR | AS/NZS 61439, Sloping Roof, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Gland Plate | |
Incline SR | 400 | 600 | 300 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | SR04063/SRO | Sloping roof enclosure | IP66 | Select | SR | AS/NZS 61439, Sloping Roof, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Gland Plate | |
Incline SR | 600 | 600 | 300 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | SR06063/SRO | Sloping roof enclosure | IP66 | Select | SR | AS/NZS 61439, Sloping Roof, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Gland Plate | |
Incline SR | 800 | 600 | 300 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | SR08063/SRO | Sloping roof enclosure | IP66 | Select | SR | AS/NZS 61439, Sloping Roof, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Gland Plate | |
Hedland PH | 400 | 400 | 270 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | PH040427/S | 15 degree sloping roof enclosure | IP66 | Select | PH | AS/NZS 61439, Sloping Roof, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Gland Plate | |
Hedland PH | 600 | 600 | 270 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | PH060627/S | 15 degree sloping roof enclosure | IP66 | Select | PH | AS/NZS 61439, Sloping Roof, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Gland Plate | |
Hedland PH | 1000 | 800 | 270 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | PH100827/S | 15 degree sloping roof enclosure | IP66 | Select | PH | AS/NZS 61439, Sloping Roof, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Gland Plate | |
Hedland PH | 1200 | 800 | 270 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | PH120827/S | 15 degree sloping roof enclosure | IP66 | Select | PH | AS/NZS 61439, Sloping Roof, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Gland Plate | |
Hedland PH | 1600 | 800 | 270 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | PH160827/S | 15 degree sloping roof enclosure | IP66 | Select | PH | AS/NZS 61439, Sloping Roof, Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts, Gland Plate | |
Finucane FI | 1000 | 1000 | 400 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | FI101040/S | Typically used for local control stations, mini control consoles and motor isolators in conveyor runs. | IP66 | Select | Finucane | AS/NZS 61439, Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Sunshade | |
Finucane FI | 1500 | 1200 | 500 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | FI151250/S | Typically used for local control stations, mini control consoles and motor isolators in conveyor runs. | IP66 | Select | Finucane | AS/NZS 61439, Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Sunshade | |
Bowen BW | 400 | 300 | 200 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | BL040320/S | Mining enclosure with sloping roof. 1.5mm thk body and door. | IP66 | Select | Bowen | AS/NZS 61439, Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon | |
Bowen BW | 400 | 400 | 200 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | BL040420/S | Mining enclosure with sloping roof. 1.5mm thk body and door. | IP66 | Select | Bowen | AS/NZS 61439, Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon | |
Bowen BW | 600 | 400 | 200 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | BL060420/S | Mining enclosure with sloping roof. 1.5mm thk body and door. | IP66 | Select | Bowen | AS/NZS 61439, Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon | |
Bowen BW | 600 | 600 | 300 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | BL060630/S | Mining enclosure with sloping roof. 1.5mm thk body and door. | IP66 | Select | Bowen | AS/NZS 61439, Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon | |
Bowen BW | 800 | 600 | 300 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | BL080630/S | Mining enclosure with sloping roof. 1.5mm thk body and door. | IP66 | Select | Bowen | AS/NZS 61439, Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon | |
Bowen BW | 1200 | 800 | 300 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | BL120830/S | Mining enclosure with sloping roof. 1.5mm thk body and door. | IP66 | Select | Bowen | AS/NZS 61439, Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon | |
Bowen BW | 400 | 300 | 200 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | BM040320/S | Mining enclosure with sloping roof. 1.5mm thk body and 2mm thk door. | IP66 | Select | Bowen | AS/NZS 61439, Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon | |
Bowen BW | 400 | 400 | 200 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | BM040420/S | Mining enclosure with sloping roof. 1.5mm thk body and 2mm thk door. | IP66 | Select | Bowen | AS/NZS 61439, Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon | |
Bowen BW | 600 | 400 | 200 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | BM060420/S | Mining enclosure with sloping roof. 1.5mm thk body and 2mm thk door. | IP66 | Select | Bowen | AS/NZS 61439, Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon | |
Bowen BW | 600 | 600 | 300 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | BM060630/S | Mining enclosure with sloping roof. 1.5mm thk body and 2mm thk door. | IP66 | Select | Bowen | AS/NZS 61439, Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon | |
Bowen BW | 800 | 600 | 300 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | BM080630/S | Mining enclosure with sloping roof. 1.5mm thk body and 2mm thk door. | IP66 | Select | Bowen | AS/NZS 61439, Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon | |
Bowen BW | 1200 | 800 | 300 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | BM120830/S | Mining enclosure with sloping roof. 1.5mm thk body and 2mm thk door. | IP66 | Select | Bowen | AS/NZS 61439, Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon | |
Bowen BW | 400 | 300 | 200 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | BW040320/S | Mining enclosure with sloping roof. 2mm thk body and door. | IP66 | Select | Bowen | AS/NZS 61439, Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon | |
Bowen BW | 400 | 400 | 200 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | BW040420/S | Mining enclosure with sloping roof. 2mm thk body and door. | IP66 | Select | Bowen | AS/NZS 61439, Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon | |
Bowen BW | 600 | 400 | 200 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | BW060420/S | Mining enclosure with sloping roof. 2mm thk body and door. | IP66 | Select | Bowen | AS/NZS 61439, Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon | |
Bowen BW | 600 | 600 | 300 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | BW060630/S | Mining enclosure with sloping roof. 2mm thk body and door. | IP66 | Select | Bowen | AS/NZS 61439, Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon | |
Bowen BW | 800 | 600 | 300 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | BW080630/S | Mining enclosure with sloping roof. 2mm thk body and door. | IP66 | Select | Bowen | AS/NZS 61439, Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon | |
Bowen BW | 1200 | 800 | 300 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | BW120830/S | Mining enclosure with sloping roof. 2mm thk body and door. | IP66 | Select | Bowen | AS/NZS 61439, Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon | |
Pilbara SP | 700 | 500 | 220 | Steel | IP66, IP65, IP56, IP55, IP34 | SP070522 | Mining enclosure with sloping roof | IP66 | Select | SP | AS/NZS 61439, Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon, Sunshade | |
Pilbara SP | 1000 | 800 | 220 | Steel | IP66, IP65, IP56, IP55, IP34 | SP100822 | Mining enclosure with sloping roof | IP66 | Select | SP | AS/NZS 61439, Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon, Sunshade | |
Pilbara SP | 400 | 400 | 250 | Steel | IP66, IP65, IP56, IP55, IP34 | SP040425 | Mining enclosure with sloping roof | IP66 | Select | SP | AS/NZS 61439, Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon, Sunshade | |
Pilbara SP | 700 | 500 | 350 | Steel | IP66, IP65, IP56, IP55, IP34 | SP070535 | Mining enclosure with sloping roof | IP66 | Select | SP | AS/NZS 61439, Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon, Sunshade | |
Pilbara SP | 1000 | 800 | 400 | Steel | IP66, IP65, IP56, IP55, IP34 | SP100840 | Mining enclosure with sloping roof | IP66 | Select | SP | AS/NZS 61439, Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon, Sunshade | |
Pilbara SP | 700 | 500 | 220 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | SP070522/S | Mining enclosure with sloping roof | IP66 | Select | SP | AS/NZS 61439, Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon, Sunshade | |
Pilbara SP | 1000 | 800 | 220 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | SP100822/S | Mining enclosure with sloping roof | IP66 | Select | SP | AS/NZS 61439, Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon, Sunshade | |
Pilbara SP | 400 | 400 | 250 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | SP040425/S | Mining enclosure with sloping roof | IP66 | Select | SP | AS/NZS 61439, Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon, Sunshade | |
Pilbara SP | 700 | 500 | 350 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | SP070535/S | Mining enclosure with sloping roof | IP66 | Select | SP | AS/NZS 61439, Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon, Sunshade | |
Pilbara SP | 1000 | 800 | 400 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | SP100840/S | Mining enclosure with sloping roof | IP66 | Select | SP | AS/NZS 61439, Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon, Sunshade | |
Pilbara SP | 700 | 500 | 220 | Stainless steel painted | IP66, IP65, IP56, IP55, IP34 | SP070522/SRO | Mining enclosure with sloping roof | IP66 | Select | SP | AS/NZS 61439, Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon, Sunshade | |
Pilbara SP | 1000 | 800 | 220 | Stainless steel painted | IP66, IP65, IP56, IP55, IP34 | SP100822/SRO | Mining enclosure with sloping roof | IP66 | Select | SP | AS/NZS 61439, Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon, Sunshade | |
Pilbara SP | 400 | 400 | 250 | Stainless steel painted | IP66, IP65, IP56, IP55, IP34 | SP040425/SRO | Mining enclosure with sloping roof | IP66 | Select | SP | AS/NZS 61439, Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon, Sunshade | |
Pilbara SP | 700 | 500 | 350 | Stainless steel painted | IP66, IP65, IP56, IP55, IP34 | SP070535/SRO | Mining enclosure with sloping roof | IP66 | Select | SP | AS/NZS 61439, Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon, Sunshade | |
Pilbara SP | 1000 | 800 | 400 | Stainless steel painted | IP66, IP65, IP56, IP55, IP34 | SP100840/SRO | Mining enclosure with sloping roof | IP66 | Select | SP | AS/NZS 61439, Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon, Sunshade | |
Pilbara SP | 700 | 500 | 220 | Steel | IP66, IP65, IP56, IP55, IP34 | SP070522/SK | Mining enclosure with sloping roof | IP66 | Select | SPSK | Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon, Sunshade | |
Pilbara SP | 1000 | 800 | 220 | Steel | IP66, IP65, IP56, IP55, IP34 | SP100822/SK | Mining enclosure with sloping roof | IP66 | Select | SPSK | Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon, Sunshade | |
Pilbara SP | 400 | 400 | 250 | Steel | IP66, IP65, IP56, IP55, IP34 | SP040425/SK* | Mining enclosure with sloping roof | IP66 | Select | SPSK | Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon, Sunshade | |
Pilbara SP | 700 | 500 | 350 | Steel | IP66, IP65, IP56, IP55, IP34 | SP070535/SK | Mining enclosure with sloping roof | IP66 | Select | SPSK | Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon, Sunshade | |
Pilbara SP | 1000 | 800 | 400 | Steel | IP66, IP65, IP56, IP55, IP34 | SP100840/SK | Mining enclosure with sloping roof | IP66 | Select | SPSK | Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon, Sunshade | |
Pilbara SP | 700 | 500 | 220 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | SP070522/S/SK | Mining enclosure with sloping roof | IP66 | Select | SPSK | Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon, Sunshade | |
Pilbara SP | 1000 | 800 | 220 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | SP100822/S/SK | Mining enclosure with sloping roof | IP66 | Select | SPSK | Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon, Sunshade | |
Pilbara SP | 400 | 400 | 250 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | SP040425/S/SK* | Mining enclosure with sloping roof | IP66 | Select | SPSK | Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon, Sunshade | |
Pilbara SP | 700 | 500 | 350 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | SP070535/S/SK | Mining enclosure with sloping roof | IP66 | Select | SPSK | Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon, Sunshade | |
Pilbara SP | 1000 | 800 | 400 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | SP100840/S/SK | Mining enclosure with sloping roof | IP66 | Select | SPSK | Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon, Sunshade | |
Pilbara SP | 700 | 500 | 220 | Stainless steel painted | IP66, IP65, IP56, IP55, IP34 | SP070522/SRO/SK | Mining enclosure with sloping roof | IP66 | Select | SPSK | Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon, Sunshade | |
Pilbara SP | 1000 | 800 | 220 | Stainless steel painted | IP66, IP65, IP56, IP55, IP34 | SP100822/SRO/SK | Mining enclosure with sloping roof | IP66 | Select | SPSK | Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon, Sunshade | |
Pilbara SP | 400 | 400 | 250 | Stainless steel painted | IP66, IP65, IP56, IP55, IP34 | SP040425/SRO/SK* | Mining enclosure with sloping roof | IP66 | Select | SPSK | Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon, Sunshade | |
Pilbara SP | 700 | 500 | 350 | Stainless steel painted | IP66, IP65, IP56, IP55, IP34 | SP070535/SRO/SK | Mining enclosure with sloping roof | IP66 | Select | SPSK | Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon, Sunshade | |
Pilbara SP | 1000 | 800 | 400 | Stainless steel painted | IP66, IP65, IP56, IP55, IP34 | SP100840/SRO/SK | Mining enclosure with sloping roof | IP66 | Select | SPSK | Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Escutcheon, Sunshade | |
Lambert LB | 1000 | 800 | 400 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | LB100840/S | Mining enclosure with sunshades | IP66 | Select | LB | AS/NZS 61439, Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Sunshade, Side mounting pan, Powdercase | |
Lambert LB | 1000 | 1000 | 400 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | LB101040/S | Mining enclosure with sunshades | IP66 | Select | LB | AS/NZS 61439, Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Sunshade, Side mounting pan, Powdercase | |
Lambert LB | 1000 | 1400 | 420 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | LB101440/S* | Mining enclosure with sunshades | IP66 | Select | LB | AS/NZS 61439, Sloping Roof, Mounting pan, Door rails, Wall mounting brackets, Locks and lock inserts, Gland Plate, Sunshade, Side mounting pan, Powdercase | |
Miner ME | 600 | 400 | 300 | Steel | IP66, IP65, IP56, IP55, IP34 | ME06043 | Mining enclosure for blasting applications | IP66 | Select | ME | AS/NZS 61439, Mounting pan, Locks and lock inserts | |
Miner ME | 600 | 600 | 300 | Steel | IP66, IP65, IP56, IP55, IP34 | ME06063 | Mining enclosure for blasting applications | IP66 | Select | ME | AS/NZS 61439, Mounting pan, Locks and lock inserts | |
Miner ME | 800 | 600 | 300 | Steel | IP66, IP65, IP56, IP55, IP34 | ME08063 | Mining enclosure for blasting applications | IP66 | Select | ME | AS/NZS 61439, Mounting pan, Locks and lock inserts | |
Miner ME | 800 | 800 | 300 | Steel | IP66, IP65, IP56, IP55, IP34 | ME08083 | Mining enclosure for blasting applications | IP66 | Select | ME | AS/NZS 61439, Mounting pan, Locks and lock inserts | |
Miner ME | 1000 | 800 | 300 | Steel | IP66, IP65, IP56, IP55, IP34 | ME10083 | Mining enclosure for blasting applications | IP66 | Select | ME | AS/NZS 61439, Mounting pan, Locks and lock inserts | |
Miner ME | 1000 | 1000 | 300 | Steel | IP66, IP65, IP56, IP55, IP34 | ME10103 | Mining enclosure for blasting applications | IP66 | Select | ME | AS/NZS 61439, Mounting pan, Locks and lock inserts | |
Miner ME | 1200 | 800 | 300 | Steel | IP66, IP65, IP56, IP55, IP34 | ME12083 | Mining enclosure for blasting applications | IP66 | Select | ME | AS/NZS 61439, Mounting pan, Locks and lock inserts | |
Miner ME | 600 | 400 | 300 | Steel | IP66, IP65, IP56, IP55, IP34 | ME06043/RO* | Mining enclosure for blasting applications | IP66 | Select | ME | AS/NZS 61439, Mounting pan, Locks and lock inserts | |
Miner ME | 600 | 600 | 300 | Steel | IP66, IP65, IP56, IP55, IP34 | ME06063/RO* | Mining enclosure for blasting applications | IP66 | Select | ME | AS/NZS 61439, Mounting pan, Locks and lock inserts | |
Miner ME | 800 | 600 | 300 | Steel | IP66, IP65, IP56, IP55, IP34 | ME08063/RO* | Mining enclosure for blasting applications | IP66 | Select | ME | AS/NZS 61439, Mounting pan, Locks and lock inserts | |
Miner ME | 800 | 800 | 300 | Steel | IP66, IP65, IP56, IP55, IP34 | ME08083/RO* | Mining enclosure for blasting applications | IP66 | Select | ME | AS/NZS 61439, Mounting pan, Locks and lock inserts | |
Miner ME | 1000 | 800 | 300 | Steel | IP66, IP65, IP56, IP55, IP34 | ME10083/RO* | Mining enclosure for blasting applications | IP66 | Select | ME | AS/NZS 61439, Mounting pan, Locks and lock inserts | |
Miner ME | 1000 | 1000 | 300 | Steel | IP66, IP65, IP56, IP55, IP34 | ME10103/RO* | Mining enclosure for blasting applications | IP66 | Select | ME | AS/NZS 61439, Mounting pan, Locks and lock inserts | |
Miner ME | 1200 | 800 | 300 | Steel | IP66, IP65, IP56, IP55, IP34 | ME12083/RO* | Mining enclosure for blasting applications | IP66 | Select | ME | AS/NZS 61439, Mounting pan, Locks and lock inserts | |
Universal Panelboard | 1000 | 600 | 250 | Steel | IP66, IP65, IP56, IP55, IP34 | PBS24P | Distribution board | IP66 | Select | PB | AS/NZS 61439, Escutcheon, Gland Plates (top and bottom), Universal mounting rail, Rainhood, Wall mounting brackets, Mounting base, DIN rail, External vent kit | |
Universal Panelboard | 1100 | 600 | 250 | Steel | IP66, IP65, IP56, IP55, IP34 | PBS36P | Distribution board | IP66 | Select | PB | AS/NZS 61439, Escutcheon, Gland Plates (top and bottom), Universal mounting rail, Rainhood, Wall mounting brackets, Mounting base, DIN rail, External vent kit | |
Universal Panelboard | 1200 | 600 | 250 | Steel | IP66, IP65, IP56, IP55, IP34 | PBS48P | Distribution board | IP66 | Select | PB | AS/NZS 61439, Escutcheon, Gland Plates (top and bottom), Universal mounting rail, Rainhood, Wall mounting brackets, Mounting base, DIN rail, External vent kit | |
Universal Panelboard | 1400 | 600 | 250 | Steel | IP66, IP65, IP56, IP55, IP34 | PBS60P | Distribution board | IP66 | Select | PB | AS/NZS 61439, Escutcheon, Gland Plates (top and bottom), Universal mounting rail, Rainhood, Wall mounting brackets, Mounting base, DIN rail, External vent kit | |
Universal Panelboard | 1400 | 600 | 250 | Steel | IP66, IP65, IP56, IP55, IP34 | PBS72P | Distribution board | IP66 | Select | PB | AS/NZS 61439, Escutcheon, Gland Plates (top and bottom), Universal mounting rail, Rainhood, Wall mounting brackets, Mounting base, DIN rail, External vent kit | |
Universal Panelboard | 400 | 600 | 250 | Steel | IP66, IP65, IP56, IP55, IP34 | PBSEXT | Distribution board | IP66 | Select | PB | AS/NZS 61439, Escutcheon, Gland Plates (top and bottom), Universal mounting rail, Rainhood, Wall mounting brackets, Mounting base, DIN rail, External vent kit | |
Universal Panelboard | 1000 | 600 | 250 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | PBS24P/S | Distribution board | IP66 | Select | PB | AS/NZS 61439, Escutcheon, Gland Plates (top and bottom), Universal mounting rail, Rainhood, Wall mounting brackets, Mounting base, DIN rail, External vent kit | |
Universal Panelboard | 1100 | 600 | 250 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | PBS36P/S | Distribution board | IP66 | Select | PB | AS/NZS 61439, Escutcheon, Gland Plates (top and bottom), Universal mounting rail, Rainhood, Wall mounting brackets, Mounting base, DIN rail, External vent kit | |
Universal Panelboard | 1200 | 600 | 250 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | PBS48P/S | Distribution board | IP66 | Select | PB | AS/NZS 61439, Escutcheon, Gland Plates (top and bottom), Universal mounting rail, Rainhood, Wall mounting brackets, Mounting base, DIN rail, External vent kit | |
Universal Panelboard | 1400 | 600 | 250 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | PBS60P/S | Distribution board | IP66 | Select | PB | AS/NZS 61439, Escutcheon, Gland Plates (top and bottom), Universal mounting rail, Rainhood, Wall mounting brackets, Mounting base, DIN rail, External vent kit | |
Universal Panelboard | 1400 | 600 | 250 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | PBS72P/S | Distribution board | IP66 | Select | PB | AS/NZS 61439, Escutcheon, Gland Plates (top and bottom), Universal mounting rail, Rainhood, Wall mounting brackets, Mounting base, DIN rail, External vent kit | |
Universal Panelboard | 400 | 600 | 250 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | PBSEXT/S | Distribution board | IP66 | Select | PB | AS/NZS 61439, Escutcheon, Gland Plates (top and bottom), Universal mounting rail, Rainhood, Wall mounting brackets, Mounting base, DIN rail, External vent kit | |
Monarch SMB | 2000 | 800 | 500 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | SMB1/1 | Small main board | IP66 | Select | SMB | AS/NZS 61439, CT chassis, Potential fuse bracket, Escutcheon, Plinth, Meter and consumer panels | |
Monarch SMB | 2000 | 800 | 500 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | SMB1/15 | Small main board | IP66 | Select | SMB | AS/NZS 61439, CT chassis, Potential fuse bracket, Escutcheon, Plinth, Meter and consumer panels | |
Monarch SMB | 2000 | 800 | 500 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | SMB1/15/S | Small main board | IP66 | Select | SMB | AS/NZS 61439, CT chassis, Potential fuse bracket, Escutcheon, Plinth, Meter and consumer panels | |
Monarch SMB | 2000 | 800 | 400 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | SMB1/40 | Small main board | IP66 | Select | SMB | AS/NZS 61439, CT chassis, Potential fuse bracket, Escutcheon, Plinth, Meter and consumer panels | |
Monarch IP | 400 | 400 | 270 | Steel | IP66, IP65, IP56, IP55, IP34 | IP13132 | Multiple application enclosure | IP66 | Select | IPZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 600 | 400 | 270 | Steel | IP66, IP65, IP56, IP55, IP34 | IP21132 | Multiple application enclosure | IP66 | Select | IPZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 400 | 600 | 270 | Steel | IP66, IP65, IP56, IP55, IP34 | IP13212 | Multiple application enclosure | IP66 | Select | IPZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 600 | 600 | 270 | Steel | IP66, IP65, IP56, IP55, IP34 | IP21212 | Multiple application enclosure | IP66 | Select | IPZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 800 | 600 | 270 | Steel | IP66, IP65, IP56, IP55, IP34 | IP29212 | Multiple application enclosure | IP66 | Select | IPZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1000 | 600 | 270 | Steel | IP66, IP65, IP56, IP55, IP34 | IP37212 | Multiple application enclosure | IP66 | Select | IPZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1200 | 600 | 270 | Steel | IP66, IP65, IP56, IP55, IP34 | IP45212 | Multiple application enclosure | IP66 | Select | IPZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 600 | 800 | 270 | Steel | IP66, IP65, IP56, IP55, IP34 | IP21292 | Multiple application enclosure | IP66 | Select | IPZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 400 | 600 | 400 | Steel | IP66, IP65, IP56, IP55, IP34 | IP13214 | Multiple application enclosure | IP66 | Select | IPZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 600 | 600 | 400 | Steel | IP66, IP65, IP56, IP55, IP34 | IP21214 | Multiple application enclosure | IP66 | Select | IPZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 800 | 600 | 400 | Steel | IP66, IP65, IP56, IP55, IP34 | IP29214 | Multiple application enclosure | IP66 | Select | IPZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1200 | 600 | 400 | Steel | IP66, IP65, IP56, IP55, IP34 | IP45214 | Multiple application enclosure | IP66 | Select | IPZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1600 | 600 | 400 | Steel | IP66, IP65, IP56, IP55, IP34 | IP61214 | Multiple application enclosure | IP66 | Select | IPZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1800 | 600 | 400 | Steel | IP66, IP65, IP56, IP55, IP34 | IP69214 | Multiple application enclosure | IP66 | Select | IPZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 2000 | 600 | 400 | Steel | IP66, IP65, IP56, IP55, IP34 | IP77214 | Multiple application enclosure | IP66 | Select | IPZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 700 | 700 | 400 | Steel | IP66, IP65, IP56, IP55, IP34 | IP25254 | Multiple application enclosure | IP66 | Select | IPZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1000 | 700 | 400 | Steel | IP66, IP65, IP56, IP55, IP34 | IP37254 | Multiple application enclosure | IP66 | Select | IPZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 600 | 800 | 400 | Steel | IP66, IP65, IP56, IP55, IP34 | IP21294 | Multiple application enclosure | IP66 | Select | IPZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 800 | 800 | 400 | Steel | IP66, IP65, IP56, IP55, IP34 | IP29294 | Multiple application enclosure | IP66 | Select | IPZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1200 | 800 | 400 | Steel | IP66, IP65, IP56, IP55, IP34 | IP45294 | Multiple application enclosure | IP66 | Select | IPZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1600 | 800 | 400 | Steel | IP66, IP65, IP56, IP55, IP34 | IP61294 | Multiple application enclosure | IP66 | Select | IPZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1800 | 800 | 400 | Steel | IP66, IP65, IP56, IP55, IP34 | IP69294 | Multiple application enclosure | IP66 | Select | IPZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 2000 | 800 | 400 | Steel | IP66, IP65, IP56, IP55, IP34 | IP77294 | Multiple application enclosure | IP66 | Select | IPZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 800 | 600 | 500 | Steel | IP66, IP65, IP56, IP55, IP34 | IP29215 | Multiple application enclosure | IP66 | Select | IPZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1200 | 600 | 500 | Steel | IP66, IP65, IP56, IP55, IP34 | IP45215 | Multiple application enclosure | IP66 | Select | IPZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1600 | 600 | 500 | Steel | IP66, IP65, IP56, IP55, IP34 | IP61215 | Multiple application enclosure | IP66 | Select | IPZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1800 | 600 | 500 | Steel | IP66, IP65, IP56, IP55, IP34 | IP69215 | Multiple application enclosure | IP66 | Select | IPZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 2000 | 600 | 500 | Steel | IP66, IP65, IP56, IP55, IP34 | IP77215 | Multiple application enclosure | IP66 | Select | IPZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 600 | 800 | 500 | Steel | IP66, IP65, IP56, IP55, IP34 | IP21295 | Multiple application enclosure | IP66 | Select | IPZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1200 | 800 | 500 | Steel | IP66, IP65, IP56, IP55, IP34 | IP45295 | Multiple application enclosure | IP66 | Select | IPZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1600 | 800 | 500 | Steel | IP66, IP65, IP56, IP55, IP34 | IP61295 | Multiple application enclosure | IP66 | Select | IPZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1800 | 800 | 500 | Steel | IP66, IP65, IP56, IP55, IP34 | IP69295 | Multiple application enclosure | IP66 | Select | IPZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 2000 | 800 | 500 | Steel | IP66, IP65, IP56, IP55, IP34 | IP77295 | Multiple application enclosure | IP66 | Select | IPZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 2000 | 400 | 600 | Steel | IP66, IP65, IP56, IP55, IP34 | IP77136 | Multiple application enclosure | IP66 | Select | IPZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 800 | 600 | 600 | Steel | IP66, IP65, IP56, IP55, IP34 | IP29216 | Multiple application enclosure | IP66 | Select | IPZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1200 | 600 | 600 | Steel | IP66, IP65, IP56, IP55, IP34 | IP45216 | Multiple application enclosure | IP66 | Select | IPZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1600 | 600 | 600 | Steel | IP66, IP65, IP56, IP55, IP34 | IP61216 | Multiple application enclosure | IP66 | Select | IPZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 2000 | 600 | 600 | Steel | IP66, IP65, IP56, IP55, IP34 | IP77216 | Multiple application enclosure | IP66 | Select | IPZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 2000 | 800 | 600 | Steel | IP66, IP65, IP56, IP55, IP34 | IP77296 | Multiple application enclosure | IP66 | Select | IPZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 2000 | 800 | 800 | Steel | IP66, IP65, IP56, IP55, IP34 | IP77298 | Multiple application enclosure | IP66 | Select | IPZS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 300 | 200 | 175 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | IP09051/S | Multiple application enclosure | IP66 | Select | IPSS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 400 | 300 | 175 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | IP13091/S | Multiple application enclosure | IP66 | Select | IPSS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 400 | 400 | 270 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | IP13132/S | Multiple application enclosure | IP66 | Select | IPSS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 600 | 400 | 270 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | IP21132/S | Multiple application enclosure | IP66 | Select | IPSS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 400 | 600 | 270 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | IP13212/S | Multiple application enclosure | IP66 | Select | IPSS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 600 | 600 | 270 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | IP21212/S | Multiple application enclosure | IP66 | Select | IPSS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 800 | 600 | 270 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | IP29212/S | Multiple application enclosure | IP66 | Select | IPSS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1000 | 600 | 270 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | IP37212/S | Multiple application enclosure | IP66 | Select | IPSS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1200 | 600 | 270 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | IP45212/S | Multiple application enclosure | IP66 | Select | IPSS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 600 | 800 | 270 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | IP21292/S | Multiple application enclosure | IP66 | Select | IPSS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 400 | 600 | 400 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | IP13214/S | Multiple application enclosure | IP66 | Select | IPSS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 600 | 600 | 400 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | IP21214/S | Multiple application enclosure | IP66 | Select | IPSS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 800 | 600 | 400 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | IP29214/S | Multiple application enclosure | IP66 | Select | IPSS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1200 | 600 | 400 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | IP45214/S | Multiple application enclosure | IP66 | Select | IPSS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1600 | 600 | 400 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | IP61214/S | Multiple application enclosure | IP66 | Select | IPSS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1800 | 600 | 400 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | IP69214/S | Multiple application enclosure | IP66 | Select | IPSS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 2000 | 600 | 400 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | IP77214/S | Multiple application enclosure | IP66 | Select | IPSS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 700 | 700 | 400 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | IP25254/S | Multiple application enclosure | IP66 | Select | IPSS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1000 | 700 | 400 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | IP37254/S | Multiple application enclosure | IP66 | Select | IPSS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 600 | 800 | 400 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | IP21294/S | Multiple application enclosure | IP66 | Select | IPSS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 800 | 800 | 400 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | IP29294/S | Multiple application enclosure | IP66 | Select | IPSS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1000 | 800 | 400 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | IP37294/S | Multiple application enclosure | IP66 | Select | IPSS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1200 | 800 | 400 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | IP45294/S | Multiple application enclosure | IP66 | Select | IPSS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1600 | 800 | 400 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | IP61294/S | Multiple application enclosure | IP66 | Select | IPSS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1800 | 800 | 400 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | IP69294/S | Multiple application enclosure | IP66 | Select | IPSS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 2000 | 800 | 400 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | IP77294/S | Multiple application enclosure | IP66 | Select | IPSS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 800 | 600 | 500 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | IP29215/S | Multiple application enclosure | IP66 | Select | IPSS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1200 | 600 | 500 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | IP45215/S | Multiple application enclosure | IP66 | Select | IPSS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1600 | 600 | 500 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | IP61215/S | Multiple application enclosure | IP66 | Select | IPSS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1800 | 600 | 500 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | IP69215/S | Multiple application enclosure | IP66 | Select | IPSS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 2000 | 600 | 500 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | IP77215/S | Multiple application enclosure | IP66 | Select | IPSS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 600 | 800 | 500 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | IP21295/S | Multiple application enclosure | IP66 | Select | IPSS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1200 | 800 | 500 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | IP45295/S | Multiple application enclosure | IP66 | Select | IPSS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1600 | 800 | 500 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | IP61295/S | Multiple application enclosure | IP66 | Select | IPSS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1800 | 800 | 500 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | IP69295/S | Multiple application enclosure | IP66 | Select | IPSS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 2000 | 800 | 500 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | IP77295/S | Multiple application enclosure | IP66 | Select | IPSS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 800 | 600 | 600 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | IP29216/S | Multiple application enclosure | IP66 | Select | IPSS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1200 | 600 | 600 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | IP45216/S | Multiple application enclosure | IP66 | Select | IPSS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1600 | 600 | 600 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | IP61216/S | Multiple application enclosure | IP66 | Select | IPSS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 2000 | 600 | 600 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | IP77216/S | Multiple application enclosure | IP66 | Select | IPSS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 2000 | 800 | 600 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | IP77296/S | Multiple application enclosure | IP66 | Select | IPSS | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 407 | 407 | 272 | Aluminium | IP66, IP65, IP56, IP55, IP34 | IP13132/A | Multiple application enclosure | IP66 | Select | IPAL | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 607 | 407 | 272 | Aluminium | IP66, IP65, IP56, IP55, IP34 | IP21132/A | Multiple application enclosure | IP66 | Select | IPAL | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 407 | 607 | 272 | Aluminium | IP66, IP65, IP56, IP55, IP34 | IP13212/A | Multiple application enclosure | IP66 | Select | IPAL | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 607 | 607 | 272 | Aluminium | IP66, IP65, IP56, IP55, IP34 | IP21212/A | Multiple application enclosure | IP66 | Select | IPAL | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 807 | 607 | 272 | Aluminium | IP66, IP65, IP56, IP55, IP34 | IP29212/A | Multiple application enclosure | IP66 | Select | IPAL | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1007 | 607 | 272 | Aluminium | IP66, IP65, IP56, IP55, IP34 | IP37212/A | Multiple application enclosure | IP66 | Select | IPAL | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1207 | 607 | 272 | Aluminium | IP66, IP65, IP56, IP55, IP34 | IP45212/A | Multiple application enclosure | IP66 | Select | IPAL | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 607 | 807 | 272 | Aluminium | IP66, IP65, IP56, IP55, IP34 | IP21292/A | Multiple application enclosure | IP66 | Select | IPAL | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 407 | 607 | 402 | Aluminium | IP66, IP65, IP56, IP55, IP34 | IP13214/A | Multiple application enclosure | IP66 | Select | IPAL | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 607 | 607 | 402 | Aluminium | IP66, IP65, IP56, IP55, IP34 | IP21214/A | Multiple application enclosure | IP66 | Select | IPAL | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 807 | 607 | 402 | Aluminium | IP66, IP65, IP56, IP55, IP34 | IP29214/A | Multiple application enclosure | IP66 | Select | IPAL | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1207 | 607 | 402 | Aluminium | IP66, IP65, IP56, IP55, IP34 | IP45214/A | Multiple application enclosure | IP66 | Select | IPAL | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1607 | 607 | 402 | Aluminium | IP66, IP65, IP56, IP55, IP34 | IP61214/A | Multiple application enclosure | IP66 | Select | IPAL | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1807 | 607 | 402 | Aluminium | IP66, IP65, IP56, IP55, IP34 | IP69214/A | Multiple application enclosure | IP66 | Select | IPAL | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 2007 | 607 | 402 | Aluminium | IP66, IP65, IP56, IP55, IP34 | IP77214/A | Multiple application enclosure | IP66 | Select | IPAL | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 707 | 707 | 402 | Aluminium | IP66, IP65, IP56, IP55, IP34 | IP25254/A | Multiple application enclosure | IP66 | Select | IPAL | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1007 | 707 | 402 | Aluminium | IP66, IP65, IP56, IP55, IP34 | IP37254/A | Multiple application enclosure | IP66 | Select | IPAL | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 607 | 807 | 402 | Aluminium | IP66, IP65, IP56, IP55, IP34 | IP21294/A | Multiple application enclosure | IP66 | Select | IPAL | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 807 | 807 | 402 | Aluminium | IP66, IP65, IP56, IP55, IP34 | IP29294/A | Multiple application enclosure | IP66 | Select | IPAL | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1007 | 807 | 402 | Aluminium | IP66, IP65, IP56, IP55, IP34 | IP37294/A | Multiple application enclosure | IP66 | Select | IPAL | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1207 | 807 | 402 | Aluminium | IP66, IP65, IP56, IP55, IP34 | IP45294/A | Multiple application enclosure | IP66 | Select | IPAL | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1607 | 807 | 402 | Aluminium | IP66, IP65, IP56, IP55, IP34 | IP61294/A | Multiple application enclosure | IP66 | Select | IPAL | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1807 | 807 | 402 | Aluminium | IP66, IP65, IP56, IP55, IP34 | IP69294/A | Multiple application enclosure | IP66 | Select | IPAL | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 2007 | 807 | 402 | Aluminium | IP66, IP65, IP56, IP55, IP34 | IP77294/A | Multiple application enclosure | IP66 | Select | IPAL | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 807 | 607 | 502 | Aluminium | IP66, IP65, IP56, IP55, IP34 | IP29215/A | Multiple application enclosure | IP66 | Select | IPAL | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1207 | 607 | 502 | Aluminium | IP66, IP65, IP56, IP55, IP34 | IP45215/A | Multiple application enclosure | IP66 | Select | IPAL | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1607 | 607 | 502 | Aluminium | IP66, IP65, IP56, IP55, IP34 | IP61215/A | Multiple application enclosure | IP66 | Select | IPAL | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1807 | 607 | 502 | Aluminium | IP66, IP65, IP56, IP55, IP34 | IP69215/A | Multiple application enclosure | IP66 | Select | IPAL | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 2007 | 607 | 502 | Aluminium | IP66, IP65, IP56, IP55, IP34 | IP77215/A | Multiple application enclosure | IP66 | Select | IPAL | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 607 | 807 | 502 | Aluminium | IP66, IP65, IP56, IP55, IP34 | IP21295/A | Multiple application enclosure | IP66 | Select | IPAL | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1207 | 807 | 502 | Aluminium | IP66, IP65, IP56, IP55, IP34 | IP45295/A | Multiple application enclosure | IP66 | Select | IPAL | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1607 | 807 | 502 | Aluminium | IP66, IP65, IP56, IP55, IP34 | IP61295/A | Multiple application enclosure | IP66 | Select | IPAL | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1807 | 807 | 502 | Aluminium | IP66, IP65, IP56, IP55, IP34 | IP69295/A | Multiple application enclosure | IP66 | Select | IPAL | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 2007 | 807 | 502 | Aluminium | IP66, IP65, IP56, IP55, IP34 | IP77295/A | Multiple application enclosure | IP66 | Select | IPAL | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 807 | 607 | 602 | Aluminium | IP66, IP65, IP56, IP55, IP34 | IP29216/A | Multiple application enclosure | IP66 | Select | IPAL | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1207 | 607 | 602 | Aluminium | IP66, IP65, IP56, IP55, IP34 | IP45216/A | Multiple application enclosure | IP66 | Select | IPAL | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 1607 | 607 | 602 | Aluminium | IP66, IP65, IP56, IP55, IP34 | IP61216/A | Multiple application enclosure | IP66 | Select | IPAL | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 2007 | 607 | 602 | Aluminium | IP66, IP65, IP56, IP55, IP34 | IP77216/A | Multiple application enclosure | IP66 | Select | IPAL | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Monarch IP | 2007 | 807 | 602 | Aluminium | IP66, IP65, IP56, IP55, IP34 | IP77296/A | Multiple application enclosure | IP66 | Select | IPAL | AS/NZS 61439, Mounting pan, Wall mounting brackets, Door rails, Insulating panel, Escutcheon, Shelves, DIN rail, 19inch rails, Load centre, Plinth, External vent kit, Locks and lock inserts, Rainhood, Gland Plate, Window door | |
Industrial control Stations | 152 | 97 | 93 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | CS11/S | Motor Control | IP66 | Select | CS | Wall mounting brackets, Cut outs, Push buttons | |
Industrial control Stations | 199 | 97 | 93 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | CS12/S | Motor Control | IP66 | Select | CS | Wall mounting brackets, Cut outs, Push buttons | |
Industrial control Stations | 245 | 97 | 93 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | CS13/S | Motor Control | IP66 | Select | CS | Wall mounting brackets, Cut outs, Push buttons | |
Industrial control Stations | 290 | 97 | 93 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | CS14/S | Motor Control | IP66 | Select | CS | Wall mounting brackets, Cut outs, Push buttons | |
Industrial control Stations | 383 | 97 | 93 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | CS16/S | Motor Control | IP66 | Select | CS | Wall mounting brackets, Cut outs, Push buttons | |
Industrial control Stations | 152 | 97 | 93 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | CS11/SH22 | Motor Control | IP66 | Select | CS | Wall mounting brackets, Cut outs, Push buttons | |
Industrial control Stations | 199 | 97 | 93 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | CS12/SH22 | Motor Control | IP66 | Select | CS | Wall mounting brackets, Cut outs, Push buttons | |
Industrial control Stations | 245 | 97 | 93 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | CS13/SH22 | Motor Control | IP66 | Select | CS | Wall mounting brackets, Cut outs, Push buttons | |
Industrial control Stations | 290 | 97 | 93 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | CS14/SH22 | Motor Control | IP66 | Select | CS | Wall mounting brackets, Cut outs, Push buttons | |
Industrial control Stations | 383 | 97 | 93 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | CS16/SH22 | Motor Control | IP66 | Select | CS | Wall mounting brackets, Cut outs, Push buttons | |
Industrial control Stations | 152 | 97 | 93 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | CS11/SH30 | Motor Control | IP66 | Select | CS | Wall mounting brackets, Cut outs, Push buttons | |
Industrial control Stations | 199 | 97 | 93 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | CS12/SH30 | Motor Control | IP66 | Select | CS | Wall mounting brackets, Cut outs, Push buttons | |
Industrial control Stations | 245 | 97 | 93 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | CS13/SH30 | Motor Control | IP66 | Select | CS | Wall mounting brackets, Cut outs, Push buttons | |
Industrial control Stations | 290 | 97 | 93 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | CS14/SH30 | Motor Control | IP66 | Select | CS | Wall mounting brackets, Cut outs, Push buttons | |
Industrial control Stations | 383 | 97 | 93 | Stainless steel | IP66, IP65, IP56, IP55, IP34 | CS16/SH30 | Motor Control | IP66 | Select | CS | Wall mounting brackets, Cut outs, Push buttons | |
Field FC | 1375 | 755 | 620 | Steel | IP66, IP65, IP56, IP55, IP34 | FC130706 | Infrastructure Cabinet | IP66 | Select | FC | AS/NZS 61439, Bayable, Sunshade, Gland Plate, Plinth, External vent kit, Shelves, 19inch rails, 21inch rails, Load centre | |
Field FC | 1675 | 755 | 620 | Steel | IP66, IP65, IP56, IP55, IP34 | FC160706 | Infrastructure Cabinet | IP66 | Select | FC | AS/NZS 61439, Bayable, Sunshade, Gland Plate, Plinth, External vent kit, Shelves, 19inch rails, 21inch rails, Load centre | |
Field FC | 1975 | 755 | 620 | Steel | IP66, IP65, IP56, IP55, IP34 | FC190706 | Infrastructure Cabinet | IP66 | Select | FC | AS/NZS 61439, Bayable, Sunshade, Gland Plate, Plinth, External vent kit, Shelves, 19inch rails, 21inch rails, Load centre | |
Field FC | 2275 | 755 | 620 | Steel | IP66, IP65, IP56, IP55, IP34 | FC220706 | Infrastructure Cabinet | IP66 | Select | FC | AS/NZS 61439, Bayable, Sunshade, Gland Plate, Plinth, External vent kit, Shelves, 19inch rails, 21inch rails, Load centre | |
Field FC | 1375 | 755 | 620 | Stainless steel, Stainless steel painted | IP66, IP65, IP56, IP55, IP34 | FC130706/S | Infrastructure Cabinet | IP66 | Select | FC | AS/NZS 61439, Bayable, Sunshade, Gland Plate, Plinth, External vent kit, Shelves, 19inch rails, 21inch rails, Load centre | |
Field FC | 1675 | 755 | 620 | Stainless steel, Stainless steel painted | IP66, IP65, IP56, IP55, IP34 | FC160706/S | Infrastructure Cabinet | IP66 | Select | FC | AS/NZS 61439, Bayable, Sunshade, Gland Plate, Plinth, External vent kit, Shelves, 19inch rails, 21inch rails, Load centre | |
Field FC | 1975 | 755 | 620 | Stainless steel, Stainless steel painted | IP66, IP65, IP56, IP55, IP34 | FC190706/S | Infrastructure Cabinet | IP66 | Select | FC | AS/NZS 61439, Bayable, Sunshade, Gland Plate, Plinth, External vent kit, Shelves, 19inch rails, 21inch rails, Load centre | |
Field FC | 2275 | 755 | 620 | Stainless steel, Stainless steel painted | IP66, IP65, IP56, IP55, IP34 | FC220706/S | Infrastructure Cabinet | IP66 | Select | FC | AS/NZS 61439, Bayable, Sunshade, Gland Plate, Plinth, External vent kit, Shelves, 19inch rails, 21inch rails, Load centre | |
Field FC | 1375 | 755 | 620 | Aluminium | IP66, IP65, IP56, IP55, IP34 | FC130706/A | Infrastructure Cabinet | IP66 | Select | FC | AS/NZS 61439, Bayable, Sunshade, Gland Plate, Plinth, External vent kit, Shelves, 19inch rails, 21inch rails, Load centre | |
Field FC | 1675 | 755 | 620 | Aluminium | IP66, IP65, IP56, IP55, IP34 | FC160706/A | Infrastructure Cabinet | IP66 | Select | FC | AS/NZS 61439, Bayable, Sunshade, Gland Plate, Plinth, External vent kit, Shelves, 19inch rails, 21inch rails, Load centre | |
Field FC | 1975 | 755 | 620 | Aluminium | IP66, IP65, IP56, IP55, IP34 | FC190706/A | Infrastructure Cabinet | IP66 | Select | FC | AS/NZS 61439, Bayable, Sunshade, Gland Plate, Plinth, External vent kit, Shelves, 19inch rails, 21inch rails, Load centre | |
Field FC | 2275 | 755 | 620 | Aluminium | IP66, IP65, IP56, IP55, IP34 | FC220706/A | Infrastructure Cabinet | IP66 | Select | FC | AS/NZS 61439, Bayable, Sunshade, Gland Plate, Plinth, External vent kit, Shelves, 19inch rails, 21inch rails, Load centre | |
iLINQ | 1400 | 400 | 400 | Steel | IP55, IP34 | LQE140404 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1400 | 500 | 400 | Steel | IP55, IP34 | LQE140504 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1400 | 600 | 400 | Steel | IP55, IP34 | LQE140604 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1400 | 800 | 400 | Steel | IP55, IP34 | LQE140804 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1600 | 400 | 400 | Steel | IP55, IP34 | LQE160404 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1600 | 500 | 400 | Steel | IP55, IP34 | LQE160504 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1600 | 600 | 400 | Steel | IP55, IP34 | LQE160604 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1600 | 800 | 400 | Steel | IP55, IP34 | LQE160804 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1800 | 400 | 400 | Steel | IP55, IP34 | LQE180404 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1800 | 500 | 400 | Steel | IP55, IP34 | LQE180504 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1800 | 600 | 400 | Steel | IP55, IP34 | LQE180604 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1800 | 800 | 400 | Steel | IP55, IP34 | LQE180804 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2000 | 400 | 400 | Steel | IP55, IP34 | LQE200404 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2000 | 500 | 400 | Steel | IP55, IP34 | LQE200504 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2000 | 600 | 400 | Steel | IP55, IP34 | LQE200604 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2000 | 800 | 400 | Steel | IP55, IP34 | LQE200804 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2200 | 400 | 400 | Steel | IP55, IP34 | LQE220404 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2200 | 500 | 400 | Steel | IP55, IP34 | LQE220504 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2200 | 600 | 400 | Steel | IP55, IP34 | LQ2200604 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2200 | 800 | 400 | Steel | IP55, IP34 | LQE220804 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1400 | 400 | 500 | Steel | IP55, IP34 | LQE140405 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1400 | 500 | 500 | Steel | IP55, IP34 | LQE140505 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1400 | 600 | 500 | Steel | IP55, IP34 | LQE140605 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1400 | 800 | 500 | Steel | IP55, IP34 | LQE140805 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1600 | 400 | 500 | Steel | IP55, IP34 | LQE160405 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1600 | 500 | 500 | Steel | IP55, IP34 | LQE160505 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1600 | 600 | 500 | Steel | IP55, IP34 | LQE160605 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1600 | 800 | 500 | Steel | IP55, IP34 | LQE160805 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1800 | 400 | 500 | Steel | IP55, IP34 | LQE180405 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1800 | 500 | 500 | Steel | IP55, IP34 | LQE180505 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1800 | 600 | 500 | Steel | IP55, IP34 | LQE180605 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1800 | 800 | 500 | Steel | IP55, IP34 | LQE180805 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2000 | 400 | 500 | Steel | IP55, IP34 | LQE200405 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2000 | 500 | 500 | Steel | IP55, IP34 | LQE200505 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2000 | 600 | 500 | Steel | IP55, IP34 | LQE200605 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2000 | 800 | 500 | Steel | IP55, IP34 | LQE200805 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2200 | 400 | 500 | Steel | IP55, IP34 | LQE220405 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2200 | 500 | 500 | Steel | IP55, IP34 | LQE220505 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2200 | 600 | 500 | Steel | IP55, IP34 | LQ2200605 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2200 | 800 | 500 | Steel | IP55, IP34 | LQE220805 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1400 | 400 | 600 | Steel | IP55, IP34 | LQE140406 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1400 | 500 | 600 | Steel | IP55, IP34 | LQE140506 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1400 | 600 | 600 | Steel | IP55, IP34 | LQE140606 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1400 | 800 | 600 | Steel | IP55, IP34 | LQE140806 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1600 | 400 | 600 | Steel | IP55, IP34 | LQE160406 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1600 | 500 | 600 | Steel | IP55, IP34 | LQE160506 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1600 | 600 | 600 | Steel | IP55, IP34 | LQE160606 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1600 | 800 | 600 | Steel | IP55, IP34 | LQE160806 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1800 | 400 | 600 | Steel | IP55, IP34 | LQE180406 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1800 | 500 | 600 | Steel | IP55, IP34 | LQE180506 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1800 | 600 | 600 | Steel | IP55, IP34 | LQE180606 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1800 | 800 | 600 | Steel | IP55, IP34 | LQE180806 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2000 | 400 | 600 | Steel | IP55, IP34 | LQE200406 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2000 | 500 | 600 | Steel | IP55, IP34 | LQE200506 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2000 | 600 | 600 | Steel | IP55, IP34 | LQE200606 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2000 | 800 | 600 | Steel | IP55, IP34 | LQE200806 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2200 | 400 | 600 | Steel | IP55, IP34 | LQE220406 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2200 | 500 | 600 | Steel | IP55, IP34 | LQE220506 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2200 | 600 | 600 | Steel | IP55, IP34 | LQ2200606 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2200 | 800 | 600 | Steel | IP55, IP34 | LQE220806 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1400 | 400 | 800 | Steel | IP55, IP34 | LQE140408 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1400 | 500 | 800 | Steel | IP55, IP34 | LQE140508 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1400 | 600 | 800 | Steel | IP55, IP34 | LQE140608 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1400 | 800 | 800 | Steel | IP55, IP34 | LQE140808 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1600 | 400 | 800 | Steel | IP55, IP34 | LQE160408 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1600 | 500 | 800 | Steel | IP55, IP34 | LQE160508 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1600 | 600 | 800 | Steel | IP55, IP34 | LQE160608 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1600 | 800 | 800 | Steel | IP55, IP34 | LQE160808 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1800 | 400 | 800 | Steel | IP55, IP34 | LQE180408 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1800 | 500 | 800 | Steel | IP55, IP34 | LQE180508 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1800 | 600 | 800 | Steel | IP55, IP34 | LQE180608 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1800 | 800 | 800 | Steel | IP55, IP34 | LQE180808 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2000 | 400 | 800 | Steel | IP55, IP34 | LQE200408 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2000 | 500 | 800 | Steel | IP55, IP34 | LQE200508 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2000 | 600 | 800 | Steel | IP55, IP34 | LQE200608 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2000 | 800 | 800 | Steel | IP55, IP34 | LQE200808 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2200 | 400 | 800 | Steel | IP55, IP34 | LQE220408 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2200 | 500 | 800 | Steel | IP55, IP34 | LQE220508 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2200 | 600 | 800 | Steel | IP55, IP34 | LQE220608 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2200 | 800 | 800 | Steel | IP55, IP34 | LQE220808 | Bayable enclosure system | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1400 | 600 | 400 | Steel | IP55, IP34 | LQE140604/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1400 | 800 | 400 | Steel | IP55, IP34 | LQE140804/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1400 | 1000 | 400 | Steel | IP55, IP34 | LQE141004/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1400 | 1200 | 400 | Steel | IP55, IP34 | LQE141204/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1600 | 600 | 400 | Steel | IP55, IP34 | LQE160604/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1600 | 800 | 400 | Steel | IP55, IP34 | LQE160804/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1600 | 1000 | 400 | Steel | IP55, IP34 | LQE161004/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1600 | 1200 | 400 | Steel | IP55, IP34 | LQE161204/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1800 | 600 | 400 | Steel | IP55, IP34 | LQE180604/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1800 | 800 | 400 | Steel | IP55, IP34 | LQE180804/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1800 | 1000 | 400 | Steel | IP55, IP34 | LQE181004/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1800 | 1200 | 400 | Steel | IP55, IP34 | LQE181204/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2000 | 600 | 400 | Steel | IP55, IP34 | LQE200604/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2000 | 800 | 400 | Steel | IP55, IP34 | LQE200804/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2000 | 1000 | 400 | Steel | IP55, IP34 | LQE201004/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2000 | 1200 | 400 | Steel | IP55, IP34 | LQE201204/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2200 | 600 | 400 | Steel | IP55, IP34 | LQE220604/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2200 | 800 | 400 | Steel | IP55, IP34 | LQE220804/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2200 | 1000 | 400 | Steel | IP55, IP34 | LQ2210604/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2200 | 1200 | 400 | Steel | IP55, IP34 | LQE221204/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1400 | 600 | 500 | Steel | IP55, IP34 | LQE140605/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1400 | 800 | 500 | Steel | IP55, IP34 | LQE140805/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1400 | 1000 | 500 | Steel | IP55, IP34 | LQE141005/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1400 | 1200 | 500 | Steel | IP55, IP34 | LQE141205/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1600 | 600 | 500 | Steel | IP55, IP34 | LQE160605/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1600 | 800 | 500 | Steel | IP55, IP34 | LQE160805/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1600 | 1000 | 500 | Steel | IP55, IP34 | LQE161005/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1600 | 1200 | 500 | Steel | IP55, IP34 | LQE161205/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1800 | 600 | 500 | Steel | IP55, IP34 | LQE180605/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1800 | 800 | 500 | Steel | IP55, IP34 | LQE180805/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1800 | 1000 | 500 | Steel | IP55, IP34 | LQE181005/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1800 | 1200 | 500 | Steel | IP55, IP34 | LQE181205/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2000 | 600 | 500 | Steel | IP55, IP34 | LQE200605/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2000 | 800 | 500 | Steel | IP55, IP34 | LQE200805/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2000 | 1000 | 500 | Steel | IP55, IP34 | LQE201005/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2000 | 1200 | 500 | Steel | IP55, IP34 | LQE201205/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2200 | 600 | 500 | Steel | IP55, IP34 | LQE220605/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2200 | 800 | 500 | Steel | IP55, IP34 | LQE220805/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2200 | 1000 | 500 | Steel | IP55, IP34 | LQ2210605/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2200 | 1200 | 500 | Steel | IP55, IP34 | LQE221205/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1400 | 600 | 600 | Steel | IP55, IP34 | LQE140606/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1400 | 800 | 600 | Steel | IP55, IP34 | LQE140806/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1400 | 1000 | 600 | Steel | IP55, IP34 | LQE141006/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1400 | 1200 | 600 | Steel | IP55, IP34 | LQE141206/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1600 | 600 | 600 | Steel | IP55, IP34 | LQE160606/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1600 | 800 | 600 | Steel | IP55, IP34 | LQE160806/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1600 | 1000 | 600 | Steel | IP55, IP34 | LQE161006/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1600 | 1200 | 600 | Steel | IP55, IP34 | LQE161206/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1800 | 600 | 600 | Steel | IP55, IP34 | LQE180606/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1800 | 800 | 600 | Steel | IP55, IP34 | LQE180806/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1800 | 1000 | 600 | Steel | IP55, IP34 | LQE181006/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1800 | 1200 | 600 | Steel | IP55, IP34 | LQE181206/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2000 | 600 | 600 | Steel | IP55, IP34 | LQE200606/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2000 | 800 | 600 | Steel | IP55, IP34 | LQE200806/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2000 | 1000 | 600 | Steel | IP55, IP34 | LQE201006/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2000 | 1200 | 600 | Steel | IP55, IP34 | LQE201206/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2200 | 600 | 600 | Steel | IP55, IP34 | LQE220606/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2200 | 800 | 600 | Steel | IP55, IP34 | LQE220806/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2200 | 1000 | 600 | Steel | IP55, IP34 | LQ2210606/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2200 | 1200 | 600 | Steel | IP55, IP34 | LQE221206/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1400 | 600 | 800 | Steel | IP55, IP34 | LQE140608/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1400 | 800 | 800 | Steel | IP55, IP34 | LQE140808/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1400 | 1000 | 800 | Steel | IP55, IP34 | LQE141008/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1400 | 1200 | 800 | Steel | IP55, IP34 | LQE141208/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1600 | 600 | 800 | Steel | IP55, IP34 | LQE160608/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1600 | 800 | 800 | Steel | IP55, IP34 | LQE160808/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1600 | 1000 | 800 | Steel | IP55, IP34 | LQE161008/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1600 | 1200 | 800 | Steel | IP55, IP34 | LQE161208/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1800 | 600 | 800 | Steel | IP55, IP34 | LQE180608/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1800 | 800 | 800 | Steel | IP55, IP34 | LQE180808/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1800 | 1000 | 800 | Steel | IP55, IP34 | LQE181008/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 1800 | 1200 | 800 | Steel | IP55, IP34 | LQE181208/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2000 | 600 | 800 | Steel | IP55, IP34 | LQE200608/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2000 | 800 | 800 | Steel | IP55, IP34 | LQE200808/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2000 | 1000 | 800 | Steel | IP55, IP34 | LQE201008/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2000 | 1200 | 800 | Steel | IP55, IP34 | LQE201208/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2200 | 600 | 800 | Steel | IP55, IP34 | LQE220608/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2200 | 800 | 800 | Steel | IP55, IP34 | LQE220808/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
iLINQ | 2200 | 1000 | 800 | Steel | IP55, IP34 | LQE221008/DD | Bayable enclosure system - Double Door | IP55 | Select | LQE | Bayable, Plinth, Gland Plate, Mounting pan, Swing frame, 19inch rails, Matrix rails, Door rails, Escutcheon | |
Forte FR | 300 | 200 | 120 | Steel | IP65, IP56, IP55, IP34 | FR030212 | Commodity, general purpose enclosure for indoor use | IP65 | Select | FR | Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts | |
Forte FR | 300 | 200 | 150 | Steel | IP65, IP56, IP55, IP34 | FR030215 | Commodity, general purpose enclosure for indoor use | IP65 | Select | FR | Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts | |
Forte FR | 300 | 300 | 150 | Steel | IP65, IP56, IP55, IP34 | FR030315 | Commodity, general purpose enclosure for indoor use | IP65 | Select | FR | Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts | |
Forte FR | 400 | 300 | 150 | Steel | IP65, IP56, IP55, IP34 | FR040315 | Commodity, general purpose enclosure for indoor use | IP65 | Select | FR | Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts | |
Forte FR | 300 | 400 | 150 | Steel | IP65, IP56, IP55, IP34 | FR030415 | Commodity, general purpose enclosure for indoor use | IP65 | Select | FR | Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts | |
Forte FR | 300 | 300 | 200 | Steel | IP65, IP56, IP55, IP34 | FR030320 | Commodity, general purpose enclosure for indoor use | IP65 | Select | FR | Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts | |
Forte FR | 400 | 300 | 200 | Steel | IP65, IP56, IP55, IP34 | FR040320 | Commodity, general purpose enclosure for indoor use | IP65 | Select | FR | Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts | |
Forte FR | 500 | 300 | 200 | Steel | IP65, IP56, IP55, IP34 | FR050320 | Commodity, general purpose enclosure for indoor use | IP65 | Select | FR | Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts | |
Forte FR | 600 | 300 | 200 | Steel | IP65, IP56, IP55, IP34 | FR060320 | Commodity, general purpose enclosure for indoor use | IP65 | Select | FR | Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts | |
Forte FR | 300 | 400 | 200 | Steel | IP65, IP56, IP55, IP34 | FR030420 | Commodity, general purpose enclosure for indoor use | IP65 | Select | FR | Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts | |
Forte FR | 400 | 400 | 200 | Steel | IP65, IP56, IP55, IP34 | FR040420 | Commodity, general purpose enclosure for indoor use | IP65 | Select | FR | Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts | |
Forte FR | 500 | 400 | 200 | Steel | IP65, IP56, IP55, IP34 | FR050420 | Commodity, general purpose enclosure for indoor use | IP65 | Select | FR | Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts | |
Forte FR | 600 | 400 | 200 | Steel | IP65, IP56, IP55, IP34 | FR060420 | Commodity, general purpose enclosure for indoor use | IP65 | Select | FR | Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts | |
Forte FR | 700 | 400 | 200 | Steel | IP65, IP56, IP55, IP34 | FR070420 | Commodity, general purpose enclosure for indoor use | IP65 | Select | FR | Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts | |
Forte FR | 500 | 500 | 200 | Steel | IP65, IP56, IP55, IP34 | FR050520 | Commodity, general purpose enclosure for indoor use | IP65 | Select | FR | Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts | |
Forte FR | 600 | 600 | 200 | Steel | IP65, IP56, IP55, IP34 | FR060620 | Commodity, general purpose enclosure for indoor use | IP65 | Select | FR | Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts | |
Forte FR | 800 | 600 | 200 | Steel | IP65, IP56, IP55, IP34 | FR080620 | Commodity, general purpose enclosure for indoor use | IP65 | Select | FR | Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts | |
Forte FR | 400 | 400 | 300 | Steel | IP65, IP56, IP55, IP34 | FR040430 | Commodity, general purpose enclosure for indoor use | IP65 | Select | FR | Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts | |
Forte FR | 600 | 400 | 300 | Steel | IP65, IP56, IP55, IP34 | FR060430 | Commodity, general purpose enclosure for indoor use | IP65 | Select | FR | Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts | |
Forte FR | 500 | 500 | 300 | Steel | IP65, IP56, IP55, IP34 | FR050530 | Commodity, general purpose enclosure for indoor use | IP65 | Select | FR | Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts | |
Forte FR | 600 | 600 | 300 | Steel | IP65, IP56, IP55, IP34 | FR060630 | Commodity, general purpose enclosure for indoor use | IP65 | Select | FR | Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts | |
Forte FR | 800 | 600 | 300 | Steel | IP65, IP56, IP55, IP34 | FR080630 | Commodity, general purpose enclosure for indoor use | IP65 | Select | FR | Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts | |
Forte FR | 1000 | 600 | 300 | Steel | IP65, IP56, IP55, IP34 | FR100630 | Commodity, general purpose enclosure for indoor use | IP65 | Select | FR | Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts | |
Forte FR | 1200 | 600 | 300 | Steel | IP65, IP56, IP55, IP34 | FR120630 | Commodity, general purpose enclosure for indoor use | IP65 | Select | FR | Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts | |
Forte FR | 1000 | 800 | 300 | Steel | IP65, IP56, IP55, IP34 | FR100830 | Commodity, general purpose enclosure for indoor use | IP65 | Select | FR | Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts | |
Forte FR | 1200 | 800 | 300 | Steel | IP65, IP56, IP55, IP34 | FR120830 | Commodity, general purpose enclosure for indoor use | IP65 | Select | FR | Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts | |
Forte FR | 1000 | 800 | 400 | Steel | IP65, IP56, IP55, IP34 | FR100840 | Commodity, general purpose enclosure for indoor use | IP65 | Select | FR | Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts | |
Forte FR | 1200 | 800 | 400 | Steel | IP65, IP56, IP55, IP34 | FR120840 | Commodity, general purpose enclosure for indoor use | IP65 | Select | FR | Mounting pan, Wall mounting brackets, External vent kit, Locks and lock inserts |
Step 2 - Enclosure Information
Use this section to load information and compare different product ranges. If you want to compare, just go back to Step 1 and select and alternate range or you can open open selected product pages in a new tab using the link under the selected enclosure button.
Selected Product Preview
Will load selected enclosure information.
Step 3 - Contact
Contact us or your local wholesaler about the selected item.
Contact us via Email
Please complete the following form: -
Contact Us By Phone
Local Call: 1300 ENCLOSURES (1300 362 567)
International: +61 7 3714 1111
