Ausrack TxD

A versatile rack with 4 corner posts, suitable for 19 inch, 21 inch, 23 inch or 26 inch equipment.

Ausrack TxD
Australian Made
Australian Made

Product Information

Applications

Designed for transmission and data applications in telecommunications exchange and data centre environments.

Features

  • EIA-310-D, SSI and ETSI standards compliant
  • Static load rating of 1400kg
  • Seismic rating of 750kg

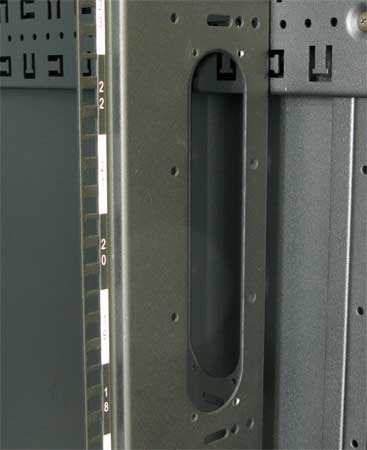

  • Depth adjustble RU marked rails
  • Suitable for 19″, 21″, 23″ and 26″ equipment (optional mounting rails required for 21″, 23″ and 26″)
  • Easy baying with or without side panels

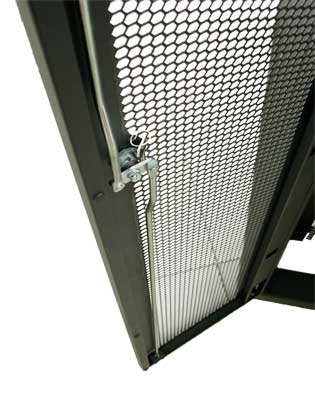

  • 2 point door locking system
  • Comprehensive range of accessories

Construction

  • Manufactured from 1.6mm zinc coated steel
  • Powdercoated textured matt black
  • Frame thickness – 1.6mm
  • Rail thickness – 2.0mm

DownloadsAccessoriesMore ProductsEnquiryOnline StockistsLocal Stockists

Order Guide

Part NumberRUHeight (mm)Width (mm)Depth (mm)Weight (kg)Enquiry
ATS45U609*^452140600900137Enquiry
ATS45U610*^4521406001000144Enquiry
ATS45U612*^4521406001200159Enquiry
ATS45U809*^452140800900145Enquiry
ATS45U810*^4521408001000148Enquiry
ATS45U812*^4521408001200161Enquiry
ATF45U609*45214060090077Enquiry
ATF45U610*452140600100082Enquiry
ATF45U612*452140600120096Enquiry
ATF45U809*45214080090080Enquiry
ATF45U810*452140800100085Enquiry
ATF45U812*452140800120099Enquiry

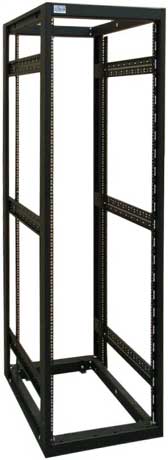

* Available on request. Standard ATF model includes frame and 4 x 19″ rack rails.

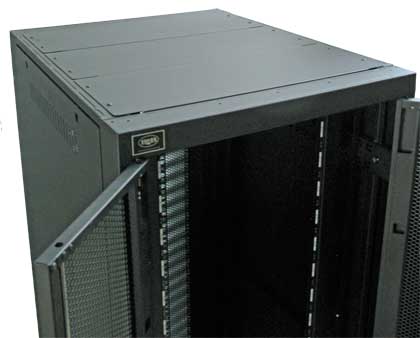

^ ATS model includes 4 x 19″ rack rails, front and rear mesh doors and side panels.
