Powdercoat Colour Options
and Finishes

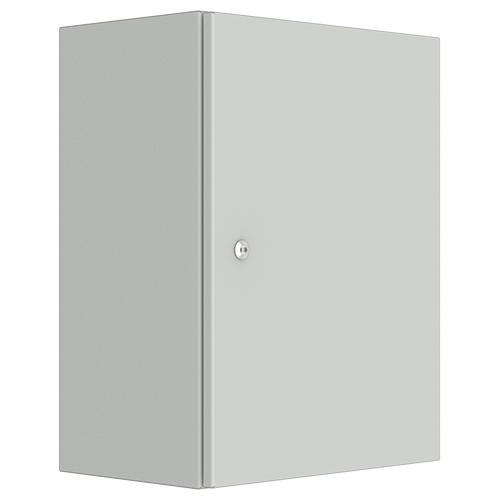

RAL7035 LIGHT GREY

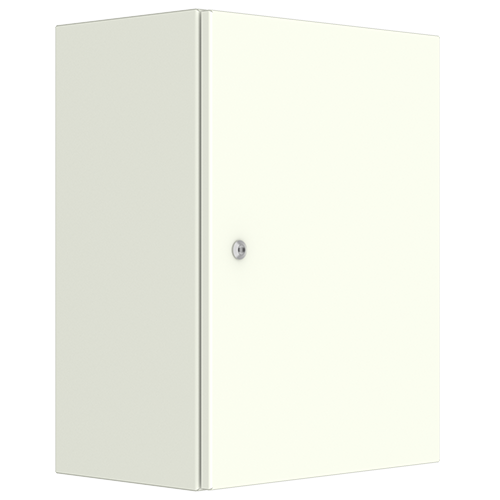

PEARL WHITE

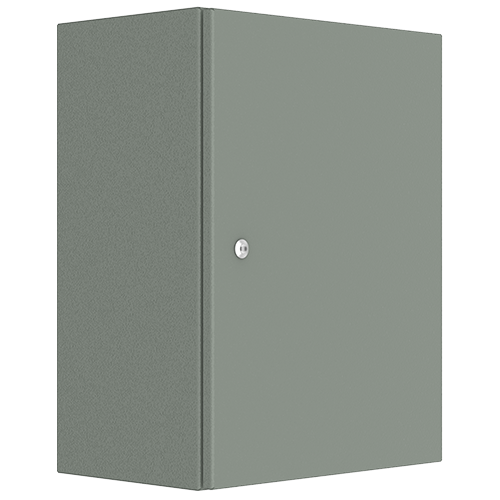

N42 STORM GREY

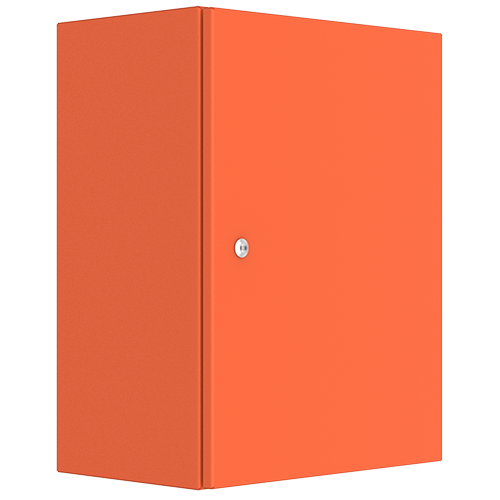

X15 ORANGE

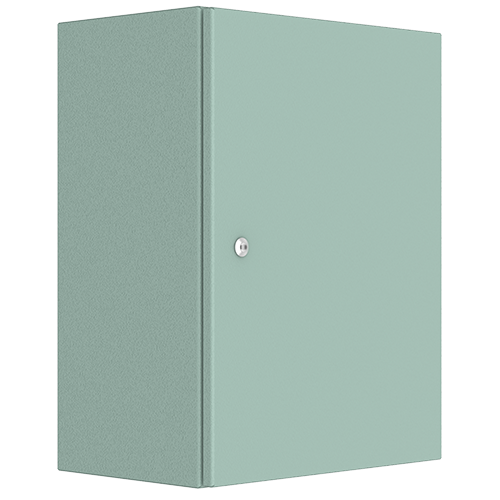

T33 SMOKE BLUE

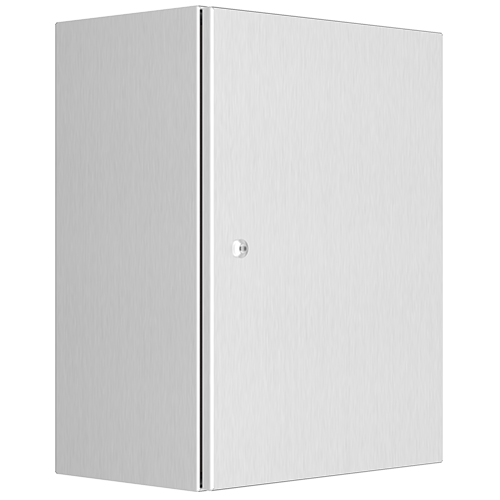

N14 STAINLESS STEEL

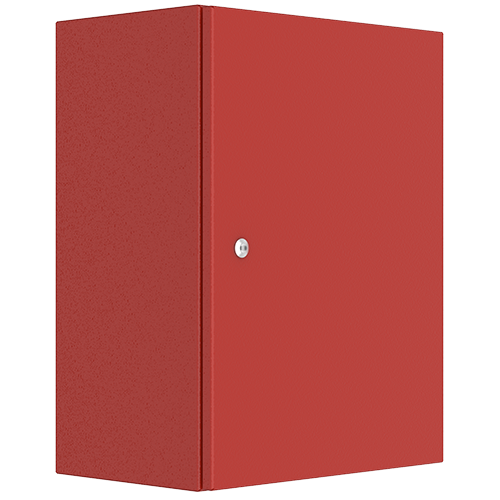

SIGNAL RED

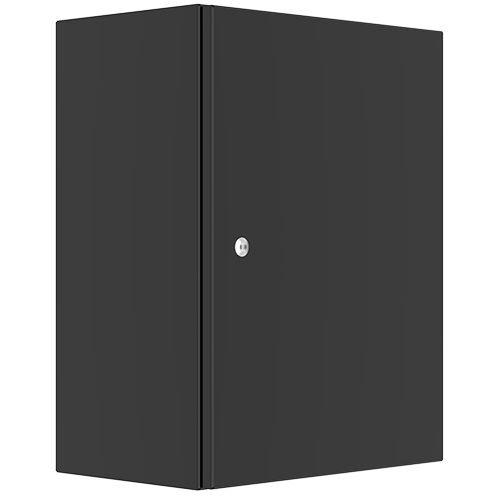

SAHARA EBONY

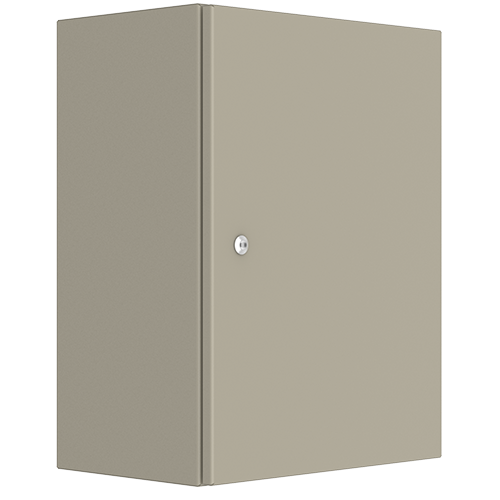

RAL7032 PEBBLE GREY
B21 FRENCH BLUE
Please note: Actual colours may vary from what you see on screen. If you are unsure about your selection, please contact your local B&R sales office before finalising your purchase.

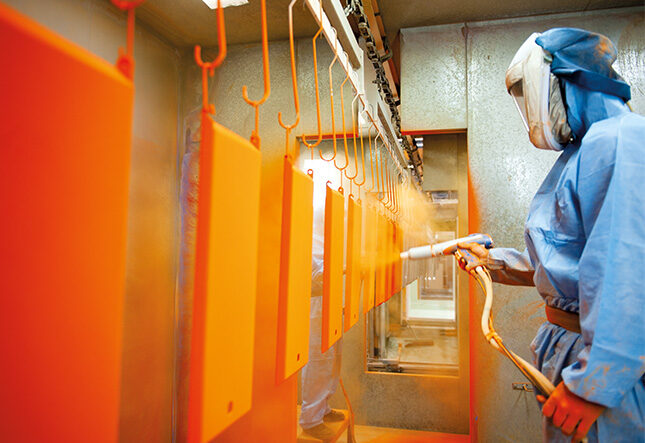

Pre-Treatment Process
Most of our powdercoated products are manufactured using zinc-coated steel, which includes a continuous hot-dip zinc coating (20 microns) for enhanced corrosion resistance.
The pre-treatment process consists of four stages:
Stage 1 & 2 – Cleaning and Phosphating:
Removes oils and grease, then applies an Iron Phosphate coating to improve paint adhesion and ensure even coverage.
Stage 3 – Fresh Water Rinse:
A pressurised rinse using recirculated fresh water.
Stage 4 – Final Seal Rinse:
Applies a final sealing coat to prepare the surface for powdercoating.
We conduct regular Titration Tests on phosphate tanks to ensure compliance with specifications set by our pre-treatment chemical and powdercoat suppliers.
Standard Powdercoat
Colours
B&R offers a range of standard powdercoat colours and finishes for all electrical enclosures. Additional colour options are available on request.
Our standard industry colours include:
- Light Grey (RAL7035) – Ripple finish, used for enclosures and external components.
- Pearl White Gloss – Used exclusively for internal components.
- Pearl White Ripple – Available for enclosures and external components upon request.
All powdercoated metallic enclosures are finished using a modified polyester paint, tested rigorously to meet our in-house standards and certified under our ISO 9001:2015 Quality Management System.
Quality Control & Testing
01
Thickness Test
- Ripple Finish: Average 100 microns
- Gloss Finish: Average 70 microns
- Minimum Thickness:
Exterior: 90 microns
Interior: 60 microns - Complies with AS/NZS 4506:2005
02
Cure Test
- Confirms that the powdercoating is fully cured.
- Tested against known cured panels.
- Complies with AS/NZS 4506:2005
03
Cross Cut Test
- Ensures strong adhesion between the coating and substrate.
- Complies with AS/NZS 1580.408.4:1993
04
Colour Comparison
- Every powdercoat batch is visually compared against approved colour samples.
- Samples are calibrated to match AS 2700-2011 standards or customer-supplied references.
Estimated Temperature Rise in Sunlight
Powdercoated finishes absorb solar energy, which can raise internal enclosure temperatures when exposed to direct sunlight. Below are estimated temperature increases for our standard colours:
| Colour | Temperature Rise |
|---|---|
| Pearl White | 2.2°C |
| Light Grey (RAL7035) | 3.5°C |
| Pebble Grey (RAL7032) | 4.6°C |
| Smoke Blue (T33) | 6.2°C |
| Storm Grey (N42) | 7.7°C |
| French Blue (B21) | 7.7°C |
| Orange X15 | 8.0°C |
| Signal Red | 11.6°C |
| Black | 15.0°C |
If you have specific environmental, aesthetic, or functional requirements, our team is here to assist. Contact your local B&R representative to find the right powdercoat solution for your project.
