Switchboard Building Systems

Switchboard Solutions

For all of your low voltage switchboards needs reach out to a B&R specialist who will expertly guide you through the selection process.

With a proud legacy of over 65 years in Australian manufacturing, B&R stands as a true expert in the industry. With thousands of switchboards in service, our unparalleled experience guarantees that you are in the most capable and reliable hands for all your compliance, supply, and delivery needs. Trust us to deliver excellence every step of the way.

B&R Switchboards

Our switchboard systems include:

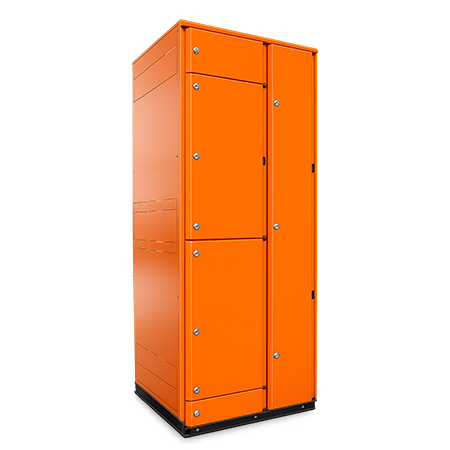

Signature SE
Australian Made
Australian Made

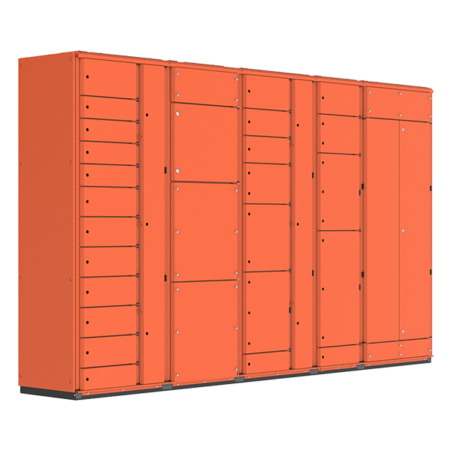

Signature SE

Motor control centre and modular switchboard building system for use by switchboard builders.

  • Tiers or enclosures assembled
  • Built to suit specific project
  • Ongoing program of certification to ensure compliance
  • Developed through our partnership with switchboard builders
  • One of Australia’s most tested boards in it’s class
  • AS/NZS 61439 compliance on request
  • Australian made
Australian Made
Australian Made

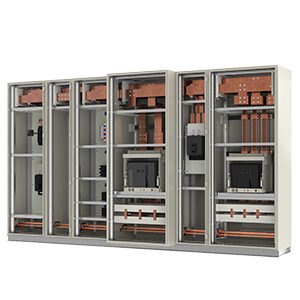

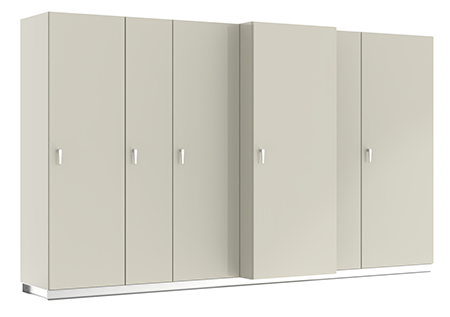

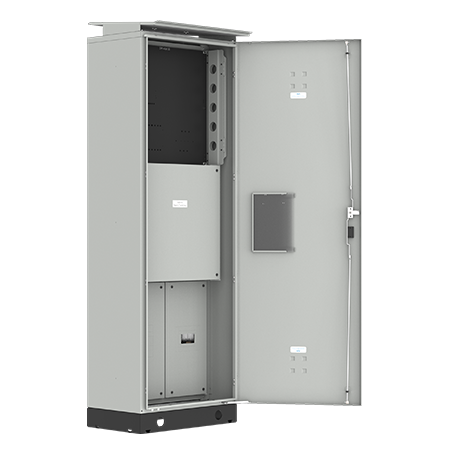

IP Switchboards

Designed specifically for outdoor environments and suitable for applications up to 2260Amp.

  • IP66 protection rating
  • An extension of the tried and trusted Monarch IP range
  • Modular multi-cubicle system
  • AS/NZS 61439 compliant
  • Huge range of accessories available
  • Available in 1.6mm zinc coated steel, RAL7032
  • Australian made
Australian Made
Australian Made

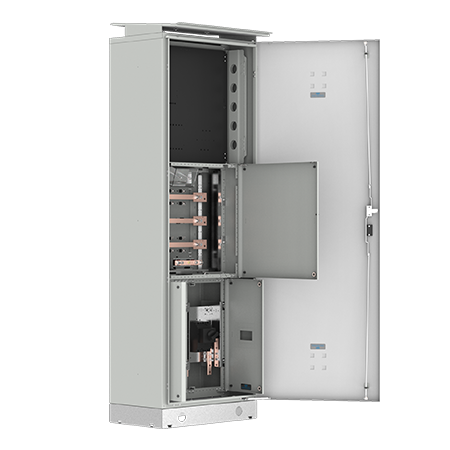

Infinity

Metering and power and light enclosures to suit all environments and rated up to 630A and 36kA fault ratings

  • Weatherproof to IP66
  • Full switchboard design service
  • AS/NZS 61439 compliant
  • Easily bayable
  • Fully configured and wired options available
  • Available in powder coated steel, aluminium or N4 stainless steel
  • Designed by switchboard experts for electricians
  • Full range of accessories

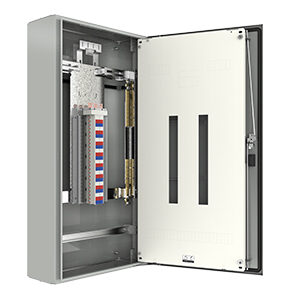

Superior Universal PB
Australian Made
Australian Made

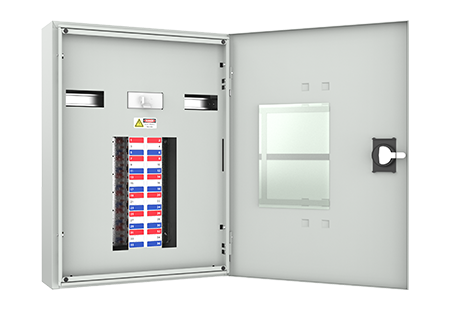

Universal Panelboard

Distribution board for a range of applications up to 250A at 22kA fault rating

  • Weatherproof to IP66
  • Ideally paired with Infinity 3G
  • Accepts Schneider, NHP or ABB MCB’s
  • AS/NZS 61439 compliant
  • Aluminium gland plate top and bottom
  • Available in powder coated steel or N4 stainless steel

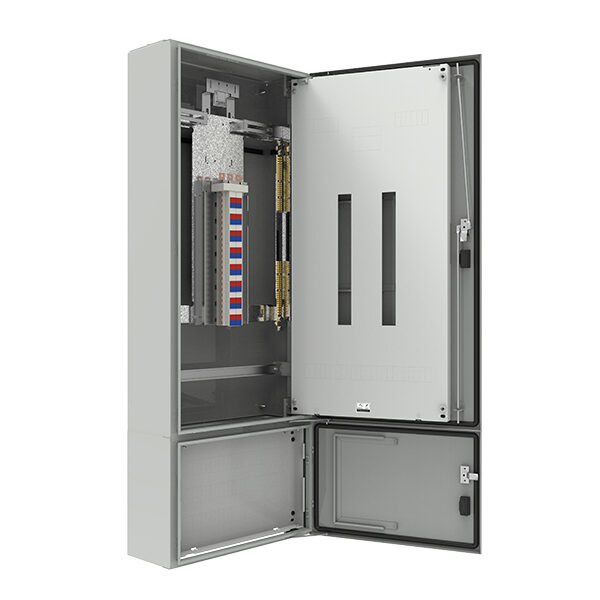

  • Extension box also available and can be fitted top or bottom
Australian Made
Australian Made

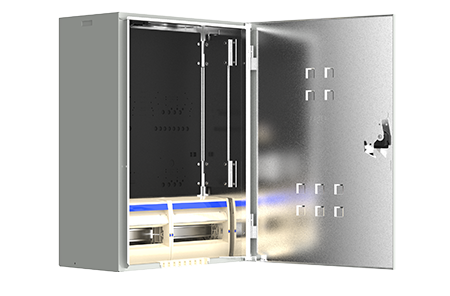

Horizon

Metering, and Light and Power Distribution under 125A and 10kA fault rating

  • Easy wiring and installation
  • AS/NZS 61439 compliant
  • RotaDIN provides safe access to MCB terminals
  • Options of steel or stainless steel
  • Australia’s most popular residential meter box
  • Versions to suit every State
  • Stock available throughout Australia
  • Australian made

Switchboard Building Selection

As we have such a wide range of switchboard building solutions. Complete the following and we can help recommend the most suitable equipment: -

Matrix of Criteria

For a complete matrix of the features of B&R's range of switchboard building solutions, download our handy PDF.

Case Studies

Padstow Gardens Switchboards

Padstow Gardens is a new residential development in Brisbane. D&L were contracted to complete electrical works for the 18 townhouses. B&R provided an Infinity 3G modular switchboard for this project.

Steeline Warehouse Switchboards

Steeline Metal Framing Systems required switchboards for their new factory and office south of Brisbane. Sherriff Electrical Wholesalers at Albion engaged B&R to supply Infinity 3G switchboards.

North Parkes Gold Mine

Ampcontrol RES asked JA Martin Electrical to design and construct a 1000V Power Distribution Switchboard for North Parkes Gold Mine in central west NSW.

Aspect on Archer

D&L Williamson Electrical engaged B&R to supply switchboard and metering solutions for the development’s electrical supply for Aspect on Archer.

Kincumber Sewage Treatment Plant

The switchboard is designed to run with the 2 power supplies but if one fails then the switchboard will automatically connect to the good power supply.
