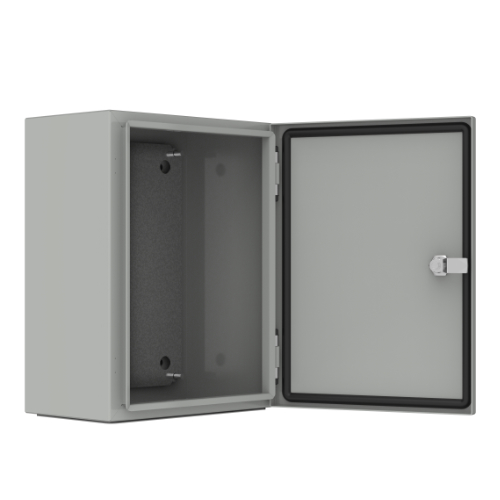

Forte FR – Steel

An IP65, steel enclosure often used to house switchgear or components in a variety of applications.

Product Information

Applications

Suitable for a variety of general electrical applications.

Features

IP65 protection rating – more info on IP ratings

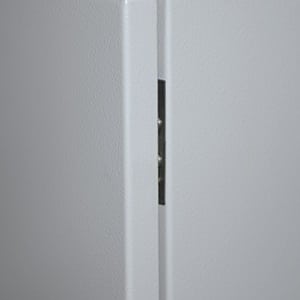

110º door opening for ease of access utilising concealed door hinge.
Rear mounting arrangement with wall mounting brackets included

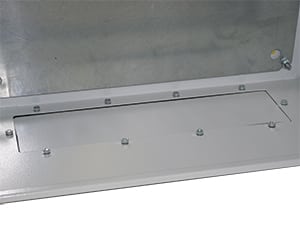

Galvanised steel gland plates come standard on enclosures 200mm and above

Construction

Powdercoated 1.2 or 1.6mm carbon steel

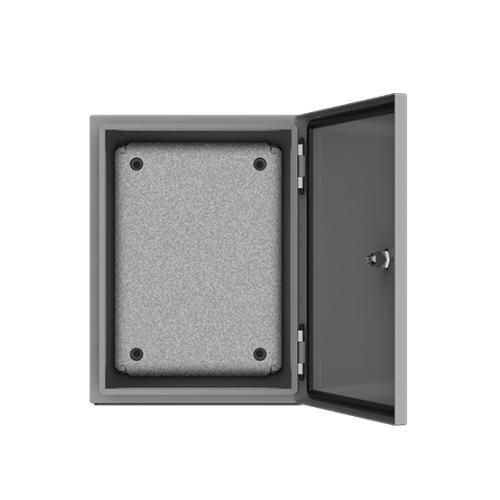

Galvanised steel mounting pan

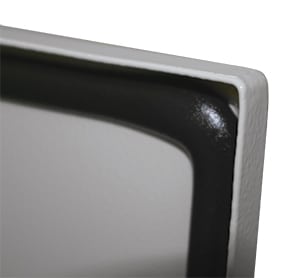

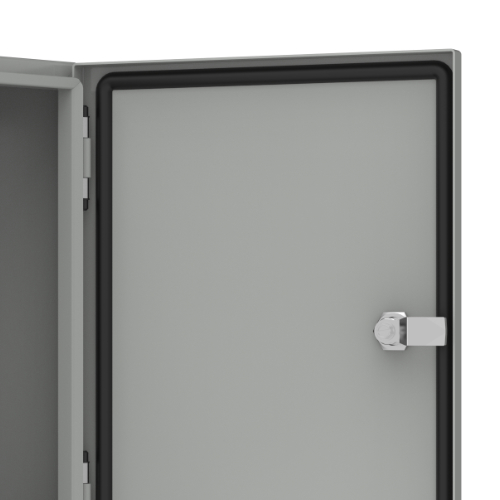

Polyurethane Gasket (Foamed in place)
Powdercoated Pebble Grey RAL7035

Enquiry Form

Name
First Last
Do you have an account with us?*
Company
Address*
Street/PO Box City State
Postcode*
Country
Email*
Phone
Your Enquiry
Your Enquiry*
I am interested in one of the products on the Forte FR – Steel page of your website.
Use this space to tell us the specifics of your enquiry.
A Few Extra Questions
These help us find out where you heard about us.
Where did you hear about us?
- Web Search
- Existing Customer
- Magazine Advert
- Printed Literature
- Word of Mouth
Newsletter
- Subscribe
CAPTCHA

Downloads Accessories More Products Enquiry Online Stockists Local Stockists

Order Guide

Part Number	Height (mm)	Width (mm)	Depth (mm)
FR030212	300	200	120
FR030215	300	200	150
FR030315	300	300	150
FR040315	400	300	150
FR030415	300	400	150
FR030320	300	300	200
FR040320	400	300	200
FR050320	500	300	200
FR060320	600	300	200
FR030420	300	400	200
FR040420	400	400	200
FR050420	500	400	200
FR060420	600	400	200
FR070420	700	400	200
FR050520	500	500	200
FR060620	600	600	200
FR080620	800	600	200
FR040430	400	400	300
FR060430	600	400	300
FR050530	500	500	300
FR060630	600	600	300
FR080630	800	600	300
FR100630	1000	600	300
FR120630	1200	600	300
FR100830	1000	800	300
FR120830	1200	800	300
FR100840	1000	800	400
FR120840	1200	800	400

Smaller Enclosures Larger Enclosures

Downloads

Product Technical Leaflet (2.3MB)

Features and Benefits (100kB)

Accessories

External vent kit
Lock options

Climate Control

Lock Options

Standard

Catalogue No.	Type	Material	Comments	Lock Insert Type	Key 1	Image

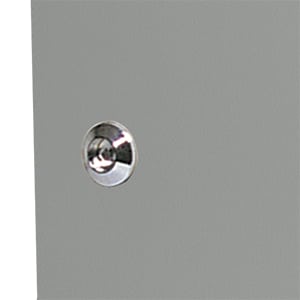

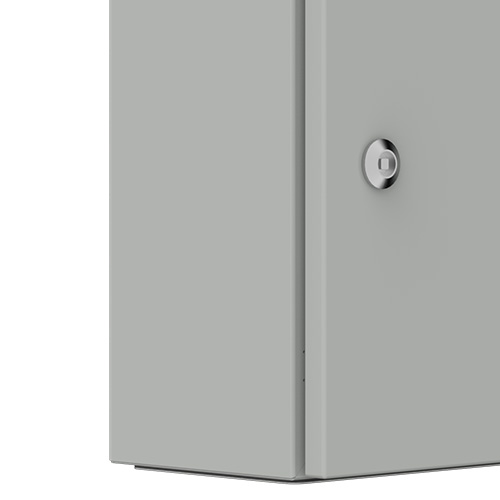

NI020	Turnbuckle	Chromed Steel	Standard	7mm Square Chromed Steel	SKU or SKZ

Options

Catalogue No.	Type	Material	Comments	Lock Insert Type	Key 1
NI030	Wing Knob - Lockable		Option	Key Code 92268	SK3
NI030/CL001	Wing Knob - Lockable		Option	Key Code CL001	SK3
NI030/L003	Wing Knob - Lockable		Option	Key Code L003	SK3
NI111	Wing Knob - Non-lockable		Option
NI040	T Handle - Lockable	Chromed Steel	Option	Key Code 92268	SK3
NI050	L Handle - Lockable	Chromed Steel	Option	Key Code 92268	SK3
NI052	L Handle - Padlockable	Chromed Steel	Option	Padlock
NI020/DC	Dust Cap	Plastic	Option

Inserts for Turnbuckle Locks - Optional

Catalogue No.	Product	Material	Lock Insert Type	Key 1
LKINS3P	Insert	Steel	3mm Double Bit Pin	SKU or SKZ
LKINS8S	Insert	Steel	8mm Square	SK8
LKINS8T	Insert	Steel	8mm Triangle	SKU or SKZ
