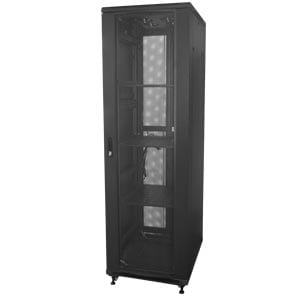

onyX Floor Server

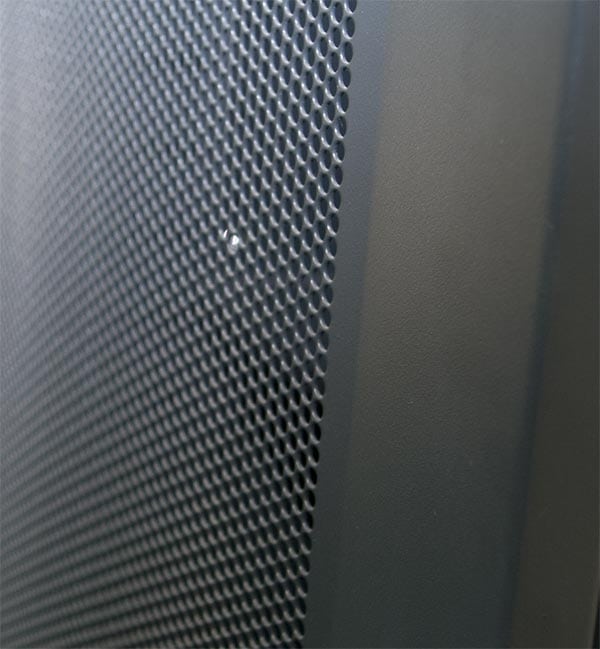

A 19" server cabinet that features a concave mesh front door, split mesh rear doors and removable side panels in a powdercoated textured matt black finish.

onyX Floor Server

Product Information

Applications

Suitable for housing network equipment such as patch panels, modems and routers, servers and CCTV equipment.

Features

  • Suitable for use in large data room applications.
  • Robust and fully featured server racking solution with free flowing movement.
  • 1000kg load rating tested to AS62208-2006.
  • Static load rating to 1000kg – compliant to AS62208-2006
  • EIA-310-D and SSI Standards Compliant

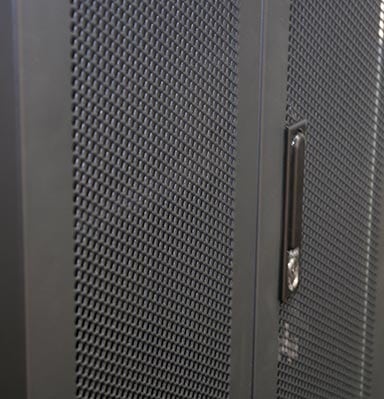

  • Keylockable swing handle (keyed to 92268) on front mesh door and split mesh rear doors

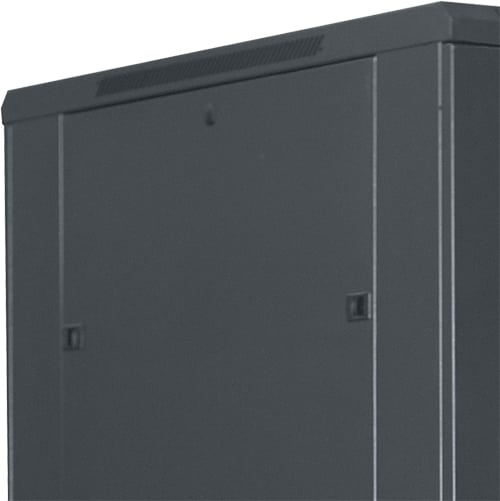

  • Removable side panels
  • Full height cable management systems (800mm wide cabinets only)

Inclusions

  • Frame and 2 x side panels
  • Keylockable swing handle (keyed to 92268) on front mesh door and split mesh rear doors

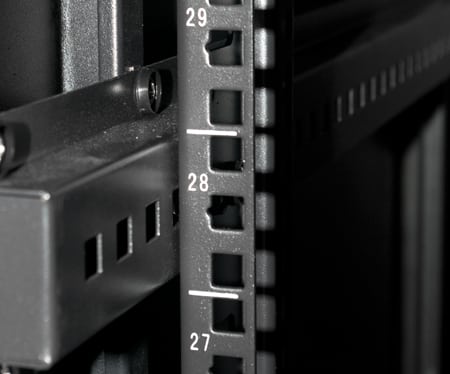

  • 4 x full height RU marked and notched mounting rails
  • 4 x full height vertical cable management systems with snap cover and internal cable rings (800mm wide cabinets only)
  • 3 x fixed shelves
  • Roof mounted 4-way fan unit with thermostat
  • 10-way Australian 3Pin power rail

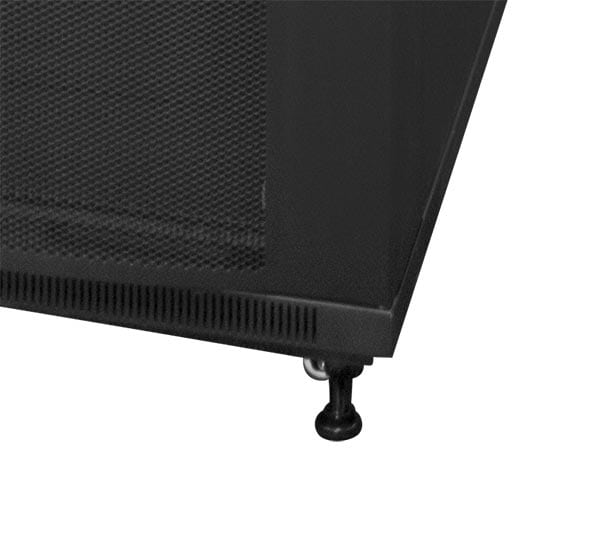

  • Adjustable feet and braked castor kit
  • 20 x cage nuts and screws with insertion / removal tool

Construction

  • Manufactured from:
    Frame – 2.0mm zinc coated steel
    Panel – 1.2mm zinc coated steel
  • Powdercoated textured matt black

DownloadsAccessoriesMore ProductsEnquiryOnline StockistsLocal Stockists

Order Guide

Data Rack Selector Larger Enclosures

Part NumberRUHeight (mm)Width (mm)Depth (mm)Weight (kg)Enquiry
ARSX60842U421995600800105Enquiry
ARSX61042U4219956001000124Enquiry
ARSX61242U4219956001200139Enquiry
ARSX80842U421995800800115Enquiry
ARSX81042U4219958001000136Enquiry
ARSX81242U4219958001200151Enquiry
ARSX60845U452130600800150Enquiry
ARSX61045U4521306001000168Enquiry
ARSX61245U4521306001200183Enquiry
ARSX80845U452130800800163Enquiry
ARSX81045U4521308001000178Enquiry
ARSX81145U4521308001100185Enquiry
ARSX81245U4521308001200193Enquiry

Data Rack Selector Larger Enclosures

Accessories

Accessory part numbers as shown below: –

Part NumberProductDescriptionEnquiry
ARXFL350Shelves - fixed (black)1RU high x 350 deep
ARXFL5501RU high x 550 deep
ARXFL7101RU high x 710 deep
ARWX450CSShelves - cantilever2RU high x 450 deep
ARXKBC350Shelves - keyboard1RU high x 350 deep
ARXKBC5501Ru high x 550 deep
ARXKBC7101RU high x 710 deep
ARPCMH1UHorizontal cable management rings55mm x 30mm ring, 1RU
ARPCMH2UHorizontal cable management rings110mm x 30mm ring, 2RU
ARPRH61010Power rails - horizontal (10A outlets only) SAA6 x 10A outlets, 10A plug
ARPRH610156 x 10A outlets, 15A plug
ARPRH10101010 x 10A outlets, 10A plug
ARPRH10101510 x 10A outlets, 15A plug
ARCNCage nuts50 pack
ARFXKEYFSpare keysFront door
ARFXKEYRRear door
ARXSPLSide panel lock kitSingle lock
ARFXBKBaying kitBrackets
ARDXM22U06Mesh (60% open) steel door22RU high rack, 600mm wide, single door
ARDXM32U0632RU high rack, 600mm wide, single door
ARDXM42U0642RU high rack, 600mm wide, single door
ARDXM42U0842RU high rack, 800mm wide, single door
ARDXM47U0647RU high rack, 600mm wide, single door
ARDXM47U0847RU high rack, 800mm wide, single door
ARDXDD42U0642RU high rack, 600mm wide, double door
ARDXDD42U0842RU high rack, 800mm wide, double door
ARDXDD47U0647RU high rack, 600mm wide, double door
ARDXDD47U0847RU high rack, 800mm wide, double door
