Universal NI – Zinc Coated Steel

An IP66, enclosure designed to maximise life in service and built for industrial or demanding environments.

Australian Made

Product Information

Applications

Designed to house equipment such as electronic controls and instrumentation, junction terminations, PLCs, motor control systems, hydraulic, pneumatic and machine tool controls.

Features

IP66 protection rating – more info on IP ratings

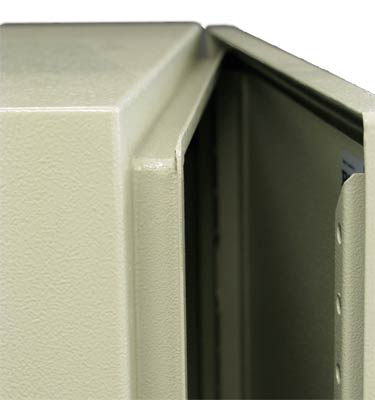

Specially designed gutter system

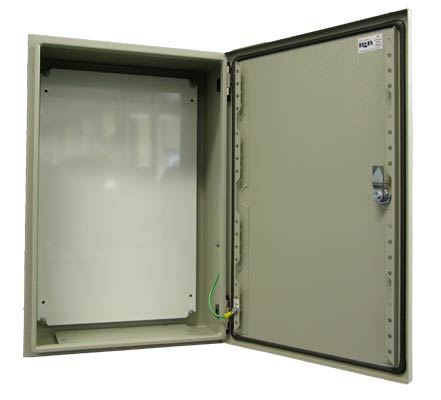

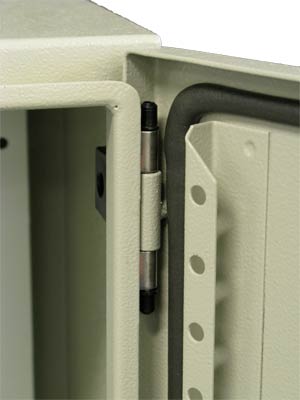

120º door opening provides easy access

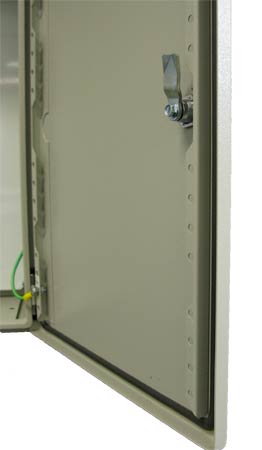

Door rails come as standard fitted to the inside of the door

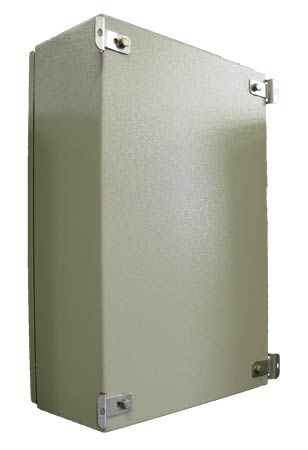

Unique wall-mount feature ensures installation is quick and easy with no need to drill holes in the enclosures body
Region D wind rated to AS1170.2-2002: Structural design actions – Wind actions
2mm steel mounting pan powdercoated white

Construction

Manufactured from 1.2mm zinc coated steel
Formed in place polyurethane gasket
Powdercoated Pebble Grey RAL7032 surface finish or X15 Orange

Also available with Viewing Window Doors

Enquiry Form

"*" indicates required fields

Name

Company

Postcode*

Country

Email*

Phone

Your Enquiry*

Newsletter

Subscribe to our Newsletter

Solve To Submit

Phone

This field is for validation purposes and should be left unchanged.

Downloads Accessories More Products Enquiry Online Stockists Local Stockists

Order Guide

Smaller Enclosures Enclosure Selector Larger Enclosures

Part Number		Height (mm)	Width (mm)	Depth (mm)	Usable Depth (mm)	Enquiry
Standard	X15 Orange
NI03021*	NI03021/RO*	300	200	150	125	Enquiry
NI03031*	NI03031/RO *	300	300	150	125	Enquiry
NI03041*	NI03041/RO *	300	400	150	125	Enquiry
NI04032*	NI04032/RO	400	300	200	175	Enquiry
NI03042*	NI03042/RO	300	400	200	175	Enquiry
NI04042*	NI04042/RO	400	400	200	175	Enquiry
NI05042	NI05042/RO	500	400	200	175	Enquiry
NI06042	NI06042/RO	600	400	200	175	Enquiry
NI05052	NI05052/RO	500	500	200	175	Enquiry
NI04062	NI04062/RO	400	600	200	175	Enquiry
NI06062	NI06062/RO	600	600	200	175	Enquiry
NI08062	NI08062/RO	800	600	200	175	Enquiry
NI10062	NI10062/RO	1000	600	200	175	Enquiry
NI04043	NI04043/RO	400	400	300	275	Enquiry
NI06043	NI06043/RO	600	400	300	275	Enquiry
NI04063	NI04063/RO	400	600	300	275	Enquiry
NI06063	NI06063/RO	600	600	300	275	Enquiry
NI08063	NI08063/RO	800	600	300	275	Enquiry
NI10063	NI10063/RO	1000	600	300	275	Enquiry
NI08083	NI08083/RO	800	800	300	275	Enquiry
NI10083	NI10083/RO	1000	800	300	275	Enquiry
NI12083	NI12083/RO	1200	800	300	275	Enquiry

Smaller Enclosures Enclosure Selector Larger Enclosures

* Designed in Australia. All others designed and manufactured in Australia.

Downloads

CAD Block Downloads

Product Technical Leaflet

AS/NZS 61439 Statement of Compliance

Lloyd's Register Certificate

Accessories

Rainhoods
External vent kit
Wall mounting brackets
Mounting flange kit – 316 stainless steel
Lock options such as L handle
Mounting Pan
General accessories including touch up paint

Also available with Viewing Window Doors

Climate Control

For more information see our Climate Control page (opens in new tab)

Lock Options

Standard

Catalogue No.	Type	Material	Comments	Lock Insert Type	Key	Image

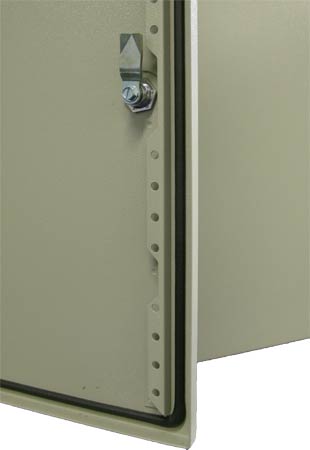

NI020	Turnbuckle	Chromed Steel	Standard	7mm Square Chromed Steel	SKZ

Options

Catalogue No.	Type	Material	Comments	Lock Insert Type	Key
NI030	Wing Knob - Lockable		Option	Key Code 92268	SK3
NI030/CL001	Wing Knob - Lockable		Option	Key Code CL001	SK3
NI030/L003	Wing Knob - Lockable		Option	Key Code L003	SK3
NI111	Wing Knob - Non-lockable		Option
NI040	T Handle - Lockable	Chromed Steel	Option	Key Code 92268	SK3
NI050	L Handle - Lockable	Chromed Steel	Option	Key Code 92268	SK3
NI052	L Handle - Padlockable	Chromed Steel	Option	Padlock
NI020/DC	Dust Cap	Plastic	Option

Inserts for Turnbuckle Locks - Optional

Catalogue No.	Product	Material	Lock Insert Type	Key
LKINS3P	Insert	Steel	3mm Double Bit Pin	SKZ
LKINS8S	Insert	Steel	8mm Square	SK8
LKINS8T	Insert	Steel	8mm Triangle	SKZ

AS/NZS 61439 Compliance

AS/NZS 61439 is the new series of standards for low-voltage (LV) switchgear and control gear assemblies. For more information on whether you need to comply see our AS/NZS 61439 page.

Click the bar below the requirements and responsibilities for complaince with AS/NZS 61439 for this enclosure.

The following definitions apply to this table: -

Original Manufacturer* - Switchboard designer and manufacturer of the switchboard enclosure.
Assembly Manufacturer* - A switchboard builder.
Original Equipment Manufacturer - The company who manufactured the switchgear used in final assembly.

*The original manufacturer and assembly manufacturer can be the same company or different companies.

If you are a SWITCHBOARD BUILDER this means you are the ASSEMBLY MANUFACTURER and you may be the ORIGINAL MANUFACTURER too. Any switchgear you order will need to be covered by the requirements of the Original Equipment Manufacturer.

B&R has some (but not all) of the responsibilities of the ORIGINAL MANUFACTURER.

If you are an END USER of the equipment you can see who has responsibility from these definitions.

No	Characteristic to be Checked	Clause	Responsibility	Comments
1	Strength of material and parts:	10.2
	Resistance to corrosion	10.2.2	Original Manufacturer	The Universal NI Series of enclosures are made from steel and stainless steel and as such exceed standards requirements. ComparativeÂ testingÂ done,Â PlusÂ ESÂ report;Â 103687.
	Thermal stability (relates to non-metal enclosures)	10.2.3.1	Original Manufacturer	This clause refers mainly to plastic enclosures.
	Resistance to abnormal heat and fire (due to internal electric effect)	10.2.3.2	Original Manufacturer	All insulating materials supplied have been tested to 960ÂºC glow-wire Standard. PlusÂ ESÂ report; 103863
	Resistance to ultra-violet (UV) radiation	10.2.4	Original Manufacturer	UV ratings refer mainly to plastic enclosures however metal Powder-coat painted enclosures incorporates UV stabilization. AksoNobel report; 20LSR178
	Lifting	10.2.5	Original Manufacturer	Lifting is verified by test, if required. Generally this relates to larger switchboards to which lifting means (lugs) have been provided.
	Mechanical Impact	10.2.6	Original Manufacturer	IK10; Metal enclosure systems have been tested to exceed IK10 (20 Joules).
	Marking	10.2.7	Assembly Manufacturer	Markings must be verified by test. Tests are performed by rubbing with water and petroleum spirits; generally done by the Switchboard Builder (Assembler).
2	Degree of protection of enclosures (IP)	10.3	Original Manufacturer	IP55; Ingress Protection (IP) rating needs to be verified by test or by assessment. SIMTARS report; NE05/0077
3	Clearances	10.4	Assembly Manufacturer	Clearance and creepage can only be verified by test. Switchboard Builders (Assembler) must maintain compliance by ensuring correct clearance and creepage distances are maintained at >8mm (Uimp=8kV) and >16mm (Ui=1kV) respectively.
4	Creepage distances	10.4	Assembly Manufacturer
5	Protection against electric shock and integrity of protective circuits	10.5
	Effective continuity between the exposed conductive parts of the ASSEMBLY and the protective circuit	10.5.2	Assembly Manufacturer	Equipotential protective earth bonding points are required to be verified by test to less than 0.1ohm.
	Short-circuit withstand strength of the protective circuit	10.5.3	Original Manufacturer	The Universal NI Series are generally understood to be fitted with equipment making the switchboard not exceed 10kA prospective short-circuit withstand rating (Icp).
6	Incorporation of switching devices and components	10.6	Assembly Manufacturer	Points 6, 7 and 8 are largely the responsibility of the Switchboard builder (Assembler). It is a requirement that the Assembler follow guidance from the original manufacturer. The advice of original manufacturers such as B&R and switchgear manufacturers, needs to be adhered to. Switchboard Builders need to be aware of the StandardÂ’s requirements for these verification points and incorporate these into complete design verification documentation.
7	Internal electrical circuits and connections	10.7	Assembly Manufacturer
8	Terminals for external conductors	10.8	Assembly Manufacturer
9	Dielectric Properties	10.9
	Power-frequency withstand voltage	10.9.2	Original Manufacturer	The Universal NI Series of enclosures are provided as a basic empty enclosure and as such dielectric property verification has not been possible as internal configurations are not known. Dielectric properties need to be verified by Impulse withstand testing or by assessment, reference clearances and creepages.
	Impulse withstand voltage	10.9.3	Original Manufacturer
10	Temperature-rise limits	10.1	Assembly Manufacturer	Temperature-rise can be determined by test or by comparison or by calculation. Temperature rise methods provided in AS/NZS 60890 can be used for switchboards not exceeding 1600A rating. The Universal NI Series of enclosures are rated to not exceed 630A and therefore AS/NZS 60890 should be used by the Designer.
11	Short circuit withstand strength	10.11	Original Manufacturer	The Universal NI Series are generally understood to be fitted with equipment making the switchboard not exceed 10kA prospective short-circuit withstand rating (Icp).
12	Electromagnetic compatibility (EMC)	10.12	Original Equipment Manufacturer	Equipment installed in switchboards shall comply with the immunity requirements of the relevant product or generic EMC standard. The Switchboard builder (assembler) shall obtain from the device and or component manufacturer the specific performance criteria of the equipment based on the acceptance criteria given in the relevant standard.
13	Mechanical operation	10.13	Original Equipment Manufacturer	This verification testing need NOT be done on devices already been type tested according to their relevant product standard. Only if their mechanical operation has been modified does the assembly need to be retested by cycling it 200 times.

Case Studies

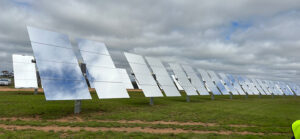

B&R Powers RayGen’s Carwarp Solar Innovation
