Monarch SMB

An IP66, small main board that was developed for local electricity and distribution requirements.

AS/NZS 61439
Monarch SMB
Australian Made
Australian Made

Product Information

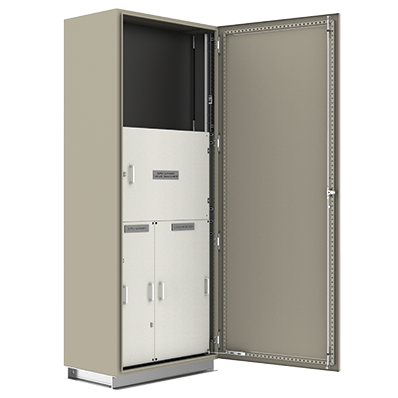

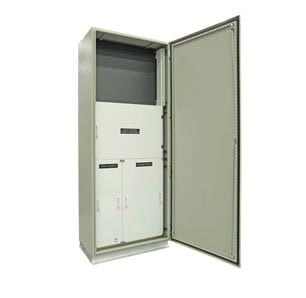

The Monarch SMB is a small main board that was developed as a solution to various local electricity and distribution requirements.


  • Used in remote metering applications or emergency power restorations.
  • Developed as a solution to various local electricity and distribution requirements.
  • CT chassis are type-tested and certified for up to 36kA for 1 second.

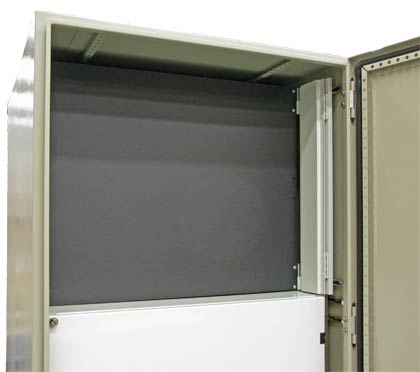

  • Flush front door with concealed hinges.
  • Stainless steel door hinge pins.

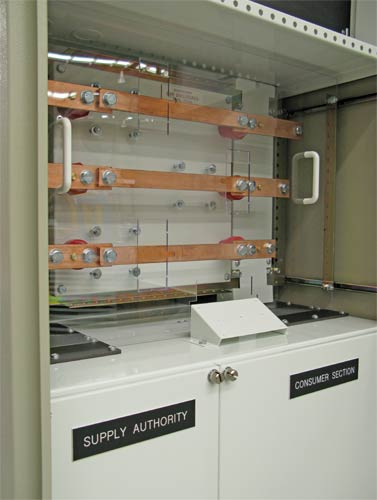

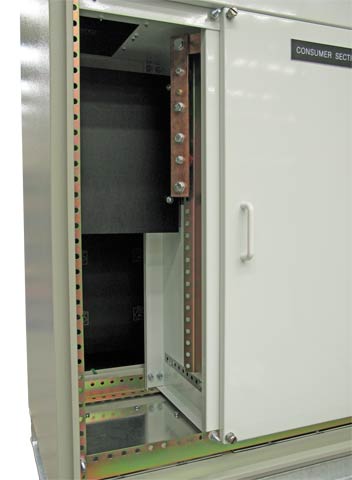

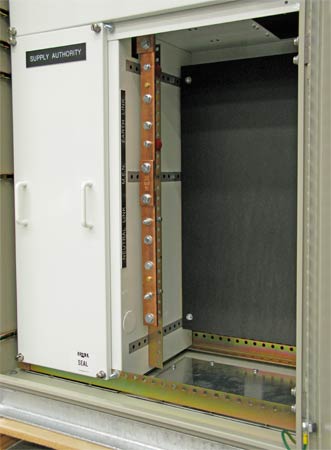

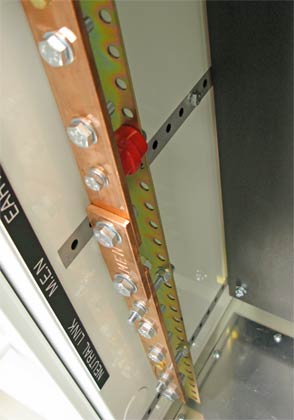

  • Segregated consumer and authority sections.
  • Insulated meter panel.
  • Heavy-duty 3 point locking system.
  • Complete and fitted with CT chassis, metal potential fuse bracket, sealing devices, escutcheons, plinth, meter and consumer panels.
  • Suitable for the mounting of supply authority and private current transformers.


DownloadsAccessoriesMore ProductsEnquiryOnline StockistsLocal Stockists

Order Guide

Part NumberDescriptionCT Chassis RatingTestHeight (mm)Width (mm)Depth (mm)
SMB1/15Cabinet supplied with meter and consumer panel (ex VIC)630A36kA for 1 sec2075800500
SMB1/15/S*Cabinet supplied with meter and consumer panel (ex VIC)630A36kA for 1 sec2075800500
Part NumberDescriptionHeight (mm)Width (mm)Depth (mm)
CTB/E2Cubicle empty fitted with 3 x 32A HRC fuses (holders only), weatherproof. To suit CTC200/400A and CTC/630A. Available in Light Grey RAL7035.500720340
Part NumberDescriptionCT Chassis RatingTestHeight (mm)Width (mm)Depth (mm)
CTC200/400ACT chassis for S-Type CTs200/400A25kA for 1 sec50040095
CTC630ACT chassis for T-Type CTs630A36kA for 1 sec500400120


Part NumberProductDescription
CTPFKPotential fuse kitPotential fuse kit with cover for sealing and insulating baseplate (excludes fuses)
LKDCT10016QLD Meter Isolation Link, with link, clear
LKDVA10000Authority CT Metering Block, with Z links
LKDVA10001Authority CT 200/5 Extended Range, S-type, each
LKDVA10002Authority CT 800/5 Extended Range, T-type, set of 3
LKDVF10000^NSW fuse holder only, 30.2x58mm, w. Barrier
LKDVF10002Standard 100A fuse holder only, 22x58mm, clear

AS/NZS 61439 Compliance

AS/NZS 61439 is the new series of standards for low-voltage (LV) switchgear and control gear assemblies. For more information on whether you need to comply see our AS/NZS 61439 page.

Click the bar below the requirements and responsibilities for complaince with AS/NZS 61439 for this enclosure.

The following definitions apply to this table: -

  • Original Manufacturer* - Switchboard designer and manufacturer of the switchboard enclosure.
  • Assembly Manufacturer* - A switchboard builder.
  • Original Equipment Manufacturer - The company who manufactured the switchgear used in final assembly.

*The original manufacturer and assembly manufacturer can be the same company or different companies.

If you are a SWITCHBOARD BUILDER this means you are the ASSEMBLY MANUFACTURER and you may be the ORIGINAL MANUFACTURER too. Any switchgear you order will need to be covered by the requirements of the Original Equipment Manufacturer.

B&R has some (but not all) of the responsibilities of the ORIGINAL MANUFACTURER.

If you are an END USER of the equipment you can see who has responsibility from these definitions.

NoCharacteristic to be CheckedClauseResponsibilityComments
1Strength of material and parts:10.2
Resistance to corrosion  10.2.2Original ManufacturerThe resistance to corrosion was tested using a representative sample.
Report; 103687.
Thermal stability (relates to non-metal enclosures) ManufacturerThis clause refers mainly to plastic enclosures.
Resistance to abnormal heat and fire (due to internal electric effect) ManufacturerAll insulating materials supplied have been tested to 960ºC glow-wire Standard.
Plus ES report; 103863
Resistance to ultra-violet (UV) radiation  10.2.4Original ManufacturerUV ratings refer mainly to plastic enclosures however metal Powder-coat painted enclosures incorporates UV stabilization. AksoNobel report; 20LSR178
Lifting  10.2.5Original ManufacturerLifting is verified by test, if required. Generally this relates to larger switchboards to which lifting means (lugs) have been provided.
Plus ES report; 103687
Mechanical Impact  10.2.6Original ManufacturerIK10; Metal enclosure systems have been tested to exceed IK10 (20 Joules).
Marking  10.2.7Assembly ManufacturerMarkings must be verified by test. Tests are performed by rubbing with water and petroleum spirits; generally done by the Switchboard Builder (Assembler).
2Degree of protection of enclosures (IP)10.3Original ManufacturerIP66; Ingress Protection (IP) rating needs to be verified by test or by assessment.
Plus ES report; 103687
3Clearances10.4Assembly ManufacturerClearance and creepage can only be verified by test. Switchboard Builders (Assembler) must maintain compliance by ensuring correct clearance and creepage distances are maintained at >8mm (Uimp=8kV) and >16mm (Ui=1kV) respectively.
4Creepage distances10.4Assembly Manufacturer
5Protection against electric shock and integrity of protective circuits10.5
Effective continuity between the exposed conductive parts of the ASSEMBLY and the protective circuit   10.5.2Assembly ManufacturerEquipotential protective earth bonding points are required to be verified by test to less than 0.1ohm. Similar enclosure designs have been tested by Plus ES report; 103687
Short-circuit withstand strength of the protective circuit   10.5.3Original ManufacturerProtective circuit verification can be by test or comparison with a reference design.
Plus ES report; 104014
6Incorporation of switching devices and components10.6Assembly ManufacturerPoints 6, 7 and 8 are largely the responsibility of the Switchboard builder (Assembler). It is a requirement that the Assembler follow guidance from the original manufacturer. The advice of original manufacturers such as B&R and switchgear manufacturers, needs to be adhered to. Switchboard Builders need to be aware of the StandardÂ’s requirements for these verification points and incorporate these into complete design verification documentation.
7Internal electrical circuits and connections10.7Assembly Manufacturer
8Terminals for external conductors10.8Assembly Manufacturer
9Dielectric Properties10.9
Power-frequency withstand voltage  10.9.2Original ManufacturerDielectric properties generally need to be tested but Impulse withstand can also be calculated. Plus ES report; 104014.
Impulse withstand voltage  10.9.3Original Manufacturer
10Temperature-rise limits10.1Assembly ManufacturerTemperature-rise can be determined by test, comparison or by calculation. Testing conducted under worst case configuration show that the switchboard can operate at a maximum rated current (InA) of 490A. B&R cert. CT-22-10002. Alternatively, AS/NZS 60890 may be used by switchboard designers to determine switchboard ratings not exceeding 490A.
11Short circuit withstand strength10.11Original ManufacturerEnclosures with a fault rating greater than 10kA need to be 61Compliant. Verification can be by test or comparison with a reference design. Plus ES report; 104014.
12Electromagnetic compatibility (EMC)10.12Original Equipment ManufacturerEquipment installed in switchboards shall comply with the immunity requirements of the relevant product or generic EMC standard. The Switchboard builder (assembler) shall obtain from the device and or component manufacturer the specific performance criteria of the equipment based on the acceptance criteria given in the relevant standard.
13Mechanical operation10.13Original Equipment ManufacturerThis verification testing need NOT be done on devices already been type tested according to their relevant product standard. Only if their mechanical operation has been modified does the assembly need to be retested by cycling it 200 times.
