onyX Wall

A 19" wall mount cabinet that is easy-to-install and provides maximum accessibility for maintenance.
onyX Wall

Product Information

Features

  • Suitable for housing networking equipment including patch panels, modems and routers
  • Designed to be used in home automation and home theatre applications
  • Wall mounted cabinets that are easy-to-install
  • Provide maximum accessibility for maintenance
  • Rear swing frame on selected models, allowing access to the rear of the enclosure
  • Key code ID 92268

Inclusions

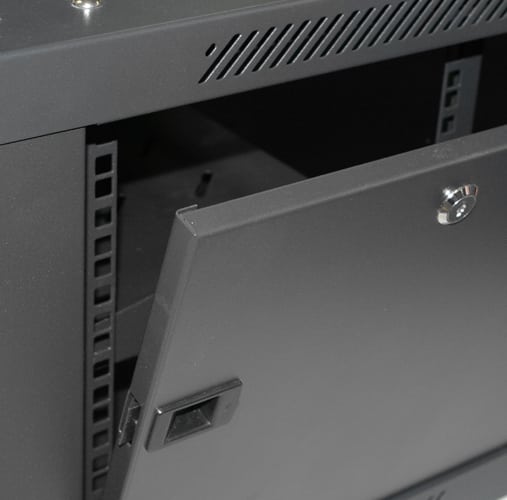

  • Lockable swing frame
  • Safety glass keylockable door

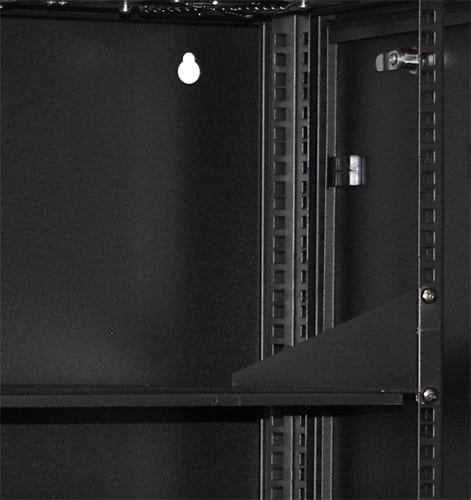

  • Adjustable 19″ mounting rail

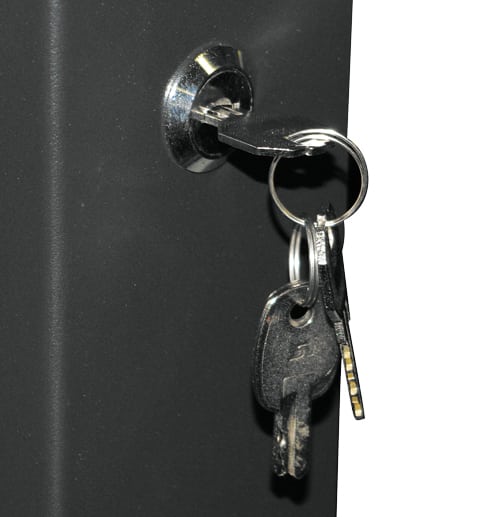

  • Key locks on front and side panels
  • Fixed shelf

Construction

  • Manufactured from 1.2mm SPCC rolled steel
  • Powdercoated textured matt black

DownloadsAccessoriesMore ProductsEnquiryOnline StockistsLocal Stockists

Order Guide

Data Rack Selector Larger Enclosures

Part NumberRUHeight (mm)Width (mm)Depth (mm)Total Depth (mm)*Fixed ShelfWeight (kg)CAD BlocksEnquiry
ARWX6U450NF6370600450450118dwgEnquiry
ARWX6U4506370600550550123dwgEnquiry
ARWX9U4509500600550550127dwgEnquiry
ARWX12U450NF12635600450450124dwgEnquiry
ARWX12U45012635600550550132dwgEnquiry
ARWX12U60012635600700700138dwgEnquiry
ARWX18U450NF18905600450450230dwgEnquiry
ARWX18U45018905600550550239dwgEnquiry
ARWX18U60018905600700700245dwgEnquiry
ARWX24U450241175600550550246dwgEnquiry
ARWX24U600241175600700700252dwgEnquiry

Data Rack Selector Larger Enclosures

Accessories

Part NumberProductDescriptionEnquiry
ARWX450CSShelves - cantilever2RU high x 450 deep
ARWX2FFan unit2 fan unit
ARPRH61010Power rails - horizontal (10A outlets only) SAA6 x 10A outlets, 10A plug
ARPRH610156 x 10A outlets, 15A plug
ARPRH10101010 x 10A outlets, 10A plug
ARPRH10101510 x 10A outlets, 15A plug
ARWX450FSShelves - fixed450mm deep
ARWX450CSShelves - cantilever450mm deep
ARFXKEYRSpare keyDoor, swing frame
ARCNCage nuts50 pack
ARDXM12U06Mesh (60% open) steel door12RU high rack, 600mm wide
ARDXM18U0618RU high rack, 600mm wide
