Polynova PC

An IP66 enclosure providing housing terminations for low voltage control systems and distribution.

Polynova PC

Product Information

Applications

Housing terminations and electrical components for low voltage control systems and distribution.

Features

  • Materials are grade V-1, self extinguishing non-dripping, and conform to IEC695-2-1

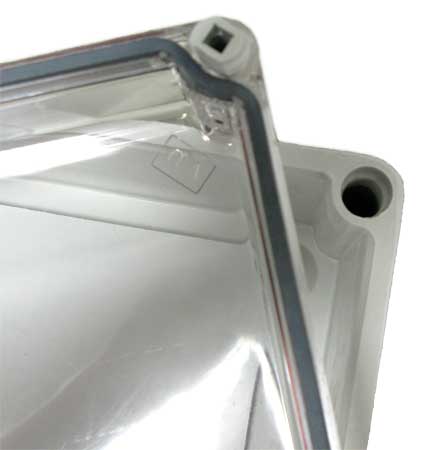

  • Easy mounting with no compromise to the IP rating
  • Provision for an authority seal
  • UV stabilised

Approvals

  • CE marked

Construction

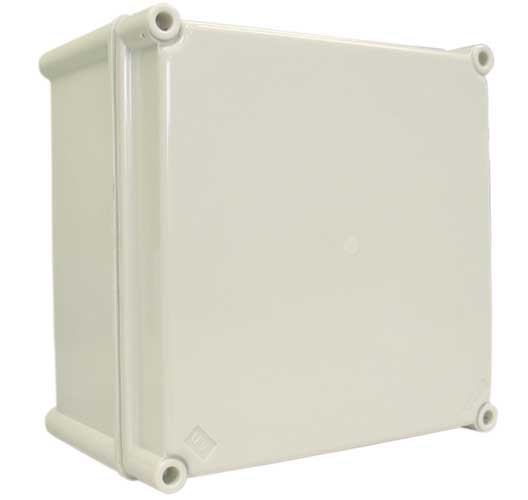

  • Opaque parts – GRP/polyamide

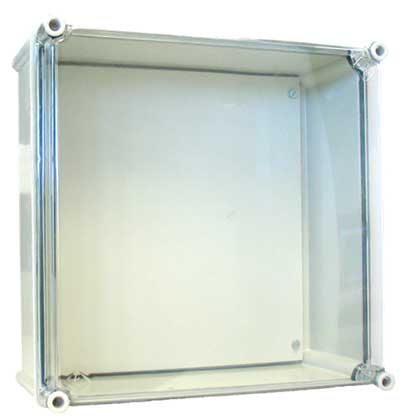

  • Transparent parts – polycarbonate
  • Surface finish – Natural RAL7035
  • Protection rating – IP66

DownloadsAccessoriesMore ProductsEnquiryOnline StockistsLocal Stockists

Order Guide

Smaller Enclosures Larger Enclosures

Part NumberHeight (mm)Width (mm)Depth (mm)TypeEnquiry
PC131313135135130OpaqueEnquiry
PC181313180135130OpaqueEnquiry
PC271313270135130OpaqueEnquiry
PC181813180180130OpaqueEnquiry
PC271817270180170OpaqueEnquiry
PC361817360180170OpaqueEnquiry
PC272717270270170OpaqueEnquiry
PC362717360270170OpaqueEnquiry
PC542717540270170OpaqueEnquiry
PC363617360360170OpaqueEnquiry
PC543617540360170OpaqueEnquiry
PC545417540540170OpaqueEnquiry
PC362720360270205OpaqueEnquiry
PC542720540270205OpaqueEnquiry
PC363620360360205OpaqueEnquiry
PC543620540360205OpaqueEnquiry
PC723620720360205OpaqueEnquiry
PC545420540540205OpaqueEnquiry
PC725420720540205OpaqueEnquiry
PC131313T135135130TransparentEnquiry
PC181313T180135130TransparentEnquiry
PC271313T270135130TransparentEnquiry
PC181813T180180130TransparentEnquiry
PC271817T270180170TransparentEnquiry
PC361817T360180170TransparentEnquiry
PC272717T270270170TransparentEnquiry
PC362717T360270170TransparentEnquiry
PC542717T540270170TransparentEnquiry
PC363617T360360170TransparentEnquiry
PC543617T540360170TransparentEnquiry
PC545417T540540170TransparentEnquiry
PC362720T360270205TransparentEnquiry
PC542720T540270205TransparentEnquiry
PC363620T360360205TransparentEnquiry
PC543620T540360205TransparentEnquiry
PC723620T720360205TransparentEnquiry
PC545420T540540205TransparentEnquiry
PC725420T720540205TransparentEnquiry

Smaller Enclosures Larger Enclosures

Accessories

Accessories

  • Insulated mounting pan

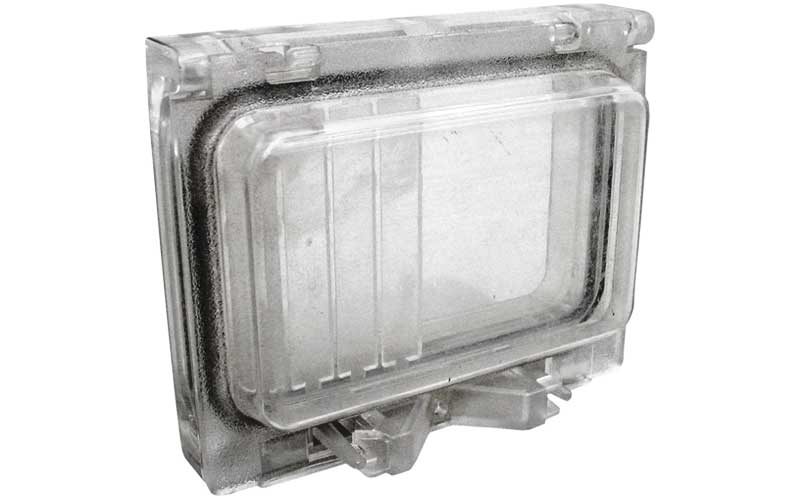

  • Hinged viewing windows
