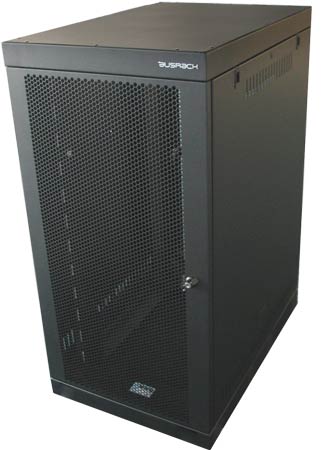

Ausrack Plus Server

Designed for large data room applications that require a robust, fully featured server rack solution.

Product Information

Applications

An essential platform for flexible computing solutions. It is a robust, 19 inch infrastructure rack designed with a high load rating and inset corner posts, combining versatility and strength with easy to use features.

Designed for large data room applications that require a robust, fully featured server racking solution with free flowing air movement.

There are many door and side panel options which can be included by designing your solution from an Ausrack Plus Frame.

Features

  • EIA-310-D and SSI standard compliant
  • Static load rating of 1400kg
  • Seismic rating of 900kg

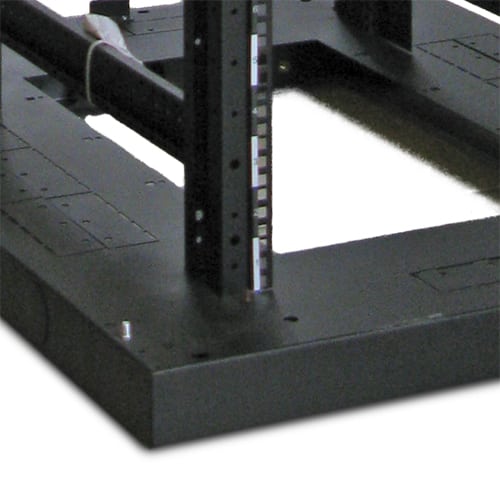

  • Inset corner posts
  • Innovative modular cable management facilities
  • Reversible hinged doors (tool-less)

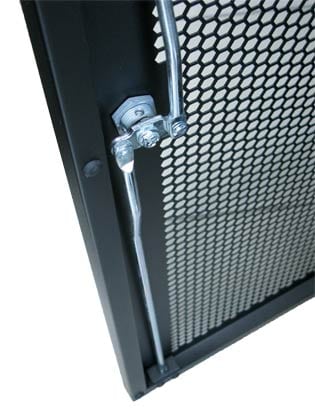

  • 2-point locking
  • 63% open mesh front and rear doors for ventilation
  • Cabinets can be bayed with the use of a simple accessory
  • Frame designed to allow two or more people to work on installation at once

Inclusions

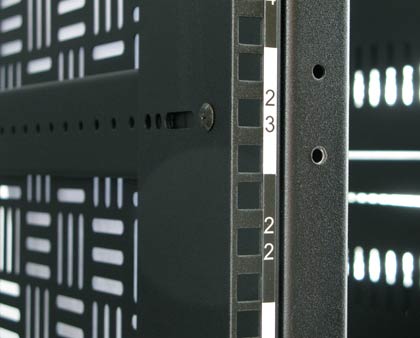

  • 4 x RU marked mounting rails
  • Mesh doors (600mm wide cabinets)

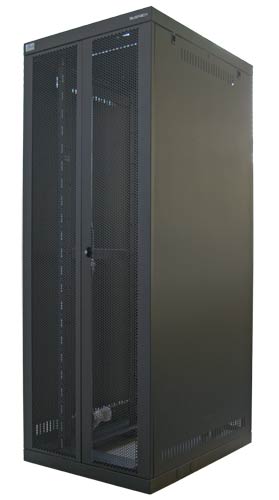

  • Front & rear split mesh doors (800mm wide cabinets)
  • Side panels

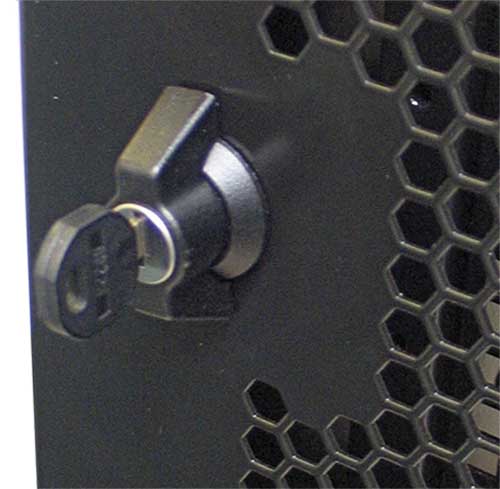

  • Lockable wing knob with 2-point locking

Construction

  • Body – Zinc coated steel
  • Frame thickness – 1.6mm
  • Rail thickness – 2.0mm
  • Panel thickness – 1.2mm
  • Surface finish – Powdercoated textured matt black

DownloadsAccessoriesMore ProductsEnquiryOnline StockistsLocal Stockists

Order Guide

Part NumberRUHeight (mm)Width (mm)Depth (mm)Weight (kg)Enquiry
AS24U60924120260090091
AS24U611241202600110097.5
AS40U609401913600900123
AS40U809401913800900132
AS40U6114019136001100139.5
AS40U8114019138001100142
AS45U609452135600900134
AS45U809452135800900135
AS45U6114521356001100149
AS45U8114521358001100145

Accessories

Accessories

  • Stabiliser kit
  • Fan trays
  • Blanking panels
  • Thermostat rails
  • Air flow director
  • Power rails
  • Shelf- fixed, telescopic and cantilever
  • Shelf – keyboard
  • Top cover – flat
  • Top cover – raised
  • Base in-fill plates
  • Mounting rails – partial and full height
  • Roller kit
  • Adjustable foot kit
  • Cable zones
  • Cable management – horizontal and vertical
  • Baying kits
  • Patch brackets
  • Cable tray
  • Chimney
  • Side panel internal latch kits
  • Side panel lock kits
  • Cage nuts

Projects

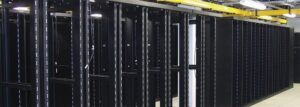

Pipe Networks Data Centre

Pipe Networks Data Centre

The project required a custom solution to solve a number of unique challenges including spacial limitations, a need for specialised secure infrastructure and on-site tenant security.

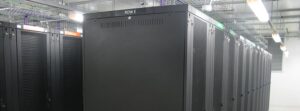

Gold Coast University Hospital
