Fixed Lid Control Station

The Ex e explosion protected, fixed lid pushbutton control station, is rated to IP66 and is pre-configured or custom built for ease of installation one

Product Information

Applications

The pushbutton control station is made from 316 stainless steel and is suitable for use in hazardous areas with the most demanding conditions and are suitable for Zones 1&2, 21&22 applications where flammable liquids, gases & vapours or combustible dusts are frequently present.

This range of enclosures are designed to house to house terminals, electrical equipment and cable terminations in areas classified hazardous by the presence of flammable liquids, gases and vapours or combustible dusts.

Suitable for application across many industries where reliability and safety are of the highest priority such including offshore, mining and metal refining, marine, oil & gas, petrochemical and manufacturing.

Features

Customised etched identification label

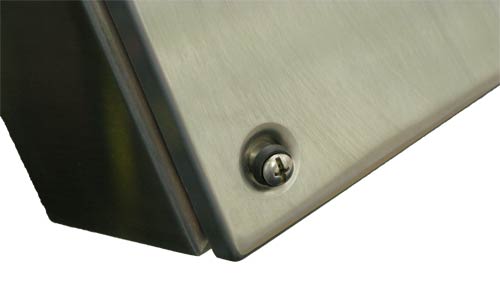

Screwed lid with stainless steel fixings
Mounting flanges
3mm stainless steel gland plate
Available pre-configured or customer built for ease of installation from one to six operators.
Certified control operators
Silicon gasket available on request for IP65 and IP66 only.

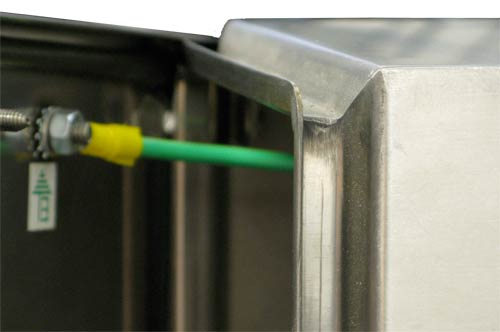

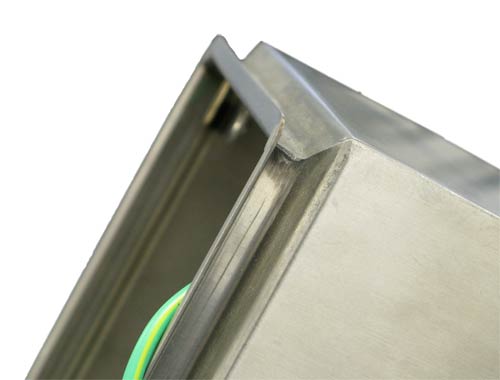

Specially designed gutter system.

Technical Information

Protection Ratings
Ex e IIC T6 Gb
Ex nA IIC T6 Gc
Ex de IIC T6 Gb
Ex tD A21/22 T80ºC
DIP A21/22 Ta80ºC
Ex t IIIC T80ºC Db
Ambient Temperature
-20ºC ~ +40ºC / 55ºC option
Range
TBS/CBS Series

Inclusions

Stainless steel cover fixings
Mounting flanges
Earth strap kit
Laser etched certification label
2 x M20 bottom clearance holes, 1 entry fitted with certified plastic plug

Construction

Manufactured from 1.5mm 316 stainless steel with N4 surface finish.
EPDM Black gasket
316 stainless steel fixings

Enquiry Form

Name
First Last
Company
Postcode*
Country
Email*
Phone
Your Enquiry*
I am interested in one of the products on the Fixed Lid Control Station page of your website.
Your Enquiry*
What would you like to ask us about today?
Newsletter
- Subscribe to our Newsletter
Solve To Submit

Downloads More Products Enquiry Online Stockists Local Stockists

Order Guide

HAE-note-2

Catalogue No.	Height (mm)	Width (mm)	Depth (mm)	Description	Enquiry
CSS1P1GRN	112	90	90	1NO+1NC, Start, Green	Enquiry
CSS1P1RED	112	90	90	1NO+1NC, Stop, Red	Enquiry
CSS1P3MH	112	90	90	1NO+1NC, emergency stop self-locking	Enquiry
CSS1P2	112	90	90	1NO+1NC, double button, Stop-Start	Enquiry
CSS1P4	112	90	90	1NO+1NC, mushroom head button, Black	Enquiry
CSS2PGPR	159	90	90	1NO+1NC, 2 pushbuttons Green/Red	Enquiry
CSS3PGPRPB	205	90	90	1NO+1NC, 3 pushbuttons Green/Red/Black	Enquiry

Catalogue No.	Height (mm)	Width (mm)	Depth (mm)	Description	Enquiry
CSS2P1GRNLR	159	90	90	1NO+1NC, Start, lamp, Red	Enquiry
CSS2P1REDLR	159	90	90	1NO+1NC, Stop, lamp, Red	Enquiry
CSS2P1GRNLG	159	90	90	1NO+1NC, Start, lamp, Green	Enquiry
CSS2P1REDLG	159	90	90	1NO+1NC, Stop, lamp, Green	Enquiry
CSS2P2GRNLY	159	90	90	1NO+1NC, Start, lamp, Yellow	Enquiry
CSS2P1REDLY	159	90	90	1NO+1NC, Stop, lamp, Yellow	Enquiry
CSS2P1GRNLB	159	90	90	1NO+1NC, Start, lamp, Blue	Enquiry
CSS2P1REDLB	159	90	90	1NO+1NC, Stop, lamp, Blue	Enquiry
CSS2P1GRNLW	159	90	90	1NO+1NC, Start, lamp, White	Enquiry
CSS2P1REDLW	159	90	90	1NO+1NC, Stop, lamp, White	Enquiry

Catalogue No.	Height (mm)	Width (mm)	Depth (mm)	Description	Enquiry
CSS3PGPRLR	205	90	90	1NO+1NC, 2 pushbuttons Green/Red, lamp Red	Enquiry
CSS3PGPRLG	205	90	90	1NO+1NC, 2 pushbuttons Green/Red, lamp Green	Enquiry
CSS3PGPRLY	205	90	90	1NO+1NC, 2 pushbuttons Green/Red, lamp Yellow	Enquiry
CSS3PGPRLB	205	90	90	1NO+1NC, 2 pushbuttons Green/Red, lamp Blue	Enquiry
CSS3PGPRLW	205	90	90	1NO+1NC, 2 pushbuttons Green/Red, lamp White	Enquiry
CSS3P2P3MHLR	205	90	90	2NC, double pushbutton Red, emergency lamp Red	Enquiry
CSS3P2P3MHLG	205	90	90	2NC, double pushbutton Red, emergency lamp Green	Enquiry
CSS3P2P3MHLY	205	90	90	2NC, double pushbutton Red, emergency lamp Yellow	Enquiry
CSS3P2P3MHLB	205	90	90	2NC, double pushbutton Red, emergency lamp Blue	Enquiry
CSS3P2P3MHLW	205	90	90	2NC, double pushbutton Red, emergency lamp White	Enquiry

Catalogue No.	Height (mm)	Width (mm)	Depth (mm)	Description	Enquiry
CSS1LR	112	90	90	AC24~240V, single lamp, Red	Enquiry
CSS1LG	112	90	90	AC24~240V, single lamp, Green	Enquiry
CSS1LY	112	90	90	AC24~240V, single lamp, Yellow	Enquiry
CSS1LB	112	90	90	AC24~240V, single lamp, Blue	Enquiry
CSS1LW	112	90	90	AC24~240V, single lamp, White	Enquiry

Catalogue No.	Height (mm)	Width (mm)	Depth (mm)	Description	Enquiry
CSS2P2LR	159	90	90	1NO+1NC, AC24~240V, double pushbutton, lamp Red	Enquiry
CSS2P2LG	159	90	90	NO+1NC, AC24~240V, double pushbutton, lamp Green	Enquiry
CSS2P2LY	159	90	90	1NO+1NC, AC24~240V, double pushbutton, lamp Yellow	Enquiry
CSS2P2LB	159	90	90	1NO+1NC, AC24~240V, double pushbutton, lamp Blue	Enquiry
CSS2P2LW	159	90	90	1NO+1NC, AC24~240V, double pushbutton, lamp White	Enquiry

Catalogue No.	Height (mm)	Width (mm)	Depth (mm)	Description	Enquiry
CSS1K6	112	90	90	Small handle, Ø39mm	Enquiry
CSS2S6	159	90	90	Large handle, Ø60mm	Enquiry
CSS2S6H4	159	90	90	2NO+2NC, LL 0	Enquiry
