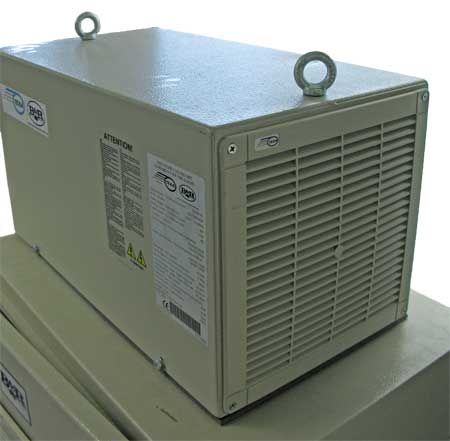

Roof Mounted Air Conditioners

The range of roof mounted air conditioners have been designed to cool electrical enclosures to prevent failure of installed equipment.

Product Information

Applications

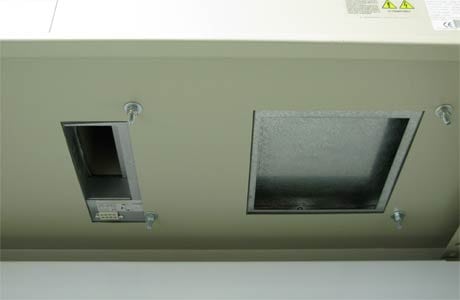

The DEK range of roof mounted air conditioners have been designed to cool electrical enclosures to prevent failure of installed equipment. They are quick and easy to install with simple cutouts and a drilling template supplied with each unit. Once installed the enclosure can be rated to IP54, which prevents dust entering in sufficient quantities that may cause interference with the installed equipment, and prevents damage from splashed water.

Features

  • IP54 protection rating – more info on IP ratings
  • Easy installation
  • Electronic controller
  • Temperature control with ON/OFF adjustment
  • Ability to interface with PLC’s
  • Alarm contacts
  • Minimal maintenance
  • Ozone friendly R1134a or R407C refridgerant

Construction

  • Mild steel construction
  • Powdercoated RAL7032 surface finish

DownloadsAccessoriesMore ProductsEnquiryBuy OnlineBuy In-Store

Order Guide

Model NumberPower Supply (V)Cooling Power
TX-DEK04BT0A230410 W
TX-DEK08BT0A230820 W
TX-DEK12BT0A2301150 W
TX-DEK15BT0A2301550 W
TX-DEK20BT0A2302050 W
TX-DEK20LT0A4002050 W
TX-DEK30BT0A2302900 W
TX-DEK30LT0A4002900 W
TX-DEK40BT0A2303850 W
TX-DEK40LT0A4003850 W

Accessories

  • Filter cloths
  • Washable filter cloths
  • Thermostats
