Screwed Flat Roof Control Box

A customisable enclosure suitable for use within chemical, petrochemical, dust and grain applications where a small enclosure is required.

Screwed Flat Roof Control Box

Product Information

Applications

A customisable enclosure suitable for use within chemical, petrochemical, dust and grain applications where a small enclosure is required.

Features

  • Suitable for Hazardous environments in the most demanding conditions.
  • Enclosures suited for Zones 1 & 2, 21 & 22
  • Specially designed gutter system to protect equipment.
  •  A complete arrangement of terminals can be fitted ranging from 2.5mm to 300mm. Also caters for IS Terminals
  • Customised etched identification label
  • Ambient temperature
    -20ºC ~ +40ºC / 55ºC option

Technical Information

  • Protection Ratings
    Ex e IIC T6 Gb
    Ex nA IIC T6 Gc
    Ex d e IIC T6 Gb
    Ex tD A21/22 T80ºC
    DIP A21/22 T80ºC
    Ex t IIIC T80ºC Db
  • IECEx Certificate
    IECEx ITA 10.0023X

Inclusions

  • Customised etched identification label
  • Screwed lid
  • Mounting flanges
  • Mounting pan option available
  • External earth stud
  • External fixed mounting flanges
  • Stainless steel fixings
  • Silicone gasket option available
  • Internal earth strap kit
  • Factory fitted with certified operators and terminal

Construction

  • Manufactured from 1.5mm thick 316 stainless steel.
  • N4 surface finish

DownloadsAccessoriesMore ProductsEnquiryOnline StockistsLocal Stockists

Order Guide

Catalogue No.Height (mm)Width (mm)Depth (mm)
TBSFCS1109091129090
TBSFCS1609091599090
TBSFCS2009092059090
TBSFCS2509092509090
TBSFCS3509093439090
CBSF*01010815015080
CBSF*020212200200120
CBSF*030212300200120
CBSF*040212400200120
CBSF*060212600200120

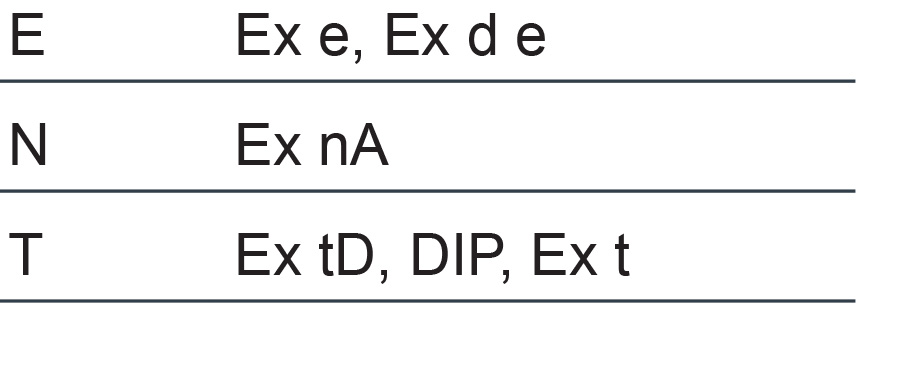

Replace the asterisk (*) in the part number above, with a letter from the table below for the corresponding protection rating that is required.
