Incline SR – 316SS

An IP66, 30 degree sloping roof enclosure. Available in 316 stainless steel N4 finish or X15 ripple orange.

Product Information

Applications

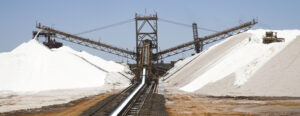

Typical installations are in industries as diverse as mine sites and sugar mills, with applications including local control stations, mini control stations, mini control consoles or motor isolation control stations.

Features

IP66 protection rating – more info on IP ratings

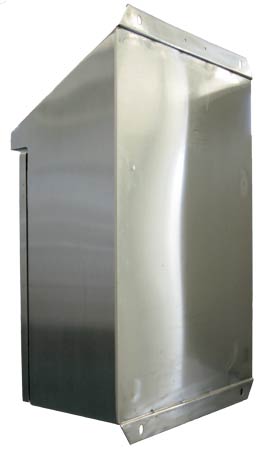

30º sloping roof designed to prevent solids from building up on the surface
Easy installation with top and bottom mounting flanges
Fully welded construction
Corrosion resistant 1.5mm thick 316 stainless steel

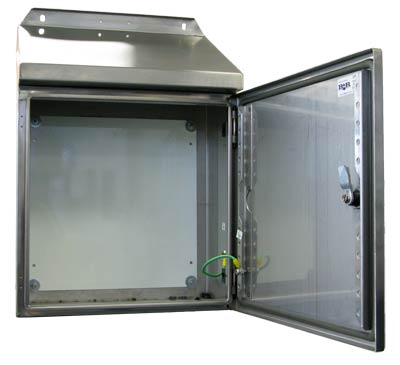

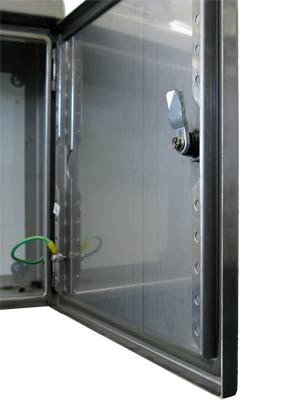

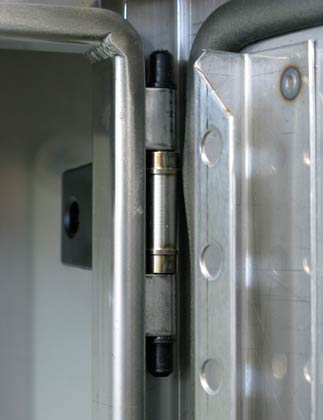

Flexible equipment mounting options including door rails and steel mounting pan

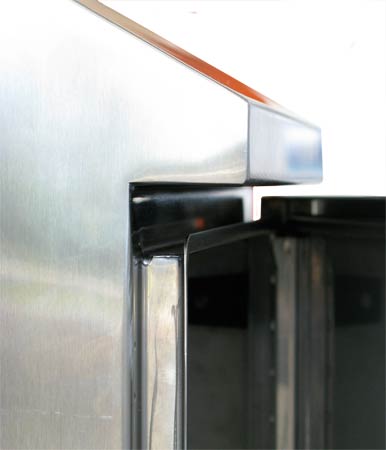

Specially designed gutter system featuring a 20mm extended roof
Region D wind rated to AS1170.2-2002: Structural design actions – Wind actions

Construction

Manufactured from 1.5mm 316 stainless steel
ASSDA approved N4 surface finish
Formed in place polyurethane gasket

Enquiry Form

Name
First Last
Company
Postcode*
Country
Email*
Phone
Your Enquiry*
I am interested in one of the products on the Incline SR – 316SS page of your website.
Your Enquiry*
What would you like to ask us about today?
Newsletter
- Subscribe to our Newsletter
Solve To Submit
Phone
This field is for validation purposes and should be left unchanged.

Downloads Accessories More Products Enquiry Online Stockists Local Stockists

Order Guide

Smaller Enclosures Enclosure Selector Larger Enclosures

Part Number	Height (mm)	Width (mm)	Depth (mm)	Total Height (mm)	Weight (kg)	CAD Blocks	Enquiry
SR03021/S	300	200	150	510	5.4	dwg	Enquiry
SR04031/S	400	300	150	610	9	dwg	Enquiry
SR03042/S	300	400	200	535	10.4	dwg	Enquiry
SR04042/S	400	400	200	635	12.7	dwg	Enquiry
SR04062/S	400	600	200	635	17.4	dwg	Enquiry
SR06042/S	600	400	200	835	17.7	dwg	Enquiry
SR08062/S	800	600	200	1035	30.6	dwg	Enquiry
SR10062/S	1000	600	200	1235	37	dwg	Enquiry
SR04063/S	400	600	300	695	21.3	dwg	Enquiry
SR06063/S	600	600	300	895	28.3	dwg	Enquiry
SR08063/S	800	600	300	1195	35.2	dwg	Enquiry
SR03021/SRO	300	200	150	510	5.4	dwg	Enquiry
SR04031/SRO	400	300	150	610	9	dwg	Enquiry
SR03042/SRO	300	400	200	535	10.4	dwg	Enquiry
SR04042/SRO	400	400	200	635	12.7	dwg	Enquiry
SR04062/SRO	400	600	200	635	17.4	dwg	Enquiry
SR06042/SRO	600	400	200	835	17.7	dwg	Enquiry
SR08062/SRO	800	600	200	1035	30.6	dwg	Enquiry
SR10062/SRO	1000	600	200	1235	37	dwg	Enquiry
SR04063/SRO	400	600	300	695	21.3	dwg	Enquiry
SR06063/SRO	600	600	300	895	28.3	dwg	Enquiry
SR08063/SRO	800	600	300	1195	35.2	dwg	Enquiry

Smaller Enclosures Enclosure Selector Larger Enclosures

* SRO – Stainless steel 316 – X15 ripple orange powdercoat finish

Downloads

CAD Block Downloads - 2D

Product Technical Leaflet

Features and Benefits

AS/NZS 61439 Statement of Compliance

Lloyd's Register Certificate

Industrial Product Catalogue

Accessories

Lock options
Insulated mounting pans
Gland plates – brass, 316 stainless steel, aluminium
External vent kit
Fans and filters

Climate Control

For more information see our Climate Control page (opens in new tab)

Lock Options

Standard

Catalogue No.	Type	Material	Comments	Lock Insert Type	Key	Image

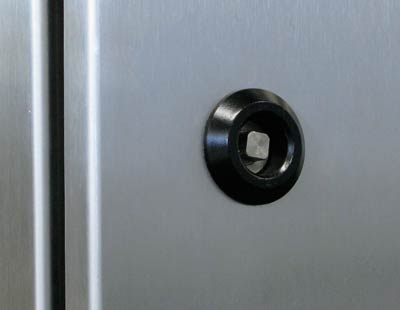

NI020/PS	Turnbuckle	Powdercoated with SS Insert	Standard	7mm Square Stainless Steel	SKZ

Options

Catalogue No.	Type	Material	Comments	Lock Insert Type	Key	Image
NI020/S	Turnbuckle	Stainless Steel	Option	7mm Square Stainless Steel	SKZ

Inserts for Turnbuckle Locks - Optional

Catalogue No.

Product

Material

Lock Insert Type

Key

AS/NZS 61439 Compliance

AS/NZS 61439 is the new series of standards for low-voltage (LV) switchgear and control gear assemblies. For more information on whether you need to comply see our AS/NZS 61439 page.

Click the bar below the requirements and responsibilities for complaince with AS/NZS 61439 for this enclosure.

The following definitions apply to this table: -

Original Manufacturer* - Switchboard designer and manufacturer of the switchboard enclosure.
Assembly Manufacturer* - A switchboard builder.
Original Equipment Manufacturer - The company who manufactured the switchgear used in final assembly.

*The original manufacturer and assembly manufacturer can be the same company or different companies.

If you are a SWITCHBOARD BUILDER this means you are the ASSEMBLY MANUFACTURER and you may be the ORIGINAL MANUFACTURER too. Any switchgear you order will need to be covered by the requirements of the Original Equipment Manufacturer.

B&R has some (but not all) of the responsibilities of the ORIGINAL MANUFACTURER.

If you are an END USER of the equipment you can see who has responsibility from these definitions.

No	Characteristic to be Checked	Clause	Responsibility	Comments
1	Strength of material and parts:	10.2
	Resistance to corrosion	10.2.2	Original Manufacturer	The Incline SR Series of enclosures are made from stainless steel and as such exceed standards requirements. Comparative testing done, Plus ES report; 103687.
	Thermal stability (relates to non-metal enclosures)	10.2.3.1	Original Manufacturer	This clause refers mainly to plastic enclosures.
	Resistance to abnormal heat and fire (due to internal electric effect)	10.2.3.2	Original Manufacturer	All insulating materials supplied have been tested to 960ÂºC glow-wire Standard. Plus, ES report; 103863
	Resistance to ultra-violet (UV) radiation	10.2.4	Original Manufacturer	UV ratings refer mainly to plastic enclosures however metal Powder-coat painted enclosures incorporates UV stabilization. AksoNobel report; 20LSR178
	Lifting	10.2.5	Original Manufacturer	Lifting is verified by test, if required. Generally, this relates to larger switchboards to which lifting means (lugs) which the Incline SR Series are not provided with.
	Mechanical Impact	10.2.6	Original Manufacturer	IK10; Metal enclosure systems have been tested to exceed IK10 (20 Joules).
	Marking	10.2.7	Assembly Manufacturer	Markings must be verified by test. Tests are performed by rubbing with water and petroleum spirits; generally done by the Switchboard Builder (Assembler).
2	Degree of protection of enclosures (IP)	10.3	Original Manufacturer	IP66; Ingress Protection (IP) rating needs to be verified by test or by assessment. The Incline SR has been assessed to comply via SIMTARS report; NE99/0034
3	Clearances	10.4	Assembly Manufacturer	Clearance and creepage can only be verified by test. Switchboard Builders (Assembler) must maintain compliance by ensuring correct clearance and creepage distances are maintained at >8mm (Uimp=8kV) and >16mm (Ui=1kV) respectively.
4	Creepage distances	10.4	Assembly Manufacturer
5	Protection against electric shock and integrity of protective circuits	10.5
	Effective continuity between the exposed conductive parts of the ASSEMBLY and the protective circuit	10.5.2	Assembly Manufacturer	Equipotential protective earth bonding points are required to be verified by test to less than 0.1ohm. Similar enclosure designs have been tested by Plus ES report; 103687
	Short-circuit withstand strength of the protective circuit	10.5.3	Original Manufacturer	The Incline SR Series are generally understood to be fitted with equipment making the switchboard not exceed 10kA prospective short-circuit withstand rating (Icp).
6	Incorporation of switching devices and components	10.6	Assembly Manufacturer	Points 6, 7 and 8 are largely the responsibility of the Switchboard builder (Assembler). It is a requirement that the Assembler follow guidance from the original manufacturer. The advice of original manufacturers such as B&R and switchgear manufacturers, needs to be adhered to. Switchboard Builders need to be aware of the StandardÂ’s requirements for these verification points and incorporate these into complete design verification documentation.
7	Internal electrical circuits and connections	10.7	Assembly Manufacturer
8	Terminals for external conductors	10.8	Assembly Manufacturer
9	Dielectric Properties	10.9
	Power-frequency withstand voltage	10.9.2	Original Manufacturer	The Incline SR Series of enclosures are provided as a basic empty enclosure and as such dielectric property verification has not been possible as internal configurations are not known. Dielectric properties need to be verified by Impulse withstand testing or by clearances and creapages assessment.
	Impulse withstand voltage	10.9.3	Original Manufacturer
10	Temperature-rise limits	10.1	Assembly Manufacturer	Temperature-rise can be determined by test or by comparison or by calculation. Temperature- rise methods provided in AS/NZS 60890 can be used for switchboards not exceeding 1600A rating. The Incline SR Series of enclosures rating does not exceed 1600A and therefore AS/NZS 60890 should be used by the Designer.
11	Short circuit withstand strength	10.11	Original Manufacturer	The Incline SR Series are generally understood to be fitted with equipment making the switchboard not exceed 10kA prospective short-circuit withstand rating (Icp).
12	Electromagnetic compatibility (EMC)	10.12	Original Equipment Manufacturer	Equipment installed in switchboards shall comply with the immunity requirements of the relevant product or generic EMC standard. The Switchboard builder (assembler) shall obtain from the device and or component manufacturer the specific performance criteria of the equipment based on the acceptance criteria given in the relevant standard.
13	Mechanical operation	10.13	Original Equipment Manufacturer	This verification testing need NOT be done on devices already been type tested according to their relevant product standard. Only if their mechanical operation has been modified does the assembly need to be retested by cycling it 200 times.
