Connector TE – 316SS

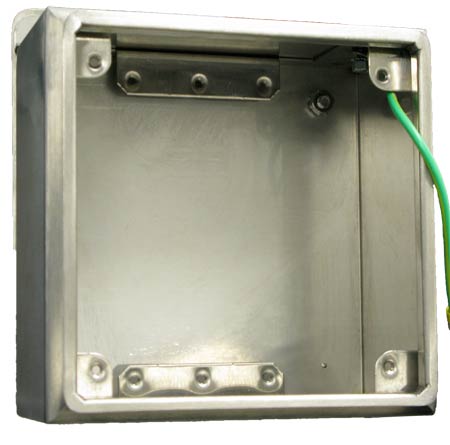

An IP66, screwed lid, 316 stainless steel enclosure suitable for many applications where smaller enclosures are required.

Product Information

Applications

Typical applications include housing terminations, pushbuttons or switchgear.

Features

IP66 protection rating – more info on IP ratings
Fully welded construction
Captive 316 stainless steel combo head screws, used to prevent loss when fastening
Provision for mounting DIN rail or a mounting pan, increasing the application flexibility
Flat face gutter
Easy installation
Foamed in place polyurethane gasket

Construction

1.2mm 316 stainless steel
Polyurethane gasket (foamed in place)
ASSDA approved N4 surface finish

Enquiry Form

Name
First Last
Company
Postcode*
Country
Email*
Phone
Your Enquiry*
I am interested in one of the products on the Connector TE – 316SS page of your website.
Your Enquiry*
What would you like to ask us about today?
Newsletter
- Subscribe to our Newsletter
Solve To Submit

Downloads Accessories More Products Enquiry Online Stockists Local Stockists

Order Guide

Smaller Enclosures Larger Enclosures

Part Number	Height (mm)	Width (mm)	Depth (mm)	Weight (kg)	CAD Blocks	CAD Blocks 3D
TE1108/S	150	150	80	1.2	dwg	step	Enquiry
TE2212/S	200	200	120	2.4	dwg	step	Enquiry
TE3112/S	300	150	120	2.2	dwg	step	Enquiry
TE3212/S	300	200	120	2.9	dwg	step	Enquiry
TE4212/S	400	200	120	3.6	dwg	step	Enquiry
TE6212/S	600	200	120	4.9	dwg	step	Enquiry

Smaller Enclosures Larger Enclosures

Downloads

CAD Block Downloads - 2D

CAD Block Downloads - 3D

Product Technical Leaflet (720kB)

Features and Benefits (140kB)

Industrial Product Catalogue (11.0MB)

Lloyd's Register Certificate (464kB)

Accessories

Accessories

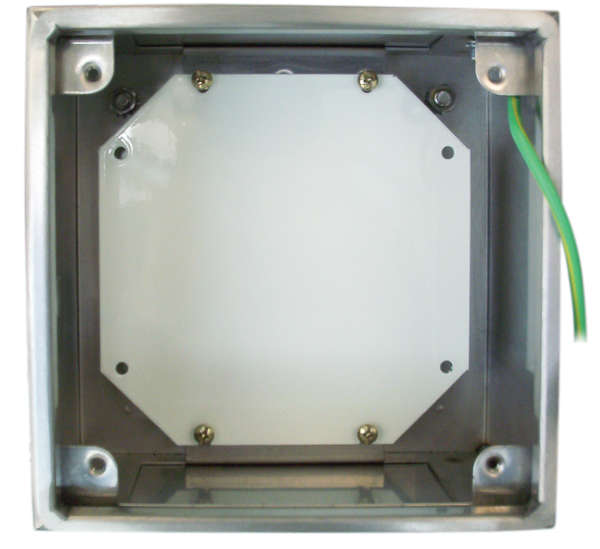

Metal mounting pan

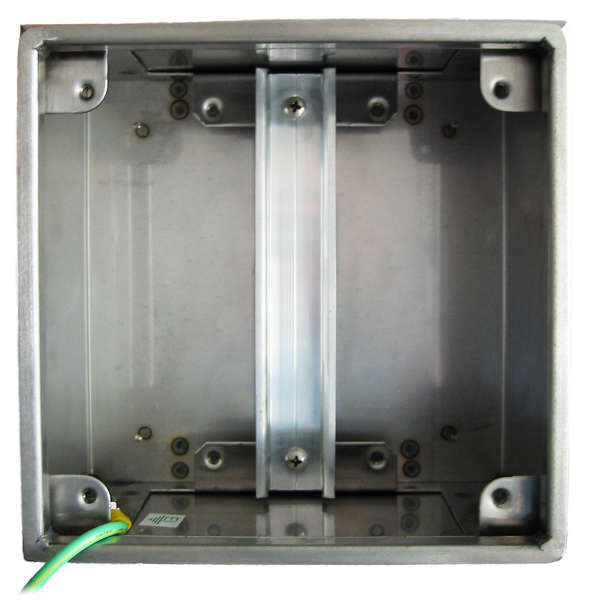

DIN rail kits
Wall mounting brackets

Enquiry Form - TESS

Enclosure Selection
Please select your enclosure for the list below.
Available Accessories
- Mounting Pan - metal
- DIN Rail - Aluminium
- Wall Mounting Brackets
