Connector TE – Zinc Coated Steel

An IP66, screwed lid enclosure suitable for many applications where smaller enclosures are required.

Product Information

Applications

Typical applications include housing terminations, pushbuttons or switchgear in industrial or demanding applications.

Features

IP66 protection rating – more info on IP ratings

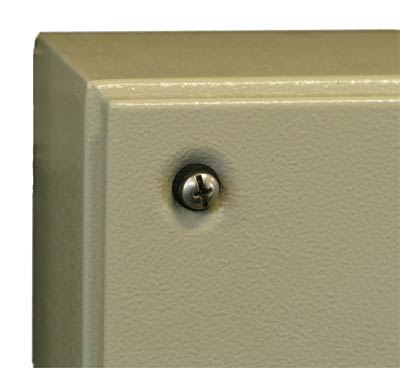

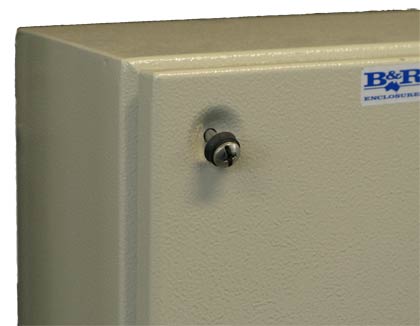

Captive 316 stainless steel combo head screws, used to prevent loss when fastening

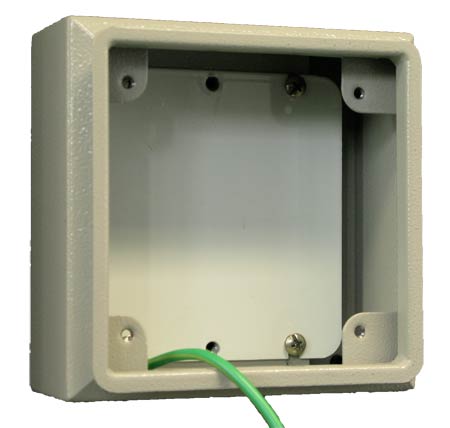

Provision for mounting DIN rail or a mounting pan, increasing the application flexibility

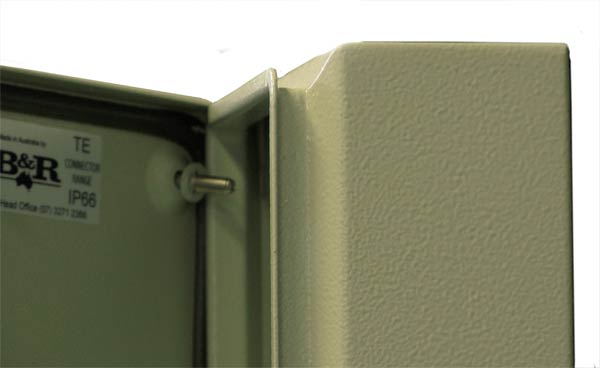

Flat face gutter system

Construction

Manufactured from 1.2mm zinc coated steel
Formed in place polyurethane gaskets
Powdercoated Light grey RAL7032

Enquiry Form

Name
First Last
Company
Postcode*
Country
Email*
Phone
Your Enquiry*
I am interested in one of the products on the Connector TE – Zinc Coated Steel page of your website.
Newsletter
- Subscribe to our Newsletter
Solve To Submit

Downloads Accessories More Products Enquiry Online Stockists Local Stockists

Order Guide

Part Number	Height (mm)	Width (mm)	Depth (mm)	Weight (kg)	CAD Blocks	Enquiry
TE1108	150	150	80	1.2
TE2212	200	200	120	2.4
TE3112	300	150	120	2.2
TE3212	300	200	120	2.9
TE4212	400	200	120	3.6
TE6212	600	200	120	4.9

Smaller Enclosures Larger Enclosures

Downloads

Product Technical Leaflet (720kB)

Features and Benefits (140kB)

Industrial Product Catalogue (11.0MB)

Accessories

Accessories

Metal mounting pan
DIN rail kits
Wall mounting brackets
