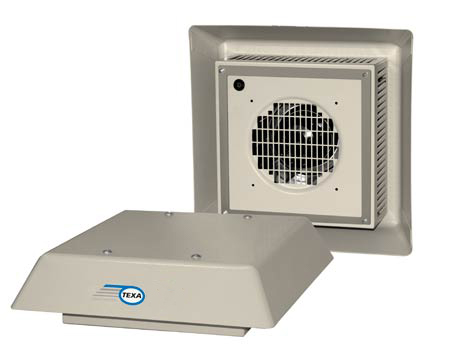

Ventilating Towers

Roof mounted range of ventilating towers with air flow capacities from 600 to 4520m³/h.

Ventilating Towers

Product Information

Applications

The DLK range of ventilating towers provide air capacity to allow significant cooling using external air. The DLK ventilating towers are rood mounted with air flow capacities from 600 to 4250m³/h.

Features

  • IP44 protection rating – more info on IP ratings
  • Easy installation
  • High flow capacities
  • Flow direction from the inside out
  • Range of power supplies
  • Minimal maintenance

Construction

  • Mild Steel
  • Powdercoated RAL7035 light grey

DownloadsAccessoriesMore ProductsEnquiryOnline StockistsLocal Stockists

Order Guide

Forced Circulation (DLK) and Natural Circulation (DLR)

Part NumberAir Flow Rate
(m3/hr)		Power Supply
(V/Ph/hZ)		Height
(mm)		Width
(mm)		Depth
(mm)		Matching FilterEnquiry
TX-DLK19BX0A500-540230/1/50-601223753751 x TX-FIL35XN0AEnquiry
TX-DLK22BX0A700-730230/1/50-601223753751 x TX-FIL35XN0AEnquiry
TX-DLK42BX0A1920-2200230/1/50-601226376376 x TX-FIL35XN0AEnquiry
TX-DLK45BX0A2520-2930230/1/50-601226376376 x TX-FIL35XN0AEnquiry
TX-DLK48BX0A3340-3930230/1/50-601226376376 x TX-FIL35XN0AEnquiry
TX-DLR19XX0AN/A-106375375-Enquiry
TX-FIL35XN0AN/A-5375375-Enquiry

Accessories

Accessories

  • Thermostat
  • Filter cloths
  • EU5 filter cloths (IP55)
