Polynova PM

An IP65, non-metallic enclosure designed for use as an individual enclosure or in a combination distribution bank.

Polynova PM

Product Information

Applications

Designed for use as an individual enclosure or can be arranged in combinations to form bayed distribution suites.

Features

  • Self extinguishing and non dripping to conform to the IEC695-2-1, 960°C glow wire test

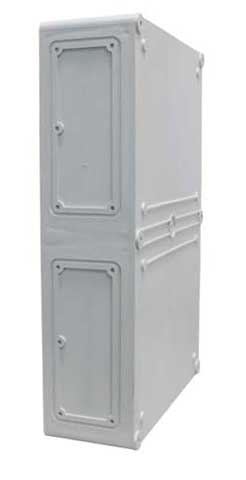

  • A modular design capable of expanding in any direction
  • UV stabilised

Approvals

  • CE marked

Construction

  • Opaque parts – noryl

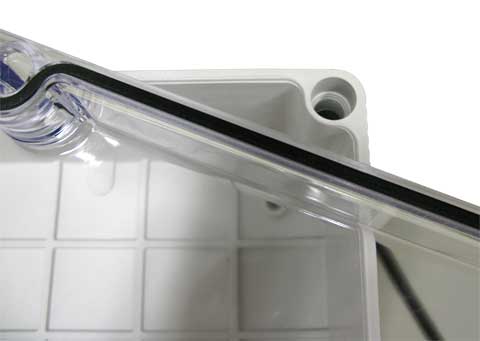

  • Transparent parts – polycarbonate
  • Surface finish – natural RAL7035
  • Protection rating – IP65

DownloadsAccessoriesMore ProductsEnquiryOnline StockistsLocal Stockists

Order Guide

Smaller Enclosures Larger Enclosures

Part NumberHeight (mm)Width (mm)Depth (mm)TypeEnquiry

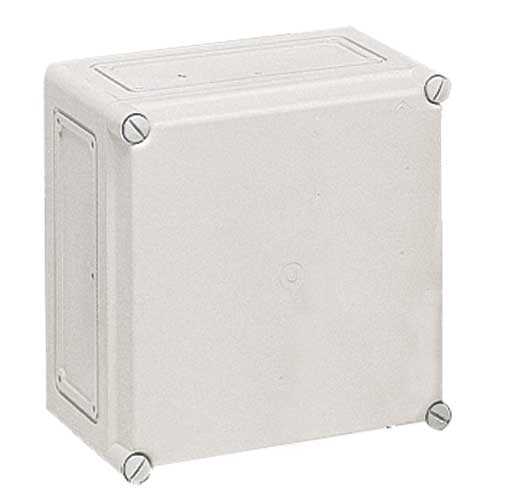

PM2718270180165OpaqueEnquiry
PM2727270270165OpaqueEnquiry
PM3627360270165OpaqueEnquiry
PM5427540270165OpaqueEnquiry
PM5436540360165OpaqueEnquiry

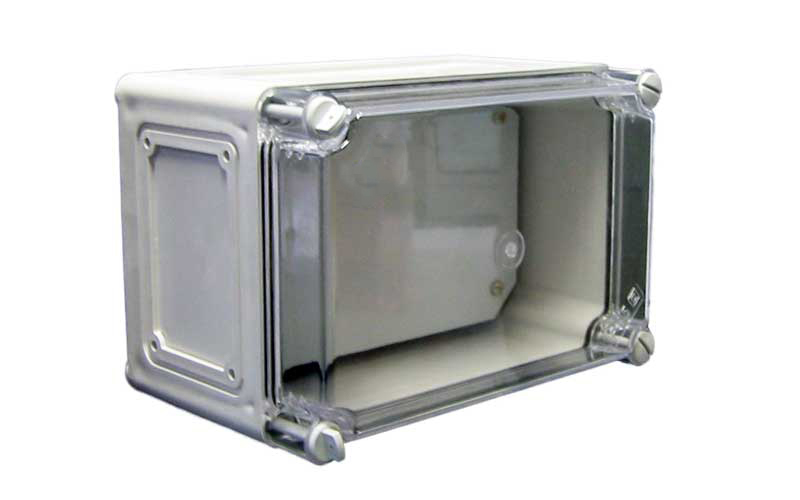

PM2718T270180165TransparentEnquiry
PM2727T270270165TransparentEnquiry
PM3627T360270165TransparentEnquiry
PM5427T540270165TransparentEnquiry
PM5436T540360165TransparentEnquiry

Smaller Enclosures Larger Enclosures

Accessories

Accessories

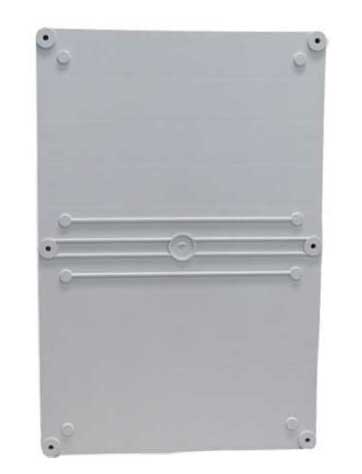

  • Metal mounting pan
  • Insulated mounting pan
  • Mounting pan spacers
  • Depth spacers (to increase the enclosure depth)
  • Wall-mount brackets
  • Aluminium DIN rail
  • Rail kit
  • Gasket joining kit
  • Cover fixing accessories
  • Hinges – lid
  • Gasket for hinging lids
  • Ventilation plugs – nylon
  • Cable sealing box – non-metallic
  • Gland plate
