Ventilating Units

The fan and filter ventilating units are reverisable to pressurise or evacuate air out of the enclosures as required.

Product Information

Applications

Used together with the FIL filtering grills to expel air from the enclosure.

Features

  • Protection rating – IP44
  • Protection rating – IP54 when used with optional filter
  • Reversible air flow direction

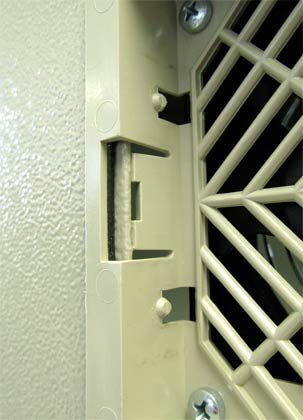

  • Click-in fitting with no screws required
  • Optional temperature control thermostat

Construction

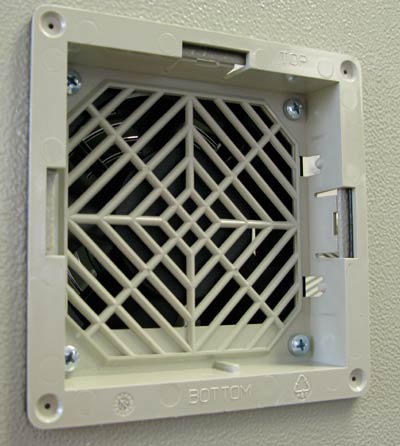

  • ABS plastic grill
  • Powdercoated pebble grey RAL7032

Inclusions

  • Mounting hardware

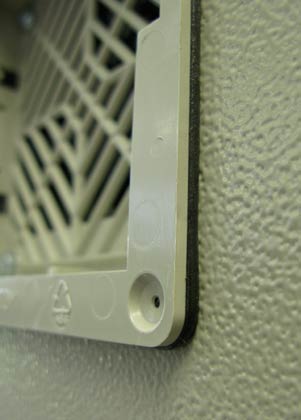

  • Gaskets
  • Template
  • All fixings required for assembly

DownloadsAccessoriesMore ProductsEnquiryOnline StockistsLocal Stockists

Order Guide

Part NumberAir Flow Rate
(m3/hr)		Power Supply
(V/Ph/hZ)		Height
(mm)		Width
(mm)		Depth
(mm)		Matching FilterEnquiry
TX-DLK19BX0A600-625230/1/50-60106375375TX-FIL35XN0A
TX-DLK22BX0A1050-1085230/1/50-60106375375TX-FIL35XN0A
TX-DLK42BX0A2110-2390230/1/50-60315637637TX-FIL35XN0A
TX-DLK45BX0A2750-3180230/1/50-60315637637TX-FIL35XN0A
TX-DLK48BX0A3670-4270230/1/50-60315637637TX-FIL35XN0A
TX-DLR19XX0AN/A-106375375
TX-FAN12BN0A57230 AC 1ph15015067TX-FIL12XN0A
TX-FAN12UN0A6024V DC15015067TX-FIL12XN0A
TX-FAN12VN0A6048V DC15015067TX-FIL12XN0A
TX-FAN23BN0A115230 AC 1ph250250102TX-FIL25XN0A
TX-FAN23UN0A12024V DC250250102TX-FIL25XN0A
TX-FAN23VN0A12048V DC250250102TX-FIL25XN0A
TX-FAN25BN0A230230 AC 1ph250250114TX-FIL25XN0A
TX-FAN25UN0A23024V DC250250114TX-FIL25XN0A
TX-FAN25VN0A23048V DC250250114TX-FIL25XN0A
TX-FAN35BN0A520230 AC 1ph325325153TX-FIL35XN0A
TX-FAN35LN0A520230 AC 3ph325325153TX-FIL35XN0A
TX-FAN12BN0B60230 AC 1ph15015067TX-FIL12XN0A
TX-FAN12UN0B5724 DC15015067TX-FIL12XN0A
TX-FAN25UN0B23024 DC250250114TX-FIL25XN0A
TX-FAN25BN0B230230 AC 1ph250250114TX-FIL25XN0A
TX-FAN35BN0B520230 AC 1ph325325153TX-FIL35XN0A
TX-FIL12XN0A--15015024
TX-FIL25XN0A--25025026
TX-FIL35XN0A--32532528

Accessories

Accessories

  • Thermostat

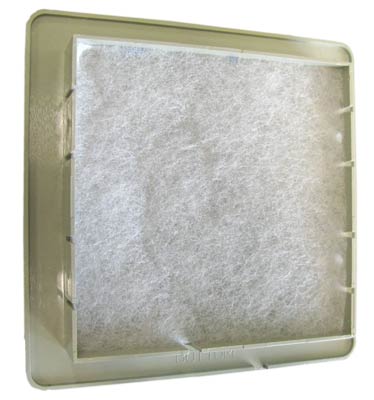

  • Filter cloths
  • Washable filter cloths
  • Vent hoods
