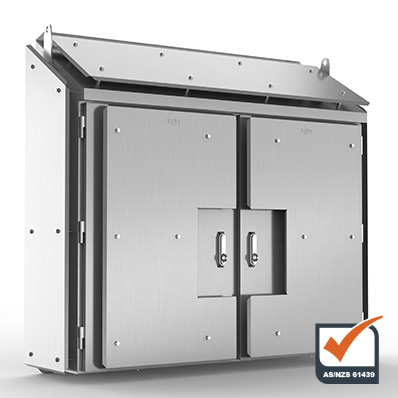

Finucane FI – 316SS

An IP66, special purpose, sloping roof enclosure with sun shield designed for Pilbara Iron Ore projects.
AS/NZS 61439
Finucane FI – 316SS
Australian Made
Australian Made

Product Information

Applications

Typically used for local control stations, mini control consoles and motor isolators in conveyor runs.

Features

Enclosure

  • IP66 protection rating – more info on IP ratings
  • 15º forward sloping roof to prevent build up of water and solids

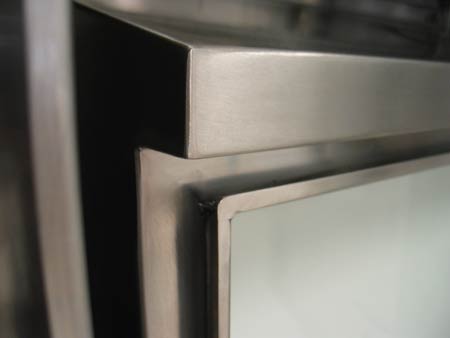

  • Extended roof and gutter system to inhibit water from entering the enclosure on opening

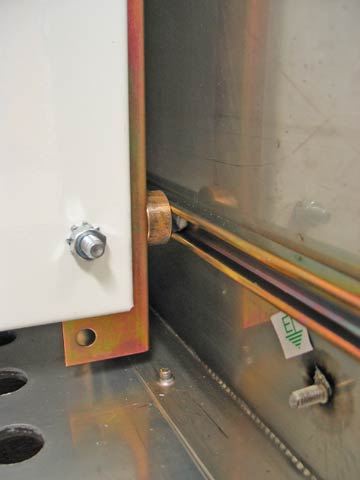

  • Mounting pan depth adjustable to provide flexibility for cable glands

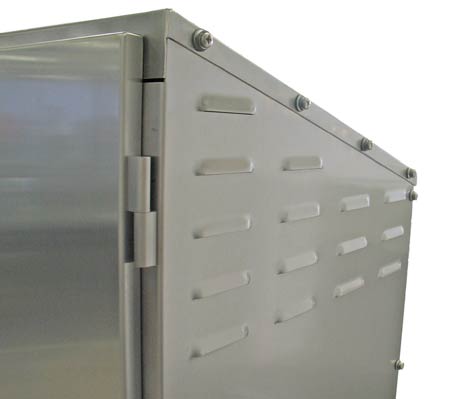

  • Removable doors with pintle hinges



Sunshade

  • 15º reverse angle sloping roof to prevent the build
    of water and solids

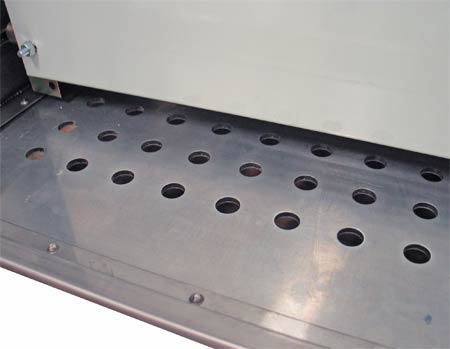

  • Large opening in bottom for maximum cable access
  • Designed to protect enclosure from direct sunlight
    and reducing temperatures inside the enclosure



Construction

DownloadsAccessoriesMore ProductsEnquiryOnline StockistsLocal Stockists

Order Guide

Part NumberHeight (mm)Width (mm)Depth (mm)Usable Depth (mm)Weight (kg)CAD BlocksEnquiry
FI101040/S1000100040037365dwgEnquiry
FI151250/S15001200500373220dwgEnquiry

Accessories

Accessories

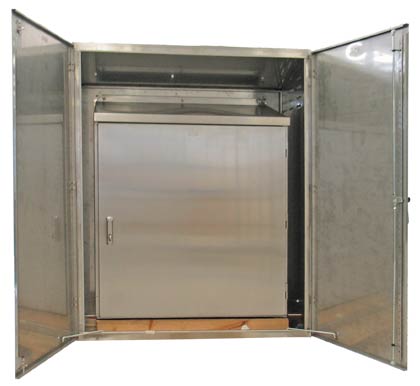

  • Sunshield – bolted 1.5mm thick stainless steel construction with backwards facing sloping roof and large open area at the bottom for maximum cable access. Sun shield also includes 3 point locking, door stays and pintle hinges to allow the removal of doors if required.

Climate Control

For more information see our Climate Control page (opens in new tab)

AS/NZS 61439 Compliance

AS/NZS 61439 is the new series of standards for low-voltage (LV) switchgear and control gear assemblies. For more information on whether you need to comply see our AS/NZS 61439 page.

Click the bar below the requirements and responsibilities for complaince with AS/NZS 61439 for this enclosure.

The following definitions apply to this table: -

  • Original Manufacturer* - Switchboard designer and manufacturer of the switchboard enclosure.
  • Assembly Manufacturer* - A switchboard builder.
  • Original Equipment Manufacturer - The company who manufactured the switchgear used in final assembly.

*The original manufacturer and assembly manufacturer can be the same company or different companies.

If you are a SWITCHBOARD BUILDER this means you are the ASSEMBLY MANUFACTURER and you may be the ORIGINAL MANUFACTURER too. Any switchgear you order will need to be covered by the requirements of the Original Equipment Manufacturer.

B&R has some (but not all) of the responsibilities of the ORIGINAL MANUFACTURER.

If you are an END USER of the equipment you can see who has responsibility from these definitions.

NoCharacteristic to be CheckedClauseResponsibilityComments
1Strength of material and parts:10.2
Resistance to corrosion  10.2.2Original ManufacturerThe Hedland PH, Finucane FI and Miner ME Series of enclosures are made from steel and stainless steel and as such exceed standards requirements. Comparative testing done, Plus ES report; 103687.
Thermal stability (relates to non-metal enclosures)  10.2.3.1Original ManufacturerThis clause refers mainly to plastic enclosures.
Resistance to abnormal heat and fire (due to internal electric effect)  10.2.3.2Original ManufacturerThe Hedland PH, Finucane FI and Miner ME Series of enclosures are provided as a basic empty enclosure however all insulating materials if supplied have been tested to 960ºC glow-wire Standard. Plus ES report; 103863.
Resistance to ultra-violet (UV) radiation  10.2.4Original ManufacturerUV ratings refer mainly to plastic enclosures however metal Powder-coat painted enclosures incorporates UV stabilization. Report; AksoNobel 20LSR178
Lifting  10.2.5Original ManufacturerLifting is verified by test, if required. Generally this relates to larger switchboards to which lifting means (lugs) which the Hedland PH, Finucane FI and Miner ME Series are not provided with.
Mechanical Impact  10.2.6Original ManufacturerIK10; Metal enclosure systems have been tested to exceed IK10 (20 Joules).
Marking  10.2.7Assembly ManufacturerMarkings must be verified by test. Tests are performed by rubbing with water and petroleum spirits; generally done by the Switchboard Builder (Assembler).
2Degree of protection of enclosures (IP)10.3Original ManufacturerIP66; Ingress Protection (IP) rating needs to be verified by test or by assessment. The Miner ME Series have been tested to IP66 while Hedland PH and Finucane FI are compliant by assessment. SIMTARS report; NE99/0035
3Clearances10.4Assembly ManufacturerClearance and creepage can only be verified by test. Switchboard Builders (Assembler) must maintain compliance by ensuring correct clearance and creepage distances are maintained at >8mm (Uimp=8kV) and >16mm (Ui=1kV) respectively.
4Creepage distances10.4Assembly Manufacturer
5Protection against electric shock and integrity of protective circuits10.5
Effective continuity between the exposed conductive parts of the ASSEMBLY and the protective circuit   10.5.2Assembly ManufacturerEquipotential protective earth bonding points are required to be verified by test to less than 0.1ohm.
Short-circuit withstand strength of the protective circuit   10.5.3Original ManufacturerThe Hedland PH, Finucane FI and Miner ME Series are generally understood to be fitted with equipment making the switchboard not exceed 10kA prospective short-circuit withstand rating (Icp).
6Incorporation of switching devices and components10.6Assembly ManufacturerPoints 6, 7 and 8 are largely the responsibility of the Switchboard builder (Assembler). It is a requirement that the Assembler follow guidance from the original manufacturer. The advice of original manufacturers such as B&R and switchgear manufacturers, needs to be adhered to. Switchboard Builders need to be aware of the StandardÂ’s requirements for these verification points and incorporate these into complete design verification documentation.
7Internal electrical circuits and connections10.7Assembly Manufacturer
8Terminals for external conductors10.8Assembly Manufacturer
9Dielectric Properties10.9
Power-frequency withstand voltage  10.9.2Original ManufacturerThe Hedland PH, Finucane FI and Miner ME Series of enclosures are provided as a basic empty enclosure and as such dielectric property verification has not been possible as internal configurations are not known. Dielectric properties need to be verified by Impulse withstand testing or by clearances and creapages assessment.
Impulse withstand voltage  10.9.3Original Manufacturer
10Temperature-rise limits10.1Assembly ManufacturerTemperature-rise can be determined by test or by comparison or by calculation. Temperature rise methods provided in AS/NZS 60890 can be used for switchboards not exceeding 1600A rating. The Hedland PH, Finucane FI and Miner ME Series of enclosures are rated for use under 1600A and therefore AS/NZS 60890 should be used by the Designer.
11Short circuit withstand strength10.11Original ManufacturerThe Hedland PH, Finucane FI and Miner ME Series are generally understood to be fitted with equipment making the switchboard not exceed 10kA prospective short-circuit withstand rating (Icp).
12Electromagnetic compatibility (EMC)10.12Original Equipment ManufacturerEquipment installed in switchboards shall comply with the immunity requirements of the relevant product or generic EMC standard. The Switchboard builder (assembler) shall obtain from the device and or component manufacturer the specific performance criteria of the equipment based on the acceptance criteria given in the relevant standard.
13Mechanical operation10.13Original Equipment ManufacturerThis verification testing need NOT be done on devices already been type tested according to their relevant product standard. Only if their mechanical operation has been modified does the assembly need to be retested by cycling it 200 times.
