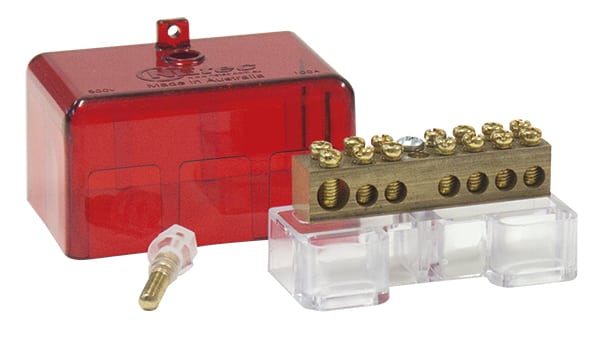

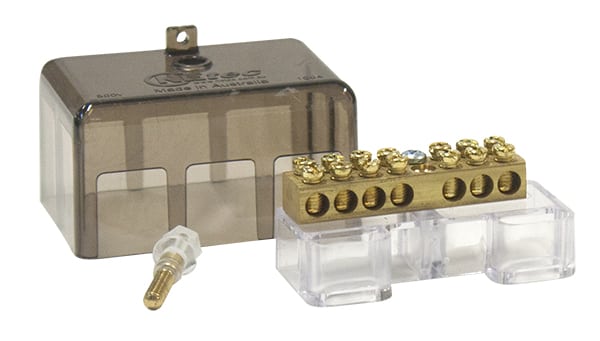

Covered Links

A comprehensive range of links varying from 100Amp to 400Amp.

Covered Links

Australian Made

Product Information

Features

Suitable for domestic and commercial metering applications.

Conformity / Approvals

UL94, V0 rating, 960°C glow wire test
Tunnel type terminals AS3000:2007: Clause 2.9.4
Numbering to AS3000 regulations
Designed to Australian regulations
400A product test report (completed by B&R)
Complies to AS5112

Enquiry Form

Name
First Last
Company
Postcode*
Country
Email*
Phone
Your Enquiry*
I am interested in one of the products on the Covered Links page of your website.
Your Enquiry*
What would you like to ask us about today?
Newsletter
- Subscribe to our Newsletter
Solve To Submit

Downloads More Products Enquiry Online Stockists Local Stockists

Order Guide

Part Number	Description	No. of Tunnels	Maximum tunnel	Screws	Amps	Range
LK5C35	Link 5 Terminals Max 35mm	5	35mm	Steel	100	Small
LK5C	Link 5 Terminals	5	16mm	Steel	100	Small
LK6C35	Link 6 Terminals Max 35mm	6	35mm	Steel	100	Small
LK7C35	Link 7 Terminals Max 35mm	7	35mm	Steel	100	Small
LK7C	Link 7 Terminals	7	16mm	Steel	100	Small
LK10C35	Link 10 Terminals Max 35mm	10	35mm	Steel	100	Medium
LK10C	Link 10 Terminals	10	16mm	Steel	100	Medium
LK13C35	Link 13 Terminals Max 35mm	13	35mm	Steel	100	Medium
LK18C	Link 18 Terminals	18	16mm	Steel	100	Medium
LKT4C35	Link T Shaped 4 Terminals Max 35mm	4	35mm	Brass	140	T-Shape
LK165A7C70	Link 165A 7 Terminals Max 70mm	7	70mm	Brass	165	165amp
LK165A13C70	Link 165A 13 Terminals Max 70mm	13	70mm	Brass	165	165amp
LK400A7C150	Link 400A 7 Terminals Max 150mm	7	150mm	Brass	400	400amp
LK400A13C150	Link 400A 13 Terminals Max 150mm	13	150mm	Brass	400	400amp

Part Number	Description	No. of Tunnels	Maximum tunnel	Screws	Amps	Range
LK5R35	Link 5 Terminals Max 35mm	5	35mm	Steel	100	Small
LK5R	Link 5 Terminals	5	16mm	Steel	100	Small
LK6R35	Link 6 Terminals Max 35mm	6	35mm	Steel	100	Small
LK7R35	Link 7 Terminals Max 35mm	7	35mm	Steel	100	Small
LK7R	Link 7 Terminals	7	16mm	Steel	100	Small
LK10R35	Link 10 Terminals Max 35mm	10	35mm	Steel	100	Medium
LK10R	Link 10 Terminals	10	16mm	Steel	100	Medium
LK13R35	Link 13 Terminals Max 35mm	13	35mm	Steel	100	Medium
LK18R	Link 18 Terminals	18	16mm	Steel	100	Medium
LKT4R35	Link T Shaped 4 Terminals Max 35mm	4	35mm	Brass	140	T-Shape
LK165A7R70	Link 165A 7 Terminals Max 70mm	7	70mm	Brass	165	165amp
LK165A13R70	Link 165A 13 Terminals Max 70mm	13	70mm	Brass	165	165amp
LK400A7R150	Link 400A 7 Terminals Max 150mm	7	150mm	Brass	400	400amp
LK400A13R150	Link 400A 13 Terminals Max 150mm	13	150mm	Brass	400	400amp

Part Number	Description	No. of Tunnels	Maximum tunnel	Screws	Amps	Range
LK5B35	Link 5 Terminals Max 35mm	5	35mm	Steel	100	Small
LK5B	Link 5 Terminals	5	16mm	Steel	100	Small
LK6B35	Link 6 Terminals Max 35mm	6	35mm	Steel	100	Small
LK7B35	Link 7 Terminals Max 35mm	7	35mm	Steel	100	Small
LK7B	Link 7 Terminals	7	16mm	Steel	100	Small
LK10B35	Link 10 Terminals Max 35mm	10	35mm	Steel	100	Medium
LK10B	Link 10 Terminals	10	16mm	Steel	100	Medium
LK13B35	Link 13 Terminals Max 35mm	13	35mm	Steel	100	Medium
LK18B	Link 18 Terminals	18	16mm	Steel	100	Medium
LKT4B35	Link T Shaped 4 Terminals Max 35mm	4	35mm	Brass	140	T-Shape
LK165A7B70	Link 165A 7 Terminals Max 70mm	7	70mm	Brass	165	165amp
LK165A13B70	Link 165A 13 Terminals Max 70mm	13	70mm	Brass	165	165amp
LK250A4B35	Link 100A 4 Terminals Max 35mm	4	35mm	Steel	100	Vic Link
LK400A7B150	Link 400A 7 Terminals Max 150mm	7	150mm	Brass	400	400amp
LK400A13B150	Link 400A 13 Terminals Max 150mm	13	150mm	Brass	400	400amp

Downloads

Product Technical Leaflet (90kB)

Features and Benefits (880kB)

Residential Commercial Catalogue (5.7MB)
