Monarch IP – 316SS

An IP66, 316SS, multiple application enclosure & switchboard building system suitable for a wide variety of applications.
AS/NZS 61439
Monarch IP – 316SS
Australian Made
Australian Made

Product Information

Applications

Suitable for a wide variety of applications in severe environmental conditions. Designed to be the ultimate in flexibility the Monarch IP system is suitable for small motor control applications, lighting, CT metering and small switchboards (to form 2).

Features

  • IP66 protection rating – more info on IP ratings
  • C rail mountings for equipment
  • Gland plate fitted internally or externally on units 400mm deep or deeper.
  • Vertical body and door rails
  • 3 point locking on models of 600mm high and above
  • Lockable L handle on enclosures 1600mm high and above (7mm square key turnbuckle lock on others)
  • Mounting pan is optional extra
  • Region D wind rated to AS1170.2-2002: Structural design actions – Wind actions

Construction

  • 1.2/1.5mm thick 316 stainless steel
  • 1.5mm 316 stainless steel gland plate (brass also available as an option)
  • Stainless steel hinges and hinge pins for easy door opening
  • Concealed removable hinging
  • Polyurethane gasket (foamed in place)
  • ASSDA approved N4 surface finish
  • Ripple Orange – X15 (denoted by /RO in the part number code below)

Also available with Viewing Window Doors

DownloadsAccessoriesMore ProductsEnquiryOnline StockistsLocal Stockists

Order Guide

Smaller Enclosures Enclosure Selector Larger Enclosures

Part NumberHeight (mm)Width (mm)Depth (mm)WeightCAD BlocksTemp RiseEnquiry
Standard X15 Orange
IP09051/S*3002001754.2Temperature Rise CalculatorEnquiry
IP13091/S4003001757Temperature Rise CalculatorEnquiry
IP13132/SIP13132/SRO40040027012Temperature Rise CalculatorEnquiry
IP13212/SIP13212/SRO40060027016Temperature Rise CalculatorEnquiry
IP13214/SIP13214/SRO40060040020Temperature Rise CalculatorEnquiry
IP21132/SIP21132/SRO60040027016Temperature Rise CalculatorEnquiry
IP21212/SIP21212/SRO60060027021Temperature Rise CalculatorEnquiry
IP21214/SIP21214/SRO60060040025Temperature Rise CalculatorEnquiry
IP21292/SIP21292/SRO60080027036Temperature Rise CalculatorEnquiry
IP21294/SIP21294/SRO60080040053Temperature Rise CalculatorEnquiry
IP21295/SIP21295/SRO60080050047Temperature Rise CalculatorEnquiry
IP25254/SIP25254/SRO70070040044Temperature Rise CalculatorEnquiry
IP29212/SIP29212/SRO80060027026Temperature Rise CalculatorEnquiry
IP29214/SIP29214/SRO80060040031Temperature Rise CalculatorEnquiry
IP29215/SIP29215/SRO80060050057Temperature Rise CalculatorEnquiry
IP29216/SIP29216/SRO80060060052Temperature Rise CalculatorEnquiry
IP29294/SIP29294/SRO80080040059Temperature Rise CalculatorEnquiry
IP37212/SIP37212/SRO100060027026Temperature Rise CalculatorEnquiry
IP37254/SIP37254/SRO100070040051Temperature Rise CalculatorEnquiry
IP37294/SIP37294/SRO100080040064Temperature Rise CalculatorEnquiry
IP45212/SIP45212/SRO120060027031Temperature Rise CalculatorEnquiry
IP45214/SIP45214/SRO120060040031Temperature Rise CalculatorEnquiry
IP45215/SIP45215/SRO120060050060Temperature Rise CalculatorEnquiry
IP45216/SIP45216/SRO120060060066Temperature Rise CalculatorEnquiry
IP45294/SIP45294/SRO120080040071Temperature Rise CalculatorEnquiry
IP45295/SIP45295/SRO120080050071Temperature Rise CalculatorEnquiry
IP61214/SIP61214/SRO160060040031Temperature Rise CalculatorEnquiry
IP61215/SIP61215/SRO160060050066Temperature Rise CalculatorEnquiry
IP61216/SIP61216/SRO160060060073Temperature Rise CalculatorEnquiry
IP61294/SIP61294/SRO160080040072Temperature Rise CalculatorEnquiry
IP61295/SIP61295/SRO160080050072Temperature Rise CalculatorEnquiry
IP69214/SIP69214/SRO180060040038Temperature Rise CalculatorEnquiry
IP69215/SIP69215/SRO180060050071Temperature Rise CalculatorEnquiry
IP69294/SIP69294/SRO180080040078Temperature Rise CalculatorEnquiry
IP69295/SIP69295/SRO180080050078Temperature Rise CalculatorEnquiry
IP77135/SIP77135/SRO200040050042Temperature Rise CalculatorEnquiry
IP77136/SIP77136/SRO200040060039Temperature Rise CalculatorEnquiry
IP77214/SIP77214/SRO200060040040Temperature Rise CalculatorEnquiry
IP77215/SIP77215/SRO200060050035Temperature Rise CalculatorEnquiry
IP77216/SIP77216/SRO200060060079Temperature Rise CalculatorEnquiry
IP77218/SIP77218/SRO2000600800100Temperature Rise CalculatorEnquiry
IP77294/SIP77294/SRO200080040035Temperature Rise CalculatorEnquiry
IP77295/SIP77295/SRO200080050085Temperature Rise CalculatorEnquiry
IP77296/SIP77296/SRO200080060093Temperature Rise CalculatorEnquiry
IP77298/SIP77298/SRO2000800800117Temperature Rise CalculatorEnquiry

Smaller Enclosures Enclosure Selector Larger Enclosures

Accessories

Accessories

  • Lock options such as L handle
  • Metal mounting pans
  • Insulated mounting pans
  • Double hinged insulating panels
  • Hinged escutcheons
  • Fixed escutcheons
  • Gland plates
  • Shelves
  • Plinths
  • Rainhood
  • Vent kit (IPVK/S)
  • Vent hoods
  • Lifting brackets
  • Wall mounting brackets
  • Rails (‘C’, DIN, UV, escutcheon and busbar)
  • Climate control equipment

Climate Control

For more information see our Climate Control page (opens in new tab)

Lock Options

Standard

Catalogue No.TypeMaterialCommentsLock Insert TypeKeyImage
IP020/STurnbuckleStainless SteelStandard7mm Square Stainless SteelSKZTurnbuckle Lock - Stainless Steel with 7mm Square
NI028S/STurnbuckleStainless SteelStandard on Bowen BW, option on all others8mm Square Slotted Stainless SteelSK8Turnbuckle Lock - Stainless Steel, 8mm Square Slotted
IP050L Handle - LockableChromed SteelStandard 1600mm or higher, Option less than 1600mmKey Code 92268SK3L Handle Lockable - Chrome Steel Key 92268

Options

Catalogue No.TypeMaterialCommentsLock Insert TypeKeyImage
IP020/PSTurnbucklePowdercoated with SS InsertOption7mm Square Stainless SteelSKZTurnbuckle Lock - Powdercoated Steel with 7mm Square Stainless Steel Insert
NI028S/STurnbuckleStainless SteelStandard on Bowen BW, option on all others8mm Square Slotted Stainless SteelSK8Turnbuckle Lock - Stainless Steel, 8mm Square Slotted
IP030Wing Knob - LockableOptionKey Code 92268SK3Lockable Wing Knob - 92268 Key
IP030/CL001Wing Knob - LockableOptionKey Code CL001SK3Lockable Wing Knob - 92268 Key
IP030/L003Wing Knob - LockableOptionKey Code L003SK3Lockable Wing Knob - 92268 Key
IP111Wing Knob - Non-lockableOptionNon-lockable Wing Knob
IP040T Handle - LockableChromed SteelOptionKey Code 92268SK3T Handle Lockable - Chromed Steel 92268 Lock
IP050L Handle - LockableChromed SteelStandard 1600mm or higher, Option less than 1600mmKey Code 92268SK3L Handle Lockable - Chrome Steel Key 92268
IP052/SL Handle - PadlockableStainless SteelOptionPadlockL Handle Padlockable - Stainless Steel
IP060/SSwing Handle - PadlockableStainless SteelOptionPadlockSwing Handle Padlockable - Stainless Steel
Inserts for Turnbuckle Locks - Optional
Catalogue No.ProductMaterialLock Insert TypeKey
LKINS3P/SInsertStainless Steel3mm Double Bit PinSKZ
LKINS8S/SInsertStainless Steel8mm SquareSK8
LKINS8SS/SInsertStainless Steel8mm Square SlottedSK8 / Screwdriver
LKINS8T/SInsertStainless Steel8mm TriangleSKZ

AS/NZS 61439 Compliance

AS/NZS 61439 is the new series of standards for low-voltage (LV) switchgear and control gear assemblies. For more information on whether you need to comply see our AS/NZS 61439 page.

Click the bar below the requirements and responsibilities for complaince with AS/NZS 61439 for this enclosure.

The following definitions apply to this table: -

  • Original Manufacturer* - Switchboard designer and manufacturer of the switchboard enclosure.
  • Assembly Manufacturer* - A switchboard builder.
  • Original Equipment Manufacturer - The company who manufactured the switchgear used in final assembly.

*The original manufacturer and assembly manufacturer can be the same company or different companies.

If you are a SWITCHBOARD BUILDER this means you are the ASSEMBLY MANUFACTURER and you may be the ORIGINAL MANUFACTURER too. Any switchgear you order will need to be covered by the requirements of the Original Equipment Manufacturer.

B&R has some (but not all) of the responsibilities of the ORIGINAL MANUFACTURER.

If you are an END USER of the equipment you can see who has responsibility from these definitions.

NoCharacteristic to be CheckedClauseResponsibilityComments
Resistance to corrosion  10.2.2PassedThe resistance to corrosion was tested using a representative samples. Report; 103687.
Thermal stability (relates to non-metal enclosures)  10.2.3.1N/AThis clause refers mainly to plastic enclosures.
Resistance to abnormal heat and fire (due to internal electric effect)  10.2.3.2PassedAll insulating materials supplied have been tested to 960ºC glow-wire Standard. Plus ES report;
103863
Resistance to ultra-violet (UV) radiation  10.2.4PassedUV ratings refer mainly to plastic enclosures however metal Powder-coat painted enclosures incorporates UV stabilization. AkzoNobel report; 20LSR178
Lifting  10.2.5PassedLifting is verified by test, if required. Generally this relates to larger switchboards to which lifting means (lugs) have been provided. Plus ES report; 103687
Mechanical Impact  10.2.6PassedIK10; Metal enclosure systems have been tested to exceed IK10 (20 Joules).
Marking  10.2.7AssemblerMarkings must be verified by test. Tests are performed by rubbing with water and petroleum spirits; generally done by the Switchboard Builder (Assembler).
2Degree of protection of enclosures (IP)10.3Passed / Plus ES2IP66; Ingress Protection (IP) rating needs to be verified by test or by assessment. Plus ES report; 103687
3Clearances10.4AssemblerClearance and creepage can only be verified by test. Switchboard Builders (Assembler) must maintain compliance by ensuring correct clearance and creepage distances are maintained at >8mm (Uimp=8kV) and >16mm (Ui=1kV) 4 Creepage distances 10.4 respectively
4Creepage distances10.4Assembler
5Protection against electric shock and integrity of protective circuits10.5
Effective continuity between the exposed conductive parts of the ASSEMBLY and the protective circuit   10.5.2Passed / Plus ES2Equipotential protective earth bonding points are required to be verified by test to less than 0.1ohm. Similar enclosure designs have been tested by Plus ES report; 103687
Short-circuit withstand strength of the protective circuit   10.5.3Passed / Plus ES2Protective circuit verification can be by test or comparison with a reference design. Plus ES report; 103687.
6Incorporation of switching devices and components10.6AssemblerPoints 6, 7 and 8 are largely the responsibility of the Switchboard builder (Assembler). It is a requirement that the Assembler follow guidance from the original manufacturer. The advice of original manufacturers such as B&R and switchgear manufacturers, needs to be adhered to. Switchboard Builders need to be aware of the Standard’s requirements for these verification points and incorporate these into complete design verification documentation.
7Internal electrical circuits and connections10.7Assembler
8Terminals for external conductors10.8Assembler
9Dielectric Properties10.9
Power-frequency withstand voltage  10.9.2Passed / Plus ES2Dielectric properties have been tested as per Plus ES report; 103687.
Impulse withstand voltage  10.9.3
10Temperature-rise limits10.1Designer or AssemblerTemperature-rise can be determined by test or by comparison or by calculation. Temperature rise methods provided in AS/NZS 60890 can be used for switchboards not exceeding 1600A rating. Designers need to use AS/NZS 60890 for Monarch IP Series of enclosures with a rating not exceeding 1600A. Higher ratings need to be referred to B&R. Plus ES report: 103814.
11Short circuit withstand strength10.11Passed / Plus ES2Monarch IP low-voltage switchboards are designed and tested in full compliance with AS/NZS 61439 and have been externally verified to withstand 50kA rms for 3s.
12Electromagnetic compatibility (EMC)10.12AssemblerEquipment installed in switchboards shall comply with the immunity requirements of the relevant product or generic EMC standard. The Switchboard builder (assembler) shall obtain from the device and or component manufacturer the specific performance criteria of the equipment based on the acceptance criteria given in the relevant standard.
13Mechanical operation10.13AssemblerThis verification testing need NOT be done on devices already been type tested according to their relevant product standard. Only if their mechanical operation has been modified does the assembly need to be retested by cycling it 200 times.

Case Studies

Oyu Tolgoi Mine

The Oyu Tolgoi mine required custom switchboards, PLC panels, local control stations and enclosures for use on the mine site.

Townsville City Council

Townsville City Council

B&R Enclosures was contacted to find a replacement enclosure capable of being installed at different locations affected by vandalism, weather conditions and general ageing.

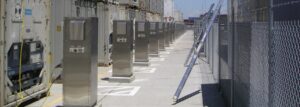

Sydney Ports, Patrick Terminal

Sydney Ports, Patrick Terminal

In October 2006, David Byrnes contacted B&R Enclosures about supplying stainless steel enclosures for the land side operation of the Sydney Port Upgrade.
