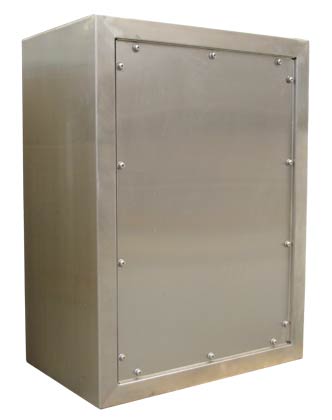

Ausrack IP – 316SS

An IP66, 19 inch cabinet system designed to protect sensitive network equipment from harsh environments where equipment is exposed to dust or water..

Ausrack IP – 316SS
Australian Made
Australian Made

Product Information

Applications

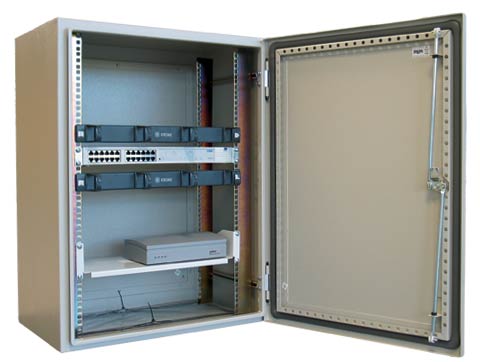

Small to medium passive patching networks, protects equipment from dust and water.

Features

  • Certified IP66 protection rating

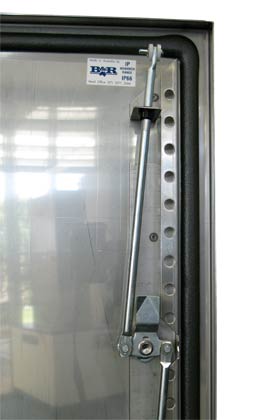

  • 3-point locking for easy door opening and closing
  • Front and rear depth adjustable 19″ rack rails

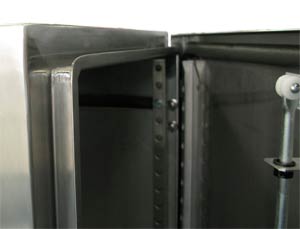

  • Removable back
  • Easy cabling via gland plate

Construction

  • Manufactured from 1.5mm 316 stainless steel
  • ASSDA approved N4 surface finish

Inclusions

Comes standard with:

  • Front and rear adjustable 19″ rack rails
  • Gland plate (fitted internally or externally)

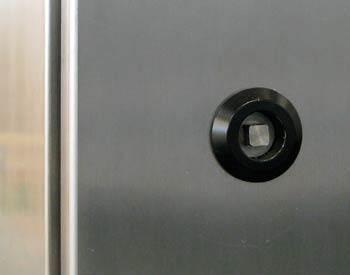

  • 7mm square turnbuckle lock
  • Lockable L handles
  • 3-point locking on enclosures >600mm high
  • Removable back (400mm deep and above)
  • Door rails

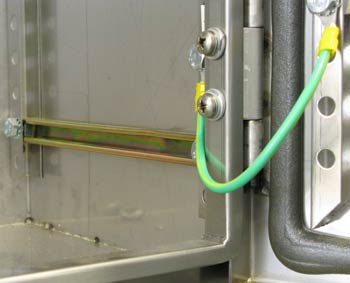

  • Earth strap kit

DownloadsAccessoriesMore ProductsEnquiryOnline StockistsLocal Stockists

Order Guide

Enclosure Selector Larger Enclosures

Part NumberRUHeight (mm)Width (mm)Depth (mm)Enquiry
ARIP11U64/S11600600400Enquiry
ARIP15U64/S15800600400Enquiry
ARIP15U65/S15800600500Enquiry
ARIP15U66/S15800600600Enquiry
ARIP24U64/S241200600400Enquiry
ARIP24U65/S241200600500Enquiry
ARIP24U66/S241200600600Enquiry
ARIP32U66/S321600600600Enquiry
ARIP38U65/S381800600500Enquiry
ARIP42U65/S422000600500Enquiry
ARIP42U66/S422000600600Enquiry

Enclosure Selector Larger Enclosures

Accessories

  • Rainhoods
  • Vent Kits
  • Vent Hoods
  • Channel Iron Plinths
  • Shelves
  • Cable Management
  • Power Rails
  • Fan Kits
  • Filters – IP44
  • Blanking Panels
  • Cage Nuts
  • Swing Frames
  • Mounting Rails
  • 19″ Mounting Rails
  • Wall-mounting Brackets
  • Plan Holders
  • Light Kits
  • Door Stay
  • Lock options

Climate Control

For more information see our Climate Control page (opens in new tab)
