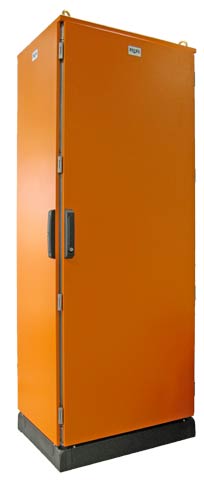

iLINQ – Stand-Alone

Order Guide

Single Door

Catalogue No.	Height (mm)	Width (mm)	Depth (mm)	Cladding *	Mounting Pan Infill Panels	Plinth Kit 100mm #
LQE140404	1400	400	400	LQCF1404	LQMF1401	LQP0104	Product Information
LQE140504	1400	500	400		LQMF1401	LQP0105
LQE140604	1400	600	400		LQMF1401	LQP0106
LQE140804	1400	800	400		LQMF1401	LQP0108
LQE160404	1600	400	400	LQCF1604	LQMF1601	LQP0104
LQE160504	1600	500	400		LQMF1601	LQP0105
LQE160604	1600	600	400		LQMF1601	LQP0106
LQE160804	1600	800	400		LQMF1601	LQP0108
LQE180404	1800	400	400	LQCF1804	LQMF1801	LQP0104
LQE180504	1800	500	400		LQMF1801	LQP0105
LQE180604	1800	600	400		LQMF1801	LQP0106
LQE180804	1800	800	400		LQMF1801	LQP0108
LQE200404	2000	400	400	LQCF2004	LQMF2001	LQP0104
LQE200504	2000	500	400		LQMF2001	LQP0105
LQE200604	2000	600	400		LQMF2001	LQP0106
LQE200804	2000	800	400		LQMF2001	LQP0108
LQE220404	2200	400	400	LQCF2204	LQMF2201	LQP0104
LQE220504	2200	500	400		LQMF2201	LQP0105
LQE220604	2200	600	400		LQMF2201	LQP0106
LQE220804	2200	800	400		LQMF2201	LQP0108

Catalogue No.	Height (mm)	Width (mm)	Depth (mm)	Cladding *	Mounting Pan Infill Panels	Plinth Kit 100mm #		CAD Blocks
Catalogue No.	Height (mm)	Width (mm)	Depth (mm)	Cladding *	Mounting Pan Infill Panels	Plinth Kit 100mm #		CAD Blocks
LQE140405	1400	400	500	LQCF1405	LQMF1401	LQP0104	Product Information
LQE140505	1400	500	500		LQMF1401	LQP0105
LQE140605	1400	600	500		LQMF1401	LQP0106
LQE140805	1400	800	500		LQMF1401	LQP0108
LQE160405	1600	400	500	LQCF1605	LQMF1601	LQP0104
LQE160505	1600	500	500		LQMF1601	LQP0105
LQE160605	1600	600	500		LQMF1601	LQP0106
LQE160805	1600	800	500		LQMF1601	LQP0108
LQE180405	1800	400	500	LQCF1805	LQMF1801	LQP0104
LQE180505	1800	500	500		LQMF1801	LQP0105
LQE180605	1800	600	500		LQMF1801	LQP0106
LQE180805	1800	800	500		LQMF1801	LQP0108
LQE200405	2000	400	500	LQCF2005	LQMF2001	LQP0104
LQE200505	2000	500	500		LQMF2001	LQP0105
LQE200605	2000	600	500		LQMF2001	LQP0106
LQE200805	2000	800	500		LQMF2001	LQP0108
LQE220405	2200	400	500	LQCF2205	LQMF2201	LQP0104
LQE220505	2200	500	500		LQMF2201	LQP0105
LQE220605	2200	600	500		LQMF2201	LQP0106
LQE220805	2200	800	500		LQMF2201	LQP0108

Catalogue No.	Height (mm)	Width (mm)	Depth (mm)	Cladding *	Mounting Pan Infill Panels	Plinth Kit 100mm #		CAD Blocks
Catalogue No.	Height (mm)	Width (mm)	Depth (mm)	Cladding *	Mounting Pan Infill Panels	Plinth Kit 100mm #		CAD Blocks
LQE140406	1400	400	600	LQCF1406	LQMF1401	LQP0104	Product Information
LQE140506	1400	500	600		LQMF1401	LQP0105
LQE140606	1400	600	600		LQMF1401	LQP0106
LQE140806	1400	800	600		LQMF1401	LQP0108
LQE160406	1600	400	600	LQCF1606	LQMF1601	LQP0104
LQE160506	1600	500	600		LQMF1601	LQP0105
LQE160606	1600	600	600		LQMF1601	LQP0106
LQE160806	1600	800	600		LQMF1601	LQP0108
LQE180406	1800	400	600	LQCF1806	LQMF1801	LQP0104
LQE180506	1800	500	600		LQMF1801	LQP0105
LQE180606	1800	600	600		LQMF1801	LQP0106
LQE180806	1800	800	600		LQMF1801	LQP0108
LQE200406	2000	400	600	LQCF2006	LQMF2001	LQP0104
LQE200506	2000	500	600		LQMF2001	LQP0105
LQE200606	2000	600	600		LQMF2001	LQP0106
LQE200806	2000	800	600		LQMF2001	LQP0108
LQE220406	2200	400	600	LQCF2206	LQMF2201	LQP0104
LQE220506	2200	500	600		LQMF2201	LQP0105
LQE220606	2200	600	600		LQMF2201	LQP0106
LQE220806	2200	800	600		LQMF2201	LQP0108

Catalogue No.	Height (mm)	Width (mm)	Depth (mm)	Cladding *	Mounting Pan Infill Panels	Plinth Kit 100mm #		CAD Blocks
Catalogue No.	Height (mm)	Width (mm)	Depth (mm)	Cladding *	Mounting Pan Infill Panels	Plinth Kit 100mm #		CAD Blocks
LQE140408	1400	400	800	LQCF1408	LQMF1401	LQP0104	Product Information
LQE140508	1400	500	800		LQMF1401	LQP0105
LQE140608	1400	600	800		LQMF1401	LQP0106
LQE140808	1400	800	800		LQMF1401	LQP0108
LQE160408	1600	400	800	LQCF1608	LQMF1601	LQP0104
LQE160508	1600	500	800		LQMF1601	LQP0105
LQE160608	1600	600	800		LQMF1601	LQP0106
LQE160808	1600	800	800		LQMF1601	LQP0108
LQE180408	1800	400	800	LQCF1808	LQMF1801	LQP0104
LQE180508	1800	500	800		LQMF1801	LQP0105
LQE180608	1800	600	800		LQMF1801	LQP0106
LQE180808	1800	800	800		LQMF1801	LQP0108
LQE200408	2000	400	800	LQCF2008	LQMF2001	LQP0104
LQE200508	2000	500	800		LQMF2001	LQP0105
LQE200608	2000	600	800		LQMF2001	LQP0106
LQE200808	2000	800	800		LQMF2001	LQP0108
LQE220408	2200	400	800	LQCF2208	LQMF2201	LQP0104
LQE220508	2200	500	800		LQMF2201	LQP0105
LQE220608	2200	600	800		LQMF2201	LQP0106
LQE220808	2200	800	800		LQMF2201	LQP0108

Double Door

Catalogue No.	Height (mm)	Width (mm)	Depth (mm)	Cladding *	Mounting Pan Infill Panels	Plinth Kit 100mm #		CAD Blocks
Catalogue No.	Height (mm)	Width (mm)	Depth (mm)	Cladding *	Mounting Pan Infill Panels	Plinth Kit 100mm #		CAD Blocks
LQE140604/DD	1400	600	400	LQCF1404	LQMF1401	LQP0106	Product Information
LQE140804/DD	1400	800	400		LQMF1401	LQP0108
LQE141004/DD	1400	1000	400		LQMF1401	LQP0110
LQE141204/DD	1400	1200	400		LQMF1401	LQP0112
LQE160604/DD	1600	600	400	LQCF1604	LQMF1601	LQP0106
LQE160804/DD	1600	800	400		LQMF1601	LQP0108
LQE161004/DD	1600	1000	400		LQMF1601	LQP0110
LQE161204/DD	1600	1200	400		LQMF1601	LQP0112
LQE180604/DD	1800	600	400	LQCF1804	LQMF1801	LQP0106
LQE180804/DD	1800	800	400		LQMF1801	LQP0108
LQE181004/DD	1800	1000	400		LQMF1801	LQP0110
LQE181204/DD	1800	1200	400		LQMF1801	LQP0112
LQE200604/DD	2000	600	400	LQCF2004	LQMF2001	LQP0106
LQE200804/DD	2000	800	400		LQMF2001	LQP0108
LQE201004/DD	2000	1000	400		LQMF2001	LQP0110
LQE201204/DD	2000	1200	400		LQMF2001	LQP0112
LQE220604/DD	2200	600	400	LQCF2204	LQMF2201	LQP0106
LQE220804/DD	2200	800	400		LQMF2201	LQP0108
LQE221004/DD	2200	1000	400		LQMF2201	LQP0110
LQE221204/DD	2200	1200	400		LQMF2201	LQP0112

Catalogue No.	Height (mm)	Width (mm)	Depth (mm)	Cladding *	Mounting Pan Infill Panels	Plinth Kit 100mm #		CAD Blocks
Catalogue No.	Height (mm)	Width (mm)	Depth (mm)	Cladding *	Mounting Pan Infill Panels	Plinth Kit 100mm #		CAD Blocks
LQE140605/DD	1400	600	500	LQCF1405	LQMF1401	LQP0106	Product Information
LQE140805/DD	1400	800	500		LQMF1401	LQP0108
LQE141005/DD	1400	1000	500		LQMF1401	LQP0110
LQE141205/DD	1400	1200	500		LQMF1401	LQP0112
LQE160605/DD	1600	600	500	LQCF1605	LQMF1601	LQP0106
LQE160805/DD	1600	800	500		LQMF1601	LQP0108
LQE161005/DD	1600	1000	500		LQMF1601	LQP0110
LQE161205/DD	1600	1200	500		LQMF1601	LQP0112
LQE180605/DD	1800	600	500	LQCF1805	LQMF1801	LQP0106
LQE180805/DD	1800	800	500		LQMF1801	LQP0108
LQE181005/DD	1800	1000	500		LQMF1801	LQP0110
LQE181205/DD	1800	1200	500		LQMF1801	LQP0112
LQE200605/DD	2000	600	500	LQCF2005	LQMF2001	LQP0106
LQE200805/DD	2000	800	500		LQMF2001	LQP0108
LQE201005/DD	2000	1000	500		LQMF2001	LQP0110
LQE201205/DD	2000	1200	500		LQMF2001	LQP0112
LQE220605/DD	2200	600	500	LQCF2205	LQMF2201	LQP0106
LQE220805/DD	2200	800	500		LQMF2201	LQP0108
LQE221605/DD	2200	1000	500		LQMF2201	LQP0110
LQE221005/DD	2200	1200	500		LQMF2201	LQP0112

Catalogue No.	Height (mm)	Width (mm)	Depth (mm)	Cladding *	Mounting Pan Infill Panels	Plinth Kit 100mm #		CAD Blocks
Catalogue No.	Height (mm)	Width (mm)	Depth (mm)	Cladding *	Mounting Pan Infill Panels	Plinth Kit 100mm #		CAD Blocks
LQE140606/DD	1400	600	600	LQCF1406	LQMF1401	LQP0106	Product Information
LQE140806/DD	1400	800	600		LQMF1401	LQP0108
LQE141006/DD	1400	1000	600		LQMF1401	LQP0110
LQE141206/DD	1400	1200	600		LQMF1401	LQP0112
LQE160606/DD	1600	600	600	LQCF1606	LQMF1601	LQP0106
LQE160806/DD	1600	800	600		LQMF1601	LQP0108
LQE161006/DD	1600	1000	600		LQMF1601	LQP0110
LQE161206/DD	1600	1200	600		LQMF1601	LQP0112
LQE180606/DD	1800	600	600	LQCF1806	LQMF1801	LQP0106
LQE180806/DD	1800	800	600		LQMF1801	LQP0108
LQE181006/DD	1800	1000	600		LQMF1801	LQP0110
LQE181206/DD	1800	1200	600		LQMF1801	LQP0112
LQE200606/DD	2000	600	600	LQCF2006	LQMF2001	LQP0106
LQE200806/DD	2000	800	600		LQMF2001	LQP0108
LQE201006/DD	2000	1000	600		LQMF2001	LQP0110
LQE201206/DD	2000	1200	600		LQMF2001	LQP0112
LQE220606/DD	2200	600	600	LQCF2206	LQMF2201	LQP0106
LQE220806/DD	2200	800	600		LQMF2201	LQP0108
LQE221006/DD	2200	1000	600		LQMF2201	LQP0110
LQE221206/DD	2200	1200	600		LQMF2201	LQP0112

Catalogue No.	Height (mm)	Width (mm)	Depth (mm)	Cladding *	Mounting Pan Infill Panels	Plinth Kit 100mm #		CAD Blocks
Catalogue No.	Height (mm)	Width (mm)	Depth (mm)	Cladding *	Mounting Pan Infill Panels	Plinth Kit 100mm #		CAD Blocks
LQE140608/DD	1400	600	800	LQCF1408	LQMF1401	LQP0106	Product Information
LQE140808/DD	1400	800	800		LQMF1401	LQP0108
LQE141008/DD	1400	1000	800		LQMF1401	LQP0110
LQE141208/DD	1400	1200	800		LQMF1401	LQP0112
LQE160608/DD	1600	600	800	LQCF1608	LQMF1601	LQP0106
LQE160808/DD	1600	800	800		LQMF1601	LQP0108
LQE161008/DD	1600	1000	800		LQMF1601	LQP0110
LQE161208/DD	1600	1200	800		LQMF1601	LQP0112
LQE180608/DD	1800	600	800	LQCF1808	LQMF1801	LQP0106
LQE180808/DD	1800	800	800		LQMF1801	LQP0108
LQE181008/DD	1800	1000	800		LQMF1801	LQP0110
LQE181208/DD	1800	1200	800		LQMF1801	LQP0112
LQE200608/DD	2000	600	800	LQCF2008	LQMF2001	LQP0106
LQE200808/DD	2000	800	800		LQMF2001	LQP0108
LQE201008/DD	2000	1000	800		LQMF2001	LQP0110
LQE201208/DD	2000	1200	800		LQMF2001	LQP0112
LQE220608/DD	2200	600	800	LQCF2208	LQMF2201	LQP0106
LQE220808/DD	2200	800	800		LQMF2201	LQP0108
LQE221008/DD	2200	1000	800		LQMF2201	LQP0110
LQE221208/DD	2200	1200	800		LQMF2201	LQP0112

[table “” not found /]

Downloads

Product Leaflet (8.3MB)

iLINQ Catalogue (20MB)

Specification Guide (1.4MB)

Features and Benefits (120kB)

iLINQ Technical Document (4.9MB)

iLINQ Assembly Manuals (Various)

Industrial Product Catalogue (11.0MB)

Accessories

Catalogue No	Height	Width	Depth
LQF140404	1399	399	399
LQF140504	1399	499	399
LQF140604	1399	599	399
LQF140804	1399	799	399
LQF141004	1399	999	399
LQF141204	1399	1199	399
LQF140505	1399	399	499
LQF140605	1399	599	499
LQF140805	1399	799	499
LQF141005	1399	999	499
LQF141205	1399	1199	499
LQF140606	1399	599	599
LQF140806	1399	799	599
LQF141006	1399	999	599
LQF141206	1399	1199	599
LQF140808	1399	799	799
LQF141008	1399	999	799
LQF141208	1399	1199	799
LQF160404	1599	399	399
LQF160504	1599	499	399
LQF160604	1599	599	399
LQF160804	1599	799	399
LQF161004	1599	999	399
LQF161204	1599	1199	399
LQF160505	1599	499	499
LQF160605	1599	599	499
LQF160805	1599	799	499
LQF161005	1599	999	499
LQF161205	1599	1199	499
LQF160606	1599	599	599
LQF160806	1599	799	599
LQF161006	1599	999	599
LQF161206	1599	1199	599
LQF160808	1599	799	799
LQF161008	1599	999	799
LQF161208	1599	1199	799
LQF180404	1799	399	399
LQF180504	1799	499	399
LQF180604	1799	599	399
LQF180804	1799	799	399
LQF181004	1799	999	399
LQF181204	1799	1199	399
LQF180505	1799	499	499
LQF180605	1799	599	499
LQF180805	1799	799	499
LQF181005	1799	999	499
LQF181205	1799	1199	499
LQF180606	1799	599	599
LQF180806	1799	799	599
LQF181006	1799	999	599
LQF181206	1799	1199	599
LQF180808	1799	799	799
LQF181008	1799	999	799
LQF181208	1799	1199	799
LQF200404	1999	399	399
LQF200504	1999	499	399
LQF200604	1999	599	399
LQF200804	1999	799	399
LQF201004	1999	999	399
LQF201204	1999	1199	399
LQF200505	1999	499	499
LQF200605	1999	599	499
LQF200805	1999	799	499
LQF201005	1999	999	499
LQF201205	1999	1199	499
LQF200606	1999	599	599
LQF200806	1999	799	599
LQF201006	1999	999	599
LQF201206	1999	1199	599
LQF200808	1999	799	799
LQF201008	1999	999	799
LQF201208	1999	1199	799
LQF220404	2199	399	399
LQF220504	2199	499	399
LQF220604	2199	599	399
LQF220804	2199	799	399
LQF221004	2199	999	399
LQF221204	2199	1199	399
LQF220505	2199	499	499
LQF220605	2199	599	499
LQF220805	2199	799	499
LQF221005	2199	999	499
LQF221205	2199	1199	499
LQF220606	2199	599	599
LQF220806	2199	799	599
LQF221006	2199	999	599
LQF221206	2199	1199	599
LQF220808	2199	799	799
LQF221008	2199	999	799
LQF221208	2199	1199	799

Catalogue No	Height	Width	Depth								Product Information
Catalogue No			External Single Door		Door Rail Fixing Points		Internal Stiffener Rail		Window Opening
Solid Door	Window Door	Vented Door	(H1) Height	(W1) Width	(H2) Height	(W2) Width	(H3) Height	(W3) Width	(H4) Height	(W4) Width
LQD1404	-	-	1358	372	1269	269	1250	250	-	-	Product Information
LQD1405	LQD1405/W	LQD1405/V	1358	472	1269	369	1250	350	1220	320
LQD1406	LQD1406/W	LQD1406/V	1358	572	1269	469	1250	450	1220	420
LQD1408	LQD1408/W	LQD1408/V	1358	772	1269	669	1250	650	1220	620
LQD1604	-	-	1558	372	1469	269	1450	250	-	-
LQD1605	LQD1605/W	LQD1605/V	1558	472	1469	369	1450	350	1420	320
LQD1606	LQD1606/W	LQD1606/V	1558	572	1469	469	1450	450	1420	420
LQD1608	LQD1608/W	LQD1608/V	1558	772	1469	669	1450	650	1420	620
LQD1804	-	–	1758	372	1669	269	1650	250	–	–
LQD1805	LQD1805/W	LQD1805/V	1758	472	1669	369	1650	350	1620	320
LQD1806	LQD1806/W	LQD1806/V	1758	572	1669	469	1650	450	1620	420
LQD1808	LQD1808/W	LQD1808/V	1758	772	1669	669	1650	650	1620	620
LQD2004	–	–	1958	372	1869	269	1850	250	–	–
LQD2005	LQD2005/W	LQD2005/V	1958	472	1869	369	1850	350	1820	320
LQD2006	LQD2006/W	LQD2006/V	1958	572	1869	469	1850	450	1820	420
LQD2008	LQD2008/W	LQD2008/V	1958	772	1869	669	1850	650	1820	620
LQD2204	–	–	2158	372	2069	269	2050	250	–	–
LQD2205	LQD2205/W	LQD2205/V	2158	472	2069	369	2050	350	2020	320
LQD2206	LQD2206/W	LQD2206/V	2158	572	2069	469	2050	450	2020	420
LQD2208	LQD2208/W	LQD2208/V	2158	772	2069	669	2050	650	2020	620

Catalogue No	Height	Width	Depth								Product Information
Catalogue No			External Door		Door Rail Fixing Points		Internal Stiffener Rail		Window Opening
Solid Door	Window Door	Vented Door	(H1) Height	(W1) Width	(H2) Height	(W2) Width	(H3) Height	(W3) Width	(H4) Height	(W4) Width
LQDD1406	LQDD1406/W	LQDD1406/V	1358	568	1269	169	1250	150	1220	120	Product Information
LQDD1408	LQDD1408/W	LQDD1408/V	1358	768	1269	269	1250	250	1220	220
LQDD1410	LQDD1410/W	LQDD1410/V	1358	968	1269	369	1250	350	1220	320
LQDD1412	LQDD1412/W	LQDD1412/V	1358	1168	1269	469	1250	450	1220	420
LQDD1606	LQDD1606/W	LQDD1606/V	1558	568	1469	169	1450	150	1420	120
LQDD1608	LQDD1608/W	LQDD1608/V	1558	768	1469	269	1450	250	1420	220
LQDD1610	LQDD1610/W	LQDD1610/V	1558	968	1469	369	1450	350	1420	320
LQDD1612	LQDD1612/W	LQDD1612/V	1558	1168	1469	469	1450	450	1420	420
LQDD1806	LQDD1806/W	LQDD1806/V	1758	568	1669	169	1650	150	1620	120
LQDD1808	LQDD1808/W	LQDD1808/V	1758	768	1669	269	1650	250	1620	220
LQDD1810	LQDD1810/W	LQDD1810/V	1758	968	1669	369	1650	350	1620	320
LQDD1812	LQDD1812/W	LQDD1812/V	1758	1168	1669	469	1650	450	1620	420
LQDD2006	LQDD2006/W	LQDD2006/V	1958	568	1869	169	1850	150	1820	120
LQDD2008	LQDD2008/W	LQDD2008/V	1958	768	1869	269	1850	250	1820	220
LQDD2010	LQDD2010/W	LQDD2010/V	1958	968	1869	369	1850	350	1820	320
LQDD2012	LQDD2012/W	LQDD2012/V	1958	1168	1869	469	1850	450	1820	420
LQDD2206	LQDD2206/W	LQDD2206/V	2158	568	2069	169	2050	150	2020	120
LQDD2208	LQDD2208/W	LQDD2208/V	2158	768	2069	269	2050	250	2020	220
LQDD2210	LQDD2210/W	LQDD2210/V	2158	968	2069	369	2050	350	2020	320
LQDD2212	LQDD2212/W	LQDD2212/V	2158	1168	2069	469	2050	450	2020	420

Catalogue No	Height	Width	Depth	Product Information
Catalogue No.
Fixed Panel	Hinged Panel	Height	Width
LQCF1404	LQCP1404	1358	370	Product Information
LQCF1405	LQCP1405	1358	470
LQCF1406	LQCP1406	1358	570
LQCF1408	LQCP1408	1358	770
LQCF1410	LQCP1410	1358	970
LQCF1412	LQCP1412	1358	1170
LQCF1604	LQCP1604	1558	370
LQCF1605	LQCP1605	1558	470
LQCF1606	LQCP1606	1558	570
LQCF1608	LQCP1608	1558	770
LQCF1610	LQCP1610	1558	970
LQCF1612	LQCP1612	1558	1170
LQCF1804	LQCP1804	1758	370
LQCF1805	LQCP1805	1758	470
LQCF1806	LQCP1806	1758	570
LQCF1808	LQCP1808	1758	770
LQCF1810	LQCP1810	1758	970
LQCF1812	LQCP1812	1758	1170
LQCF2004	LQCP2004	1958	370
LQCF2005	LQCP2005	1958	470
LQCF2006	LQCP2006	1958	570
LQCF2008	LQCP2008	1958	770
LQCF2010	LQCP2010	1958	970
LQCF2012	LQCP2012	1958	1170
LQCF2204	LQCP2204	2158	370
LQCF2205	LQCP2205	2158	470
LQCF2206	LQCP2206	2158	570
LQCF2208	LQCP2208	2158	770
LQCF2210	LQCP2210	2158	970
LQCF2212	LQCP2212	2158	1170

Catalogue No	Height	Width	Depth		Product Information
Catalogue No.		External Dimensions (mm)		Fixing Dimensions (mm)
Flat Top	Vented Top	Width	Depth	Width
LQTF0404	LQTV0404	399	399	292	Product Information
LQTF0405	LQTV0405	399	499	292
LQTF0406	LQTV0406	399	599	292
LQTF0408	LQTV0408	399	799	292
LQTF0410	LQTV0410	399	999	292
LQTF0412	LQTV0412	399	1999	292
LQTF0504	LQTV0504	499	399	392
LQTF0505	LQTV0505	499	499	392
LQTF0506	LQTV0506	499	599	392
LQTF0508	LQTV0508	499	799	392
LQTF0510	LQTV0510	499	999	392
LQTF0512	LQTV0512	499	1999	392
LQTF0604	LQTV0604	599	399	492
LQTF0605	LQTV0605	599	499	492
LQTF0606	LQTV0606	599	599	492
LQTF0608	LQTV0608	599	799	492
LQTF0610	LQTV0610	599	999	492
LQTF0612	LQTV0612	599	1999	492
LQTF0804	LQTV0804	799	399	692
LQTF0805	LQTV0805	799	499	692
LQTF0806	LQTV0806	799	599	692
LQTF0808	LQTV0808	799	799	692
LQTF0810	LQTV0810	799	999	692
LQTF0812	LQTV0812	799	1999	692
LQTF1004	LQTV1004	999	399	892
LQTF1005	LQTV1005	999	499	892
LQTF1006	LQTV1006	999	599	892
LQTF1008	LQTV1008	999	799	892
LQTF1204	LQTV1204	1199	399	1092
LQTF1205	LQTV1205	1199	499	1092
LQTF1206	LQTV1206	1199	599	1092
LQTF1208	LQTV1208	1199	799	1092

Catalogue No	Height	Width	Depth				Product Information
Catalogue No.	External Dimensions (mm)			Opening Dimensions (mm)		Mounting Centres (mm)
	Height	Width	Depth	Width	Depth	Width
LQPB010404	100	399	399	251	251	269	Product Information
LQPB010504	100	499	399	351	251	369
LQPB010604	100	599	399	451	251	469
LQPB010804	100	799	399	651	251	669
LQPB011004	100	999	399	851	251	869
LQPB011204	100	1199	399	1051	251	1069
LQPB010405	100	399	499	251	351	269
LQPB010505	100	499	499	351	351	369
LQPB010605	100	599	499	451	351	469
LQPB010805	100	799	499	651	351	669
LQPB011005	100	999	499	851	351	869
LQPB011205	100	1199	499	1051	351	1069
LQPB010406	100	399	599	251	451	269
LQPB010506	100	499	599	351	451	369
LQPB010606	100	599	599	451	451	469
LQPB010806	100	799	599	651	451	669
LQPB011006	100	999	599	851	451	869
LQPB011206	100	1199	599	1051	451	1069
LQPB010408	100	399	799	251	651	269
LQPB010508	100	499	799	351	651	369
LQPB010608	100	599	799	451	651	469
LQPB010808	100	799	799	651	651	669
LQPB011008	100	999	799	851	651	869
LQPB011208	100	1199	799	1051	651	1069

Catalogue No	Height	Width	Depth		Product Information
	External Dimensions (mm)		Fixing Dimensions (mm)
Catalogue No.	Height	Width	Width	Width
LQP0104	100	398	372	199	Product Information
LQP0105	100	498	472	299
LQP0106	100	598	572	399
LQP0108	100	798	772	599
LQP0110	100	998	972	799
LQP0112	100	1198	1172	999
LQP0204	200	396	372	199
LQP0205	200	496	472	299
LQP0206	200	596	572	399
LQP0208	200	796	772	599
LQP0210	200	996	972	799
LQP0212	200	1196	1172	999
LQGK0404	243	243	270	270	Product Information
BRLED300	•	•		•	Product Information
The baying kit available for iLINQ is designed to be fitted in a multitude of places, maximising space and flexibility.
Catalogue No	Description
LQBK	Baying kit (8 external / 10 internal) /gasket tape/plinth infill				Product Information
LQMF1401	Mounting pan infill 1400 high
LQMF1601	Mounting pan infill 1600 high
LQMF1801	Mounting pan infill 1800 high

Catalogue No	Height	Width	Product Information
	External Dimensions (mm)
Catalogue No.	Height	Width
LQPC0104	111	277	Product Information
LQPC0105	111	377
LQPC0106	111	477
LQPC0108	111	677
LQPC0110	111	877
LQPC0112	111	1077
LQPC0204	211	277
LQPC0205	211	377
LQPC0206	211	477
LQPC0208	211	677
LQPC0210	211	877
LQPC0212	211	1077

Catalogue No	Height	Width	Depth		Product Information
Catalogue No.	Opening Size (mm)		Plate Size (mm)
	Width	Depth	Width	Depth
LQGK0404	243	243	270	270	Product Information
LQGK0504	343	243	370	270
LQGK0604	443	243	470	270
LQGK0804	643	243	670	270
LQGK1004	843	243	870	270
LQGK1204	1043	243	1070	270
LQGK0505	343	343	370	370
LQGK0605	443	343	470	370
LQGK0805	643	343	670	370
LQGK1005	843	343	870	370
LQGK1205	1043	343	1070	370
LQGK0606	443	443	470	470
LQGK0806	643	443	670	470
LQGK1006	843	443	870	470
LQGK1206	1043	443	1070	470
LQGK0808	643	643	670	670
LQGK1008	843	643	870	670
LQGK1208	1043	643	1070	670
LQGK0606/GA	Full width	3	449	449	Product Information
LQGK0806/GA		3	649	449
LQGK1006/GA	Centre Mullion	6	849	449
LQGK1206/GA		6	1049	449
LQGK0608/GA	Full width	3	449	649
LQGK0808/GA		3	649	649
LQGK1008/GA	Centre Mullion	6	849	649
LQGK1208/GA		6	1049	649

Catalogue No	Height	Width	Depth						Product Information
Depth Series	Catalogue No.				Opening Size (mm)		Plate Size (mm)
	Gland Frame	Gland Plate – 1.6 mm steel	Gland Plate – 6 mm Aluminium	Gland Plate – 3 mm Brass	Width	Depth	Width	Depth
400mm	LQGF0404	LQGP0404	LQGP0404/A6	LQGP0404/B3	243	243	270	270	Product Information
	LQGF0504	LQGP0604	LQGP0604/A6	LQGP0604/B3	343	243	370	270
	LQGF0604	LQGP0604	LQGP0604/A6	LQGP0604/B3	443	243	470	270
	LQGF0804	LQGP0804	LQGP0804/A6	LQGP0804/B3	643	243	670	270
	LQGF1004	LQGP1004	LQGP1004/A6	LQGP1004/B3	843	243	870	270
	LQGF1204	LQGP1204	LQGP1204/A6	LQGP1204/B3	1043	243	1070	270
500mm	LQGF0505	LQGP0505	LQGP0505/A6	LQGP0505/B3	343	343	370	370
	LQGF0605	LQGP0605	LQGP0605/A6	LQGP0605/B3	443	343	470	370
	LQGF0805	LQGP0805	LQGP0805/A6	LQGP0805/B3	643	343	670	370
	LQGF1005	LQGP1005	LQGP1005/A6	LQGP1005/B3	843	343	870	370
	LQGF1205	LQGP1205	LQGP1205/A6	LQGP1205/B3	1043	343	1070	370
600mm	LQGF0606	LQGP0606	LQGP0606/A6	LQGP0606/B3	443	443	470	470
	LQGF0806	LQGP0806	LQGP0806/A6	LQGP0806/B3	643	443	670	470
	LQGF1006	LQGP1006	LQGP1006/A6	LQGP1006/B3	843	443	870	470
	LQGF1206	LQGP1206	LQGP1206/A6	LQGP1206/B3	1043	443	1070	470
800mm	LQGF0808	LQGP0808	LQGP0808/A6	LQGP0808/B3	643	643	670	670
	LQGF1008	LQGP1008	LQGP1008/A6	LQGP1008/B3	843	643	870	670
	LQGF1208	LQGP1208	LQGP1208/A6	LQGP1208/B3	1043	643	1070	670

Catalogue No	Height	Width	Depth				Product Information
			Opening Size (mm)		Overall Plate Size (mm)	Individual Plate Size (mm)
Catalogue No.	Construction	Number of Plates	Width	Depth	Width	Depth
LQGK0606/GA	Full width	3	449	449	470	166	Product Information
LQGK0806/GA		3	649	449	670	166
LQGK1006/GA	Centre Mullion	6	849	449	420	166
LQGK1206/GA		6	1049	449	520	166
LQGK0608/GA	Full width	3	449	649	470	266 x 2 + 166 x 1
LQGK0808/GA		3	649	649	670	266 x 2 + 166 x 1
LQGK1008/GA	Centre Mullion	6	849	649	420	266 x 4 + 166 x 2
LQGK1208/GA		6	1049	649	520	266 x 4 + 166 x 2
LQBK	Baying kit (8 external / 10 internal) /gasket tape/plinth infill						Product Information

Catalogue No	Height	Width	Depth		Product Information
	Dimensions (mm)		Fixings (mm)
Catalogue No.	Height	Width	Height	Width
LQMP1404	1275	275	1249	249	Product Information
LQMP1405	1275	375	1249	349
LQMP1406	1275	475	1249	449
LQMP1408	1275	675	1249	649
LQMP1410	1275	875	1249	849
LQMP1412	1275	1075	1249	1049
LQMP1604	1475	275	1449	249
LQMP1605	1475	375	1449	349
LQMP1606	1475	475	1249	449
LQMP1608	1475	675	1249	649
LQMP1610	1475	875	1249	849
LQMP1612	1475	1075	1249	1049
LQMP1804	1675	275	1649	249
LQMP1805	1675	375	1649	349
LQMP1806	1675	475	1649	449
LQMP1808	1675	675	1649	649
LQMP1810	1675	875	1649	849
LQMP1812	1675	1075	1649	1049
LQMP2004	1875	275	1849	249
LQMP2005	1875	375	1849	349
LQMP2006	1875	475	1849	449
LQMP2008	1875	675	1849	649
LQMP2010	1875	875	1849	849
LQMP2012	1875	1075	1849	1049
LQMP2204	2075	275	2049	249
LQMP2205	2075	375	2049	349
LQMP2206	2075	475	2049	449
LQMP2208	2075	675	2049	649
LQMP2210	2075	875	2049	849
LQMP2212	2075	1075	2049	1049
Infill Panels
Catalogue No.	Height
LQMF1401	1275
LQMF1601	1475
LQMF1801	1675
LQMF2001	1875
LQMF2201	2075

Catalogue No	Height	Width	Depth	Product Information
	Dimensions (mm)	To suit frame
Catalogue No.	Height	Height (mm)	RU
LQSF03RU/SML	224.5	Fits all	3	Product Information
LQSF06RU/SML	349.5	Fits all	6
LQSF09RU/SML	499.5	Fits all	9
LQSF12RU/SML	624.5	Fits all	12
LQSF15RU/SML	749.5	Fits all	15
LQSF18RU/SML	899.5	Fits all	18
LQSF22RU	1094	Fit All	22
LQSF27RU	1294	1400 Full Height	27
LQSF33RU	1494	1600 Full Height	33
LQSF36RU	1694	1800 Full Height	36
LQSF40RU	1894	2000 Full Height	40
LQSF45RU	2094	2200 Full Height	45
Horizontal Swing Frame Rail
Catalogue No.	Dimensions (mm)
	Width	Fixing Width	To Fit Frame Width (mm)
LQRF06/SML	551	538	600
LQRF08/SML	751	738	800
LQRF06	551	538	600
LQRF08	751	738	800
Position	Catalogue No.	Height	To Fit Swing Frame RU
Side Mount	LQSS3U08	152	LQSF03RU/SML	Product Information
LQLS/92268	Swing handle, Keylockable (92268)
LQLPAD	Swing Handle, Padlockable

Catalogue No	Height	Width	Depth	Product Information
		Dimensions
Position	Catalogue No.	Height	To Fit Swing Frame RU
Side Mount	LQSS3U08	152	LQSF03RU/SML	Product Information
	LQSS6U08	204	LQSF06RU/SML
	LQSS9U08	494	LQSF09RU/SML
	LQSS12U08	694	LQSF12RU/SML
	LQSS15U08	894	LQSF15RU/SML
	LQSS18U08	1018	LQSF18RU/SML
	LQSS22U08	1218	LQSF22RU
	LQSS27U08	1418	LQSF27RU
	LQSS33U08	1518	LQSF33RU
	LQSS36U08	1618	LQSF36RU
	LQSS40U08	1818	LQSF40RU
	LQSS45U08	2018	LQSF45RU

Catalogue No	Height	Width	Depth				Product Information
	Dimensions (mm)
Catalogue No.	Height	Width	To Fit Frame Height (mm)	To Suit Enclosure Width (mm)	RU	#Min. No of matrix rails
LQRR3U	144.5	35	Fits All	600	3	4	Product Information
LQRR6U	269.5	35	Fits All	600	6	4
LQRR9U	419.5	35	Fits All	600	9	4
LQRR12U	544.5	35	Fits All	600	12	4
LQRR15U	669.5	35	Fits All	600	15	4
LQRR18U	819.5	35	Fits All	600	18	6
LQRR21U	944.5	35	Fits All	600	21	6
LQRR24U	1069.5	35	Fits All	600	24	6
LQRR27U	1219.5	35	Fits All	600	27	6
LQRR29U	1300	35	1400 & above	600	29	6
LQRR34U	1500	35	1600 & above	600	34	6
LQRR38U	1700	35	1800 & above	600	38	6
LQRR42U	1900	35	2000 & above	600	42	6
LQRR47U	2100	35	2200	600	47	6
LQRR3U/800	149.5	134.2	Fits All	800	3	4
LQRR6U/800	274.5	134.2	Fits All	800	6	4
LQRR9U/800	424.5	134.2	Fits All	800	9	4
LQRR12U/800	549.5	134.2	Fits All	800	12	4
LQRR15U/800	674.5	134.2	Fits All	800	15	4
LQRR18U/800	824.5	134.2	Fits All	800	18	6
LQRR21U/800	949.5	134.2	Fits All	800	21	6
LQRR24U/800	1074.5	134.2	Fits All	800	24	6
LQRR27U/800	1224.5	134.2	Fits All	800	27	6
LQRR29U/800	1312.4	134.2	1400 & above	800	29	6
LQRR34U/800	1512.4	134.2	1600 & above	800	34	6
LQRR38U/800	1712.4	134.2	1800 & above	800	38	6
LQRR42U/800	1912.4	134.2	2000 & above	800	42	6
LQRR47U/800	2112.4	134.2	2200	800	47	6

Catalogue No	Height	Width	Product Information
Catalogue No.	Nominal Width	To suit frame dimension
LQRM01	119	–	Product Information
LQRM02	219	–
LQRM03	319	400
LQRM04	419	500
LQRM05	519	600
LQRM06	619	–
LQRM07	719	800
LQRM08	819	–
LQRM09	919	1000
LQRM10	1019	–
LQRM11	1119	1200
LQRM12	1219	–
LQRM13	1319	1400
LQRM14	1419	–
LQRM15	1519	1600
LQRM16	1619	–
LQRM17	1719	1800
LQRM18	1819	–
LQRM19	1919	2000
LQRM20	2019	–
LQRM21	2119	2200

Catalogue No	Height	Width	Depth		Product Information
Catalogue No			External Single Door
Catalogue No			External Door
Horizontal Swing Frame Rail
Catalogue No.	Height	Width	To Fit Frame Height (mm)	To Suit Enclosure Width (mm)
LQRR3U	144.5	35	Fits All	600	Product Information
LQRM01	119	–			Product Information
		Dimensions (mm)
Type	Catalogue No.	Width	Fixings	To suit frame (mm)
25mm Profile Rail	LQRP04/25	358	338	400	Product Information
	LQRP05/25	458	438	500
	LQRP06/25	558	538	600
	LQRP08/25	758	738	800
50mm Profile Rail	LQRP04/50	358	338	400
	LQRP05/50	458	438	500
	LQRP06/50	558	538	600
	LQRP08/50	758	738	800
Door Rail	LQRD04	288	268	400
	LQRD05	388	368	500
	LQRD06	488	468	600
	LQRD08	688	668	800
Vertical Rail
LQRV13	1358	1400			Product Information
Horizontal Rail					Product Information
Door Rail
LQRD04	288	268	400		Product Information
Please Note: Plan holder mounts to existing door rail
* Horizontal door rail required - see table below
LQLL	Laptop Lectern for iLINQ range	600	Door Rail*
Door Rail

Catalogue No	Height	Width	Depth			Product Information
	External Dimensions (mm)			To suit enclosure (mm)
Catalogue No.	Height	Width	Locking Height	Height	Width
LQHE1305	1296	400	1242	1400	500	Product Information
LQHE1306	1296	500	1242	1400	600
LQHE1308	1296	700	1242	1400	800
LQHE1505	1496	400	1442	1600	500
LQHE1506	1496	500	1442	1600	600
LQHE1508	1496	700	1442	1600	800
LQHE1705	1696	400	1642	1800	500
LQHE1706	1696	500	1642	1800	600
LQHE1708	1696	700	1642	1800	800
LQHE1905	1896	400	1842	2000	500
LQHE1906	1896	500	1842	2000	600
LQHE1908	1896	700	1842	2000	800
LQHE2105	2096	400	2042	2200	500
LQHE2106	2096	500	2042	2200	600
LQHE2108	2096	700	2042	2200	800

Vertical Rail
Catalogue No.	Height	To suit enclosure height (mm)
LQRV13	1358	1400				Product Information
LQRV15	1558	1600
LQRV17	1758	1800
LQRV19	1958	2000
LQRV21	2158	2200

Horizontal Rail
Catalogue No.	Width	To suit enclosure width (mm)
LQRH05	405	500
LQRH06	505	600
LQRH08	705	800

Catalogue No	Height	Width	Depth		Product Information
	External Dimensions (mm)		Fixing Dimensions (mm)
Catalogue No.	Height	Depth	Height	Depth
LQVS1404	1297	297	1319	319	Product Information
LQVS1405	1297	397	1319	419
LQVS1406	1297	497	1319	519
LQVS1408	1297	697	1319	719
LQVS1604	1497	297	1519	319
LQVS1605	1497	397	1519	419
LQVS1606	1497	497	1519	519
LQVS1608	1497	697	1519	719
LQVS1804	1697	297	1719	319
LQVS1805	1697	397	1719	419
LQVS1806	1697	497	1719	519
LQVS1808	1697	697	1719	719
LQVS2004	1897	297	1919	319
LQVS2005	1897	397	1919	419
LQVS2006	1897	497	1919	519
LQVS2008	1897	697	1919	719
LQVS2204	2097	297	2119	319
LQVS2205	2097	397	2119	419
LQVS2206	2097	497	2119	519
LQVS2208	2097	697	2119	719

Catalogue No	Height	Width	Depth		Product Information
		Dimensions (mm)
Suits Door Size	Catalogue No	Width	Depth	Suits
400mm	LQPH04/35	280	38	A4	Product Information
400mm	LQPH04/80	280	81	A4
500mm	LQPH05/35	380	38	A3 Portrait
500mm	LQPH05/80	380	81	A3 Portrait
600mm & 800	LQPH06/35*	39	-	A3
600mm & 800	LQPH06/80*	85	-	A3

Door Rail
LQRD04	288	268	400		Product Information
LQRD05	388	368	500
LQRD06	488	468	600
LQRD08	688	668	800
Please Note: Plan holder mounts to existing door rail
* Horizontal door rail required - see table below

Catalogue No	Height	Width	Depth	Product Information
Catalogue No.	Description	Door Width (mm)	Also Required
LQLL	Laptop Lectern for iLINQ range	600	Door Rail*
LQLL	Laptop Lectern for iLINQ range	800	Door Rail*	Product Information

Door Rail
LQRD04	288	268	400
LQRD05	388	368	500
LQRD06	488	468	600
LQRD08	688	668	800

Catalogue No	Height	Width	Depth							Product Information
	Inclusions					Required Mounting Bracket		To suit enclosure
Catalogue No.	LED Light	Power Supply	Splitter	Switch	Connectors	LQLKB03	LQLKB05	Width (mm)	Optional
BRLED300	•	•		•		•		400	BRMOT PIR Motion Sensor	Product Information
BRLED500	•	•		•			•	600 & 800
BRLEDK03	•		•		•	•		400
BRLEDK05	•		•		•		•	600 & 800mm

Climate Control

Projects

Oyu Tolgoi Mine

The Oyu Tolgoi mine required custom switchboards, PLC panels, local control stations and enclosures for use on the mine site.

Ichthys Gas Field

Atlantic, Gulf and Pacific (AG&P) was contracted to undertake the design and construction of on and off-shore modules for the Ichthys Gas Field located off the coast of Western Australia.

Total Marine Technology

Total Marine Technology (TMT) is an Australian based company who specialise in the design, engineering, building and operation of ROVs (Remotely Operated Vehicles) and subsea tooling.

iLINQ – Stand-Alone

Product Information

Applications

Inclusions

Ordering iLINQ LQE Enclosures

Enquiry Form

Order Guide

Single Door

Double Door

Downloads

Accessories

Accessories

Climate Control

Product Enquiry Form

Projects

Oyu Tolgoi Mine

Ichthys Gas Field

Total Marine Technology

Online Distribution Partners

Contact Us

iLINQ – Stand-Alone

Product Information

Applications

Inclusions

Ordering iLINQ LQE Enclosures

Enquiry Form

Order Guide

Single Door

Double Door

Downloads

Accessories

Accessories

Climate Control

Product Enquiry Form

Projects

Oyu Tolgoi Mine

Ichthys Gas Field

Total Marine Technology

Related Products

Online Distribution Partners

Contact Us
