Infinity 3G – Econo Range

Switchboard building system for systems up to 630A suitable for applications requiring an IP2X installation.

Product Information

Applications

B&R’s Infinity 3G Econo range is a smart, national approach to metering providing a modular or pre-configured solution for power distribution and metering applications up to 630Amps. The Centro range is our solution for applications that require an IP2X installation and can be retrofitted into existing switchrooms.

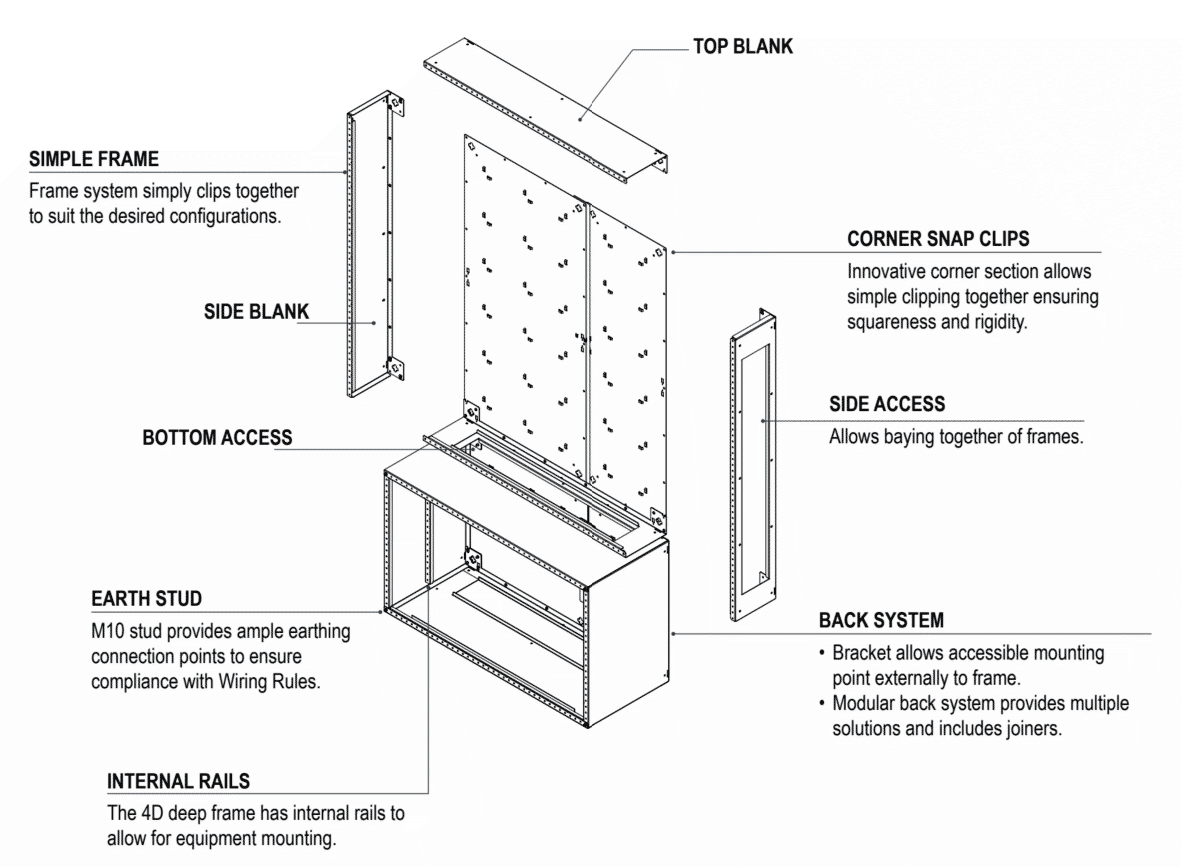

Features

IP2X protection rating – more info on IP ratings
Includes AS/NZS 61439 compliance documentation
Robust construction to ensure long service life
Frame system clips together to the desired configurations
Wide selection of top, bottom pair and side pair (set of 2) that can have either closed (blank) or opening (access) features allowing most combinations to meet application demands

Construction

Manufactured from 1.6mm zinc coated steel, powdercoated Light Grey, RAL7035

Enquiry Form

"*" indicates required fields

Name

This field is for validation purposes and should be left unchanged.

Name

Company

Postcode*

Country

Email*

Phone

Your Enquiry*

Newsletter

Subscribe to our Newsletter

Solve To Submit

Downloads Accessories More Products Enquiry Online Stockists Local Stockists

Order Guide

Part Number	Product	Description (Pair)	Modular Height (dm)	Modular Width (dm)	Height	Width	Depth	CAD Blocks
TGFAB06H02D^	Frame Access-Blank Side (Pair)	1 x Access, 1 x Blank	6		600		200		Enquiry
TGFAB10H02D^	Frame Access-Blank Side (Pair)	1 x Access, 1 x Blank	10		1000		200		Enquiry
TGFAB12H02D^	Frame Access-Blank Side (Pair)	1 x Access, 1 x Blank	12		1200		200		Enquiry
TGFAB18H02D^	Frame Access-Blank Side (Pair)	1 x Access, 1 x Blank	18		1800		200		Enquiry
TGFBB06H02D	Frame Blank-Blank Side (Pair)	2 x Blank	6		600		200		Enquiry
TGFBB10H02D	Frame Blank-Blank Side (Pair)	2 x Blank	10		1000		200		Enquiry
TGFBB12H02D	Frame Blank-Blank Side (Pair)	2 x Blank	12		1200		200		Enquiry
TGFBB18H02D	Frame Blank-Blank Side (Pair)	2 x Blank	18		1800		200		Enquiry
TGFAB06W02D	Frame Access-Blank, Top/Bottom (Pair)	1 x Access, 1 x Blank		6		600	200		Enquiry
TGFAB10W02D^	Frame Access-Blank, Top/Bottom (Pair)	1 x Access, 1 x Blank		10		1000	200		Enquiry
TGFAB12W02D^	Frame Access-Blank, Top/Bottom (Pair)	1 x Access, 1 x Blank		12		1200	200		Enquiry
TGFAB14W02D^	Frame Access-Blank, Top/Bottom (Pair)	1 x Access, 1 x Blank		14		1400	200		Enquiry
TGFAB16W02D^	Frame Access-Blank, Top/Bottom (Pair)	1 x Access, 1 x Blank		16		1600	200		Enquiry
TGFAB18W02D^	Frame Access-Blank, Top/Bottom (Pair)	1 x Access, 1 x Blank		18		1800	200		Enquiry
TGFBB06W02D	Frame Blank-Blank Top/Bottom (Pair)	2 x Blank		6		600	200		Enquiry
TGFBB10W02D^	Frame Blank-Blank Top/Bottom (Pair)	2 x Blank		10		1000	200		Enquiry
TGFBB12W02D^	Frame Blank-Blank Top/Bottom (Pair)	2 x Blank		12		1200	200		Enquiry
TGFBB18W02D^	Frame Blank-Blank Top/Bottom (Pair)	2 x Blank		18		1800	200		Enquiry
TGFBB06H04D^	Frame Blank-Blank Side (Pair)	2 x Blank	6		600		400		Enquiry
TGFBB10H04D^	Frame Blank-Blank Side (Pair)	2 x Blank	10		1000		400		Enquiry
TGFAR06W04D^	Frame Access-Rail Top/Bottom (Pair)	1 x Access Top / Bottom Rails		6		600	400		Enquiry
TGFAR10W04D^	Frame Access-Rail Top/Bottom (Pair)	1 x Access Top / Bottom Rails		10		1000	400		Enquiry
TGFAR12W04D^	Frame Access-Rail Top/Bottom (Pair)	1 x Access Top / Bottom Rails		12		1200	400		Enquiry
TGFAR14W04D^	Frame Access-Rail Top/Bottom (Pair)	1 x Access Top / Bottom Rails		14		1400	400		Enquiry
TGFAR16W04D^	Frame Access-Rail Top/Bottom (Pair)	1 x Access Top / Bottom Rails		16		1600	400		Enquiry
TGFAR18W04D^	Frame Access-Rail Top/Bottom (Pair)	1 x Access Top / Bottom Rails		18		1800	400		Enquiry
TGFBK06H04W^	Frame Module Back (Includes joiner)	Each includes joiners that are used for building fire ratings.	6	4	600	400			Enquiry
TGFBK10H04W^	Frame Module Back (Includes joiner)	Each includes joiners that are used for building fire ratings.	10	4	1000	400			Enquiry
TGFBK12H04W^	Frame Module Back (Includes joiner)	Each includes joiners that are used for building fire ratings.	12	4	1200	400			Enquiry
TGFBK18H04W^	Frame Module Back (Includes joiner)	Each includes joiners that are used for building fire ratings.	18	4	1800	400			Enquiry
TGFBK06H06W^	Frame Module Back (Includes joiner)	Each includes joiners that are used for building fire ratings.	6	6	600	600			Enquiry
TGFBK10H06W^	Frame Module Back (Includes joiner)	Each includes joiners that are used for building fire ratings.	10	6	1000	600			Enquiry
TGFBK12H06W^	Frame Module Back (Includes joiner)	Each includes joiners that are used for building fire ratings.	12	6	1200	600			Enquiry
TGFBK18H06W^	Frame Module Back (Includes joiner)	Each includes joiners that are used for building fire ratings.	18	6	1800	600			Enquiry
