New South Wales Series

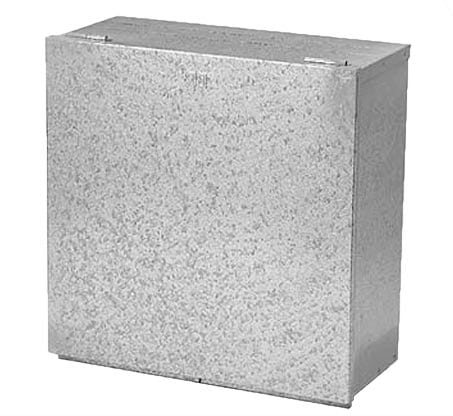

An IP23 residential metering enclosure suitable for domestic and light commercial installations in New South Wales applications.

Product Information

Applications

Complying with the NSW supply authority rules and regulations, the NSW series is designed for both single and multi-phase installations.

Features

  • Suitable for domestic and light commercial installations
  • Provides versatility with a large range of products and accessories
  • Entry level range of enclosures

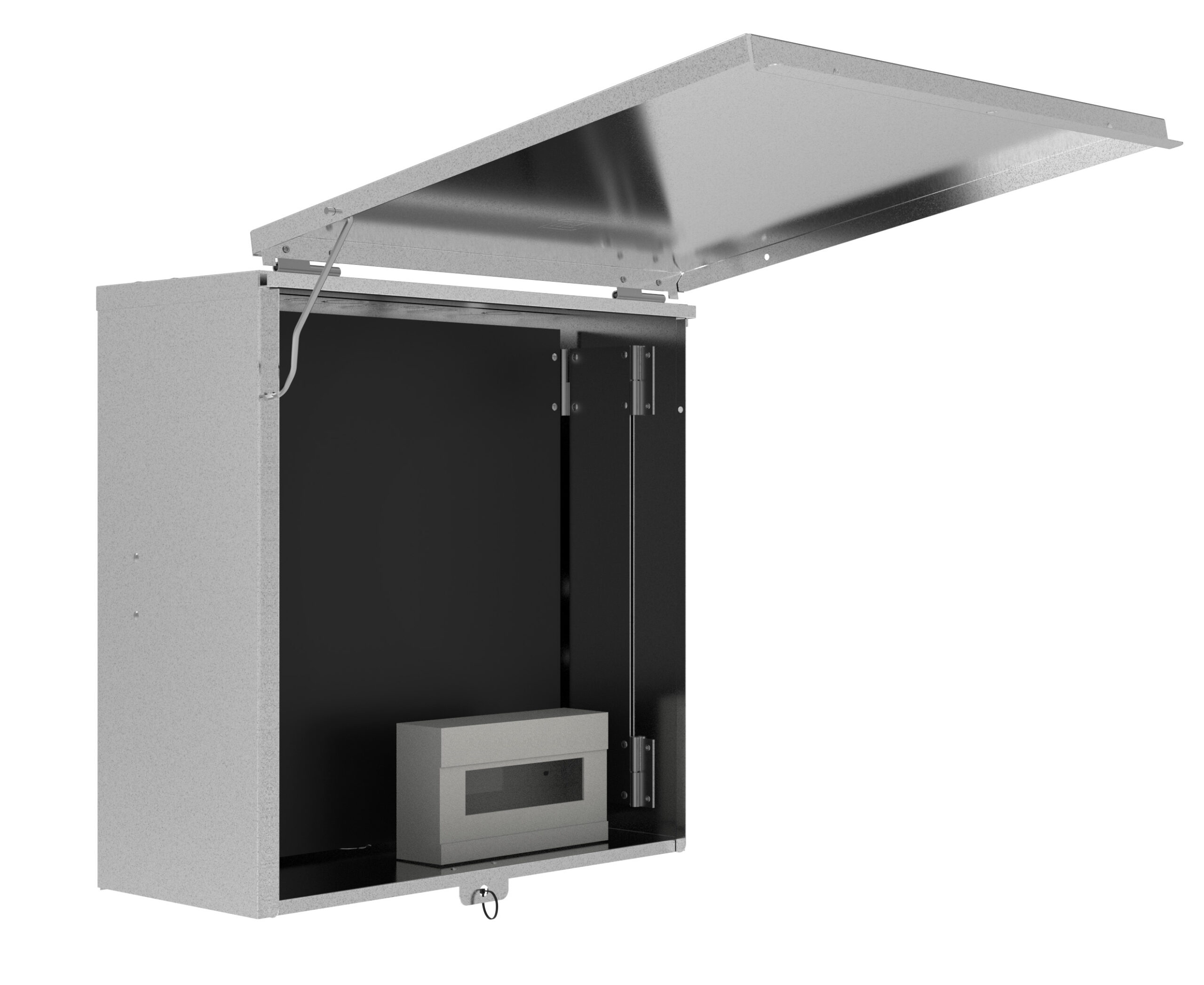

  • Top hinged with panel
  • DIN panel cutout
  • Earth and neutral links NOT included

Construction

  • Manufactured from 1.0mm or 1.2mm galvanised steel to Z275

DownloadsAccessoriesMore ProductsEnquiryOnline StockistsLocal Stockists

Order Guide

ProductPart NumberDINHeight (mm)Width (mm)Depth (mm)Description
Featured enclosureACT/TEMP+-600600270Pre-drilled black panel to ActewAGL specifications
NSW/BD/GD1012-pole600600270Pr-drilled black panel 5 meters
NSW/BDE/GD1012-pole600600270Pre-drilled black panel to Ausgrid 3 meters
NSW/BDI/GD1012-pole600600270Pre-drilled black panel to Endeavour 4 meters
NSW/BP/GD1012-pole600600270Plain black
NSW/DIN18-pole600600270Moulded white bramite
Enclosure onlyNSW/U/13-600600330

+While stocks last

Accessories

ProductPart NumberDescription
18-pole DIN kitNSWDK+Includes panel and DIN rail
Flush mounting kitNSW/FKFor flush mounting
Hinged panel - drilled (black)NSW/HBD575mm wide x 560mm high x 6t
NSW/HBDI+To suit Endeavour Energy
NSW/HBDE+To suit Ausgrid / Actew AGL
+While stocks last
