Ausrack CQr

A range of Class B and Class C 19 inch security cabinet solutions suitable for protecting equipment to the highest security standards.

Australian Made

Product Information

Designed to meet the requirements of security applications and developed in accordance with the Protective Security Policy Framework (PSPF). These cabinets can be configured to a Class B or Class C cabinet by selecting a door option to suit the needs of the customer.

Features

SCEC standard approved cabinets and accessories.
Unrivalled 1400kg distributed load capacity.

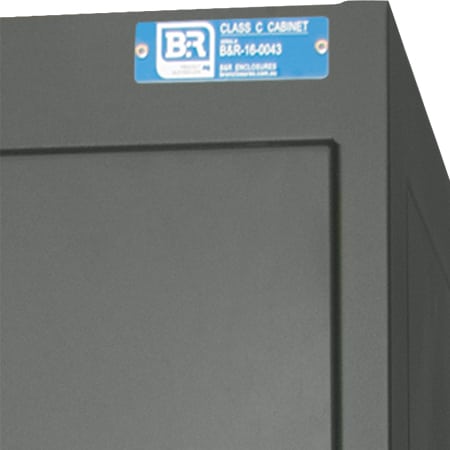

Individual serialised cabinets.
Bi-lock mechanism for Class C and combination locking for Class B cabinets.
Fully adjustable 19″ mounting rails with marked RU positions.
Multiple cable entry points in top and base with integration cable baffles.
Baffle entries compliant to copper and fibre bend radius requirements.
Cable entries feature cable tie off points and removable cover.

Comes standard with

2mm fully welded frame
Vented top panel
2 x PDU trays
4 x adjustable numbered mounting rails
4 x adjustable levelling feet
Top and bottom secured cable entries

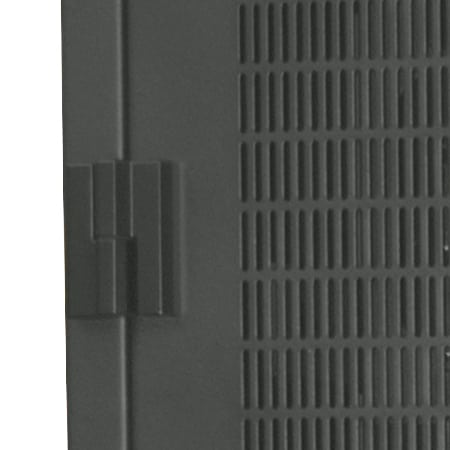

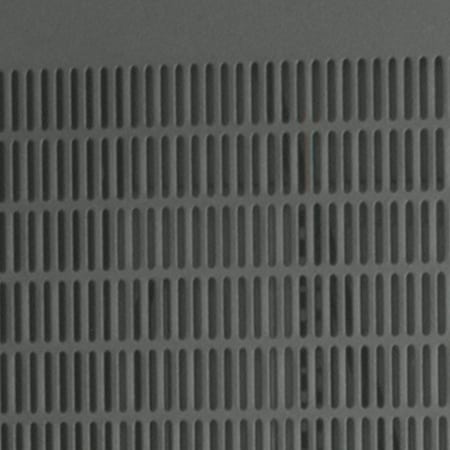

Front and rear doors with high flow ventilation mesh (maximum area permissible by SCEC standards)
2 x secure side panels (internal bolts)

Construction

Frame thickness – 2mm
Panel thickness – 1.6mm
Manufactured from zinc coated steel
Powdercoated textured matt black

Enquiry Form

Name
First Last
Company
Postcode*
Country
Email*
Phone
Your Enquiry*
I am interested in one of the products on the Ausrack CQr page of your website.
Your Enquiry*
What would you like to ask us about today?
Newsletter
- Subscribe to our Newsletter
Solve To Submit
Comments
This field is for validation purposes and should be left unchanged.

Downloads Accessories More Products Enquiry Online Stockists Local Stockists

Order Guide

Part Number	RU	Height (mm)	Width (mm)	Depth (mm)	Enquiry
ACQRB12U608LL	12	735	600	800	Enquiry
ACQRB12U608LR	12	735	600	800	Enquiry
ACQRB12U608RL	12	735	600	800	Enquiry
ACQRB12U608RR	12	735	600	800	Enquiry
ACQRB12U610LL	12	735	600	1000	Enquiry
ACQRB12U610LR	12	735	600	1000	Enquiry
ACQRB12U610RL	12	735	600	1000	Enquiry
ACQRB12U610RR	12	735	600	1000	Enquiry
ACQRB12U612LL	12	735	600	1200	Enquiry
ACQRB12U612LR	12	735	600	1200	Enquiry
ACQRB12U612RL	12	735	600	1200	Enquiry
ACQRB12U612RR	12	735	600	1200	Enquiry
ACQRB12U808LL	12	735	800	800	Enquiry
ACQRB12U808LR	12	735	800	800	Enquiry
ACQRB12U808RL	12	735	800	800	Enquiry
ACQRB12U808RR	12	735	800	800	Enquiry
ACQRB12U810LL	12	735	800	1000	Enquiry
ACQRB12U810LR	12	735	800	1000	Enquiry
ACQRB12U810RL	12	735	800	1000	Enquiry
ACQRB12U810RR	12	735	800	1000	Enquiry
ACQRB12U812LL	12	735	800	1200	Enquiry
ACQRB12U812LR	12	735	800	1200	Enquiry
ACQRB12U812RL	12	735	800	1200	Enquiry
ACQRB12U812RR	12	735	800	1200	Enquiry
ACQRB18U608LL	18	1000	600	800	Enquiry
ACQRB18U608LR	18	1000	600	800	Enquiry
ACQRB18U608RL	18	1000	600	800	Enquiry
ACQRB18U608RR	18	1000	600	800	Enquiry
ACQRB18U610LL	18	1000	600	1000	Enquiry
ACQRB18U610LR	18	1000	600	1000	Enquiry
ACQRB18U610RL	18	1000	600	1000	Enquiry
ACQRB18U610RR	18	1000	600	1000	Enquiry
ACQRB18U612LL	18	1000	600	1200	Enquiry
ACQRB18U612LR	18	1000	600	1200	Enquiry
ACQRB18U612RL	18	1000	600	1200	Enquiry
ACQRB18U612RR	18	1000	600	1200	Enquiry
ACQRB18U808LL	18	1000	800	800	Enquiry
ACQRB18U808LR	18	1000	800	800	Enquiry
ACQRB18U808RL	18	1000	800	800	Enquiry
ACQRB18U808RR	18	1000	800	800	Enquiry
ACQRB18U810LL	18	1000	800	1000	Enquiry
ACQRB18U810LR	18	1000	800	1000	Enquiry
ACQRB18U810RL	18	1000	800	1000	Enquiry
ACQRB18U810RR	18	1000	800	1000	Enquiry
ACQRB18U812LL	18	1000	800	1200	Enquiry
ACQRB18U812LR	18	1000	800	1200	Enquiry
ACQRB18U812RL	18	1000	800	1200	Enquiry
ACQRB18U812RR	18	1000	800	1200	Enquiry
ACQRB27U608LL	27	1400	600	800	Enquiry
ACQRB27U608LR	27	1400	600	800	Enquiry
ACQRB27U608RL	27	1400	600	800	Enquiry
ACQRB27U608RR	27	1400	600	800	Enquiry
ACQRB27U610LL	27	1400	600	1000	Enquiry
ACQRB27U610LR	27	1400	600	1000	Enquiry
ACQRB27U610RL	27	1400	600	1000	Enquiry
ACQRB27U610RR	27	1400	600	1000	Enquiry
ACQRB27U612LL	27	1400	600	1200	Enquiry
ACQRB27U612LR	27	1400	600	1200	Enquiry
ACQRB27U612RL	27	1400	600	1200	Enquiry
ACQRB27U612RR	27	1400	600	1200	Enquiry
ACQRB27U808LL	27	1400	800	800	Enquiry
ACQRB27U808LR	27	1400	800	800	Enquiry
ACQRB27U808RL	27	1400	800	800	Enquiry
ACQRB27U808RR	27	1400	800	800	Enquiry
ACQRB27U810LL	27	1400	800	1000	Enquiry
ACQRB27U810LR	27	1400	800	1000	Enquiry
ACQRB27U810RL	27	1400	800	1000	Enquiry
ACQRB27U810RR	27	1400	800	1000	Enquiry
ACQRB27U812LL	27	1400	800	1200	Enquiry
ACQRB27U812LR	27	1400	800	1200	Enquiry
ACQRB27U812RL	27	1400	800	1200	Enquiry
ACQRB27U812RR	27	1400	800	1200	Enquiry
ACQRB40U608LL	40	1980	600	800	Enquiry
ACQRB40U608LR	40	1980	600	800	Enquiry
ACQRB40U608RL	40	1980	600	800	Enquiry
ACQRB40U608RR	40	1980	600	800	Enquiry
ACQRB40U610LL	40	1980	600	1000	Enquiry
ACQRB40U610LR	40	1980	600	1000	Enquiry
ACQRB40U610RL	40	1980	600	1000	Enquiry
ACQRB40U610RR	40	1980	600	1000	Enquiry
ACQRB40U612LL	40	1980	600	1200	Enquiry
ACQRB40U612LR	40	1980	600	1200	Enquiry
ACQRB40U612RL	40	1980	600	1200	Enquiry
ACQRB40U612RR	40	1980	600	1200	Enquiry
ACQRB40U808LL	40	1980	800	800	Enquiry
ACQRB40U808LR	40	1980	800	800	Enquiry
ACQRB40U808RL	40	1980	800	800	Enquiry
ACQRB40U808RR	40	1980	800	800	Enquiry
ACQRB40U810LL	40	1980	800	1000	Enquiry
ACQRB40U810LR	40	1980	800	1000	Enquiry
ACQRB40U810RL	40	1980	800	1000	Enquiry
ACQRB40U810RR	40	1980	800	1000	Enquiry
ACQRB40U812LL	40	1980	800	1200	Enquiry
ACQRB40U812LR	40	1980	800	1200	Enquiry
ACQRB40U812RL	40	1980	800	1200	Enquiry
ACQRB40U812RR	40	1980	800	1200	Enquiry
ACQRB42U608LL	42	2065	600	800	Enquiry
ACQRB42U608LR	42	2065	600	800	Enquiry
ACQRB42U608RL	42	2065	600	800	Enquiry
ACQRB42U608RR	42	2065	600	800	Enquiry
ACQRB42U610LL	42	2065	600	1000	Enquiry
ACQRB42U610LR	42	2065	600	1000	Enquiry
ACQRB42U610RL	42	2065	600	1000	Enquiry
ACQRB42U610RR	42	2065	600	1000	Enquiry
ACQRB42U612LL	42	2065	600	1200	Enquiry
ACQRB42U612LR	42	2065	600	1200	Enquiry
ACQRB42U612RL	42	2065	600	1200	Enquiry
ACQRB42U612RR	42	2065	600	1200	Enquiry
ACQRB42U808LL	42	2065	800	800	Enquiry
ACQRB42U808LR	42	2065	800	800	Enquiry
ACQRB42U808RL	42	2065	800	800	Enquiry
ACQRB42U808RR	42	2065	800	800	Enquiry
ACQRB42U810LL	42	2065	800	1000	Enquiry
ACQRB42U810LR	42	2065	800	1000	Enquiry
ACQRB42U810RL	42	2065	800	1000	Enquiry
ACQRB42U810RR	42	2065	800	1000	Enquiry
ACQRB42U812LL	42	2065	800	1200	Enquiry
ACQRB42U812LR	42	2065	800	1200	Enquiry
ACQRB42U812RL	42	2065	800	1200	Enquiry
ACQRB42U812RR	42	2065	800	1200	Enquiry
ACQRB45U608LL	45	2200	600	800	Enquiry
ACQRB45U608LR	45	2200	600	800	Enquiry
ACQRB45U608RL	45	2200	600	800	Enquiry
ACQRB45U608RR	45	2200	600	800	Enquiry
ACQRB45U610LL	45	2200	600	1000	Enquiry
ACQRB45U610LR	45	2200	600	1000	Enquiry
ACQRB45U610RL	45	2200	600	1000	Enquiry
ACQRB45U610RR	45	2200	600	1000	Enquiry
ACQRB45U612LL	45	2200	600	1200	Enquiry
ACQRB45U612LR	45	2200	600	1200	Enquiry
ACQRB45U612RL	45	2200	600	1200	Enquiry
ACQRB45U612RR	45	2200	600	1200	Enquiry
ACQRB45U808LL	45	2200	800	800	Enquiry
ACQRB45U808LR	45	2200	800	800	Enquiry
ACQRB45U808RL	45	2200	800	800	Enquiry
ACQRB45U808RR	45	2200	800	800	Enquiry
ACQRB45U810LL	45	2200	800	1000	Enquiry
ACQRB45U810LR	45	2200	800	1000	Enquiry
ACQRB45U810RL	45	2200	800	1000	Enquiry
ACQRB45U810RR	45	2200	800	1000	Enquiry
ACQRB45U812LL	45	2200	800	1200	Enquiry
ACQRB45U812LR	45	2200	800	1200	Enquiry
ACQRB45U812RL	45	2200	800	1200	Enquiry
ACQRB45U812RR	45	2200	800	1200	Enquiry

Part Number	RU	Height (mm)	Width (mm)	Depth (mm)	Enquiry
ACQRC12U608LL	12	735	600	800	Enquiry
ACQRC12U608LR	12	735	600	800	Enquiry
ACQRC12U608RL	12	735	600	800	Enquiry
ACQRC12U608RR	12	735	600	800	Enquiry
ACQRC12U610LL	12	735	600	1000	Enquiry
ACQRC12U610LR	12	735	600	1000	Enquiry
ACQRC12U610RL	12	735	600	1000	Enquiry
ACQRC12U610RR	12	735	600	1000	Enquiry
ACQRC12U612LL	12	735	600	1200	Enquiry
ACQRC12U612LR	12	735	600	1200	Enquiry
ACQRC12U612RL	12	735	600	1200	Enquiry
ACQRC12U612RR	12	735	600	1200	Enquiry
ACQRC12U808LL	12	735	800	800	Enquiry
ACQRC12U808LR	12	735	800	800	Enquiry
ACQRC12U808RL	12	735	800	800	Enquiry
ACQRC12U808RR	12	735	800	800	Enquiry
ACQRC12U810LL	12	735	800	1000	Enquiry
ACQRC12U810LR	12	735	800	1000	Enquiry
ACQRC12U810RL	12	735	800	1000	Enquiry
ACQRC12U810RR	12	735	800	1000	Enquiry
ACQRC12U812LL	12	735	800	1200	Enquiry
ACQRC12U812LR	12	735	800	1200	Enquiry
ACQRC12U812RL	12	735	800	1200	Enquiry
ACQRC12U812RR	12	735	800	1200	Enquiry
ACQRC18U608LL	18	1000	600	800	Enquiry
ACQRC18U608LR	18	1000	600	800	Enquiry
ACQRC18U608RL	18	1000	600	800	Enquiry
ACQRC18U608RR	18	1000	600	800	Enquiry
ACQRC18U610LL	18	1000	600	1000	Enquiry
ACQRC18U610LR	18	1000	600	1000	Enquiry
ACQRC18U610RL	18	1000	600	1000	Enquiry
ACQRC18U610RR	18	1000	600	1000	Enquiry
ACQRC18U612LL	18	1000	600	1200	Enquiry
ACQRC18U612LR	18	1000	600	1200	Enquiry
ACQRC18U612RL	18	1000	600	1200	Enquiry
ACQRC18U612RR	18	1000	600	1200	Enquiry
ACQRC18U808LL	18	1000	800	800	Enquiry
ACQRC18U808LR	18	1000	800	800	Enquiry
ACQRC18U808RL	18	1000	800	800	Enquiry
ACQRC18U808RR	18	1000	800	800	Enquiry
ACQRC18U810LL	18	1000	800	1000	Enquiry
ACQRC18U810LR	18	1000	800	1000	Enquiry
ACQRC18U810RL	18	1000	800	1000	Enquiry
ACQRC18U810RR	18	1000	800	1000	Enquiry
ACQRC18U812LL	18	1000	800	1200	Enquiry
ACQRC18U812LR	18	1000	800	1200	Enquiry
ACQRC18U812RL	18	1000	800	1200	Enquiry
ACQRC18U812RR	18	1000	800	1200	Enquiry
ACQRC27U608LL	27	1400	600	800	Enquiry
ACQRC27U608LR	27	1400	600	800	Enquiry
ACQRC27U608RL	27	1400	600	800	Enquiry
ACQRC27U608RR	27	1400	600	800	Enquiry
ACQRC27U610LL	27	1400	600	1000	Enquiry
ACQRC27U610LR	27	1400	600	1000	Enquiry
ACQRC27U610RL	27	1400	600	1000	Enquiry
ACQRC27U610RR	27	1400	600	1000	Enquiry
ACQRC27U612LL	27	1400	600	1200	Enquiry
ACQRC27U612LR	27	1400	600	1200	Enquiry
ACQRC27U612RL	27	1400	600	1200	Enquiry
ACQRC27U612RR	27	1400	600	1200	Enquiry
ACQRC27U808LL	27	1400	800	800	Enquiry
ACQRC27U808LR	27	1400	800	800	Enquiry
ACQRC27U808RL	27	1400	800	800	Enquiry
ACQRC27U808RR	27	1400	800	800	Enquiry
ACQRC27U810LL	27	1400	800	1000	Enquiry
ACQRC27U810LR	27	1400	800	1000	Enquiry
ACQRC27U810RL	27	1400	800	1000	Enquiry
ACQRC27U810RR	27	1400	800	1000	Enquiry
ACQRC27U812LL	27	1400	800	1200	Enquiry
ACQRC27U812LR	27	1400	800	1200	Enquiry
ACQRC27U812RL	27	1400	800	1200	Enquiry
ACQRC27U812RR	27	1400	800	1200	Enquiry
ACQRC40U608LL	40	1980	600	800	Enquiry
ACQRC40U608LR	40	1980	600	800	Enquiry
ACQRC40U608RL	40	1980	600	800	Enquiry
ACQRC40U608RR	40	1980	600	800	Enquiry
ACQRC40U610LL	40	1980	600	1000	Enquiry
ACQRC40U610LR	40	1980	600	1000	Enquiry
ACQRC40U610RL	40	1980	600	1000	Enquiry
ACQRC40U610RR	40	1980	600	1000	Enquiry
ACQRC40U612LL	40	1980	600	1200	Enquiry
ACQRC40U612LR	40	1980	600	1200	Enquiry
ACQRC40U612RL	40	1980	600	1200	Enquiry
ACQRC40U612RR	40	1980	600	1200	Enquiry
ACQRC40U808LL	40	1980	800	800	Enquiry
ACQRC40U808LR	40	1980	800	800	Enquiry
ACQRC40U808RL	40	1980	800	800	Enquiry
ACQRC40U808RR	40	1980	800	800	Enquiry
ACQRC40U810LL	40	1980	800	1000	Enquiry
ACQRC40U810LR	40	1980	800	1000	Enquiry
ACQRC40U810RL	40	1980	800	1000	Enquiry
ACQRC40U810RR	40	1980	800	1000	Enquiry
ACQRC40U812LL	40	1980	800	1200	Enquiry
ACQRC40U812LR	40	1980	800	1200	Enquiry
ACQRC40U812RL	40	1980	800	1200	Enquiry
ACQRC40U812RR	40	1980	800	1200	Enquiry
ACQRC42U608LL	42	2065	600	800	Enquiry
ACQRC42U608LR	42	2065	600	800	Enquiry
ACQRC42U608RL	42	2065	600	800	Enquiry
ACQRC42U608RR	42	2065	600	800	Enquiry
ACQRC42U610LL	42	2065	600	1000	Enquiry
ACQRC42U610LR	42	2065	600	1000	Enquiry
ACQRC42U610RL	42	2065	600	1000	Enquiry
ACQRC42U610RR	42	2065	600	1000	Enquiry
ACQRC42U612LL	42	2065	600	1200	Enquiry
ACQRC42U612LR	42	2065	600	1200	Enquiry
ACQRC42U612RL	42	2065	600	1200	Enquiry
ACQRC42U612RR	42	2065	600	1200	Enquiry
ACQRC42U808LL	42	2065	800	800	Enquiry
ACQRC42U808LR	42	2065	800	800	Enquiry
ACQRC42U808RL	42	2065	800	800	Enquiry
ACQRC42U808RR	42	2065	800	800	Enquiry
ACQRC42U810LL	42	2065	800	1000	Enquiry
ACQRC42U810LR	42	2065	800	1000	Enquiry
ACQRC42U810RL	42	2065	800	1000	Enquiry
ACQRC42U810RR	42	2065	800	1000	Enquiry
ACQRC42U812LL	42	2065	800	1200	Enquiry
ACQRC42U812LR	42	2065	800	1200	Enquiry
ACQRC42U812RL	42	2065	800	1200	Enquiry
ACQRC42U812RR	42	2065	800	1200	Enquiry
ACQRC45U608LL	45	2200	600	800	Enquiry
ACQRC45U608LR	45	2200	600	800	Enquiry
ACQRC45U608RL	45	2200	600	800	Enquiry
ACQRC45U608RR	45	2200	600	800	Enquiry
ACQRC45U610LL	45	2200	600	1000	Enquiry
ACQRC45U610LR	45	2200	600	1000	Enquiry
ACQRC45U610RL	45	2200	600	1000	Enquiry
ACQRC45U610RR	45	2200	600	1000	Enquiry
ACQRC45U612LL	45	2200	600	1200	Enquiry
ACQRC45U612LR	45	2200	600	1200	Enquiry
ACQRC45U612RL	45	2200	600	1200	Enquiry
ACQRC45U612RR	45	2200	600	1200	Enquiry
ACQRC45U808LL	45	2200	800	800	Enquiry
ACQRC45U808LR	45	2200	800	800	Enquiry
ACQRC45U808RL	45	2200	800	800	Enquiry
ACQRC45U808RR	45	2200	800	800	Enquiry
ACQRC45U810LL	45	2200	800	1000	Enquiry
ACQRC45U810LR	45	2200	800	1000	Enquiry
ACQRC45U810RL	45	2200	800	1000	Enquiry
ACQRC45U810RR	45	2200	800	1000	Enquiry
ACQRC45U812LL	45	2200	800	1200	Enquiry
ACQRC45U812LR	45	2200	800	1200	Enquiry
ACQRC45U812RL	45	2200	800	1200	Enquiry
ACQRC45U812RR	45	2200	800	1200	Enquiry

Downloads

Product Technical Information

Features and Benefits

Standard Door Configurations

Security Cabinets Brochure

A Guide To Data Cabinet Security

Data ICT Catalogue

Accessories

Our Ausrack CQr products are available as completed cabinets or can be customised to suit any installation or customer requirements. Contact your local sales representative for more information.

Some of the accessories include:

Brisbane Office

Sydney Office

Townsville Office

Newcastle Office

Melbourne Office

Adelaide Office

Perth Office

Launceston Office

Darwin Office

Australian Offices

International Offices

Ausrack CQr

Product Information

Enquiry Form

Order Guide

Downloads

Accessories

Accessories

Product Enquiry Form

Your Details

Online Distribution Partners

Contact Us

Brisbane Office

Sydney Office

Townsville Office

Newcastle Office

Melbourne Office

Adelaide Office

Perth Office

Launceston Office

Darwin Office

Australian Offices

International Offices

Ausrack CQr

Product Information

Enquiry Form

Order Guide

Downloads

Accessories

Accessories

Product Enquiry Form

Your Details

Related Products

Online Distribution Partners

Contact Us
