Polynova PU

A non-metal, IP66 enclosure suitable for harsh environments.
Polynova PU

Product Information

Application

Designed for use in harsh envrionments or where easy visual inspection is required. Suitable for low voltage (LV) double insulated applications.

Features

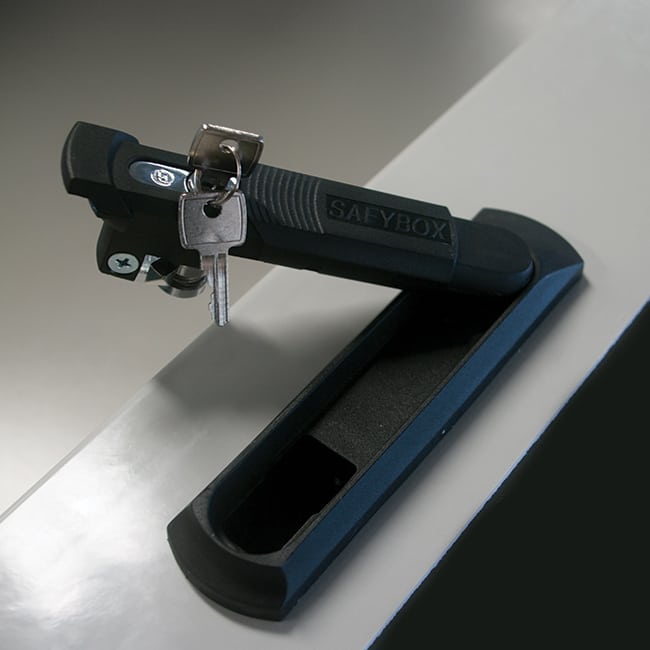

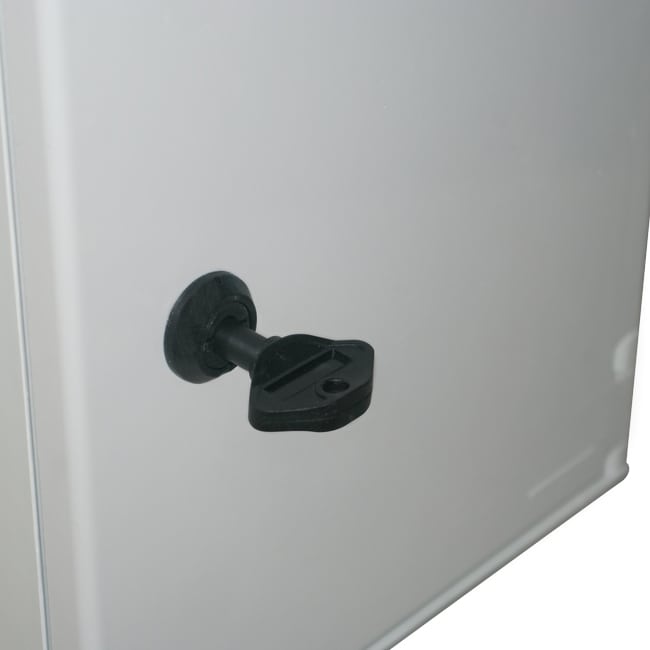

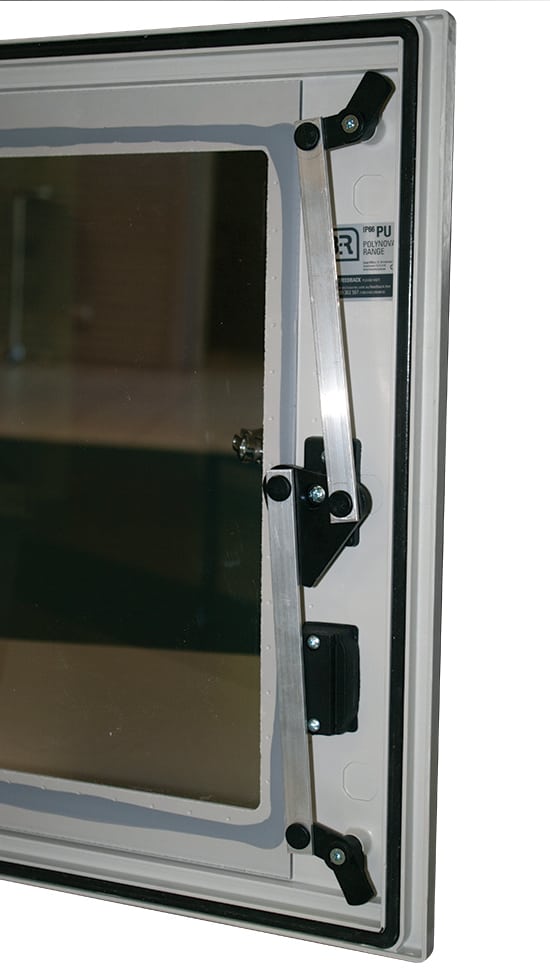

  • Swing handle keyed to 92268 with a 3-point lock as standard (PU302514 have single 1/4 turn lock).
  • Plain or window door options

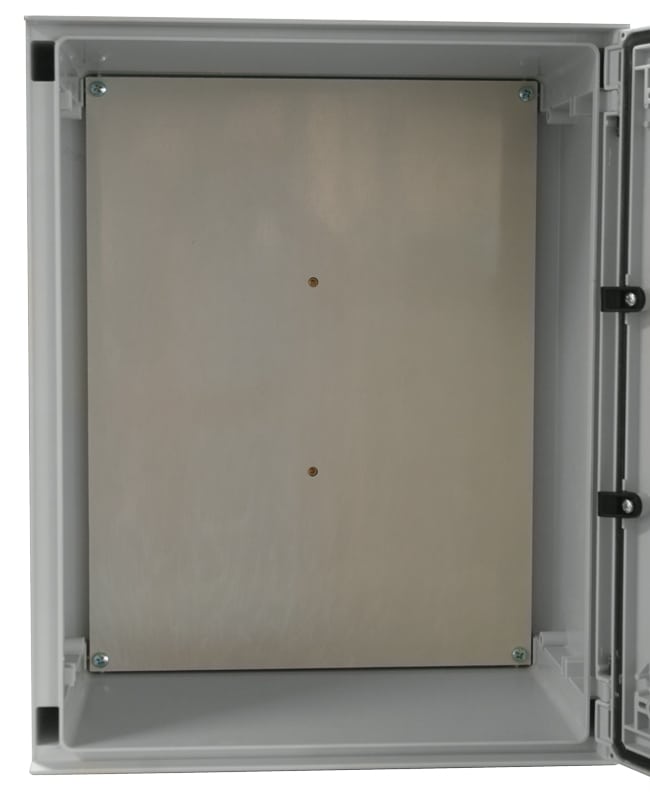

  • Insulated mounting pan

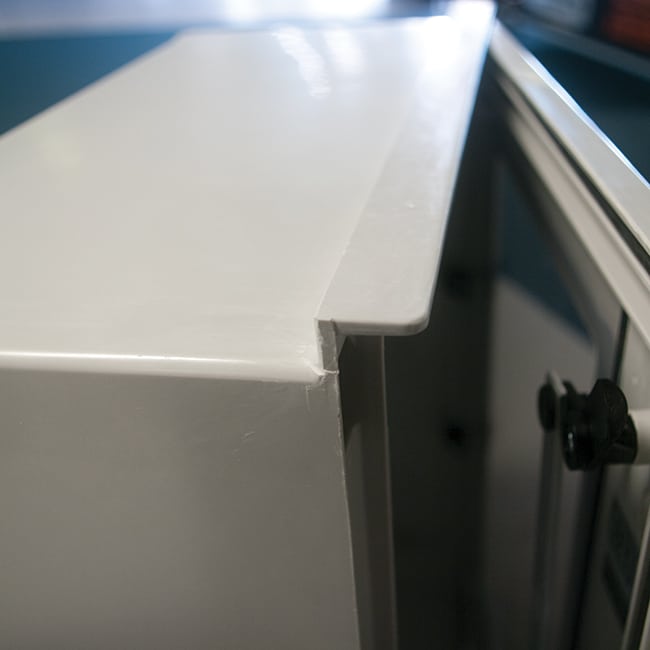

  • Roof extends over door opening
  • UV stabilised

Conformity and Approvals

  • CE marked
  • UL94, V1 rating
  • IEC695: 960°C Glow Wire Test

Construction

  • Body – UV stabilised glass reinforced polyester
  • Transparent Window – polycarbonate
  • Surface finish – Light Grey RAL7035
  • Protection rating – IP66

DownloadsAccessoriesMore ProductsEnquiryOnline StockistsLocal Stockists

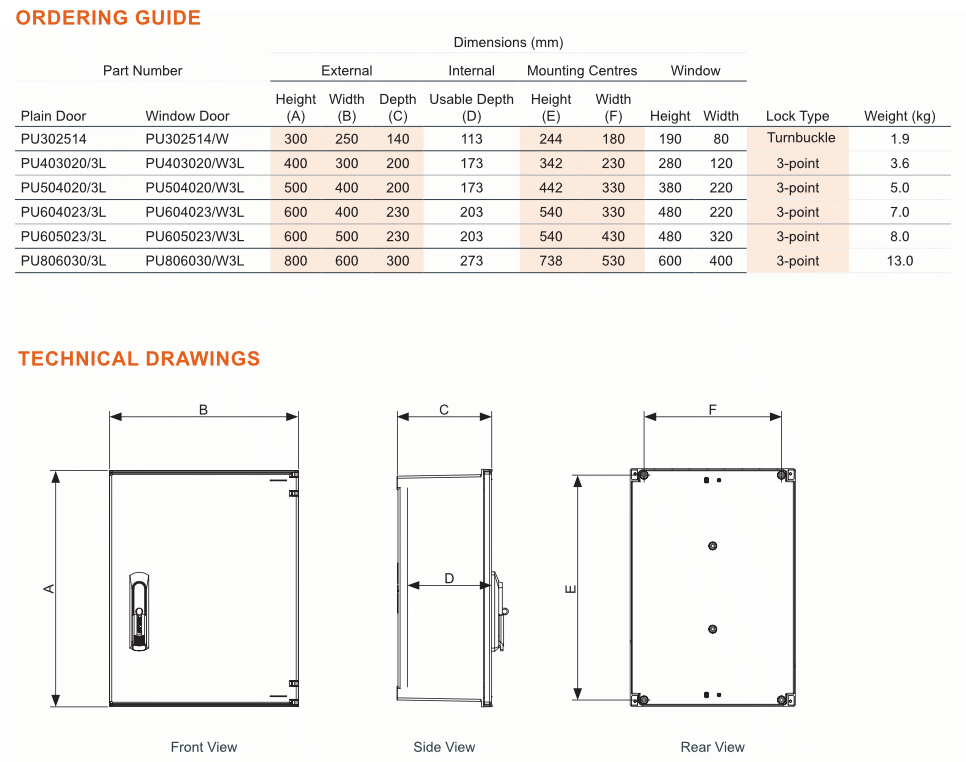

Order Guide

Smaller Enclosures Enclosure Selector Larger Enclosures

Part NumberHeight (mm)Width (mm)Depth (mm)TypeUsable Depth (mm)Enquiry
PU302514300250140Plain Door113Enquiry
PU403020/3L400300200Plain Door173Enquiry
PU504020/3L500400200Plain Door173Enquiry
PU604023/3L600400230Plain Door203Enquiry
PU605023/3L600500230Plain Door203Enquiry
PU806030/3L800600300Plain Door273Enquiry
PU302514/W300250140Window Door113Enquiry
PU403020/W3L400300200Window Door173Enquiry
PU504020/W3L500400200Window Door173Enquiry
PU604023/W3L600400230Window Door203Enquiry
PU605023/W3L600500230Window Door203Enquiry
PU806030/W3L800600300Window Door273Enquiry

Smaller Enclosures Enclosure Selector Larger Enclosures

Accessories

Accessories

  • Mounting pan – metal or insulated
  • Wall mounting brackets – set of 4
  • Depth adjustable spacer
  • Locks – for 300x250x140mm enclosures
