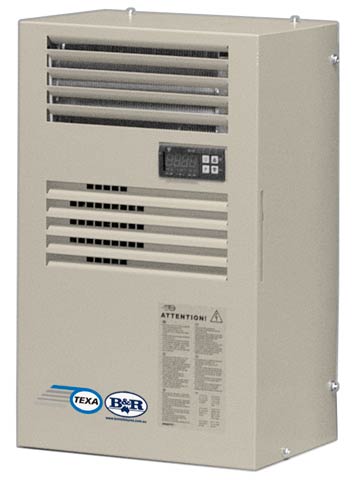

Indoor Wall-Mount Air Conditioners

The EGO range of indoor surface mounted air conditioners have been designed to cool electrical enclosures to prevent failure of installed equipment.

Product Information

Applications

The EGO range of wall or door mounted air conditioners have been designed to cool electrical enclosures to prevent failure of installed equipment. They are quick and easy to install with a standard surface mounted arrangement (a kit can also be bought to allow a semi-recessed installation should the site require it). Once installed the enclosure can be rated to IP54, which prevents dust entering in sufficient quantities that may cause interference with the installed equipment, and prevents damage from splashed water.

Features

  • IP54 protection rating – more info on IP ratings
  • Easy installation
  • Electronic controller
  • Temperature control with ON/OFF adjustment
  • Ability to interface with PLC’s
  • Alarm contacts
  • Minimal maintenance
  • Ozone friendly R1134a or R407C refridgerant

Construction

  • Mild steel construction
  • Powdercoated RAL 7032 surface finish

DownloadsAccessoriesMore ProductsEnquiryBuy OnlineBuy In-Store

Order Guide

Model NumberPower Supply (V)Cooling Power
TX-EGO04BM1A230380 W
TX-EGO06BM1A230640 W
TX-EGO08BM1A230820 W
TX-EGO10BM1A2301000 W
TX-EGO12BM1A2301250 W
TX-EGO16BM1A2301600 W
TX-EGO20BM1A2302000 W
TX-EGO20LM1A4002000 W
TX-EGO30BM1A2302900 W
TX-EGO30LM1A4002900 W
TX-EGO40BM1A2303850 W
TX-EGO40LM1A4003850 W
TX-EGO60MTEA4005800 W
TX-EGO80MTEA4007600 W
TX-EGOA0MTEA4009400 W
TX-EGOA5MTEA40014800 W

Accessories

  • Filter cloths
  • Washable filter cloths
  • Thermostats
