Victoria Group Metering

A range of pre-wired and unwired group metering enclosures to suit multiple tenancy installations in Victoria.
Victoria Group Metering
Australian Made
Australian Made

Product Information

Applications

Providing a pre-wired and unwired solution for multiple tenancy installations in Victoria.

Features

  • Designed for single phase installations
  • Solutions for multiple tenancy installations throughout Victoria

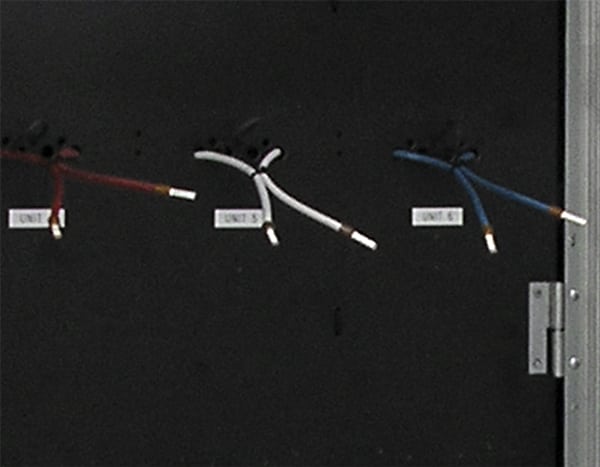

  • Pre-wired, ready to fit meter
  • Ample DIN space
  • Upgradeable to include supply capacity control

Inclusions

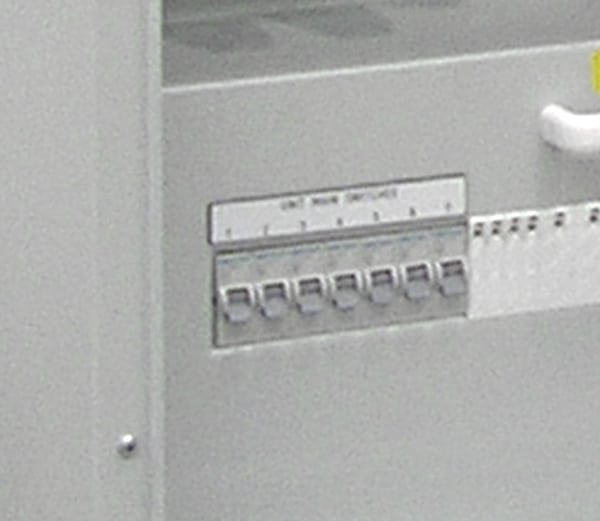

  • 40A tenancy sub-main MCBs

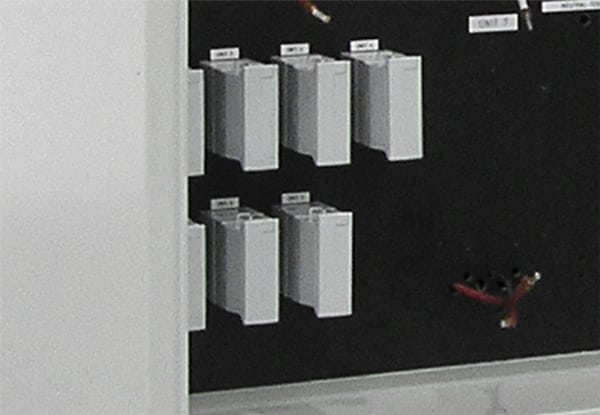

  • Meter fuse holders
  • Service protection device fuse holders

Construction

  • Manufactured from 1.0mm galvanised steel to Z275
  • Powdercoated Light Grey RAL7035

DownloadsAccessoriesMore ProductsEnquiryOnline StockistsLocal Stockists

Order Guide

Part NumberHeight (mm)Width (mm)Depth (mm)
GMPV041035485335
GMPV051085630335
GMPV07#1200800440
Part NumberHeight (mm)Width (mm)Depth (mm)
GMUV04*1035485335
GMUV05*1085630335
GMUV07*1200800440

*Plain panel suitable for single and 3-phase applications
#Room for 8th meter if required

Accessories

Part NumberProductHeight (mm)Width (mm)Depth (mm)
GM04PPlinth600485350
GM05PPlinth500630320
GM07PPlinth500800420
