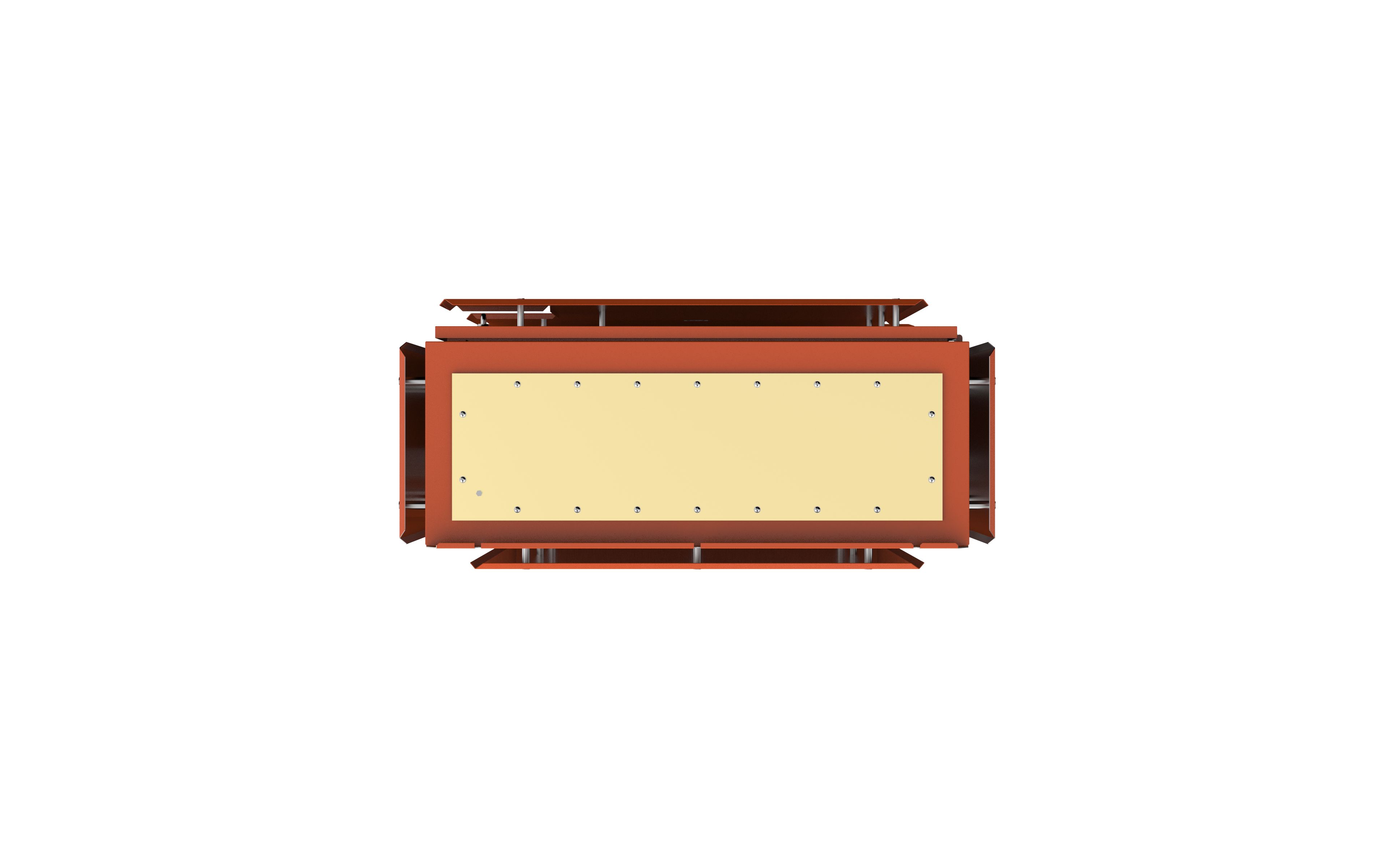

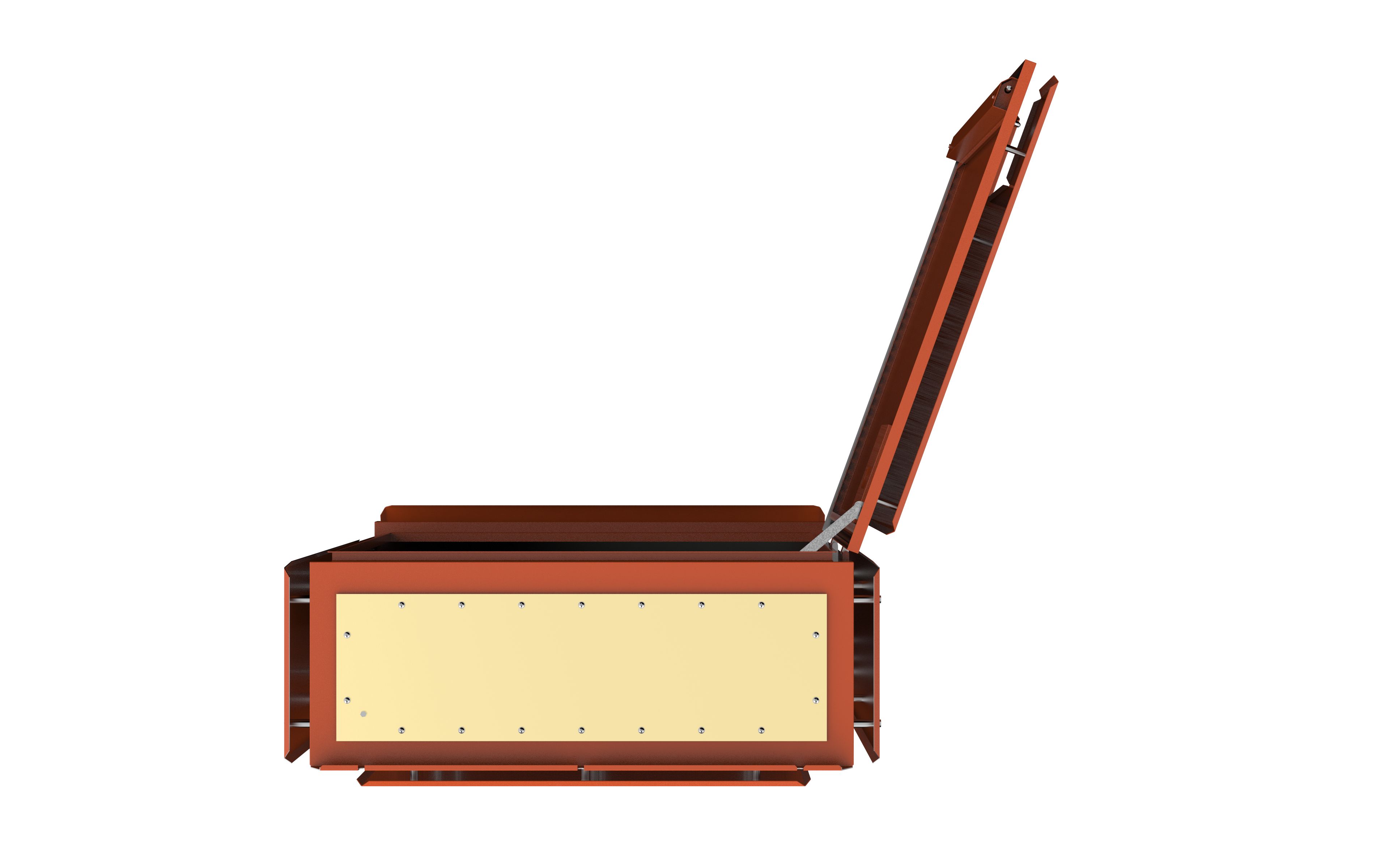

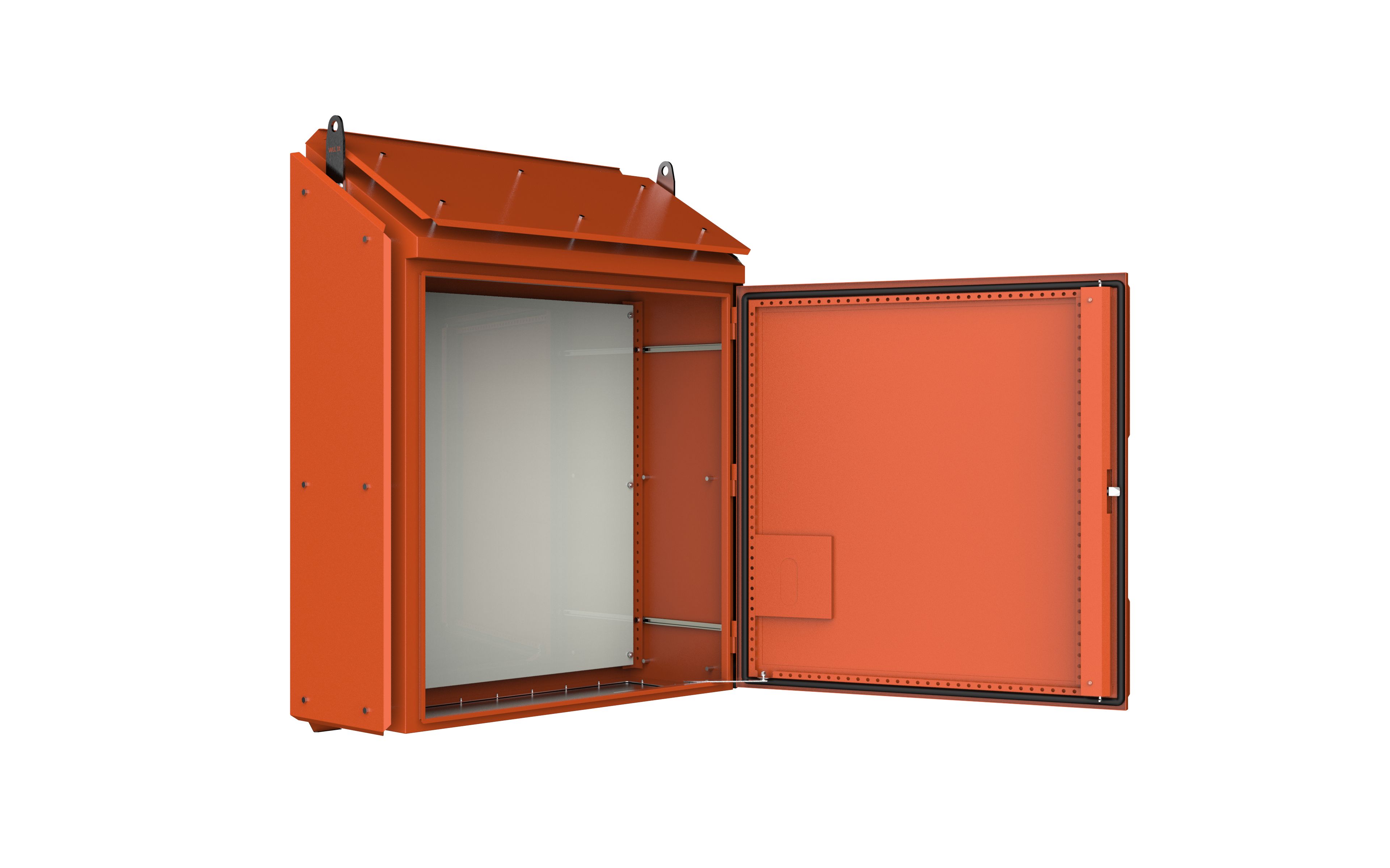

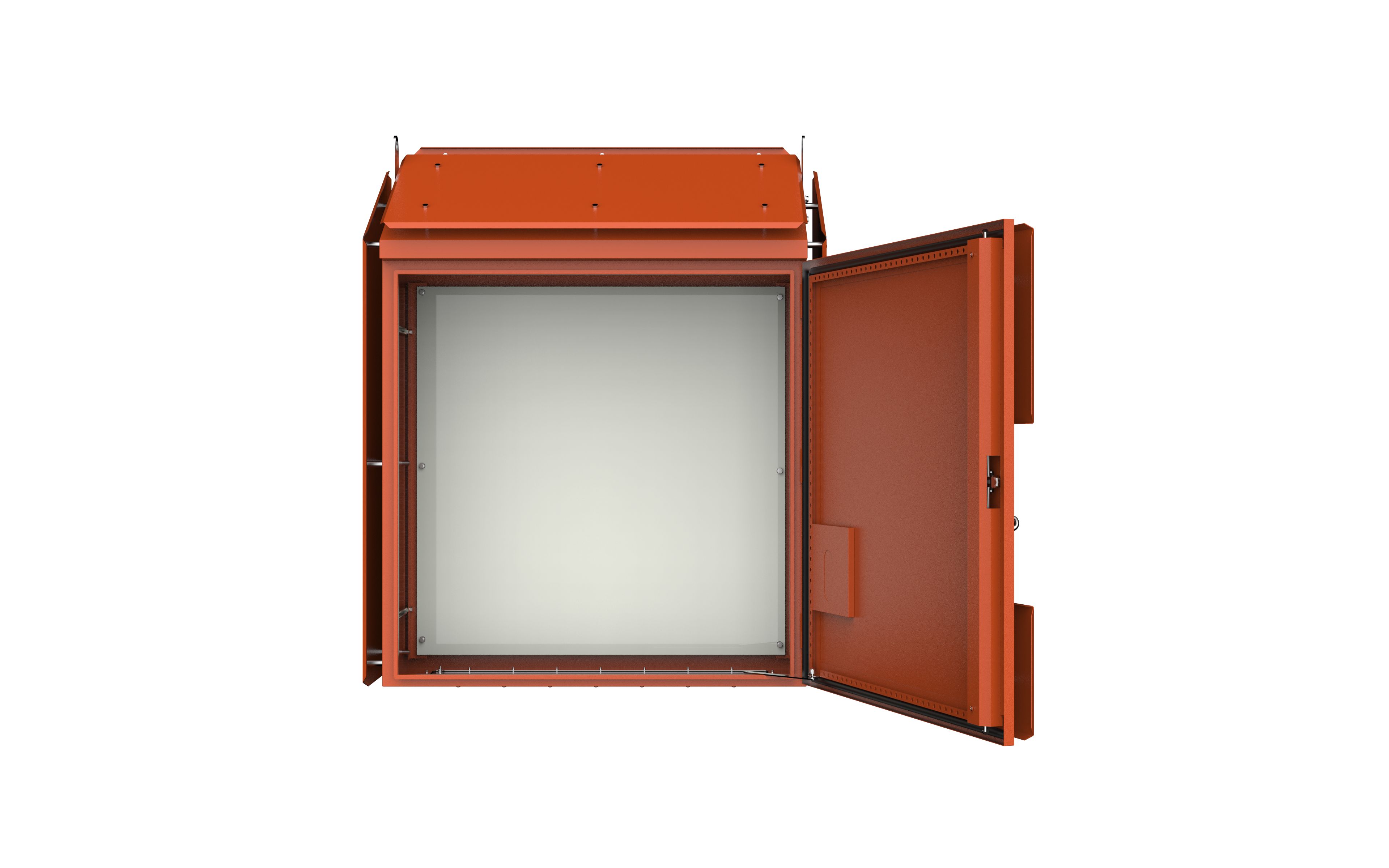

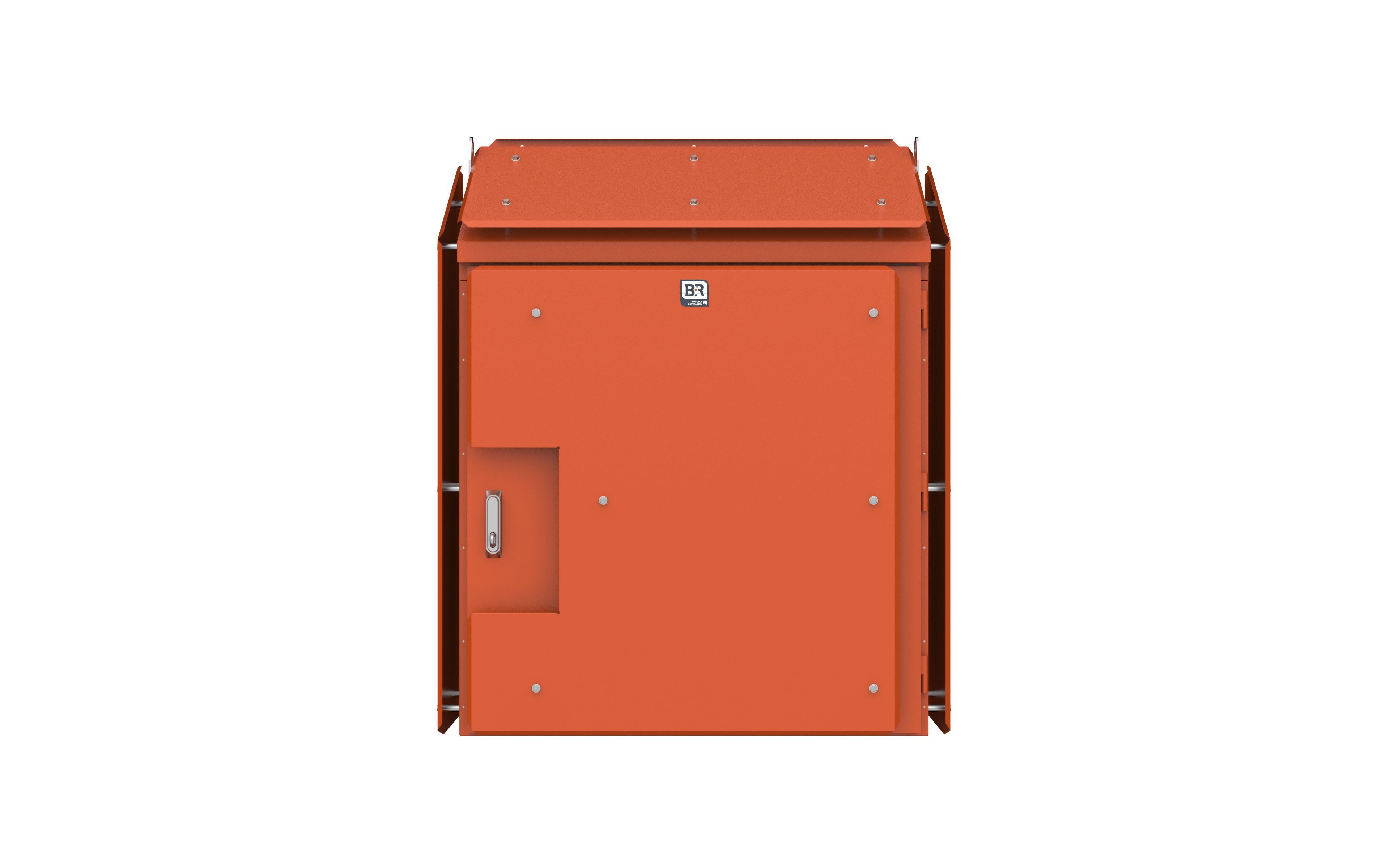

An IP66-rated, 316 stainless steel, X15 ripple orange powdercoated enclosure with a 30 degree sloping roof and sunshades, designed for rugged, dusty industrial applications. The enclosure includes a 930 x 930mm (H x W), 2mm thick metal mounting pan and a 900 x 270mm x 3mm brass gland plate with an 840 x 210mm opening. It features top, door, side and rear sunshades, top and bottom mounting flanges for frame mounting, door rails, removable doors with pintle hinges, and stainless steel padlockable swing handles (SP/LCK/S). Three-point locking with padlockable swing handles and Locksock provides additional protection against dust and water.
Part Number:
LB101040/SRO
Contact us for details
| Dimensions | 1000 x 1000 x 400mm (1368mm total height) |
|---|---|
| IP Rating | IP66 |
| Weight (kg) | 300 |
| Inclusions | 2mm steel mounting pan – 930 x 930 (HxW) – white, Door rails, Door stays, Earth strap kit, Gland Opening – 840 x 210mm gland opening with 3mm thick brass plate, Stainless steel padlockable swing handle (SP/LCK/S), Sunshades |
| Approvals | AS/NZS 61439, Lloyds Register Certified |
| Construction | Body – 1.5mm 316 Stainless Steel, X15 Ripple Orange |
