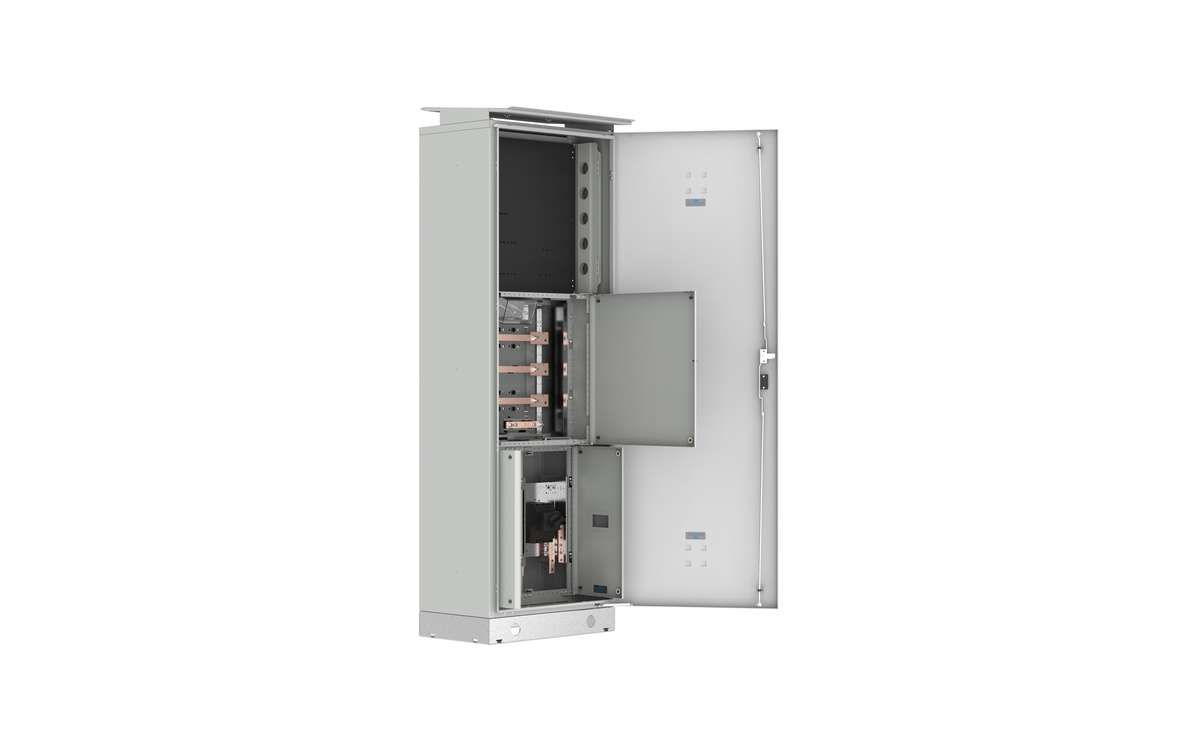

A modular switchboard (up to 630A) suitable for multiple tenancy and domestic and commercial installations.
| Part No. | Height (mm) | Width (mm) | Depth (mm) | Material | Colour |
|---|---|---|---|---|---|
| TGX6M3P | 2170 | 670 | 450 | Zinc Coated Steel | RAL7035 |
| TGX6M3P/NCW | 2170 | 670 | 450 | Zinc Coated Steel | RAL7035 |
| TGX6M3P/QCW | 2170 | 670 | 450 | Zinc Coated Steel | RAL7035 |
| TGXN12M1P | 1970 | 1070 | 480 | Zinc Coated Steel | RAL7035 |
| TGXN12M1P/CW | 1970 | 1070 | 480 | Zinc Coated Steel | RAL7035 |
| TGXNCT250 | 2240 | 670 | 480 | Zinc Coated Steel | RAL7035 |
| TGXNCT250/CW | 2240 | 670 | 480 | Zinc Coated Steel | RAL7035 |
| TGXNCT630 | 2040 | 1070 | 480 | Zinc Coated Steel | RAL7035 |
| TGXQ10M1P | 1270 | 1070 | 480 | Zinc Coated Steel | RAL7035 |
| TGXQ10M1P/CW | 1270 | 1070 | 480 | Zinc Coated Steel | RAL7035 |
| TGXQCT250 | 2240 | 670 | 480 | Zinc Coated Steel | RAL7035 |
| TGXQCT250/CW | 2240 | 670 | 480 | Zinc Coated Steel | RAL7035 |
| TGXQCT630 | 2240 | 1070 | 480 | Zinc Coated Steel | RAL7035 |
| TGXS11M1P | 1970 | 670 | 480 | Zinc Coated Steel | RAL7035 |
| TGXV12M1P | 1270 | 1070 | 430 | Zinc Coated Steel | RAL7035 |
| TGXV12M1P/CW | 1270 | 1070 | 430 | Zinc Coated Steel | RAL7035 |
| TGXVCT160 | 2240 | 670 | 430 | Zinc Coated Steel | RAL7035 |
| TGXVCT160/CW | 2240 | 670 | 430 | Zinc Coated Steel | RAL7035 |
| TGXVCT160/CWSPD | 2240 | 670 | 430 | Zinc Coated Steel | RAL7035 |
