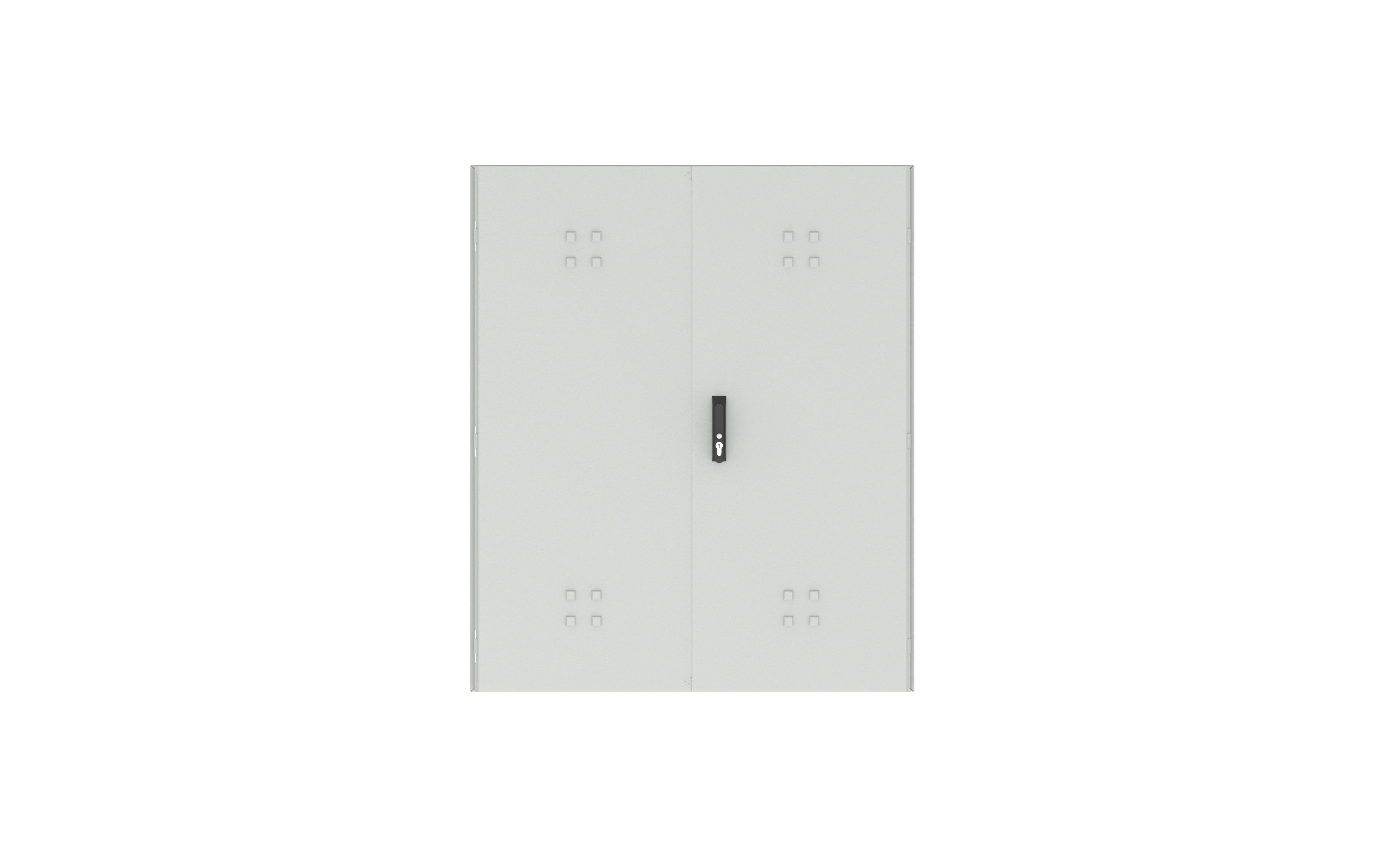

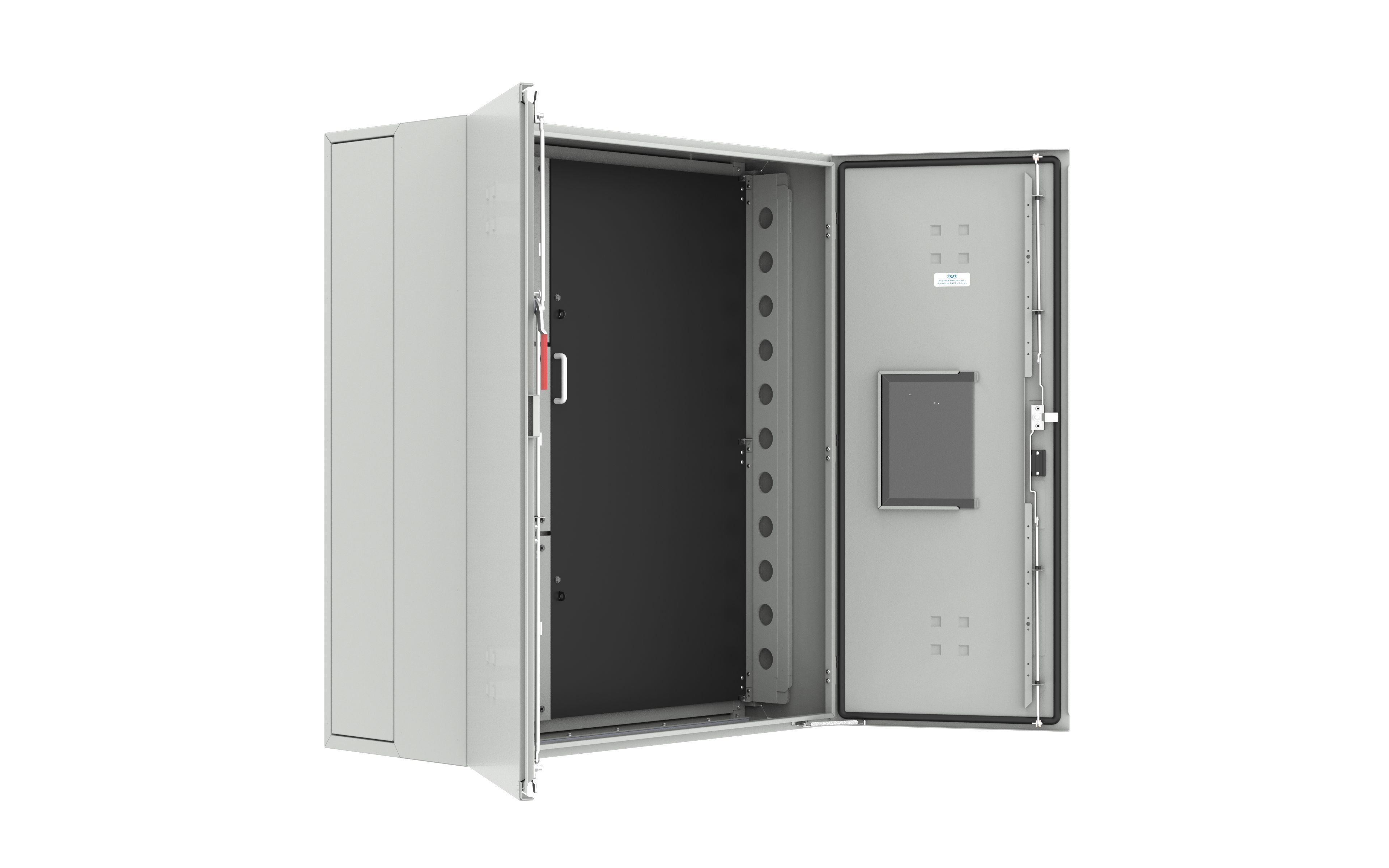

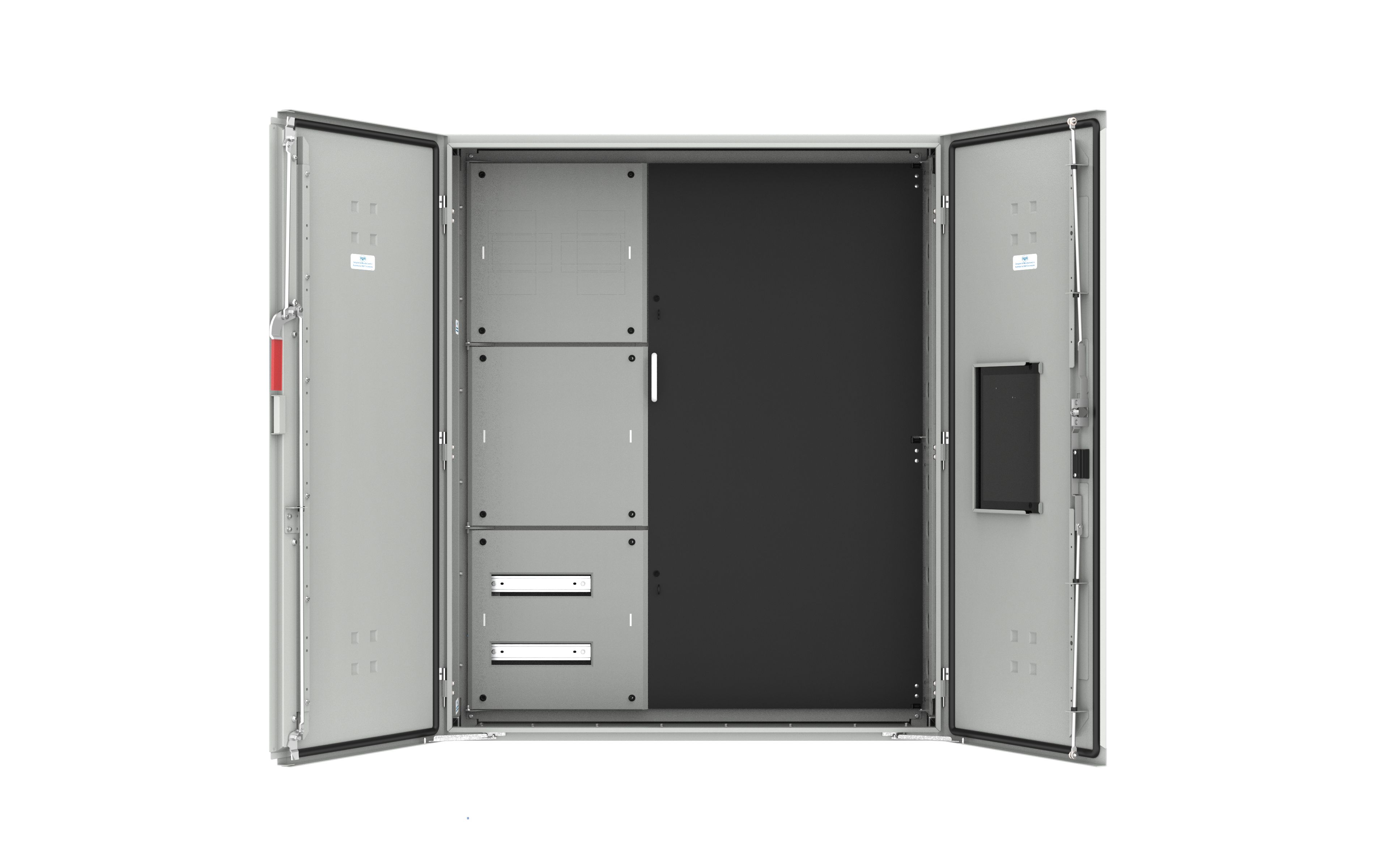

Infinity 3G – 1270Hx1070Wx480D made from Zinc Coated Steel and rated to IP66. A pre-configured enclosure suitable for metering or power distribution in Queensland with all metalware assembled. This unit can be plinth mounted on an optional 100mm high plinth and is suitable for up to 10 x single phase or 6 x 3 phase or 7 x dual tariff with 3 x network devices. There is Space for Schneider MCCB Max 250A main switch section and a submain section containing 24-pole DIN (no devices included).
Part Number:
TGXQ10M1P
Error: Unable to load accounts at this time.
| IP Rating | IP66 |
|---|---|
| Inclusions | 3-point locking, 3mm aluminium gland plate, Available metering configurations – 10 x single phase or 6 x 3 phase or 7 x dual tariff with 3 x network devices, Document Holder, Main Switch Section – Space for Schneider MCCB Max 250A, Multiple Earth Neutral provided, Recessed padlockable swing handle keyed 92268, Stainless Steel Door Hinges, Sub Main Section – 24-pole DIN (no devices included), Typical Incomer (mm2) – 95, Wall mounting points |
| Approvals | AS/NZS 61439, IP66 Region C AS1170.2-2002: Structural design actions – Wind actions |
| Construction | Body – 1.6mm Zinc Coated Steel, RAL7035 powdercoated, Solid Steel Hinged Double Doors |
| Material | Zinc Coated Steel |
| Colour | RAL7035 |
