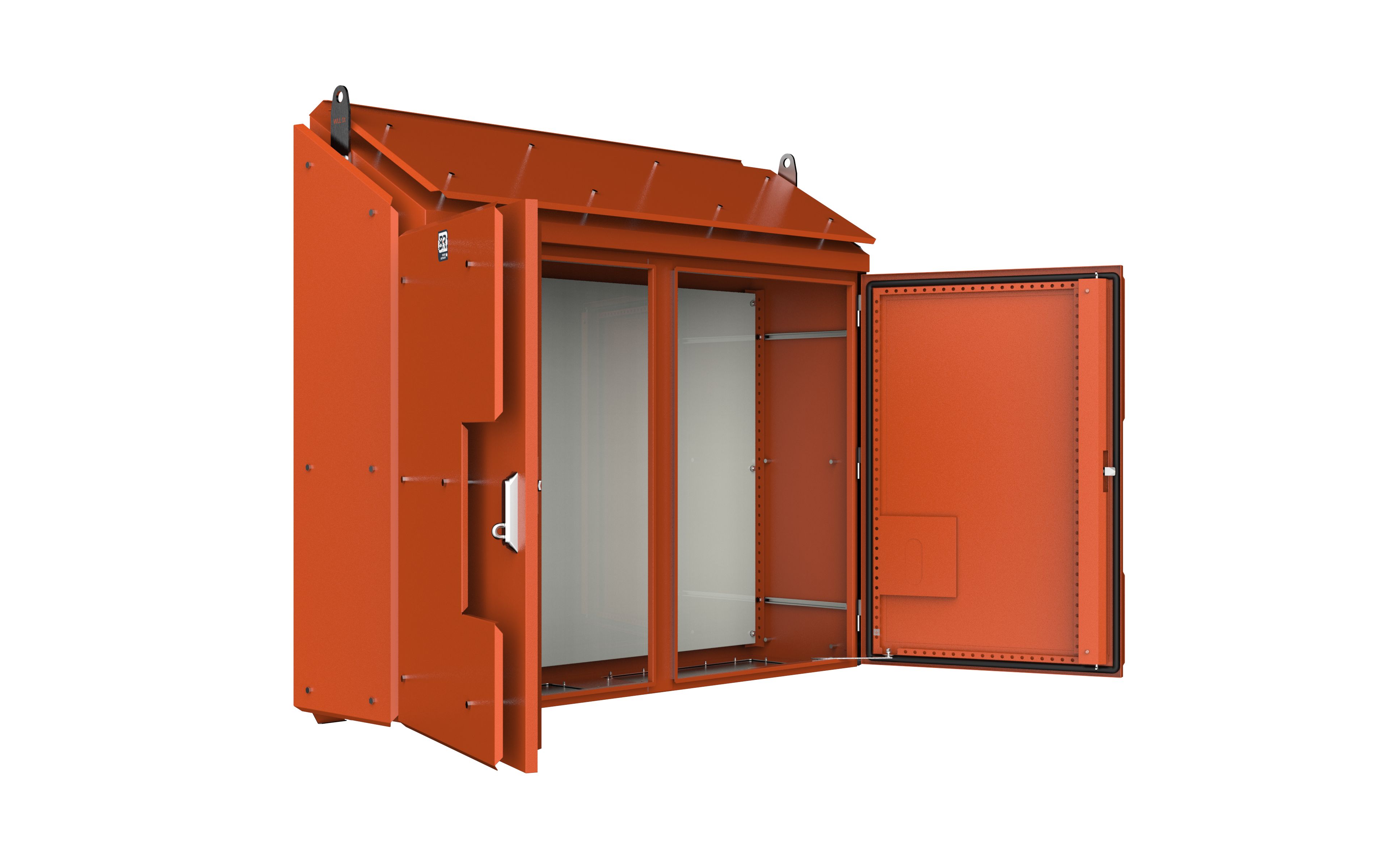

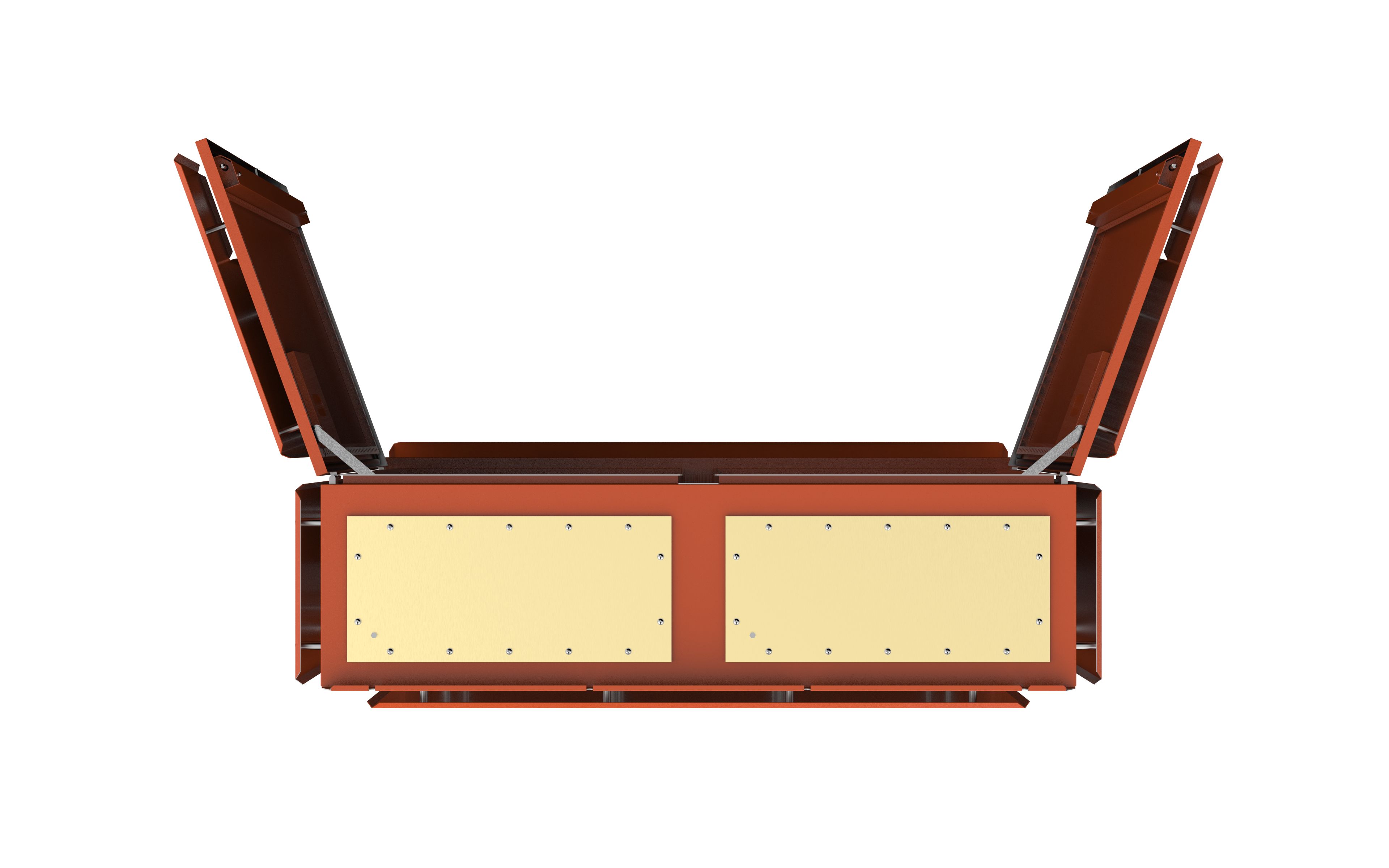

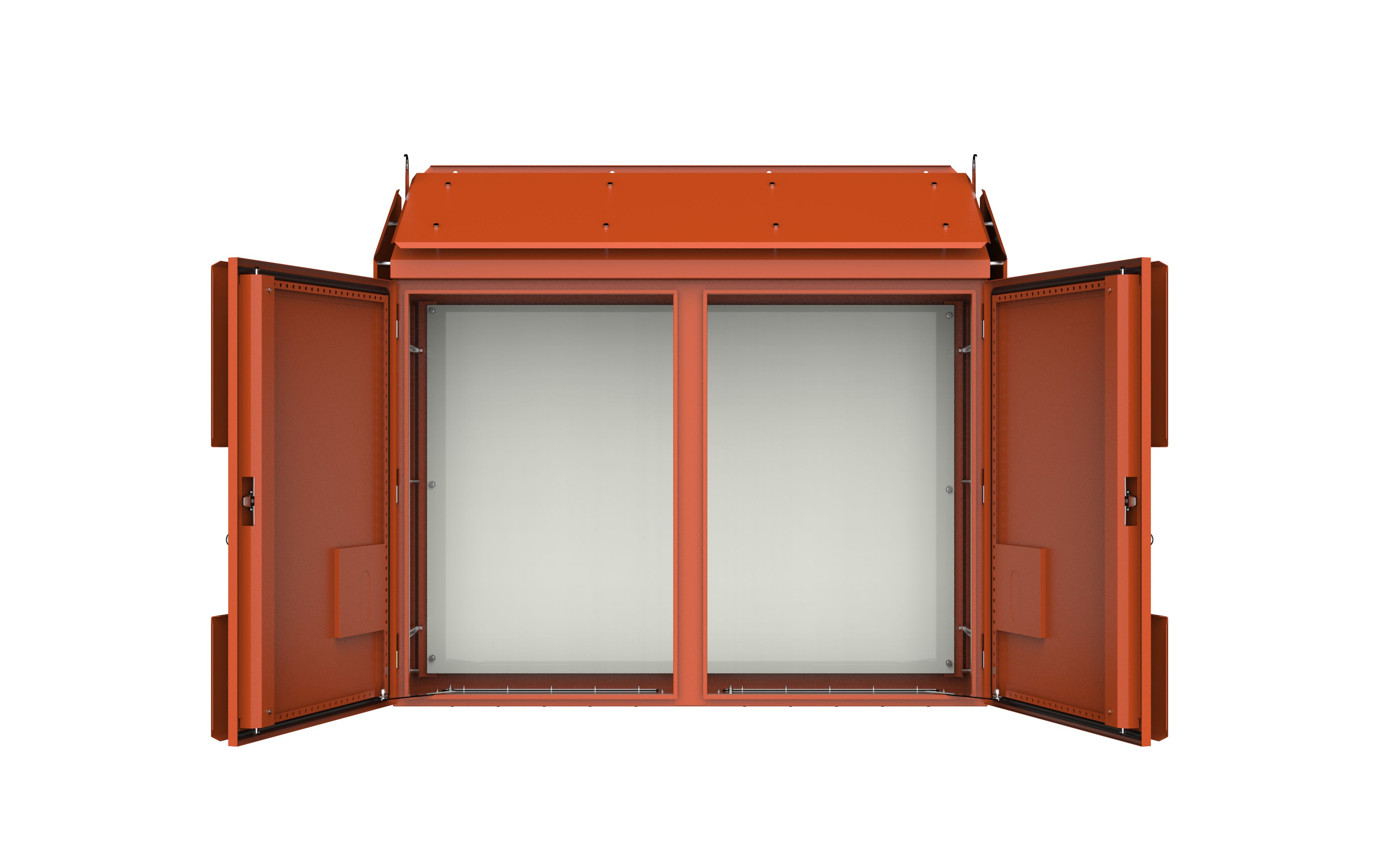

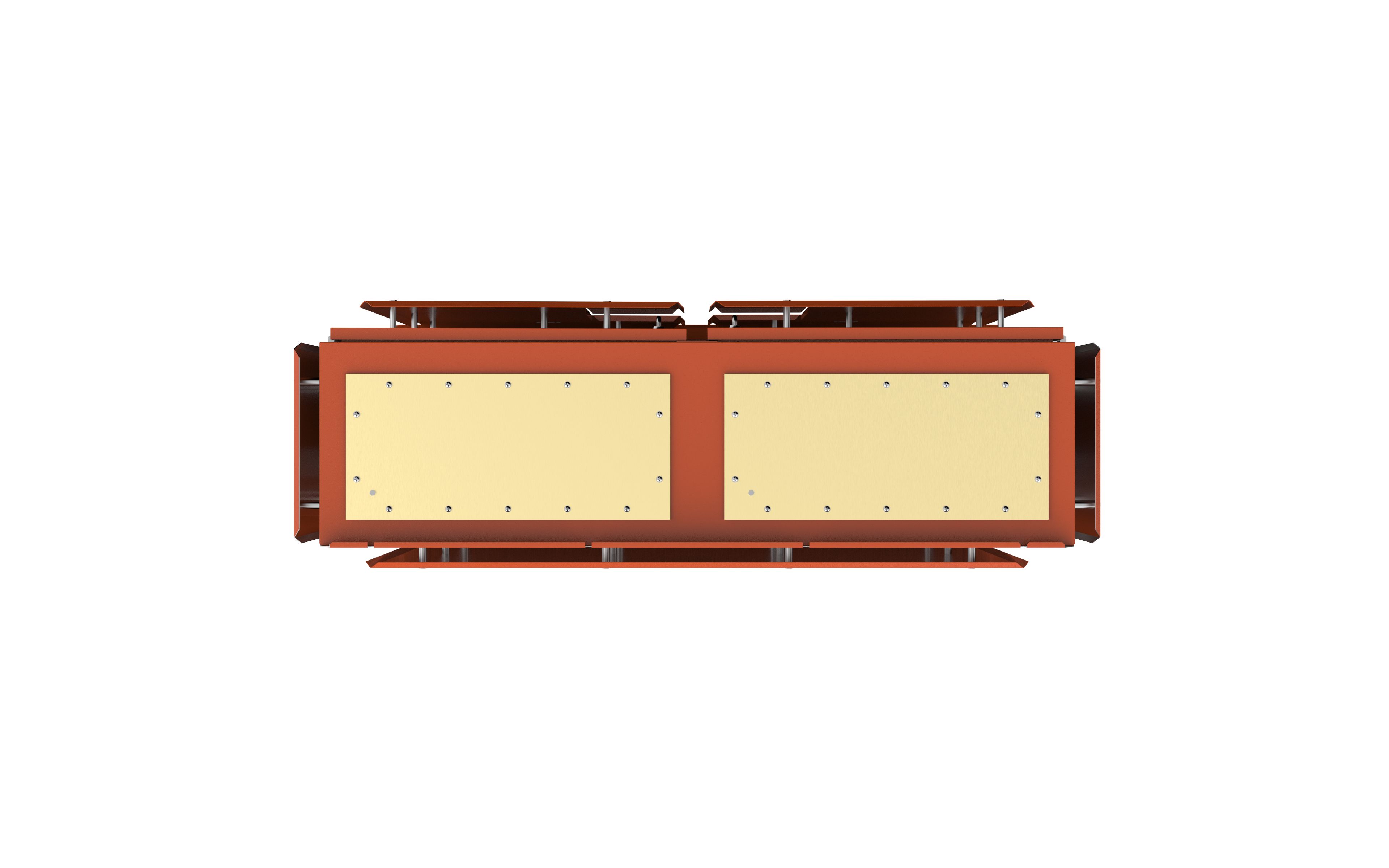

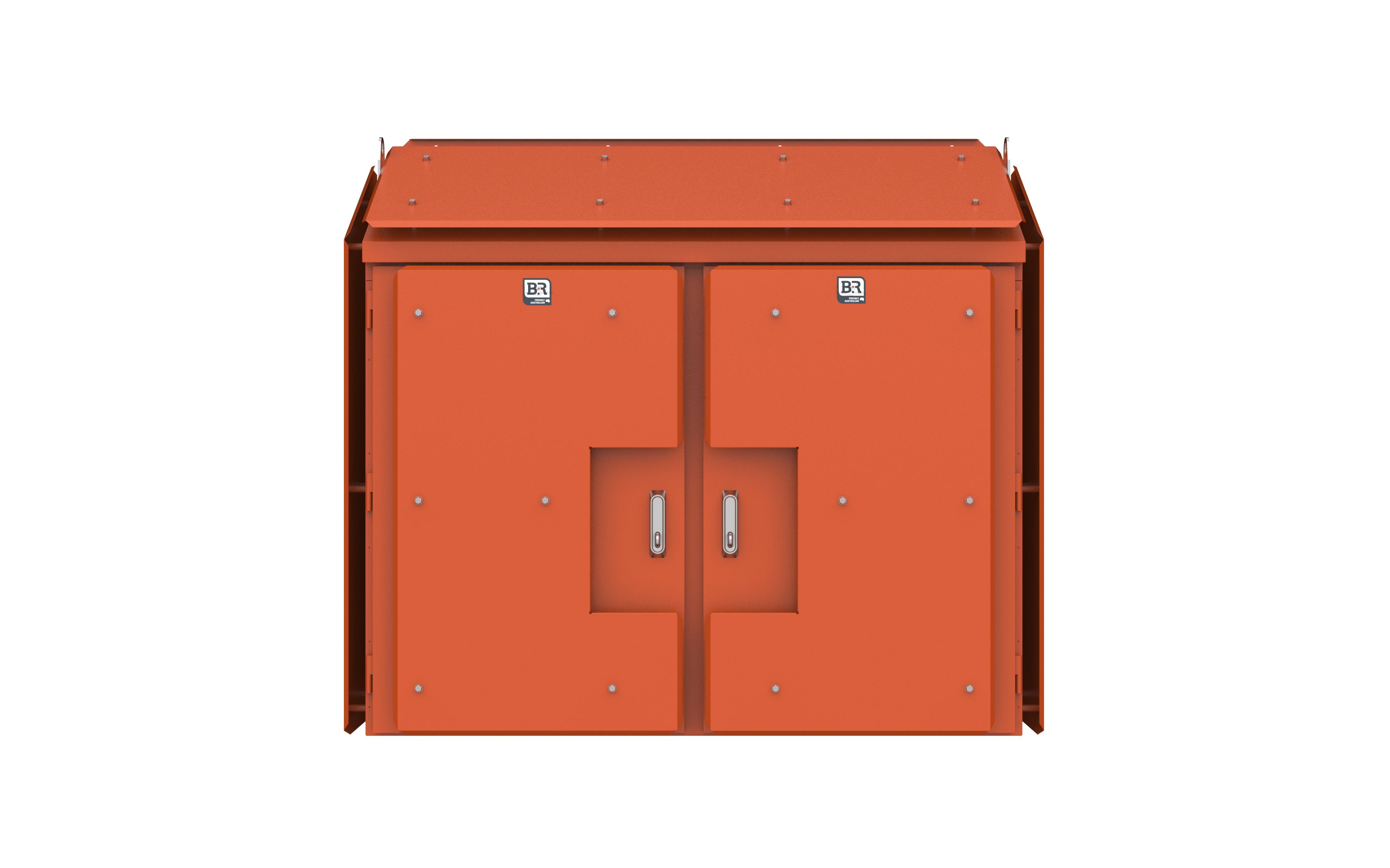

An IP66-rated, 316 stainless steel, X15 ripple orange powder-coated double-door enclosure with a 30 degree sloping roof and sunshades, desiged for rugged, dusty industrial applications. It includes a 2mm thick 930 x 1330mm (H x W) metal mounting pan, two 3mm thick 600 x 270mm brass gland plates with 540 x 210mm openings, mounting flanges, door rails and removable doors with pintle hinges. Features include stainless steel padlockable swing handles (SP/LCK/S) with three-point locking.
Part Number:
LB101440/SRO
We are building more as we speak
Contact us for lead time
| Dimensions | 1000 x 1400 x 400mm (1368mm total height) |
|---|---|
| IP Rating | IP66 |
| Weight (kg) | 320 |
| Inclusions | 2mm steel mounting pan – 930 x 1330 (HxW) – white, Door rails, Door stays, Earth strap kit, Gland Opening – 540 x 210mm (2 of) gland opening with 3mm thick brass plates, Stainless steel padlockable swing handle (SP/LCK/S) – 2 of, Sunshades |
| Approvals | AS/NZS 61439, Lloyds Register Certified |
| Construction | Body – 1.5mm 316 Stainless Steel, X15 Ripple Orange |
Lockable Power Case, a segregated area inside an enclosure that is used to prevent contact with live parts. 233H x 215W x 167D and complete with a Lockable Wing Knob, Gas Strut and manufactured from 1.6mm thick Zinc Coated Steel, Powdercoated Pearl White Gloss
Lockable Power Case, a segregated area inside an enclosure that is used to prevent contact with live parts. 233H x 315W x 167D and complete with a Lockable Wing Knob, Gas Strut and manufactured from 1.6mm thick Zinc Coated Steel, Powdercoated Pearl White Gloss
Lockable Power Case, a segregated area inside an enclosure that is used to prevent contact with live parts. 233H x 615W x 167D and complete with a Lockable Wing Knob, Gas Strut and manufactured from 1.6mm thick Zinc Coated Steel, Powdercoated Pearl White Gloss
