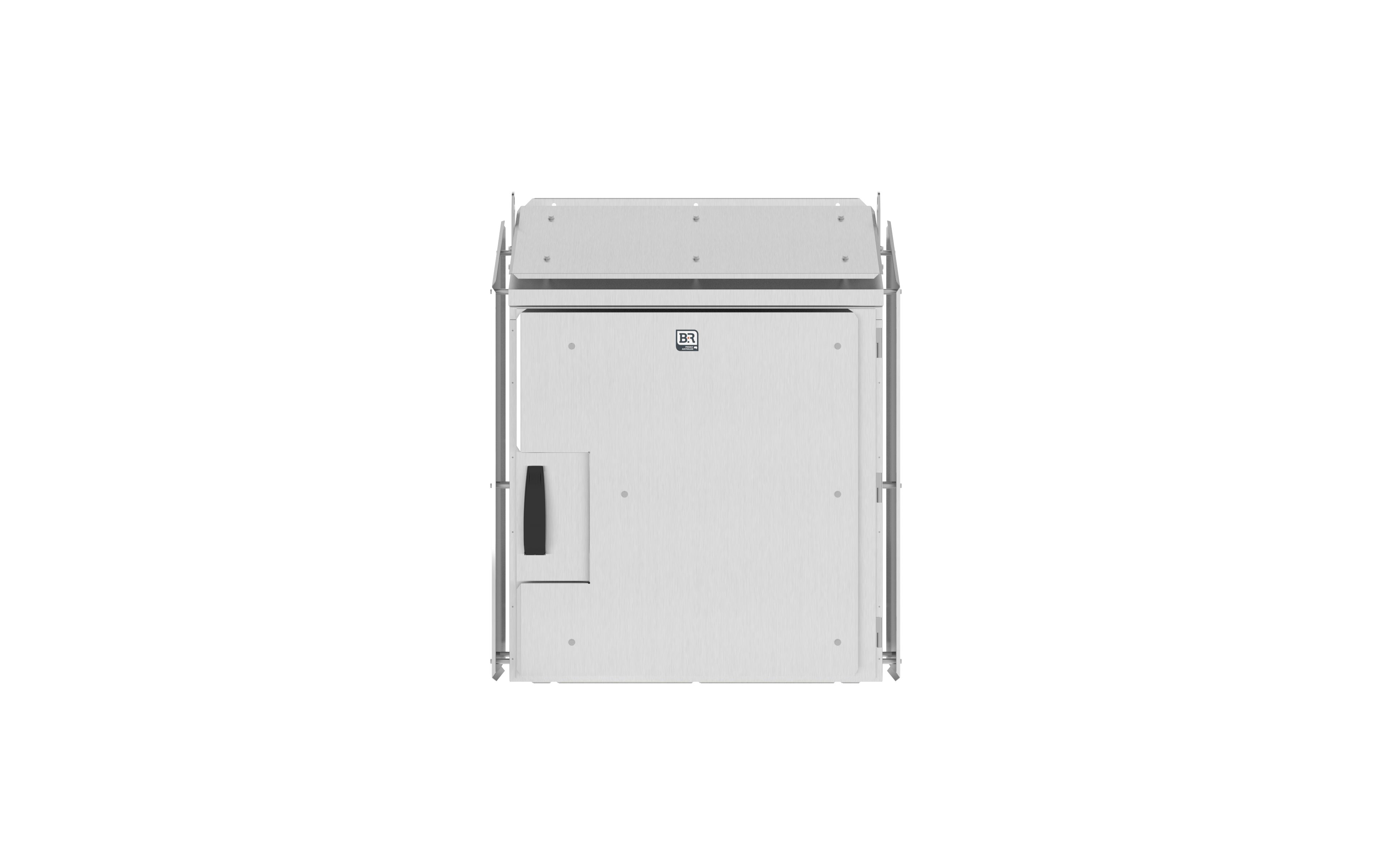

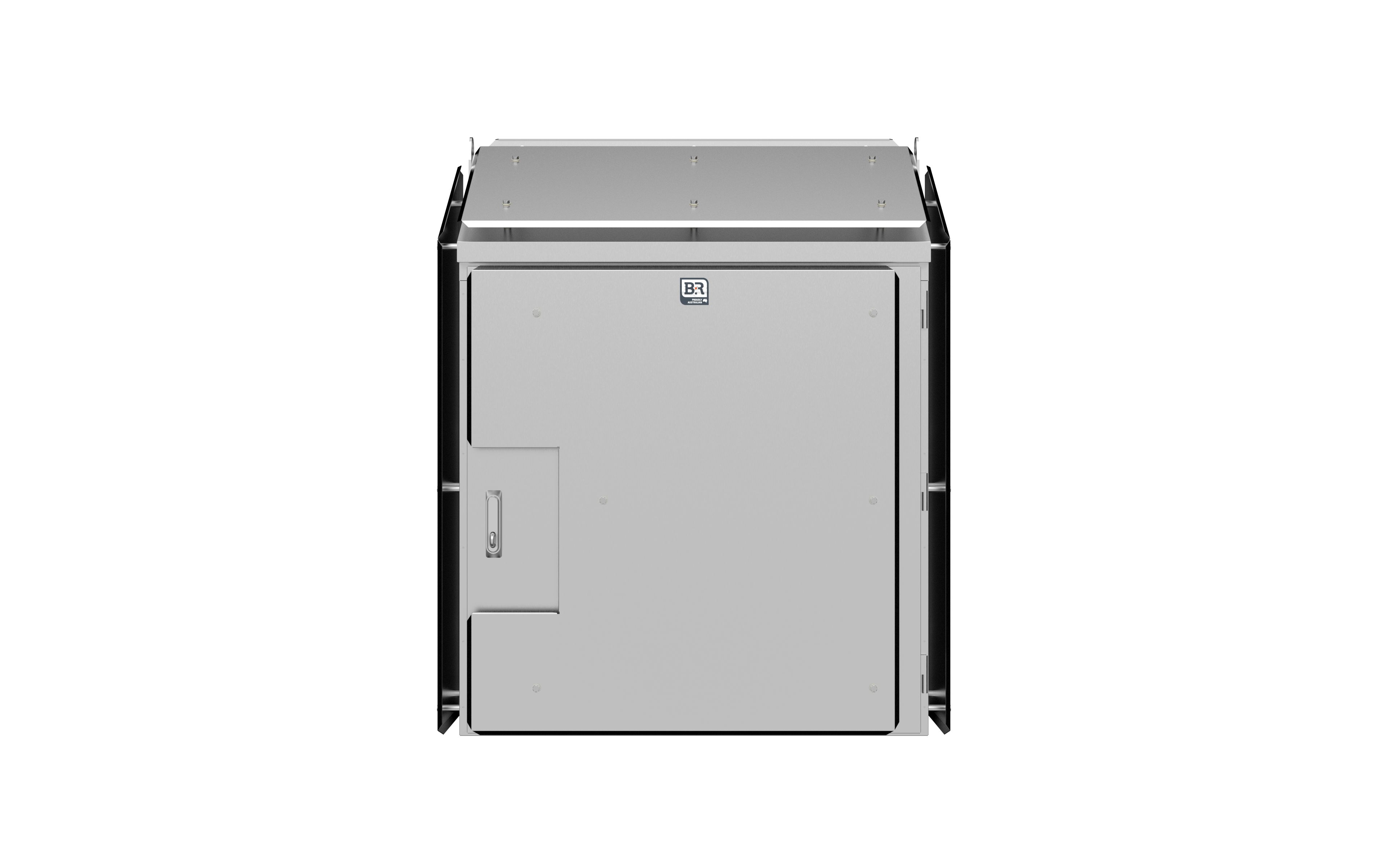

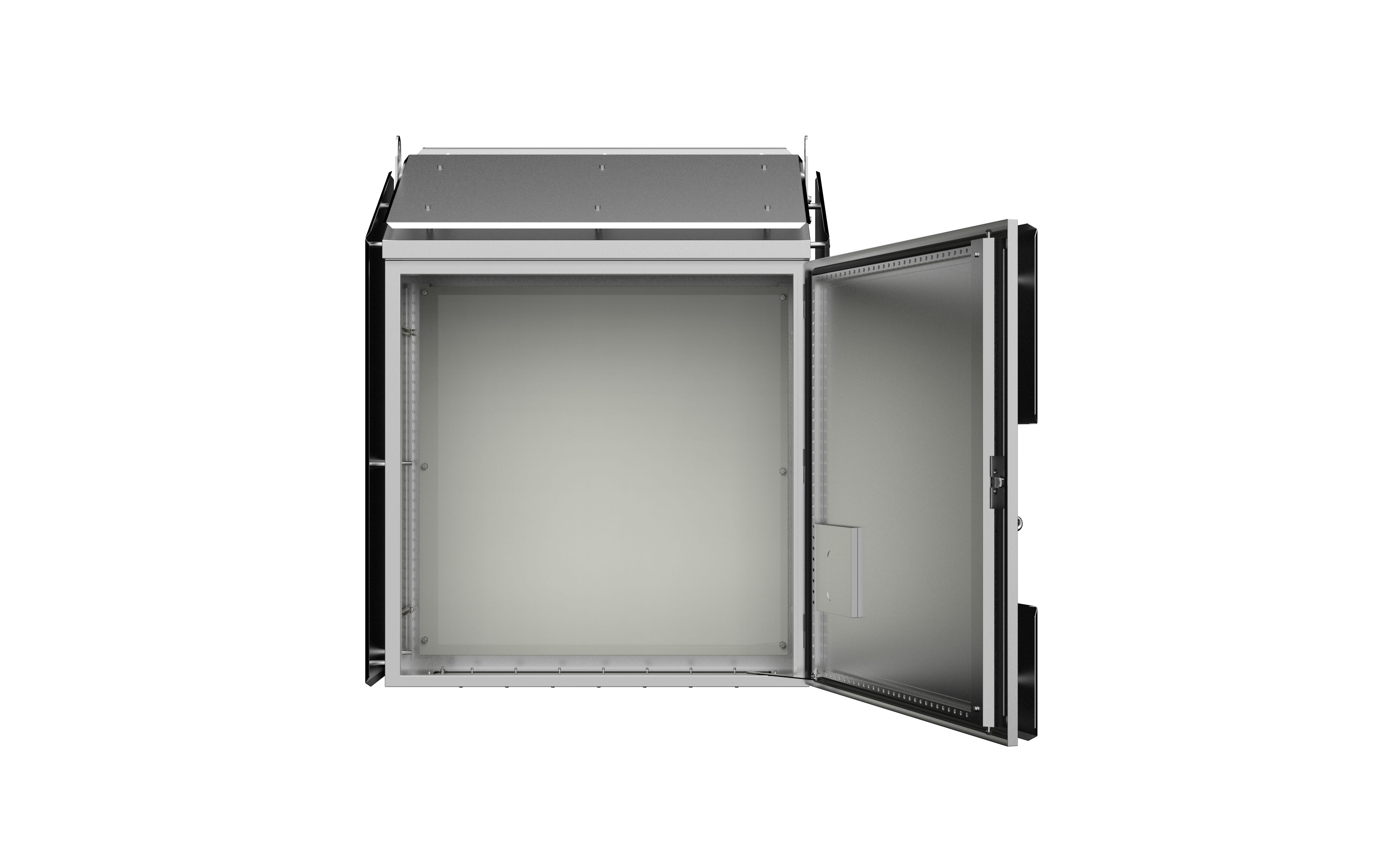

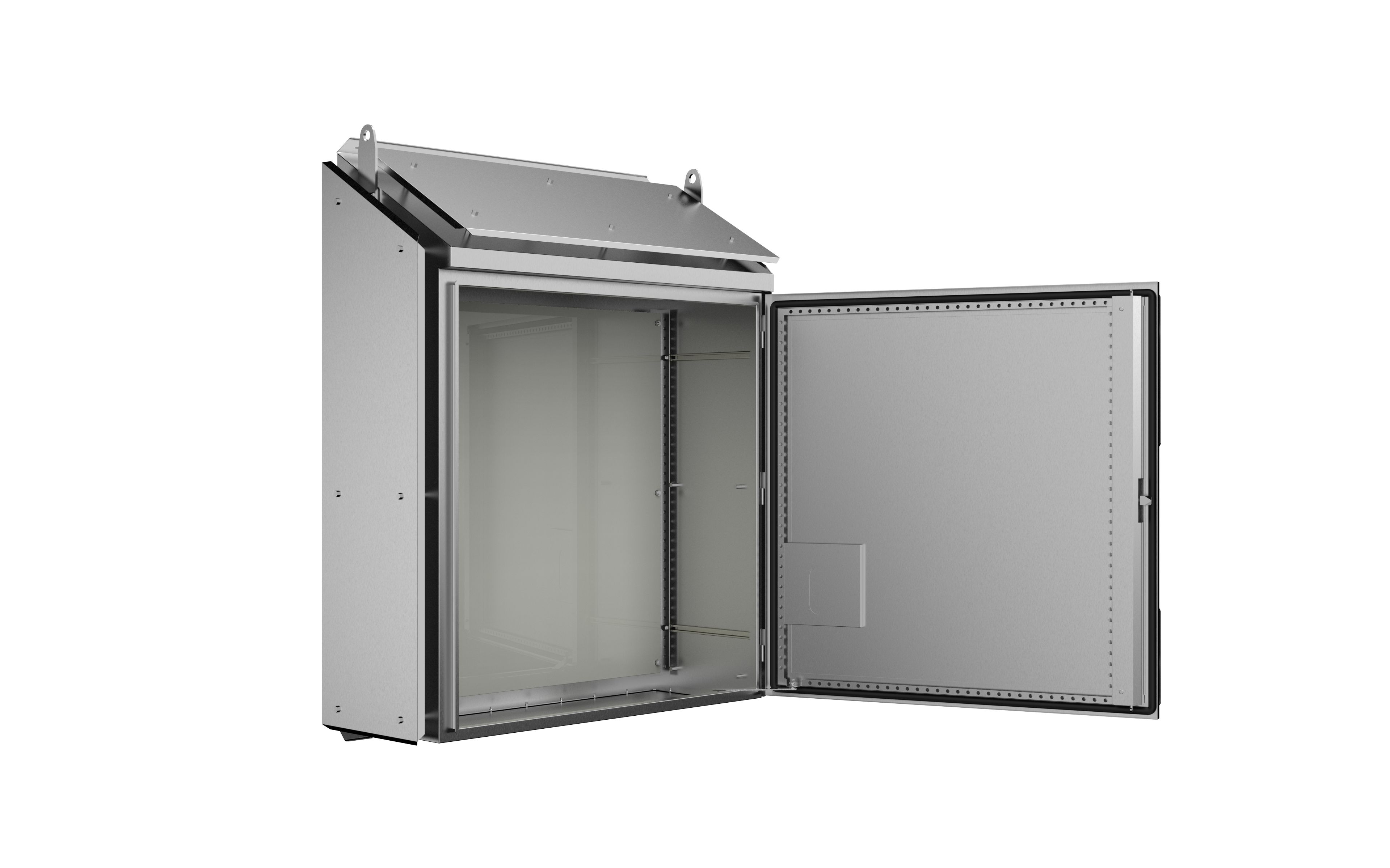

An IP66, 316 stainless steel, 30 degree sloping roof enclosure with sunshades designed for rugged, dusty industrial applications. The enclosure comes complete with a metal 930 x 930 (HxW) – 2mm thick mounting pan and 900 x 270mm x 3mm brass gland plate (840 x 210mm opening). The enclosure comes complete with top, door, sides and rear sunshades, top and bottom mounting flanges for frame mounting, door rails, stainless steel padlockable swing handle (SP/LCK/S) removable doors (with pintle hinges) and 3 point locking with padlockable swing handles and Locksock for dust and water protection.
Part Number:
LB101040/S
Error: Unable to load accounts at this time.
| Dimensions | 1000 x 1000 x 400mm (1368mm total height) |
|---|---|
| IP Rating | IP66 |
| Weight (kg) | 300 |

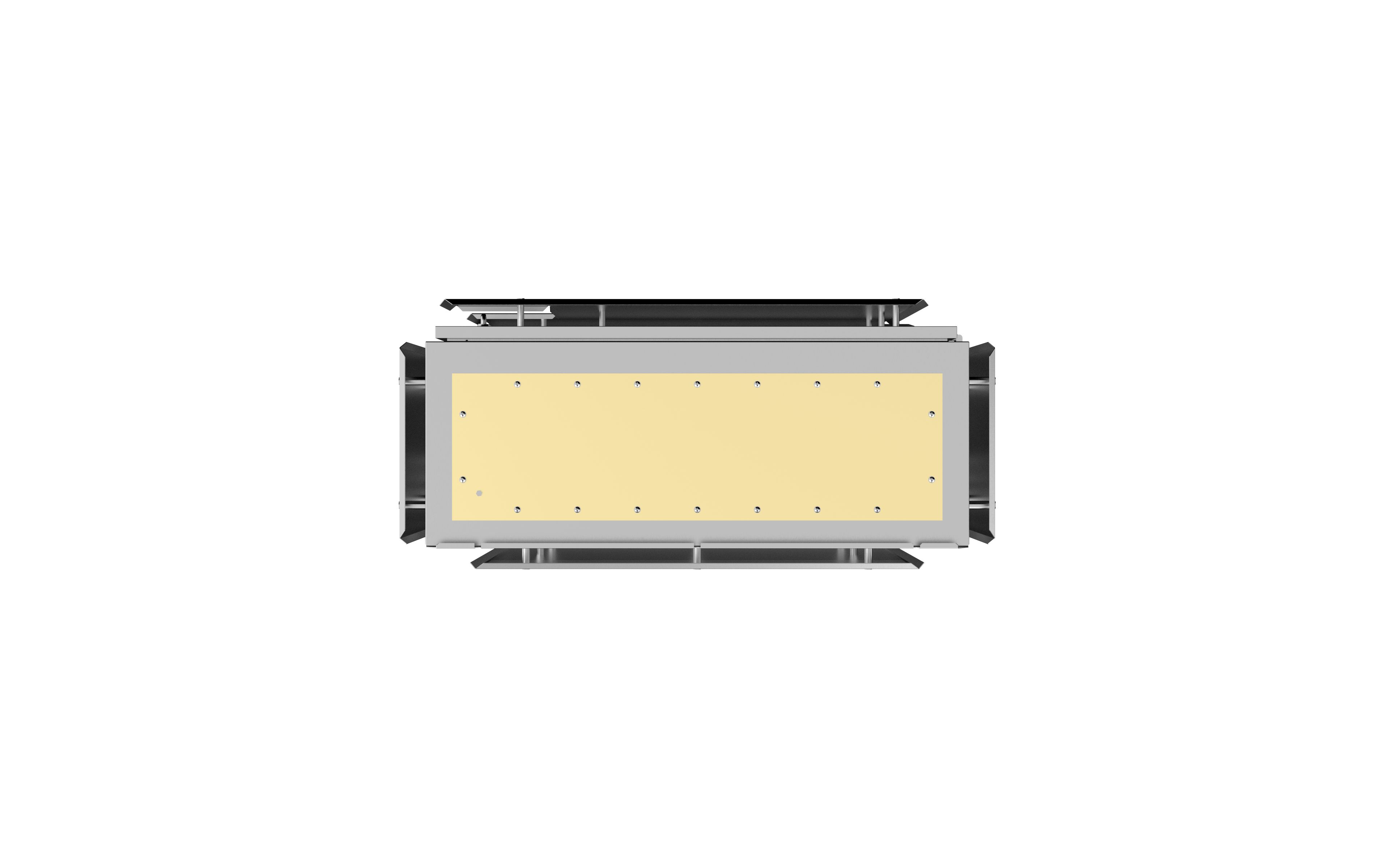

| Inclusions | 2mm steel mounting pan – 930 x 930 (HxW) – white, Door rails, Door stays, Earth strap kit, Gland Opening – 840 x 210mm gland opening with 3mm thick brass plate, Stainless steel padlockable swing handle (SP/LCK/S), Sunshades |
| Approvals | AS/NZS 61439, Lloyds Register #06/10007 (E2) |
| Construction | Body – 1.5mm 316 Stainless Steel, N4 Surface Finish |
