Cabinet – QLD ITS – MRTS226 Queensland ITS Cabinet – FEQ180906/A

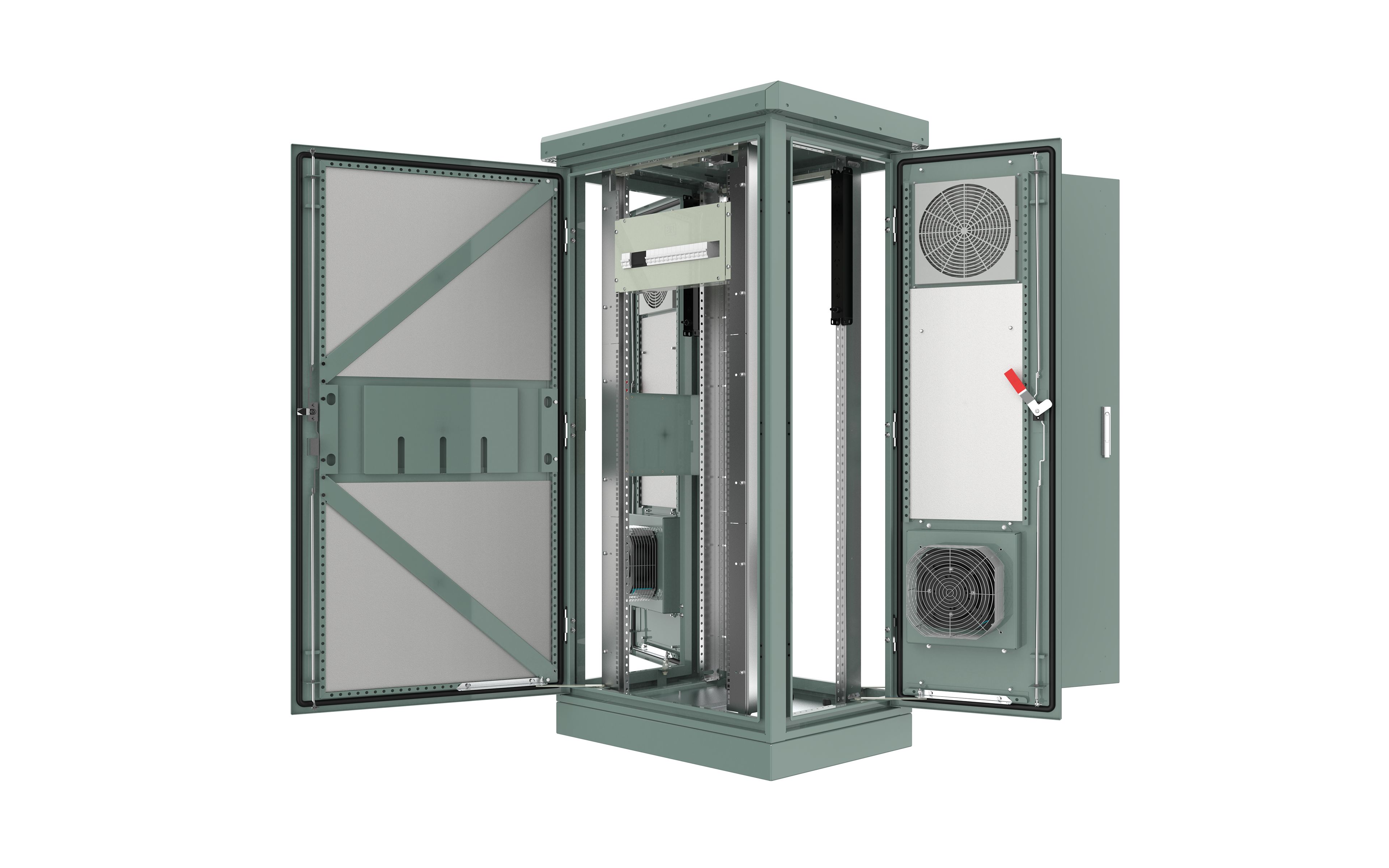

Cabinet - QLD ITS - MRTS226 Queensland ITS Cabinet - FEQ180906/A - 1

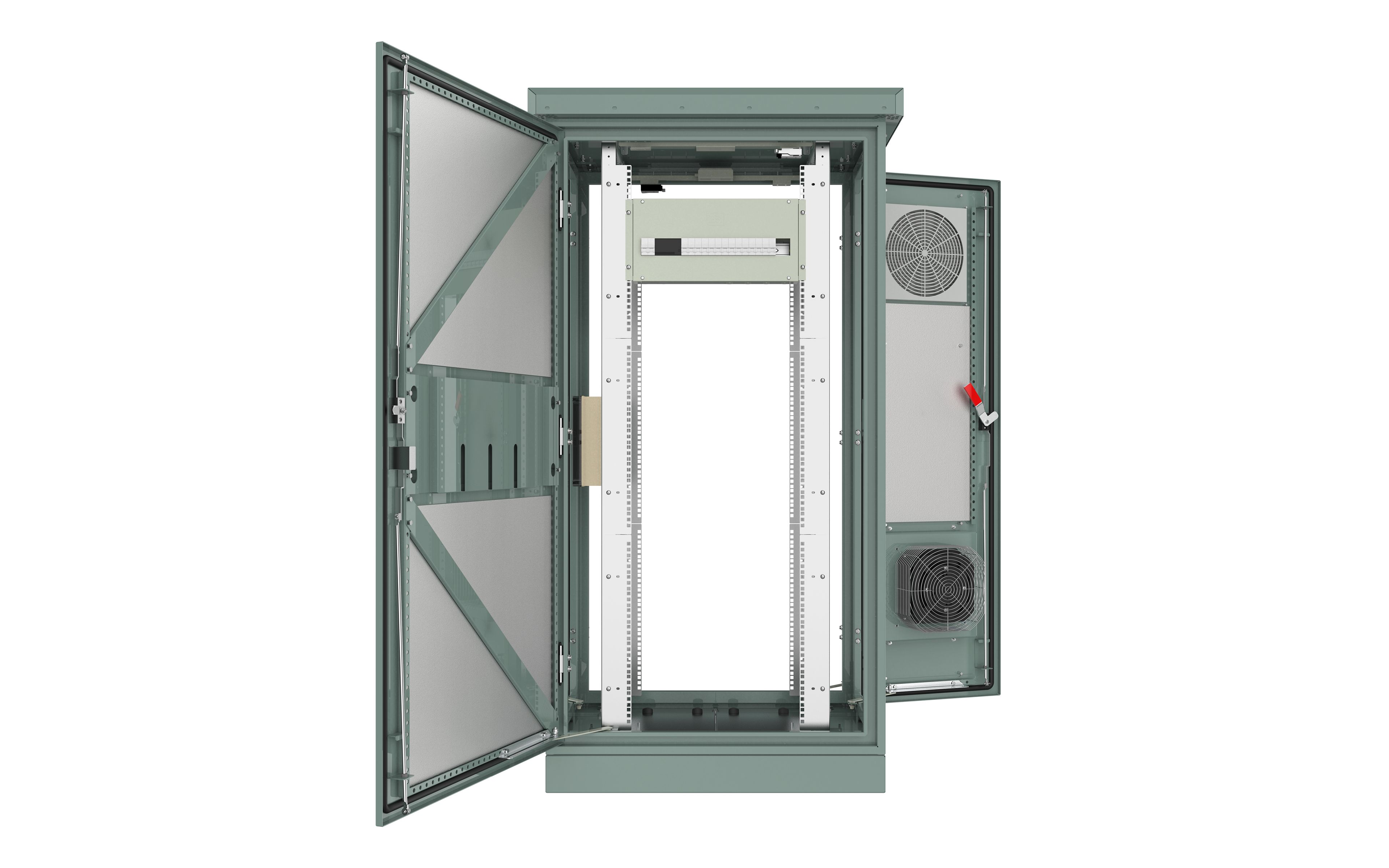

Cabinet - QLD ITS - MRTS226 Queensland ITS Cabinet - FEQ180906/A - 3

Designed and manufactured in Australia to meet the requirements of QLD MRTS226 Telecommunication Field Cabinets, this IP56-rated Queensland ITS cabinet is weather and vandal resistant and third-party tested for compliance. Constructed from 2mm 5052 H32 marine-grade aluminium with concealed stainless steel hinges and three-point locking, it features a removable sloped sun canopy, fan ventilation tested for heat loads up to 500W, and a two-part gland plate for cable access. Measuring 1850H x 900W x 620D, the cabinet is supplied with a stainless steel mounting base and includes adjustable 31RU 19-inch equipment rails, power distribution, rack-mounted load centre, front and rear lighting, and fixed and telescopic equipment shelves.

Part Number:

FEQ180906/A

Add to quote

Download PDF of this page

Details

Dimensions	1850 x 900 x 620mm
Inclusions	19inch rack rails (adjustable to 21inch), 5RU rack mounted load centre, Cable management, Concealed lifting eyebolts, Document Holder, Enclosure light (front and rear), Fixed equipment shelf, Hinged front and rear doors fitted with 3-point locking bars and stiffeners, Hinged side panels fitted with a 3-point internal lock and stiffeners, Main termination – access via the side door, Power distribution unit (PDU), Stainless steel hinges, Sun canopy, Swing handle locks with half Euro profile locking cylinders complete with 2 keys, Telescopic equipment shelf, Two part gland plates for easy cable installation, Ventilation fans and filters
Approvals	Australian Standards, EIA-310-D Compliant, Product Approval Certificate ITS and Electrical Equipment Certificate No:22-34, QLD MRTS226 Telecommunication Field Cabinet, SSI Compliant
Construction	100mm high 3mm thick stainless steel mounting base, 19 / 21 inch Rails, 2mm Aluminium, 4 rail, Adjustable rail position, Aluminium gland plate – 2 part for easy cable installation, Concealed Hinge door fitted with 3-point locking bars, Eye bolts – concealed, Powdercoated T33 Smoke Blue Gloss, Side panels – hinged with 3-point locking, Stainless Steel Swing Handle with 3-point locking (half euro profile locking cylinder) complete with 2 keys, Sunshade roof sloped for rain run off
RU Height	31
Door Type	Concealed Hinge door fitted with 3-point locking bars

Features

Designed specifically to protect equipment from the harsh Australian conditions
Complies with the QLD MRTS226 Telecommunication Field Cabinet
Configurable for both 19 and 21 inch equipment.
Suitable for all ITS applications.
Fully wired including load centre, lighting, power rails and high flow fans
Supplied with two 6-way 10 Amp power rails
Lockable supply authority metering section (FEQ180906/A/M only)
IP56 rating for weather protection.
Tested for up to 500W heat load with the included fan & filter ventilation system.
Termination enclosure accessible via side door
3-point locking to front and rear door.
100mm stainless steel mounting base.
Sloped sun canopy to ensure rain run off
Four (4) concealed lifting lugs
Stainless steel lockable swing handle.
