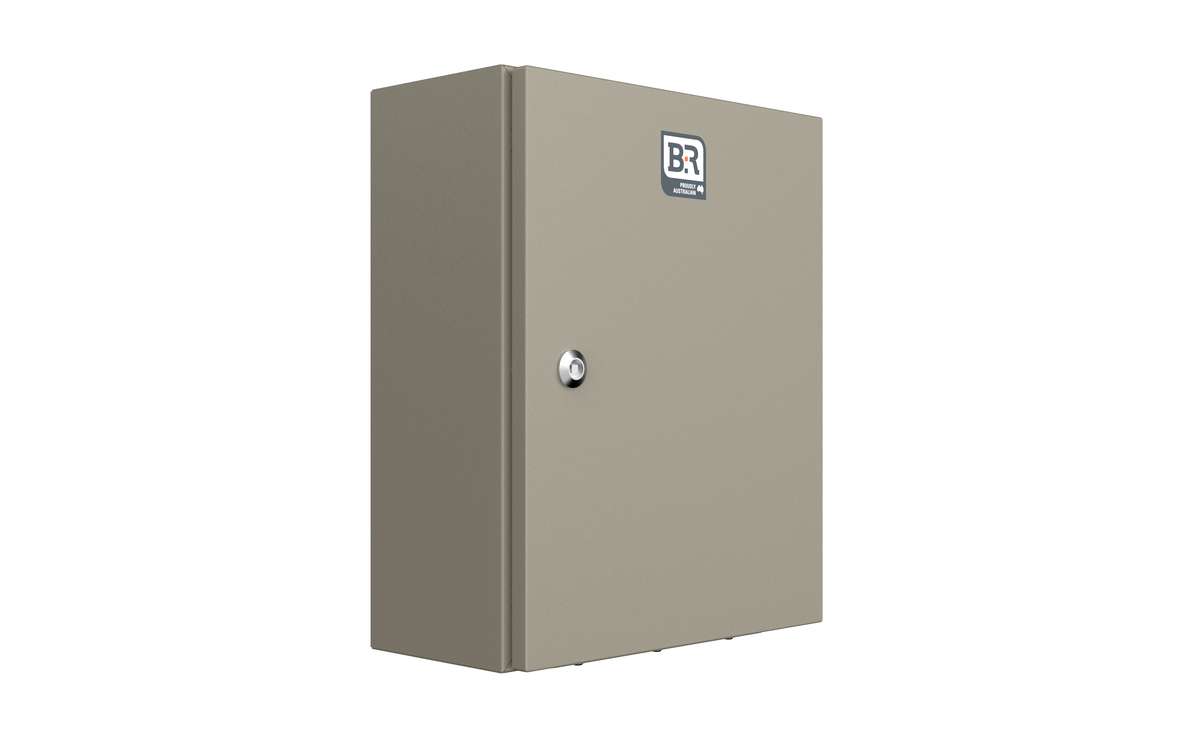

Designed to house equipment such as electronic controls and instrumentation, junction terminations, PLCs, motor control systems, hydraulic, pneumatic and machine tool controls.

Features

IP66 protection rating – more info on IP ratings
Specially designed gutter system
120º door opening provides easy access
Door rails come as standard on units 400mm high or larger
Unique wall-mount feature ensures installation is quick and easy with no need to drill holes in the enclosures body
Region D wind rated to AS1170.2-2002: Structural design actions – Wind actions
2mm steel mounting pan powdercoated white

Construction

Manufactured from 1.2mm zinc coated steel
Formed in place polyurethane gasket
Powdercoated Pebble Grey RAL7032 surface finish or X15 Orange

Also available with Viewing Window Doors

Associated Products

Part No.	Height (mm)	Width (mm)	Depth (mm)	Material	Colour
NI03021	300	200	150	Zinc Coated Steel	RAL7032
NI03021/RO	300	200	150	Zinc Coated Steel	X15 Ripple Orange
NI03031	300	300	150	Zinc Coated Steel	RAL7032
NI03031/RO	300	300	150	Zinc Coated Steel	X15 Ripple Orange
NI03041	300	400	150	Zinc Coated Steel	RAL7032
NI03041/RO	300	400	150	Zinc Coated Steel	X15 Ripple Orange
NI03042	300	400	200	Zinc Coated Steel	RAL7032
NI03042/RO	300	400	200	Zinc Coated Steel	X15 Ripple Orange
NI04032	400	300	200	Zinc Coated Steel	RAL7032
NI04032/RO	400	300	200	Zinc Coated Steel	X15 Ripple Orange
NI04042	400	400	200	Zinc Coated Steel	RAL7032
NI04042/RO	400	400	200	Zinc Coated Steel	X15 Ripple Orange
NI04043	400	400	300	Zinc Coated Steel	RAL7032
NI04043/RO	400	400	300	Zinc Coated Steel	X15 Ripple Orange
NI04062	400	600	200	Zinc Coated Steel	RAL7032
NI04062/RO	400	600	200	Zinc Coated Steel	X15 Ripple Orange
NI04063	400	600	300	Zinc Coated Steel	RAL7032
NI04063/RO	400	600	300	Zinc Coated Steel	X15 Ripple Orange
NI05042	500	400	200	Zinc Coated Steel	RAL7032
NI05042/RO	500	400	200	Zinc Coated Steel	X15 Ripple Orange
NI05052	500	500	200	Zinc Coated Steel	RAL7032
NI05052/RO	500	500	200	Zinc Coated Steel	X15 Ripple Orange
NI06042	600	400	200	Zinc Coated Steel	RAL7032
NI06042/RO	600	400	200	Zinc Coated Steel	X15 Ripple Orange
NI06043	600	400	300	Zinc Coated Steel	RAL7032
NI06043/RO	600	400	300	Zinc Coated Steel	X15 Ripple Orange
NI06062	600	600	200	Zinc Coated Steel	RAL7032
NI06062/RO	600	600	200	Zinc Coated Steel	X15 Ripple Orange
NI06063	600	600	300	Zinc Coated Steel	RAL7032
NI06063/RO	600	600	300	Zinc Coated Steel	X15 Ripple Orange
NI08062	800	600	200	Zinc Coated Steel	RAL7032
NI08062/RO	800	600	200	Zinc Coated Steel	X15 Ripple Orange
NI08063	800	600	300	Zinc Coated Steel	RAL7032
NI08063/RO	800	600	300	Zinc Coated Steel	X15 Ripple Orange
NI08083	800	800	300	Zinc Coated Steel	RAL7032
NI08083/RO	800	800	300	Zinc Coated Steel	X15 Ripple Orange
NI10062	1000	600	200	Zinc Coated Steel	RAL7032
NI10062/RO	1000	600	200	Zinc Coated Steel	X15 Ripple Orange
NI10063	1000	600	300	Zinc Coated Steel	RAL7032
NI10063/RO	1000	600	300	Zinc Coated Steel	X15 Ripple Orange
NI10083	1000	800	300	Zinc Coated Steel	RAL7032
NI10083/RO	1000	800	300	Zinc Coated Steel	X15 Ripple Orange
NI12083	1200	800	300	Zinc Coated Steel	RAL7032
NI12083/RO	1200	800	300	Zinc Coated Steel	X15 Ripple Orange
