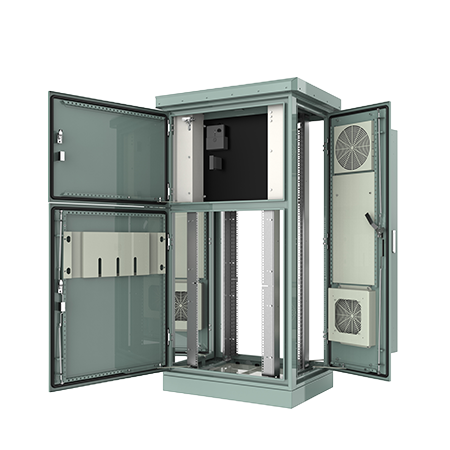

QLD ITS Enclosure

Applications

The substantial growth in infrastructure in Australia, and the requirement to protect electronic equipment in outdoor or isolated locations has led to the need for a flexible enclosure. Protection against vandalism and the functionality of the system are two of the major considerations when selecting an enclosure for isolated environments. B&R’s range of enclosures have been designed specifically to minimise vandalism. The flexibility of this range allows it to be used in a variety of applications including:

• Housing of intelligent transport systems (ITS) equipment
• GPS receivers and transmitters
• Road monitoring and traffic management equipment
• Radio communications equipment

Features

• Designed specifically to protect equipment from the harsh Australian conditions
• Complies with the QLD MRTS226 Telecommunication Field Cabinet
• Configurable for both 19″ and 21″ equipment.
• Suitable for all ITS applications.
• Fully wired including load centre, lighting, power rails and high flow fans
• Supplied with two 6-way 10 Amp power rails
• Lockable supply authority metering section (FEQ180906/A/M only)
• IP56 rating for weather protection.
• Tested for up to 500W heat load with the included fan & filter ventilation system.
• Termination enclosure accessible via side door
• 3-point locking to front and rear door.
• 100mm stainless steel mounting base.
• Sloped sun canopy to ensure rain run off
• Four (4) concealed lifting lugs
• Stainless steel lockable swing handle.

Construction

• Manufactured from 2mm 5052 H32 marine grade aluminium
• Powdercoated T33 Smoke Blue with gloss finish
