19 Inch Rack

A comprehensive range of 19 inch racks, cabinets and frames suitable for a variety of application and equipment requirements.

Ausrack CQr - Class B and Class C rack

Ausrack CQr

B&R’s Class B and Class C 19 inch security cabinet solutions are suitable for protecting equipment to government security standards.

More...

Ausrack Floor onyX

Ausrack Floor onyX

Ausrack Lite is a light duty network cabinet designed for standalone installations in offices and data cupboards. It includes most of the accessories typically required for an installation.

More...

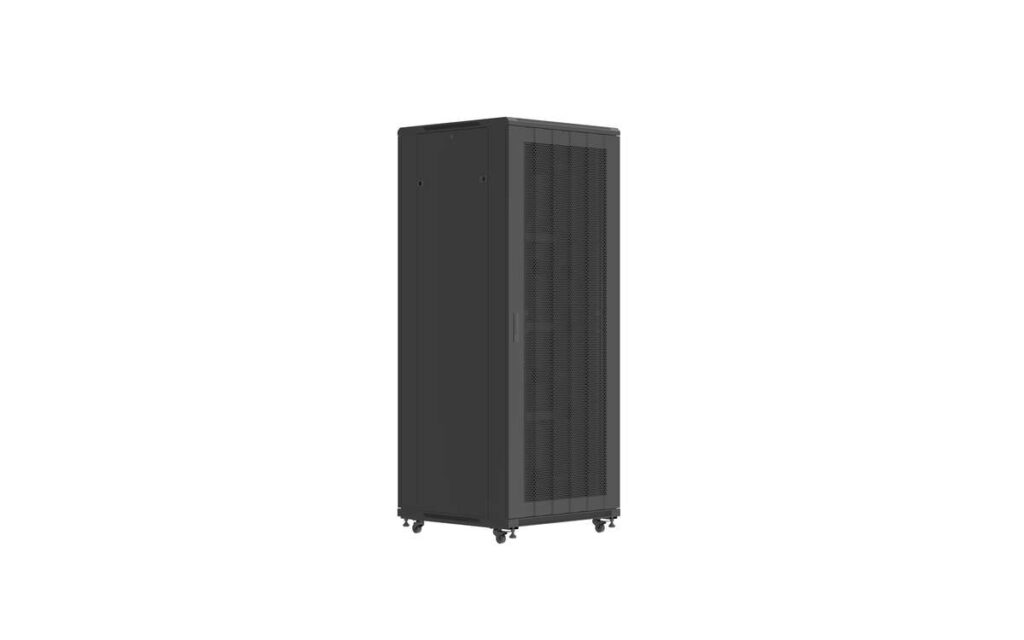

Ausrack onyX Server

Ausrack Floor Server onyX

A range of floor standing cabinets for small networking applications with mesh doors and 10-way Australian 3-Pin power rail.

More...

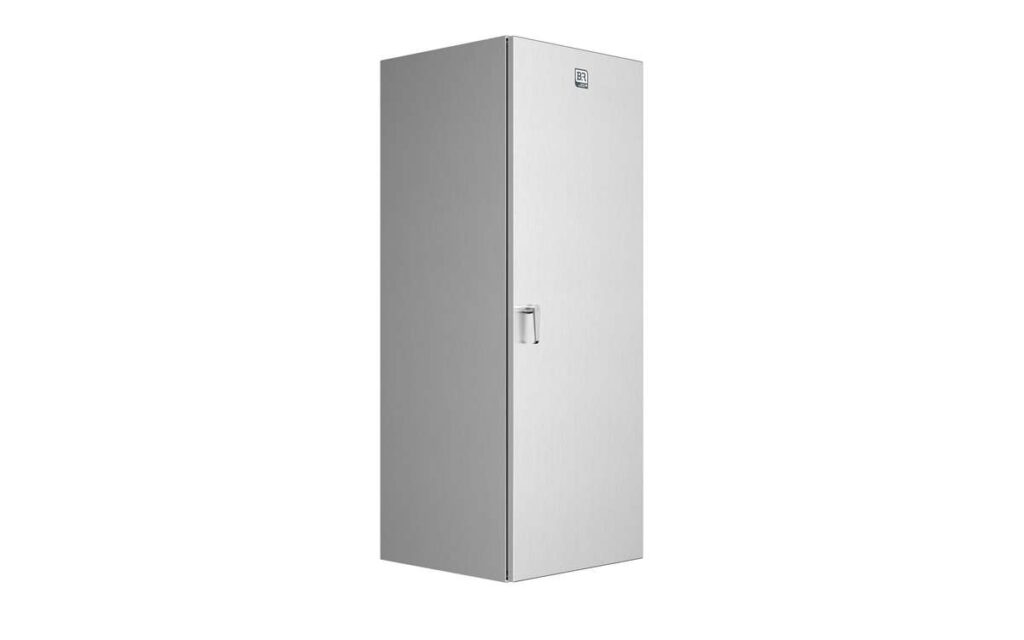

Ausrack IP – 316SS

Ausrack IP – 316SS

A 19″ cabinet system designed to protect sensitive network equipment from harsh environments where equipment may be exposed to dust or water.

More...

Ausrack IP – Zinc Coated Steel

Ausrack IP – Zinc Coated Steel

An IP66, 19 inch cabinet system designed to protect sensitive network equipment from harsh environments where equipment is exposed to dust or water.

More...

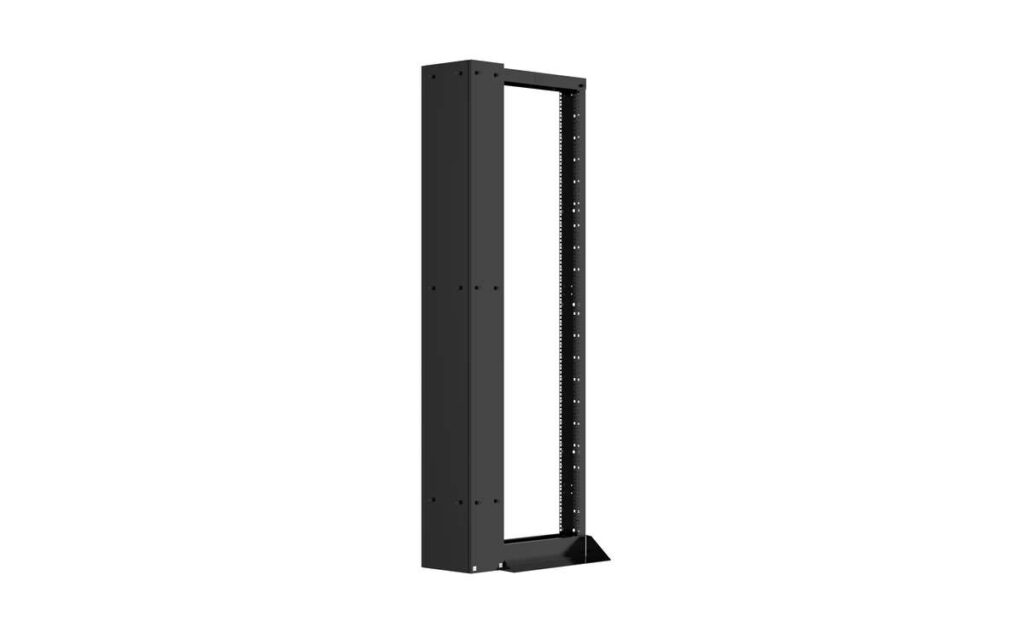

Ausrack Patch

Ausrack Patch

A 2-post frame designed to provide a functional and cost effective solution where accessibility is a major requirement.

More...

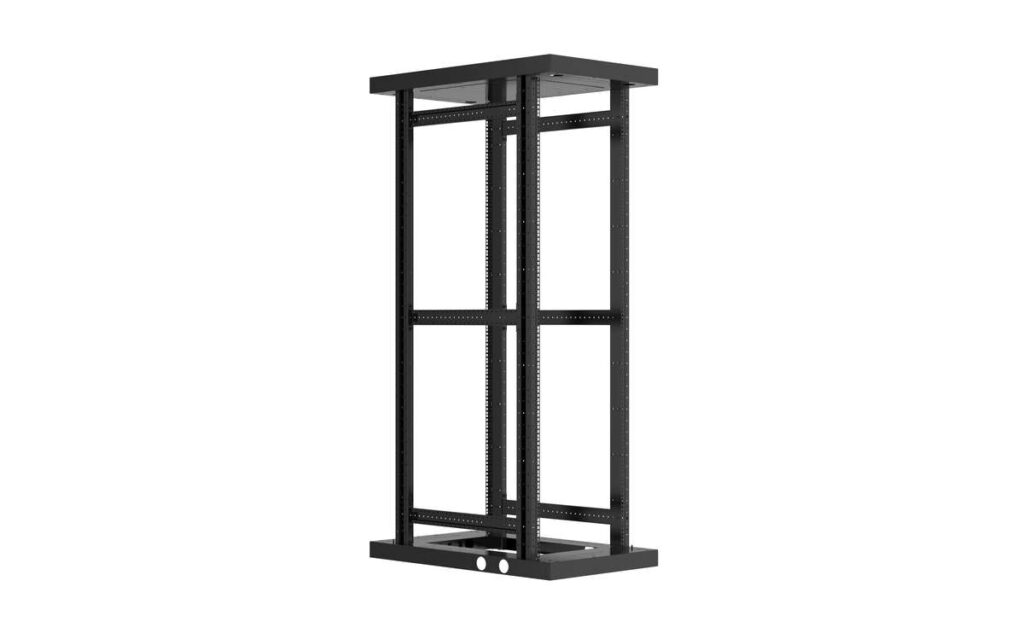

Server Rack Frame

Ausrack Plus Frame

A 19 inch server rack frame that can be configured into suites & clad as per application requirements. The server rack features allow cable access across the front and rear of the rack.

More...

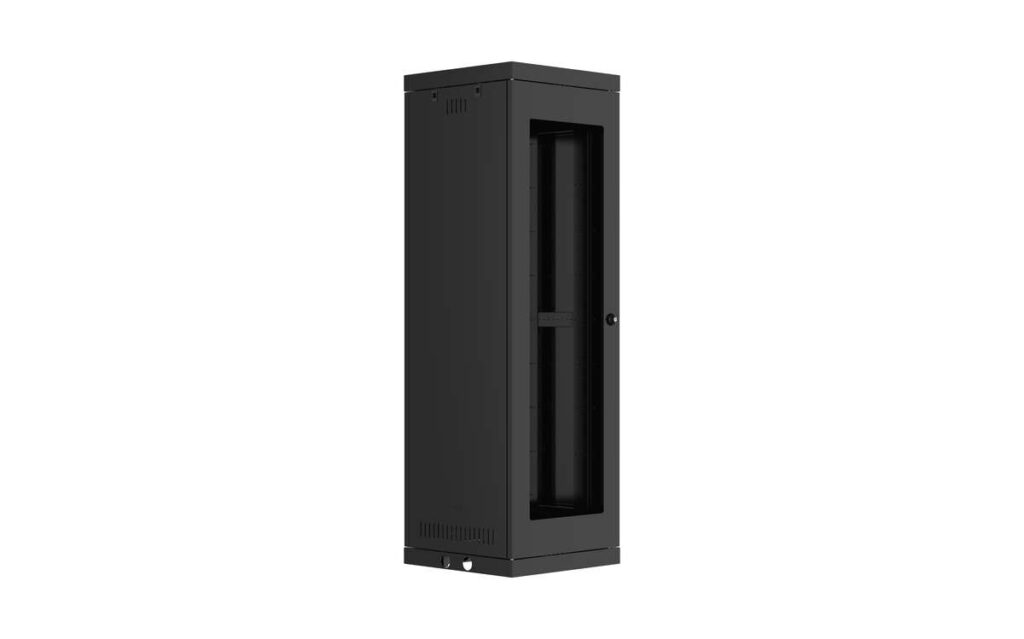

Ausrack Plus Network

Ausrack Plus Network

A 19 inch network cabinet combining versatility & strength with easy-to-use features. Accommodates medium to large passive patching networks & active communications equipment.

More...

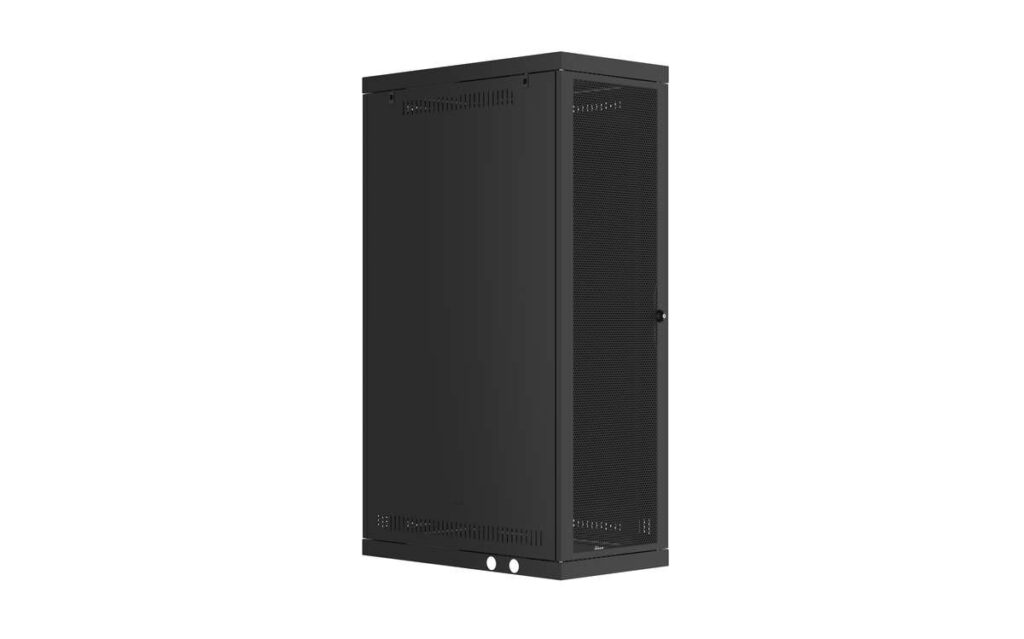

Server Rack

Ausrack Plus Server

Designed as a purpose built 19″ server cabinet. The Ausrack Plus Server features well thought out mounting options and excellent cross flow ventilation.

More...

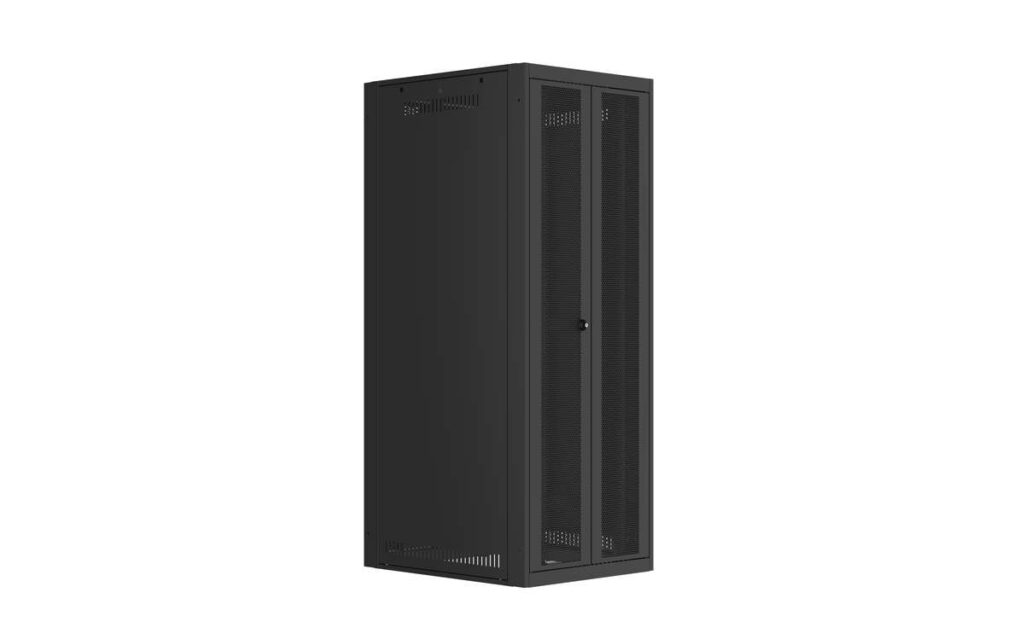

Ausrack TxD

Ausrack TxD

A rack with 4 corner posts often used for Transmission & Data Applications in telecommunications exchange & data centre environments. For 19, 21, 23 or 26 inch equipment.

More...

Ausrack Wall

Ausrack Wall

19 inch wall mount racking cabinets for small networks.

More...

Ausrack Wall Brackets

Ausrack Wall Brackets

Light duty wall mount 19″ bracket. Suitable for applications where cabinet mounting is not practical and space is limited.

More...

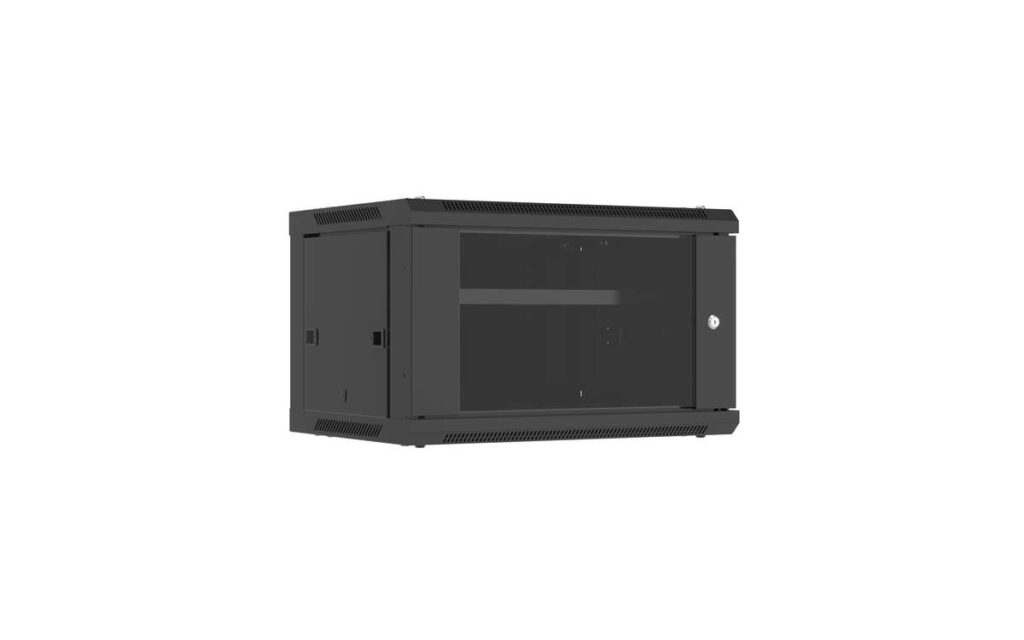

Ausrack Wall onyX

Ausrack Wall onyX

A 19″ wall mount cabinet that is easy-to-install and provides maximum accessibility for maintenance.

More...

Field FC

B&R’s field enclosure is an infrastructure cabinet designed for roadside monitoring equipment with ITS equipment. It is also used for GPS stations and radio equipment.

More...

iLINQ – Stand-Alone

An IP55, multiple application, stand-alone enclosures in single or double door configurations.

More...

iLINQ Bayable Enclosures – Assembled to Order

iLINQ Bayable Enclosures – Assembled to Order

An IP55, multiple application, built-to-order bayable enclosure system.

More...

Transmission Racks

Transmission Racks

Designed for installation in telephone exchanges to house standard telecommunications equipment & accessories. These racks are to be secured to a superstructure.

More...

Design Specification for 19 inch Racks

When designing a rack system, one of the most important factors to take into account, is whether the racks you select will fit the servers you need. The Ausrack Plus range of cabinets are designed to SSI specifications for Computer Server Cabinets & Enclosures. This is an independent specification that has been endorsed by all the major server and network equipment brands.

Specifications

A rack’s mounting fixture consists of two parallel metal strips (referred to as “rails”) standing vertically. The rails are separated by a gap of 17.72 inches (450 mm), and are a minimum of 0.657″ (16.7mm) wide giving an overall rack width of 19 inches (482.6 mm).

The rails have holes in them at regular intervals, with both rails matching, so that each hole is part of a horizontal pair with a centre-to-centre distance of 18.3 inches (465 mm). The holes in the rails are arranged vertically in repeating sets of three, with centre-to-centre separations of 0.5 inch (12.7 mm), 0.625 inch (15.875 mm), 0.625 inch (15.875 mm). The hole pattern thus repeats every 1.75 inches (44.45 mm).

Racks are divided into regions, 1.75 inches in height, within which there are three complete hole pairs in a vertically symmetric pattern, the holes being centred 0.25 inch (6.4 mm), 0.875 inch (22.2 mm), and 1.5 inch (38.1 mm) from the top or bottom of the region. Such a region is commonly known as an “RU” or “U”, for rack unit or unit respectively.

The Ausrack system uses plain square mounting holes as these allow boltless mounting of some equipment, and can be adapted for use with bolts by the use of cage nuts. Rails are made of steel of 2 mm thickness for strength. All Ausrack Plus, TxD and Floor onyX range include 4 rails as standard, 2 at the front and two at the rear.

For an easy to read summary of this information, please see the pdf on rack specifications.
For more information on the type of rack available, see our product range above.
